Bar Chart in Blazor 3D Chart control
13 Jun 20248 minutes to read
Bar chart

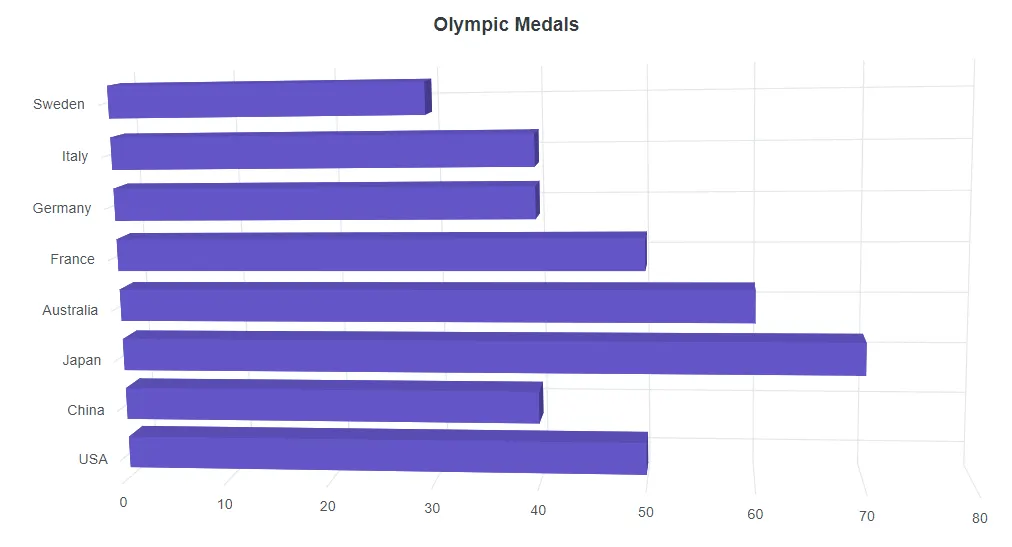

To render a bar series, set series Type as Bar.
@using Syncfusion.Blazor.Chart3D
<SfChart3D Title="Olympic Medals" WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
<Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category">
</Chart3DPrimaryXAxis>
<Chart3DSeriesCollection>
<Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="Chart3DSeriesType.Bar">
</Chart3DSeries>
</Chart3DSeriesCollection>
</SfChart3D>
@code{
public class Chart3DData
{
public string Country { get; set; }
public double Gold { get; set; }
}
public List<Chart3DData> MedalDetails = new List<Chart3DData>
{
new Chart3DData { Country = "USA", Gold = 50 },
new Chart3DData { Country = "China", Gold = 40 },
new Chart3DData { Country = "Japan", Gold = 70 },
new Chart3DData { Country = "Australia", Gold = 60 },
new Chart3DData { Country = "France", Gold = 50 },
new Chart3DData { Country = "Germany", Gold = 40 },
new Chart3DData { Country = "Italy", Gold = 40 },
new Chart3DData { Country = "Sweden", Gold = 30 }
};
}
Bar space and width

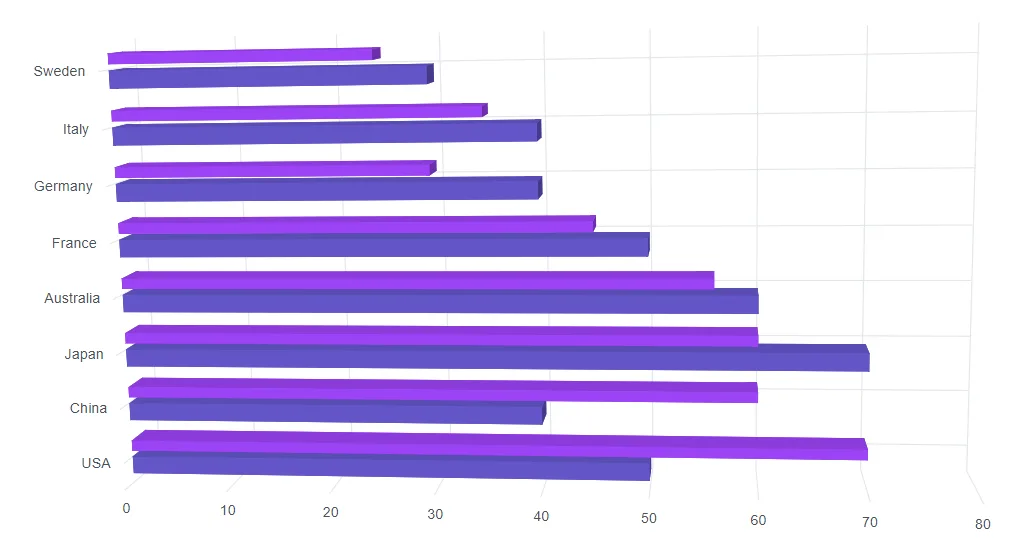

The ColumnSpacing and ColumnWidth properties are used to customize the space between bars.
@using Syncfusion.Blazor.Chart3D
<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
<Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category">
</Chart3DPrimaryXAxis>
<Chart3DSeriesCollection>
<Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="Chart3DSeriesType.Bar" />
<Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Silver" ColumnSpacing="0.5" ColumnWidth="0.75" Type="Chart3DSeriesType.Bar" />
</Chart3DSeriesCollection>
</SfChart3D>
@code{
public class Chart3DData
{
public string Country { get; set; }
public double Gold { get; set; }
public double Silver { get; set; }
}
public List<Chart3DData> MedalDetails = new List<Chart3DData>
{
new Chart3DData { Country = "USA", Gold = 50, Silver = 70 },
new Chart3DData { Country = "China", Gold = 40, Silver = 60 },
new Chart3DData { Country = "Japan", Gold = 70, Silver = 60 },
new Chart3DData { Country = "Australia", Gold = 60, Silver = 56 },
new Chart3DData { Country = "France", Gold = 50, Silver = 45 },
new Chart3DData { Country = "Germany", Gold = 40, Silver = 30 },
new Chart3DData { Country = "Italy", Gold = 40, Silver = 35 },
new Chart3DData { Country = "Sweden", Gold = 30, Silver = 25 }
};
}
Grouped bar

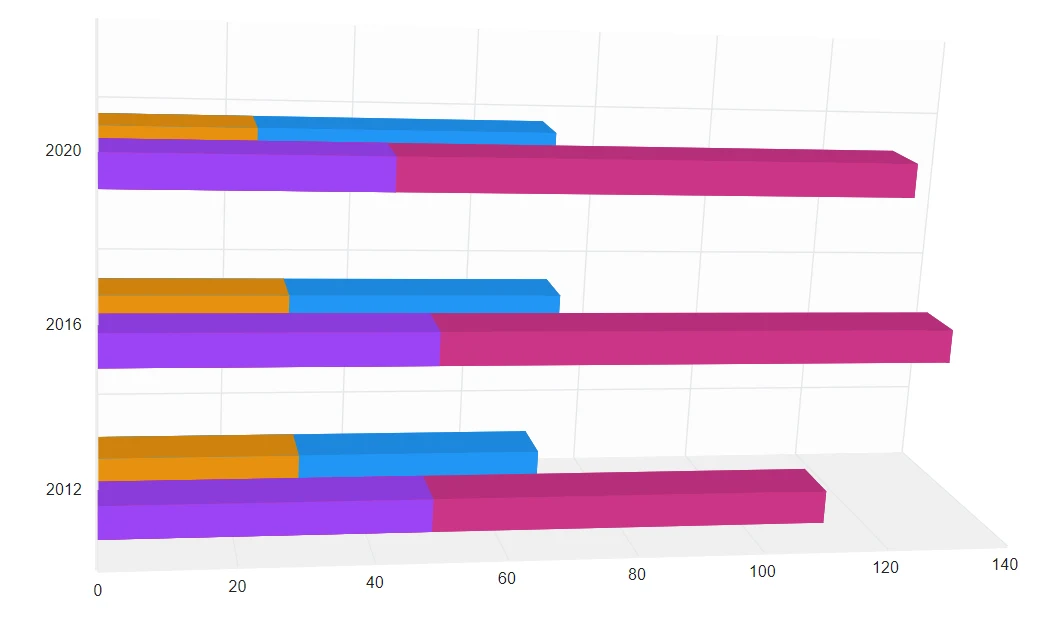

The data points can be grouped in the bar type charts by using the GroupName property. Data points with same group name are grouped together.
@using Syncfusion.Blazor.Chart3D
<SfChart3D EnableSideBySidePlacement="false" RotationAngle="-12" Depth="250" TiltAngle="15">
<Chart3DPrimaryXAxis ValueType="@Syncfusion.Blazor.Chart3D.ValueType.Category">
</Chart3DPrimaryXAxis>
<Chart3DSeriesCollection>
<Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="USA_Total" GroupName="USA" Type="Chart3DSeriesType.Bar" ColumnWidth="0.2" Fill="#CB3587"></Chart3DSeries>
<Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="USA_Gold" GroupName="USA" Type="Chart3DSeriesType.Bar" ColumnWidth="0.2"></Chart3DSeries>
<Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="UK_Total" GroupName="UK" Type="Chart3DSeriesType.Bar" ColumnWidth="0.2"></Chart3DSeries>
<Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="UK_Gold" GroupName="UK" Type="Chart3DSeriesType.Bar" ColumnWidth="0.2" Fill="#E7910F"></Chart3DSeries>
</Chart3DSeriesCollection>
</SfChart3D>
@code {
public class ColumnData
{
public string Year { get; set; }
public double USA_Total { get; set; }
public double USA_Gold { get; set; }
public double UK_Total { get; set; }
public double UK_Gold { get; set; }
public double China_Total { get; set; }
public double China_Gold { get; set; }
}
public List<ColumnData> Chart3DPoints { get; set; } = new List<ColumnData>
{
new ColumnData { Year = "2012", USA_Total = 104, USA_Gold = 46, UK_Total = 65, UK_Gold = 29, China_Total = 91, China_Gold = 38},
new ColumnData { Year = "2016", USA_Total = 121, USA_Gold = 46, UK_Total = 67, UK_Gold = 27, China_Total = 70, China_Gold = 26},
new ColumnData { Year = "2020", USA_Total = 113, USA_Gold = 39, UK_Total = 65, UK_Gold = 22, China_Total = 88, China_Gold = 38}
};
}
Cylindrical column chart

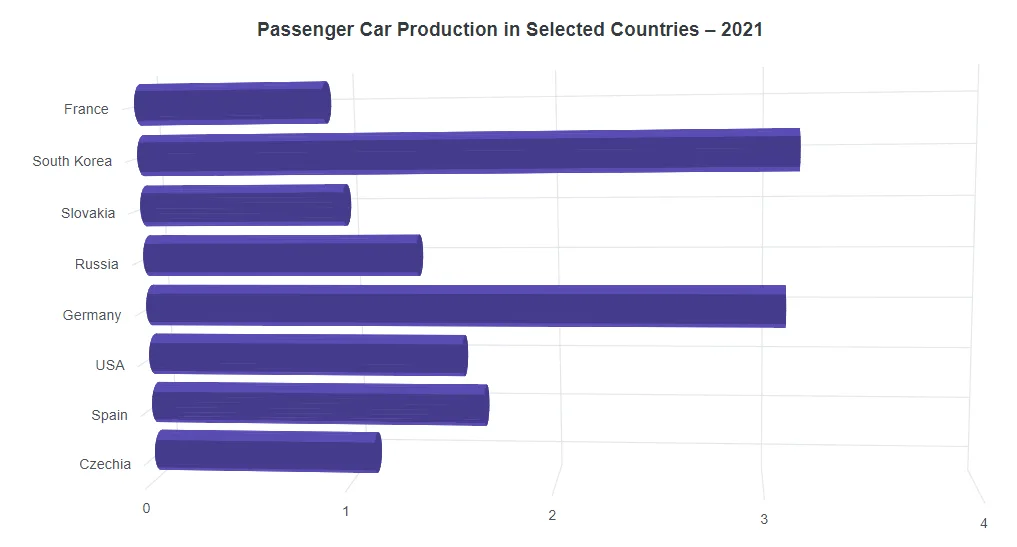

To render a cylindrical column chart, set the ColumnFacet property to Cylinder in the chart series.
@using Syncfusion.Blazor.Chart3D
<SfChart3D WallColor="transparent" RotationAngle="7" TiltAngle="10" Depth="100" Title="Passenger Car Production in Selected Countries – 2021">
<Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" Interval="1"></Chart3DPrimaryXAxis>
<Chart3DPrimaryYAxis Maximum="4" Interval="1"></Chart3DPrimaryYAxis>
<Chart3DSeriesCollection>
<Chart3DSeries DataSource="@Chart3DPoints" XName="X" YName="Y" ColumnWidth="0.9" Type="Chart3DSeriesType.Bar" ColumnFacet="Chart3DShapeType.Cylinder"></Chart3DSeries>
</Chart3DSeriesCollection>
<Chart3DTooltipSettings Enable="true" Header="${point.x}" Format="Car Production : <b>${point.y}M"></Chart3DTooltipSettings>
</SfChart3D>
@code {
public List<ColumnChart3DData> Chart3DPoints { get; set; } = new List<ColumnChart3DData>
{
new ColumnChart3DData { X = "Czechia", Y = 1.11 },
new ColumnChart3DData { X = "Spain", Y = 1.66 },
new ColumnChart3DData { X = "USA", Y = 1.56 },
new ColumnChart3DData { X = "Germany", Y = 3.1 },
new ColumnChart3DData { X = "Russia", Y = 1.35 },
new ColumnChart3DData { X = "Slovakia", Y = 1 },
new ColumnChart3DData { X = "South Korea", Y = 3.16 },
new ColumnChart3DData { X = "France", Y = 0.92 }
};
public class ColumnChart3DData
{
public string X { get; set; }
public double Y { get; set; }
}
}
Series customization

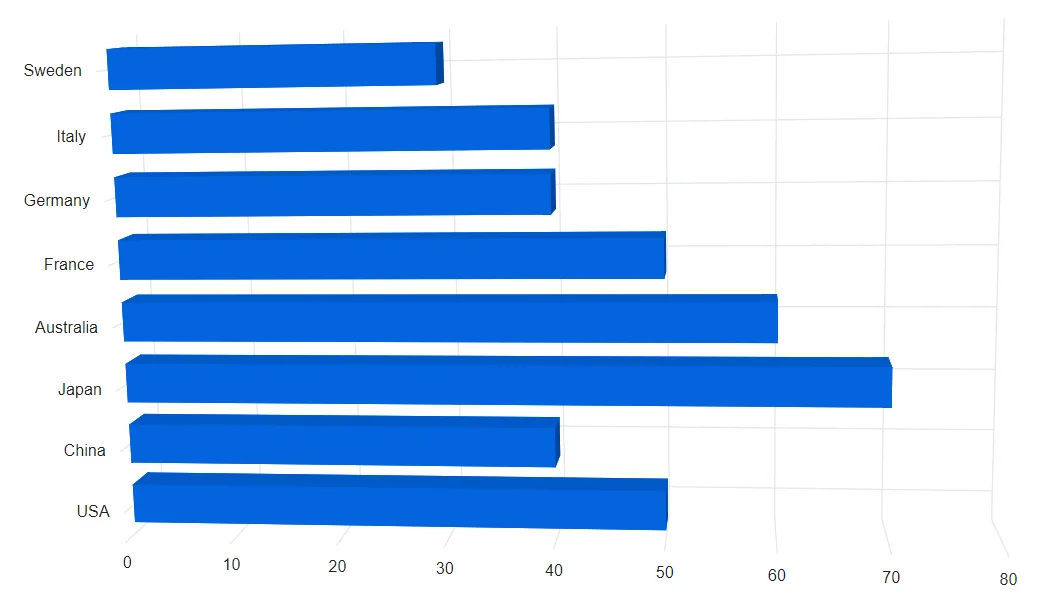

The following properties can be used to customize the Bar series.
-
Fill– Specifies the color of the series. -
Opacity– Specifies the opacity of theFillcolor.
@using Syncfusion.Blazor.Chart3D
<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
<Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category">
</Chart3DPrimaryXAxis>
<Chart3DSeriesCollection>
<Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Fill="#0364DE" Type="Chart3DSeriesType.Bar" />
</Chart3DSeriesCollection>
</SfChart3D>
@code{
public class Chart3DData
{
public string Country { get; set; }
public double Gold { get; set; }
public double Silver { get; set; }
}
public List<Chart3DData> MedalDetails = new List<Chart3DData>
{
new Chart3DData { Country = "USA", Gold = 50, Silver = 70 },
new Chart3DData { Country = "China", Gold = 40, Silver = 60 },
new Chart3DData { Country = "Japan", Gold = 70, Silver = 60 },
new Chart3DData { Country = "Australia", Gold = 60, Silver = 56 },
new Chart3DData { Country = "France", Gold = 50, Silver = 45 },
new Chart3DData { Country = "Germany", Gold = 40, Silver = 30 },
new Chart3DData { Country = "Italy", Gold = 40, Silver = 35 },
new Chart3DData { Country = "Sweden", Gold = 30, Silver = 25 }
};
}
