Column Chart in Blazor 3D Chart Component

13 Jun 20248 minutes to read

Column

To render a Column Chart, use series Type as Column.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"/>

    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="Chart3DSeriesType.Column">
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<Chart3DData> MedalDetails = new List<Chart3DData>
	{
        new Chart3DData { X = "USA", Y = 61.3 },
        new Chart3DData { X = "Pakistan", Y = 20.4 },
        new Chart3DData { X = "Germany", Y = 65.1 },
        new Chart3DData { X = "Australia", Y = 15.8 },
        new Chart3DData { X = "Italy", Y = 29.2 },
        new Chart3DData { X = "India", Y = 44.6 },
        new Chart3DData { X = "Russia", Y = 40.8 },
        new Chart3DData { X = "Mexico", Y = 31 },
        new Chart3DData { X = "Brazil", Y = 75.9 },
        new Chart3DData { X = "China", Y = 51.4 }
    };
}

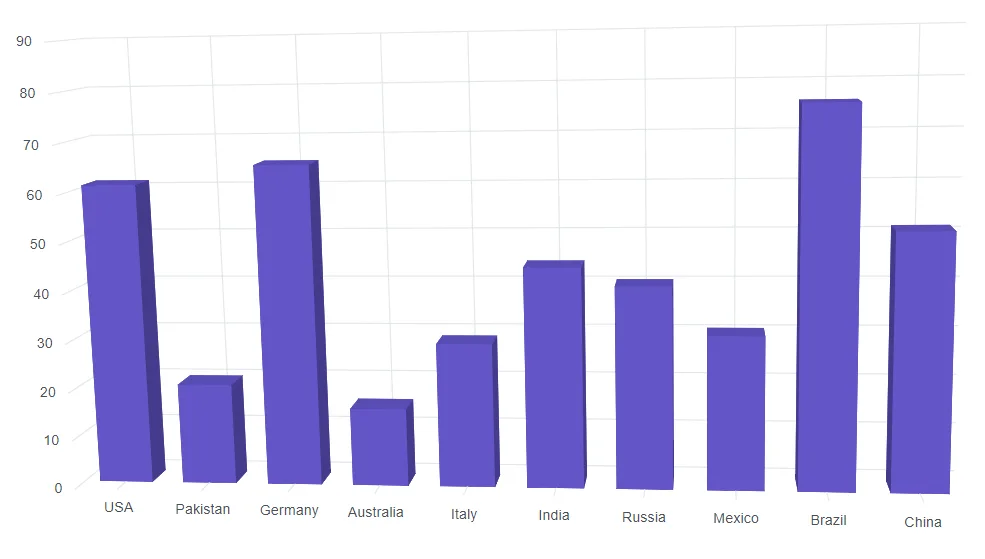

Blazor Column 3D Chart

Column space and width

The ColumnSpacing and ColumnWidth properties are used to customize the space between columns.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category">
    </Chart3DPrimaryXAxis>

    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="Chart3DSeriesType.Column" />
        <Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Silver" ColumnSpacing="0.5" ColumnWidth="0.75" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
    }

    public List<Chart3DData> MedalDetails = new List<Chart3DData>
    {
		new Chart3DData { Country = "USA", Gold = 50, Silver = 70 },
		new Chart3DData { Country = "China", Gold = 40, Silver = 60 },
		new Chart3DData { Country = "Japan", Gold = 70, Silver = 60 },
		new Chart3DData { Country = "Australia", Gold = 60, Silver = 56 },
		new Chart3DData { Country = "France", Gold = 50, Silver = 45 },
		new Chart3DData { Country = "Germany", Gold = 40, Silver = 30 },
		new Chart3DData { Country = "Italy", Gold = 40, Silver = 35 },
		new Chart3DData { Country = "Sweden", Gold = 30, Silver = 25 }
    };
}

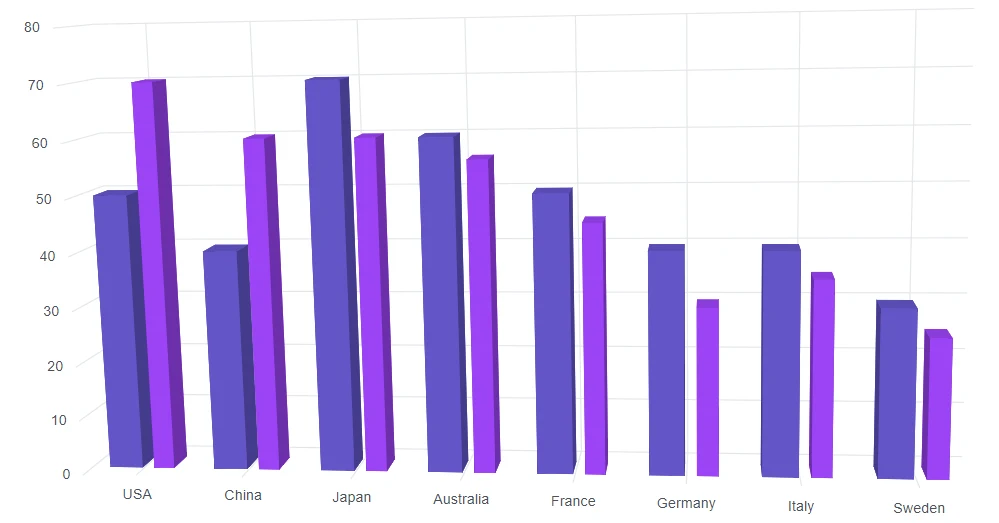

Blazor Column 3D Chart with Space and Width

Grouped column

The data points can be grouped in the column type charts by using the GroupName property. Data points with same group name are grouped together.

@using Syncfusion.Blazor.Chart3D

<SfChart3D EnableSideBySidePlacement="false" RotationAngle="20" Depth="300">
    <Chart3DPrimaryXAxis ValueType="@Syncfusion.Blazor.Chart3D.ValueType.Category">
    </Chart3DPrimaryXAxis>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="USA_Total" GroupName="USA" ColumnWidth="0.2" Fill="#CB3587"></Chart3DSeries>
        <Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="USA_Gold" GroupName="USA" ColumnWidth="0.2"></Chart3DSeries>
        <Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="UK_Total" GroupName="UK" ColumnWidth="0.2"></Chart3DSeries>
        <Chart3DSeries DataSource="@Chart3DPoints" XName="Year" YName="UK_Gold" GroupName="UK" ColumnWidth="0.2" Fill="#E7910F"></Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class ColumnData
    {
        public string Year { get; set; }
        public double USA_Total { get; set; }
        public double USA_Gold { get; set; }
        public double UK_Total { get; set; }
        public double UK_Gold { get; set; }
        public double China_Total { get; set; }
        public double China_Gold { get; set; }
    }
    public List<ColumnData> Chart3DPoints { get; set; } = new List<ColumnData>
    {
        new ColumnData { Year = "2012", USA_Total = 104, USA_Gold = 46, UK_Total = 65, UK_Gold = 29, China_Total = 91, China_Gold = 38},
        new ColumnData { Year = "2016", USA_Total = 121, USA_Gold = 46, UK_Total = 67, UK_Gold = 27, China_Total = 70, China_Gold = 26},
        new ColumnData { Year = "2020", USA_Total = 113, USA_Gold = 39, UK_Total = 65, UK_Gold = 22, China_Total = 88, China_Gold = 38}
    };
}

Grouping in Blazor Grouped Column 3D Chart

Cylindrical column chart

To render a cylindrical column chart, set the ColumnFacet property to Cylinder in the chart series.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" RotationAngle="7" TiltAngle="10" Depth="100" Title="Passenger Car Production in Selected Countries – 2021">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" Interval="1"></Chart3DPrimaryXAxis>
    <Chart3DPrimaryYAxis Maximum="4" Interval="1"></Chart3DPrimaryYAxis>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Chart3DPoints" XName="X" YName="Y" ColumnWidth="0.9" Type="Chart3DSeriesType.Column" ColumnFacet="Chart3DShapeType.Cylinder"></Chart3DSeries>
    </Chart3DSeriesCollection>
    <Chart3DTooltipSettings Enable="true" Header="${point.x}" Format="Car Production : <b>${point.y}M"></Chart3DTooltipSettings>
</SfChart3D>
@code {
    public List<ColumnChart3DData> Chart3DPoints { get; set; } = new List<ColumnChart3DData>
    {
        new ColumnChart3DData { X = "Czechia", Y = 1.11 },
        new ColumnChart3DData { X = "Spain", Y = 1.66 },
        new ColumnChart3DData { X = "USA", Y = 1.56 },
        new ColumnChart3DData { X = "Germany", Y = 3.1 },
        new ColumnChart3DData { X = "Russia", Y = 1.35 },
        new ColumnChart3DData { X = "Slovakia", Y = 1 },
        new ColumnChart3DData { X = "South Korea", Y = 3.16 },
        new ColumnChart3DData { X = "France", Y = 0.92 }
    };
    public class ColumnChart3DData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }
}

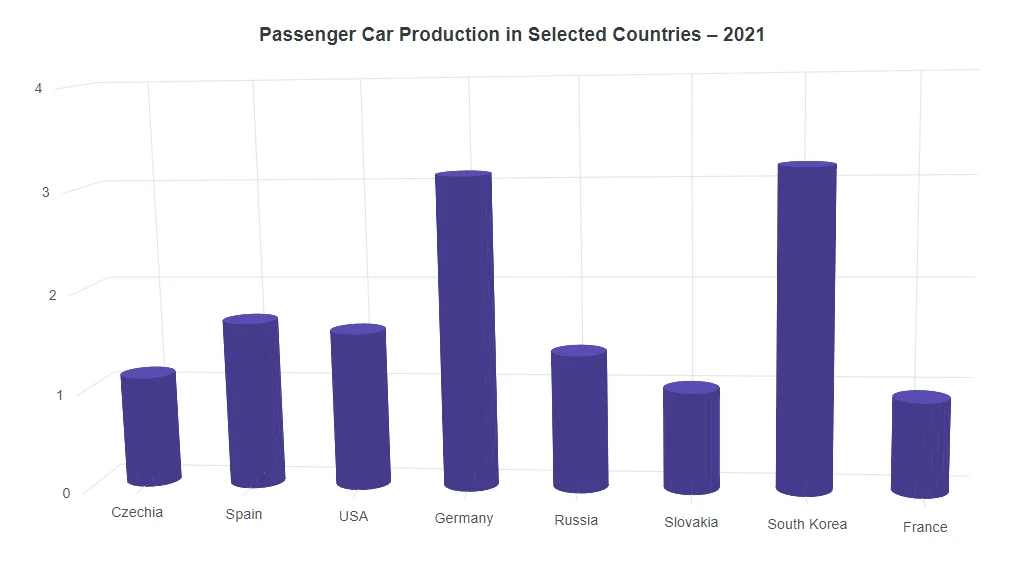

Blazor Cylindrical Column 3D Chart

Series customization

The following properties can be used to customize the Column series.

  • Fill – Specifies the color of the series.
  • Opacity – Specifies the opacity of the Fill color.
@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category">
    </Chart3DPrimaryXAxis>

    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Fill="#0364DE" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
    }

    public List<Chart3DData> MedalDetails = new List<Chart3DData>
    {
		new Chart3DData { Country = "USA", Gold = 50, Silver = 70 },
		new Chart3DData { Country = "China", Gold = 40, Silver = 60 },
		new Chart3DData { Country = "Japan", Gold = 70, Silver = 60 },
		new Chart3DData { Country = "Australia", Gold = 60, Silver = 56 },
		new Chart3DData { Country = "France", Gold = 50, Silver = 45 },
		new Chart3DData { Country = "Germany", Gold = 40, Silver = 30 },
		new Chart3DData { Country = "Italy", Gold = 40, Silver = 35 },
		new Chart3DData { Country = "Sweden", Gold = 30, Silver = 25 }
    };
}

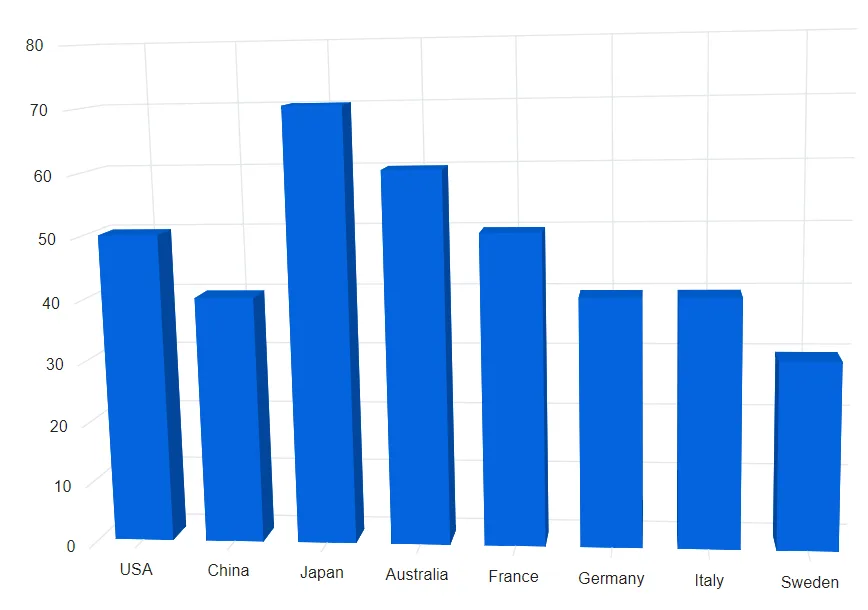

Blazor Column 3D Chart with Custom Series
