Tooltip in Blazor 3D Chart Component

13 Jun 202411 minutes to read

The 3D Chart will display details about the points through tooltip, when the mouse is moved over the specific point.

Default tooltip

By default, tooltip is not visible. The tooltip can be enabled by setting the Enable property in Chart3DTooltipSettings to true.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" LabelPlacement="Syncfusion.Blazor.Chart3D.LabelPlacement.BetweenTicks" />
    <Chart3DTooltipSettings Enable="true"></Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Month { get; set; }
        public double Sales { get; set; }
    }

    public List<Chart3DData> SalesReports = new List<Chart3DData>
    {
        new Chart3DData { Month = "Jan", Sales = 35 },
        new Chart3DData { Month = "Feb", Sales = 28 },
        new Chart3DData { Month = "Mar", Sales = 34 },
        new Chart3DData { Month = "Apr", Sales = 32 },
        new Chart3DData { Month = "May", Sales = 40 },
        new Chart3DData { Month = "Jun", Sales = 32 },
        new Chart3DData { Month = "Jul", Sales = 35 },
        new Chart3DData { Month = "Aug", Sales = 55 },
        new Chart3DData { Month = "Sep", Sales = 38 },
        new Chart3DData { Month = "Oct", Sales = 30 },
        new Chart3DData { Month = "Nov", Sales = 25 },
        new Chart3DData { Month = "Dec", Sales = 32 }
    };
}

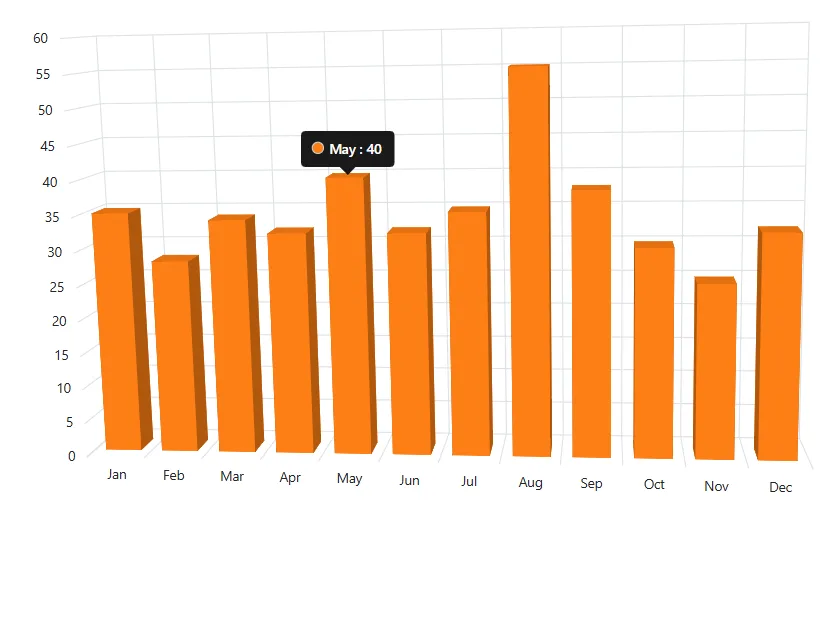

Blazor Column 3D Chart with Tooltip

Fixed tooltip

By default, tooltip track the mouse movement, but the tooltip can be set in fixed position by using the Chart3DTooltipLocation property.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" LabelPlacement="Syncfusion.Blazor.Chart3D.LabelPlacement.BetweenTicks" />
    <Chart3DTooltipSettings Enable="true">
        <Chart3DTooltipLocation X="120" Y="20"></Chart3DTooltipLocation>
    </Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Month { get; set; }
        public double Sales { get; set; }
    }

    public List<Chart3DData> SalesReports = new List<Chart3DData>
    {
        new Chart3DData { Month = "Jan", Sales = 35 },
        new Chart3DData { Month = "Feb", Sales = 28 },
        new Chart3DData { Month = "Mar", Sales = 34 },
        new Chart3DData { Month = "Apr", Sales = 32 },
        new Chart3DData { Month = "May", Sales = 40 },
        new Chart3DData { Month = "Jun", Sales = 32 },
        new Chart3DData { Month = "Jul", Sales = 35 },
        new Chart3DData { Month = "Aug", Sales = 55 },
        new Chart3DData { Month = "Sep", Sales = 38 },
        new Chart3DData { Month = "Oct", Sales = 30 },
        new Chart3DData { Month = "Nov", Sales = 25 },
        new Chart3DData { Month = "Dec", Sales = 32 }
    };
}

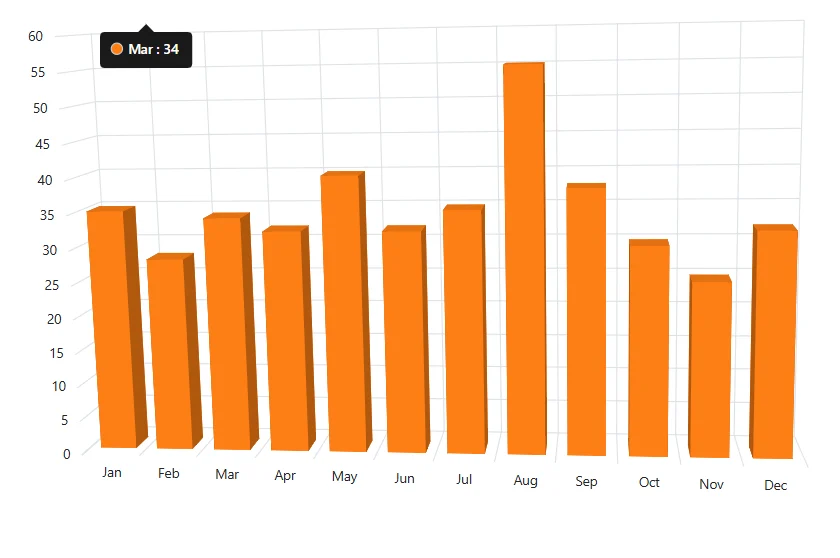

Blazor Column 3D Chart with Fixed Tooltip

Format the tooltip

By default, tooltip shows information of x and y value in points. In addition to that, more information can be shown in tooltip by using the Format property. For example the format ${series.name} : ${point.y} shows series name and point y value.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" LabelPlacement="Syncfusion.Blazor.Chart3D.LabelPlacement.BetweenTicks" />
    <Chart3DTooltipSettings Enable="true" Header="Sales" Format="<b>${series.name} : ${point.y}</b>">
    </Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Month { get; set; }
        public double Sales { get; set; }
    }

    public List<Chart3DData> SalesReports = new List<Chart3DData>
    {
        new Chart3DData { Month = "Jan", Sales = 35 },
        new Chart3DData { Month = "Feb", Sales = 28 },
        new Chart3DData { Month = "Mar", Sales = 34 },
        new Chart3DData { Month = "Apr", Sales = 32 },
        new Chart3DData { Month = "May", Sales = 40 },
        new Chart3DData { Month = "Jun", Sales = 32 },
        new Chart3DData { Month = "Jul", Sales = 35 },
        new Chart3DData { Month = "Aug", Sales = 55 },
        new Chart3DData { Month = "Sep", Sales = 38 },
        new Chart3DData { Month = "Oct", Sales = 30 },
        new Chart3DData { Month = "Nov", Sales = 25 },
        new Chart3DData { Month = "Dec", Sales = 32 }
    };
}

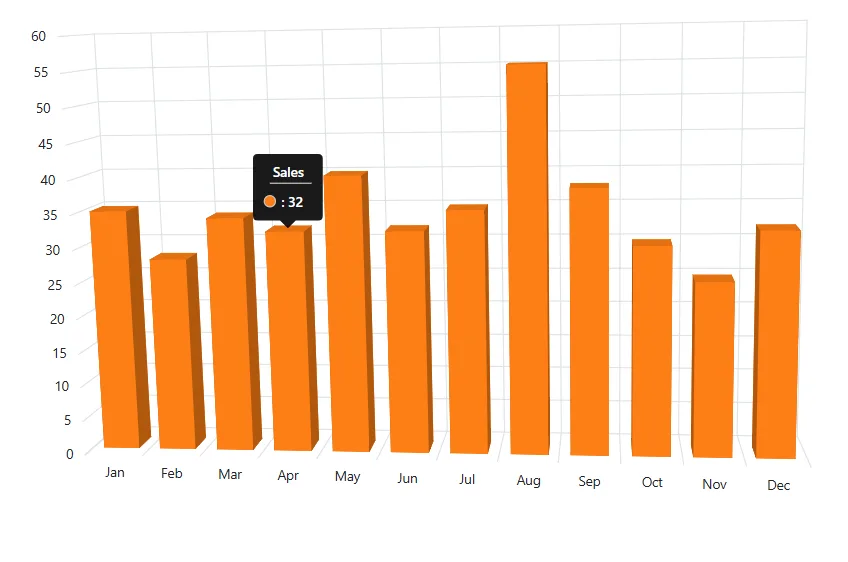

Blazor Column 3D Chart with Tooltip Format

Tooltip template

Any HTML elements can be displayed within the tooltip by using the Chart3DTooltipTemplate property of the Chart3DTooltipSettings. You can use the data.X and data.Y as place holders in the HTML element to display x and y values of the corresponding data point.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" LabelPlacement="Syncfusion.Blazor.Chart3D.LabelPlacement.BetweenTicks" />
    <Chart3DTooltipSettings Enable="true">
        <Chart3DTooltipTemplate>
            @{
                var data = context as Chart3DTooltipInfo;
                <div>
                    <table style="width:100%;  border: 1px solid black;">
                        <tr><th colspan="2" bgcolor="#00FFFF">Unemployment</th></tr>
                        <tr><td bgcolor="#00FFFF">@data.X:</td><td bgcolor="#00FFFF">@data.Y</td></tr>
                    </table>
                </div>
            }
        </Chart3DTooltipTemplate>
    </Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Month { get; set; }
        public double Sales { get; set; }
    }

    public List<Chart3DData> SalesReports = new List<Chart3DData>
    {
        new Chart3DData { Month = "Jan", Sales = 35 },
        new Chart3DData { Month = "Feb", Sales = 28 },
        new Chart3DData { Month = "Mar", Sales = 34 },
        new Chart3DData { Month = "Apr", Sales = 32 },
        new Chart3DData { Month = "May", Sales = 40 },
        new Chart3DData { Month = "Jun", Sales = 32 },
        new Chart3DData { Month = "Jul", Sales = 35 },
        new Chart3DData { Month = "Aug", Sales = 55 },
        new Chart3DData { Month = "Sep", Sales = 38 },
        new Chart3DData { Month = "Oct", Sales = 30 },
        new Chart3DData { Month = "Nov", Sales = 25 },
        new Chart3DData { Month = "Dec", Sales = 32 }
    };
}

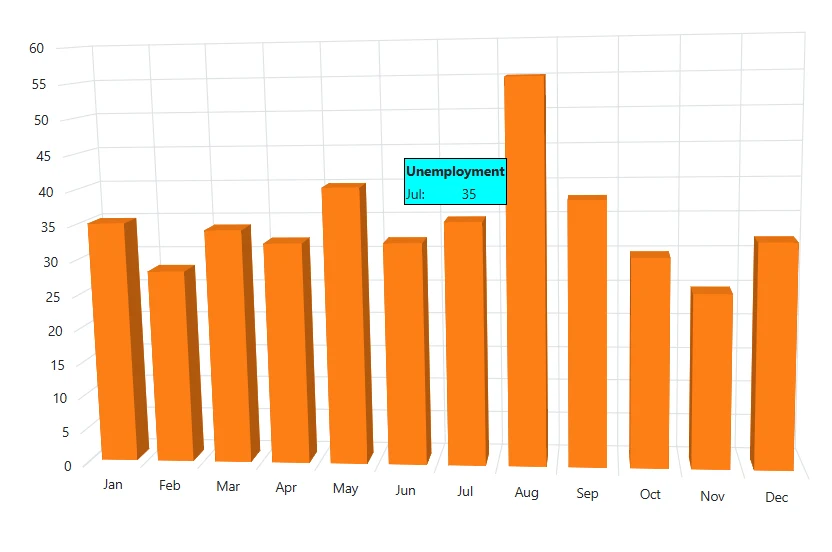

Blazor Column 3D Chart with Tooltip Template

Customize the appearance of tooltip

The Fill and Border properties are used to customize the background color and the border of the tooltip respectively. The ChartTooltipTextStyle is used to customize the tooltip text.

@using Syncfusion.Blazor.Chart3D

<SfChart3D WallColor="transparent" EnableRotation="true" RotationAngle="7" TiltAngle="10" Depth="100">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category" LabelPlacement="Syncfusion.Blazor.Chart3D.LabelPlacement.BetweenTicks" />
    <Chart3DTooltipSettings Enable="true" Format="<b>${point.x} : ${point.y}</b>" Fill="#7bb4eb">
        <Chart3DTooltipBorder Color="red" Width="1"></Chart3DTooltipBorder>
    </Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="Chart3DSeriesType.Column" />
    </Chart3DSeriesCollection>
</SfChart3D>

@code{
    public class Chart3DData
    {
        public string Month { get; set; }
        public double Sales { get; set; }
    }

    public List<Chart3DData> SalesReports = new List<Chart3DData>
    {
        new Chart3DData { Month = "Jan", Sales = 35 },
        new Chart3DData { Month = "Feb", Sales = 28 },
        new Chart3DData { Month = "Mar", Sales = 34 },
        new Chart3DData { Month = "Apr", Sales = 32 },
        new Chart3DData { Month = "May", Sales = 40 },
        new Chart3DData { Month = "Jun", Sales = 32 },
        new Chart3DData { Month = "Jul", Sales = 35 },
        new Chart3DData { Month = "Aug", Sales = 55 },
        new Chart3DData { Month = "Sep", Sales = 38 },
        new Chart3DData { Month = "Oct", Sales = 30 },
        new Chart3DData { Month = "Nov", Sales = 25 },
        new Chart3DData { Month = "Dec", Sales = 32 }
    };
}

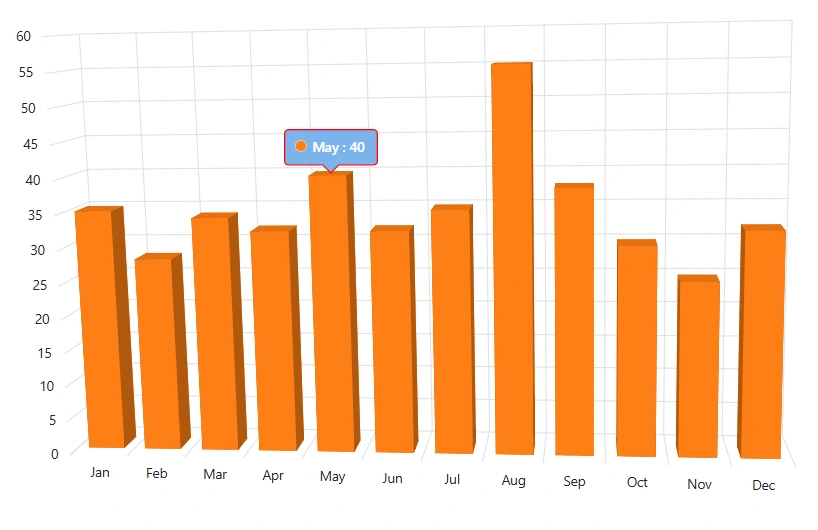

Blazor Column 3D Chart with Custom Tooltip
