Animations in Blazor Accordion

14 Aug 202617 minutes to read

The Blazor Accordion component supports custom animations for both expand and collapse actions using the options provided by the AccordionAnimationSettings component. The animation properties allow you to customize aspects such as Effect, Duration, and Easing according to your preference.

By default, the Accordion uses SlideDown animation for expanding panels (set through the Expand property) and SlideUp animation for collapsing panels (set through the Collapse property). You can disable animations completely by setting Effect to None.

Available animation properties

Property Type Default Description
Effect AnimationEffect SlideDown (Expand) / SlideUp (Collapse) Specifies the type of animation effect. Use None to disable animation.
Duration int 400 Duration of the animation in milliseconds.
Easing string linear CSS animation-timing-function value (e.g., ease, ease-in, ease-out, ease-in-out, cubic-bezier(…)).

Supported AnimationEffect values

Value Applies To Description
SlideDown Expand Slides the panel downward.
SlideUp Collapse Slides the panel upward.
SlideLeft Expand / Collapse Slides the panel to the left.
SlideRight Expand / Collapse Slides the panel to the right.
SlideLeftIn Expand Slides the panel in from the left.
SlideRightIn Expand Slides the panel in from the right.
SlideLeftOut Collapse Slides the panel out to the left.
SlideRightOut Collapse Slides the panel out to the right.
SlideTopIn Expand Slides the panel in from the top.
SlideBottomIn Expand Slides the panel in from the bottom.
SlideTopOut Collapse Slides the panel out to the top.
SlideBottomOut Collapse Slides the panel out to the bottom.
FadeIn Expand / Collapse Fades the panel in.
FadeOut Expand / Collapse Fades the panel out.
FadeZoomIn Expand / Collapse Combined fade and zoom-in.
FadeZoomOut Expand / Collapse Combined fade and zoom-out.
ZoomIn Expand / Collapse Scales the panel up from small.
ZoomOut Expand / Collapse Scales the panel down to small.
FlipXDownIn Expand Flips the panel in from the top.
FlipXDownOut Collapse Flips the panel out to the top.
FlipXUpIn Expand Flips the panel in from the bottom.
FlipXUpOut Collapse Flips the panel out to the bottom.
FlipYLeftIn Expand Flips the panel in from the right.
FlipYLeftOut Collapse Flips the panel out to the right.
FlipYRightIn Expand Flips the panel in from the left.
FlipYRightOut Collapse Flips the panel out to the left.
FlipLeftDownIn Expand Flip on left axis, slide in from top.
FlipLeftDownOut Collapse Flip on left axis, slide out to top.
FlipLeftUpIn Expand Flip on left axis, slide in from bottom.
FlipLeftUpOut Collapse Flip on left axis, slide out to bottom.
FlipRightDownIn Expand Flip on right axis, slide in from top.
FlipRightDownOut Collapse Flip on right axis, slide out to top.
FlipRightUpIn Expand Flip on right axis, slide in from bottom.
FlipRightUpOut Collapse Flip on right axis, slide out to bottom.
None Expand / Collapse Disables the animation.

Customizing duration and easing

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Navigations

<SfAccordion>
    <AccordionAnimationSettings>
        <AccordionAnimationCollapse Effect="AnimationEffect.FadeOut"
                                    Duration="600"
                                    Easing="ease-in-out">
        </AccordionAnimationCollapse>
        <AccordionAnimationExpand Effect="AnimationEffect.FadeZoomIn"
                                  Duration="600"
                                  Easing="ease-in-out">
        </AccordionAnimationExpand>
    </AccordionAnimationSettings>
    <AccordionItems>
        <AccordionItem Header="ASP.NET" Content="Microsoft ASP.NET is a set of technologies in the Microsoft .NET Framework for building Web applications and XML Web services."></AccordionItem>
        <AccordionItem Header="ASP.NET MVC" Content="The Model-View-Controller (MVC) architectural pattern separates an application into three main components: the model, the view, and the controller."></AccordionItem>
    </AccordionItems>
</SfAccordion>

How to disable animations

Set Effect to None on both the AccordionAnimationExpand and AccordionAnimationCollapse elements:

<AccordionAnimationSettings>
    <AccordionAnimationExpand Effect="AnimationEffect.None"></AccordionAnimationExpand>
    <AccordionAnimationCollapse Effect="AnimationEffect.None"></AccordionAnimationCollapse>
</AccordionAnimationSettings>

Example: selecting an animation from a DropDownList

The following example demonstrates how to bind a DropDownList so a user can choose the Expand and Collapse animation at runtime.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.DropDowns

<div id="container">
    <div id="default" style="padding-bottom:75px;">
        <div class="row">
            <div class="col-xs-6 col-sm-6 col-lg-6 col-md-6">
                <label> Expand Animation </label>
            </div>
            <div class="col-xs-6 col-sm-6 col-lg-6 col-md-6">
                <SfDropDownList TValue="AnimationEffect" DataSource="@AnimationData" TItem="Effect" PopupHeight="200px" Placeholder="Select an animation" @bind-Value="ExpandEffect">
                    <DropDownListFieldSettings Value="ID" Text="Text"></DropDownListFieldSettings>
                </SfDropDownList>
            </div>
        </div>
        <div class="row">
            <div class="col-xs-6 col-sm-6 col-lg-6 col-md-6">
                <label> Collapse Animation </label>
            </div>
            <div class="col-xs-6 col-sm-6 col-lg-6 col-md-6">
                <SfDropDownList TValue="AnimationEffect" DataSource="@AnimationData" TItem="Effect" PopupHeight="200px" Placeholder="Select an animation" @bind-Value="CollapseEffect">
                    <DropDownListFieldSettings Value="ID" Text="Text"></DropDownListFieldSettings>
                </SfDropDownList>
            </div>
        </div>
    </div>
    <SfAccordion>
        <AccordionAnimationSettings>
            <AccordionAnimationCollapse Effect=@CollapseEffect></AccordionAnimationCollapse>
            <AccordionAnimationExpand Effect=@ExpandEffect></AccordionAnimationExpand>
        </AccordionAnimationSettings>
        <AccordionItems>
            <AccordionItem Header="ASP.NET" Content="Microsoft ASP.NET is a set of technologies in the Microsoft .NET Framework for building Web applications and XML Web services. ASP.NET pages execute on the server and generate markup such as HTML, WML, or XML that is sent to a desktop or mobile browser. ASP.NET pages use a compiled,event-driven programming model that improves performance and enables the separation of application logic and user interface.">
            </AccordionItem>
            <AccordionItem Header="ASP.NET MVC" Content="The Model-View-Controller (MVC) architectural pattern separates an application into three main components: the model, the view, and the controller. The ASP.NET MVC framework provides an alternative to the ASP.NET Web Forms pattern for creating Web applications. The ASP.NET MVC framework is a lightweight, highly testable presentation framework that (as with Web Forms-based applications) is integrated with existing ASP.NET features, such as master pages and membership-based authentication.">
            </AccordionItem>
            <AccordionItem Header="JavaScript" Content="JavaScript (JS) is an interpreted computer programming language. It was originally implemented as part of web browsers so that client-side scripts could interact with the user, control the browser, communicate asynchronously, and alter the document content that was displayed. More recently, however, it has become common in both server-side development and the creation of desktop applications.">
            </AccordionItem>
        </AccordionItems>
    </SfAccordion>
</div>

@code {
    public AnimationEffect ExpandEffect = AnimationEffect.SlideDown;
    public AnimationEffect CollapseEffect = AnimationEffect.SlideUp;

    public class Effect
    {
        public AnimationEffect ID { get; set; }
        public string Text { get; set; }
    }

    private List<Effect> AnimationData = new()
    {
        new Effect { ID = AnimationEffect.SlideDown,        Text = "SlideDown" },
        new Effect { ID = AnimationEffect.SlideUp,          Text = "SlideUp" },
        new Effect { ID = AnimationEffect.SlideLeft,        Text = "SlideLeft" },
        new Effect { ID = AnimationEffect.SlideRight,       Text = "SlideRight" },
        new Effect { ID = AnimationEffect.SlideLeftIn,      Text = "SlideLeftIn" },
        new Effect { ID = AnimationEffect.SlideRightIn,     Text = "SlideRightIn" },
        new Effect { ID = AnimationEffect.SlideLeftOut,     Text = "SlideLeftOut" },
        new Effect { ID = AnimationEffect.SlideRightOut,    Text = "SlideRightOut" },
        new Effect { ID = AnimationEffect.SlideTopIn,       Text = "SlideTopIn" },
        new Effect { ID = AnimationEffect.SlideBottomIn,    Text = "SlideBottomIn" },
        new Effect { ID = AnimationEffect.SlideTopOut,      Text = "SlideTopOut" },
        new Effect { ID = AnimationEffect.SlideBottomOut,   Text = "SlideBottomOut" },
        new Effect { ID = AnimationEffect.FadeIn,           Text = "FadeIn" },
        new Effect { ID = AnimationEffect.FadeOut,          Text = "FadeOut" },
        new Effect { ID = AnimationEffect.FadeZoomIn,       Text = "FadeZoomIn" },
        new Effect { ID = AnimationEffect.FadeZoomOut,      Text = "FadeZoomOut" },
        new Effect { ID = AnimationEffect.ZoomIn,           Text = "ZoomIn" },
        new Effect { ID = AnimationEffect.ZoomOut,          Text = "ZoomOut" },
        new Effect { ID = AnimationEffect.FlipXDownIn,      Text = "FlipXDownIn" },
        new Effect { ID = AnimationEffect.FlipXDownOut,     Text = "FlipXDownOut" },
        new Effect { ID = AnimationEffect.FlipXUpIn,        Text = "FlipXUpIn" },
        new Effect { ID = AnimationEffect.FlipXUpOut,       Text = "FlipXUpOut" },
        new Effect { ID = AnimationEffect.FlipYLeftIn,      Text = "FlipYLeftIn" },
        new Effect { ID = AnimationEffect.FlipYLeftOut,     Text = "FlipYLeftOut" },
        new Effect { ID = AnimationEffect.FlipYRightIn,     Text = "FlipYRightIn" },
        new Effect { ID = AnimationEffect.FlipYRightOut,    Text = "FlipYRightOut" },
        new Effect { ID = AnimationEffect.FlipLeftDownIn,   Text = "FlipLeftDownIn" },
        new Effect { ID = AnimationEffect.FlipLeftDownOut,  Text = "FlipLeftDownOut" },
        new Effect { ID = AnimationEffect.FlipLeftUpIn,     Text = "FlipLeftUpIn" },
        new Effect { ID = AnimationEffect.FlipLeftUpOut,    Text = "FlipLeftUpOut" },
        new Effect { ID = AnimationEffect.FlipRightDownIn,  Text = "FlipRightDownIn" },
        new Effect { ID = AnimationEffect.FlipRightDownOut, Text = "FlipRightDownOut" },
        new Effect { ID = AnimationEffect.FlipRightUpIn,    Text = "FlipRightUpIn" },
        new Effect { ID = AnimationEffect.FlipRightUpOut,   Text = "FlipRightUpOut" },
        new Effect { ID = AnimationEffect.None,             Text = "None" }
    };
}

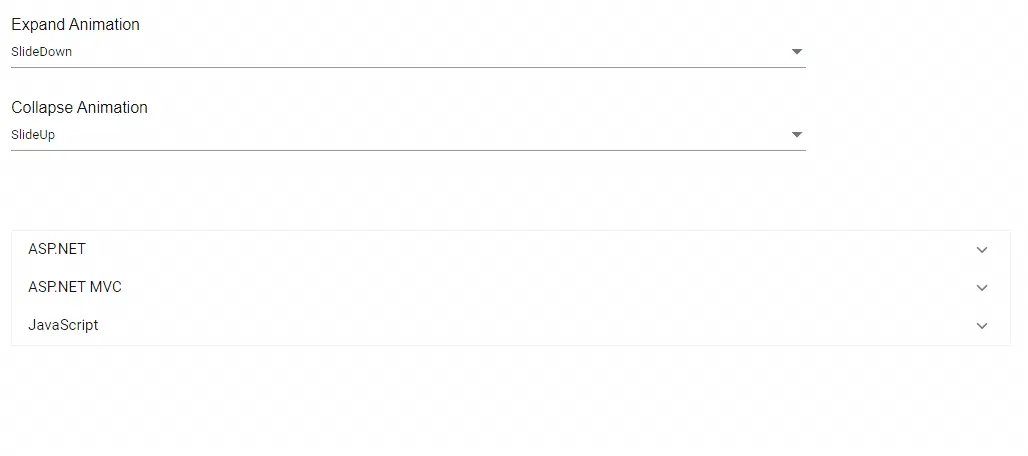

Customize Accordion expand or collapse animation behavior
