Axis Labels in Blazor Charts Component

14 Mar 202524 minutes to read

This section provides a brief explanation on how to customize the Blazor Charts axis labels.

You can learn how to customize the chart axis labels by watching the video below.

Smart Axis Labels

When the axis labels overlap, the LabelIntersectAction property in the axis can be used to intelligently arrange them.

Case 1: When LabelIntersectAction is set to Hide.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals" >
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
        LabelIntersectAction="LabelIntersectAction.Hide" />

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column" />
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
    {
		new ChartData { X= "South Korea", Y= 39 },
		new ChartData { X= "India", Y= 61 },
		new ChartData { X= "Pakistan", Y= 20 },
		new ChartData { X= "Germany", Y= 65 },
		new ChartData { X= "Australia", Y= 15 },
		new ChartData { X= "Italy", Y= 29 },
		new ChartData { X= "United Kingdom", Y= 44 },
		new ChartData { X= "Saudi Arabia", Y= 9 },
		new ChartData { X= "Russia", Y= 40 },
		new ChartData { X= "Mexico", Y= 31 },
		new ChartData { X= "Brazil", Y= 75 },
		new ChartData { X= "China", Y= 51 }
    };
}

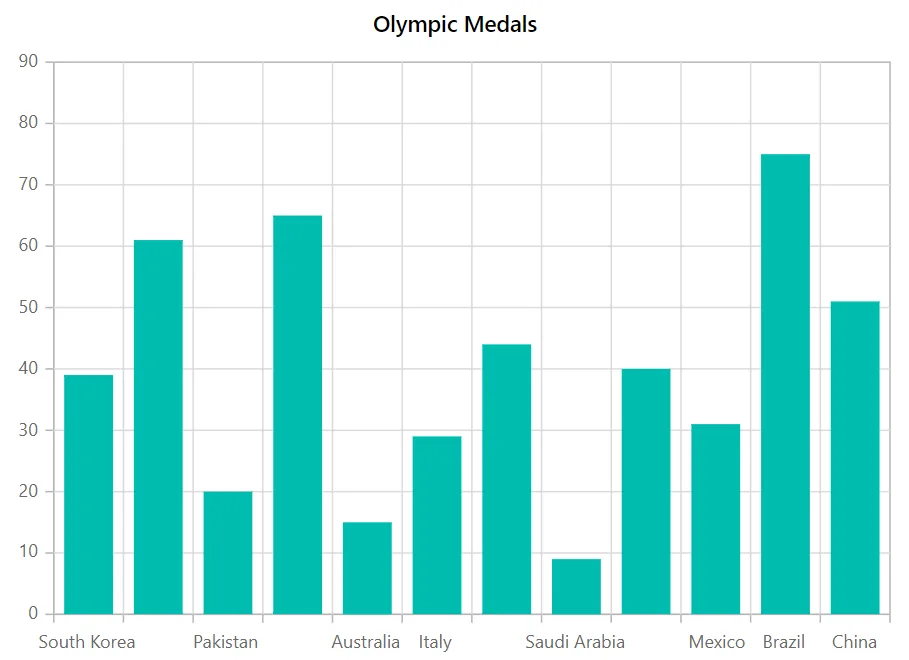

Hiding Smart Axis Label in Blazor Column Chart

Case 2: When LabelIntersectAction is set to Rotate45.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       LabelIntersectAction="LabelIntersectAction.Rotate45" />

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column" />
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "South Korea", Y= 39 },
		new ChartData { X= "India", Y= 61 },
		new ChartData { X= "Pakistan", Y= 20 },
		new ChartData { X= "Germany", Y= 65 },
		new ChartData { X= "Australia", Y= 15 },
		new ChartData { X= "Italy", Y= 29 },
		new ChartData { X= "United Kingdom", Y= 44 },
		new ChartData { X= "Saudi Arabia", Y= 9 },
		new ChartData { X= "Russia", Y= 40 },
		new ChartData { X= "Mexico", Y= 31 },
		new ChartData { X= "Brazil", Y= 75 },
		new ChartData { X= "China", Y= 51 }
    };
}

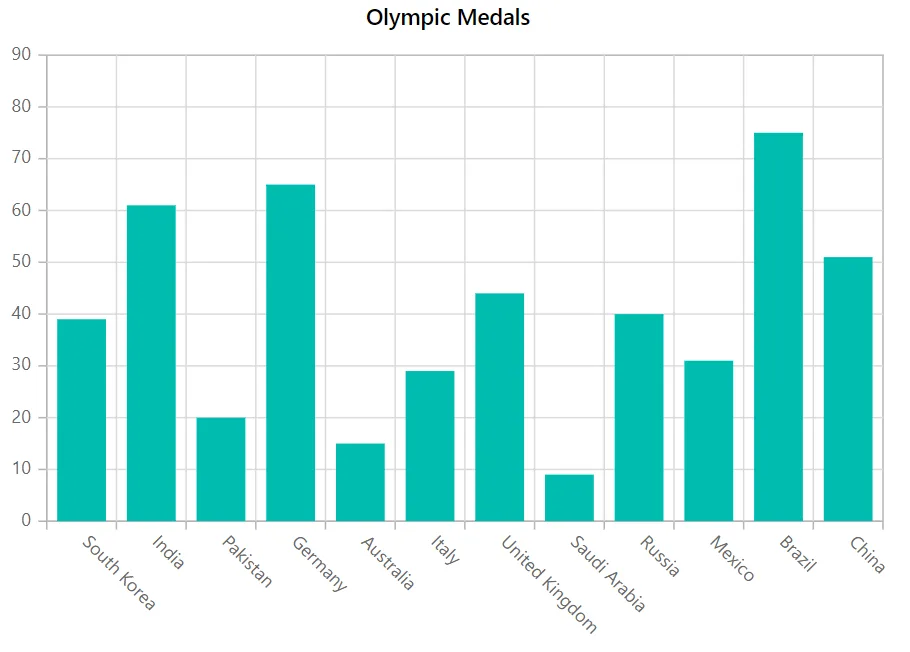

Blazor Column Chart with Smart Axis Label in Rotate45

Case 3: When LabelIntersectAction is set to Rotate90.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       LabelIntersectAction="LabelIntersectAction.Rotate90" />

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column" />
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "South Korea", Y= 39 },
		new ChartData { X= "India", Y= 61 },
		new ChartData { X= "Pakistan", Y= 20 },
		new ChartData { X= "Germany", Y= 65 },
		new ChartData { X= "Australia", Y= 15 },
		new ChartData { X= "Italy", Y= 29 },
		new ChartData { X= "United Kingdom", Y= 44 },
		new ChartData { X= "Saudi Arabia", Y= 9 },
		new ChartData { X= "Russia", Y= 40 },
		new ChartData { X= "Mexico", Y= 31 },
		new ChartData { X= "Brazil", Y= 75 },
		new ChartData { X= "China", Y= 51 }
    };
}

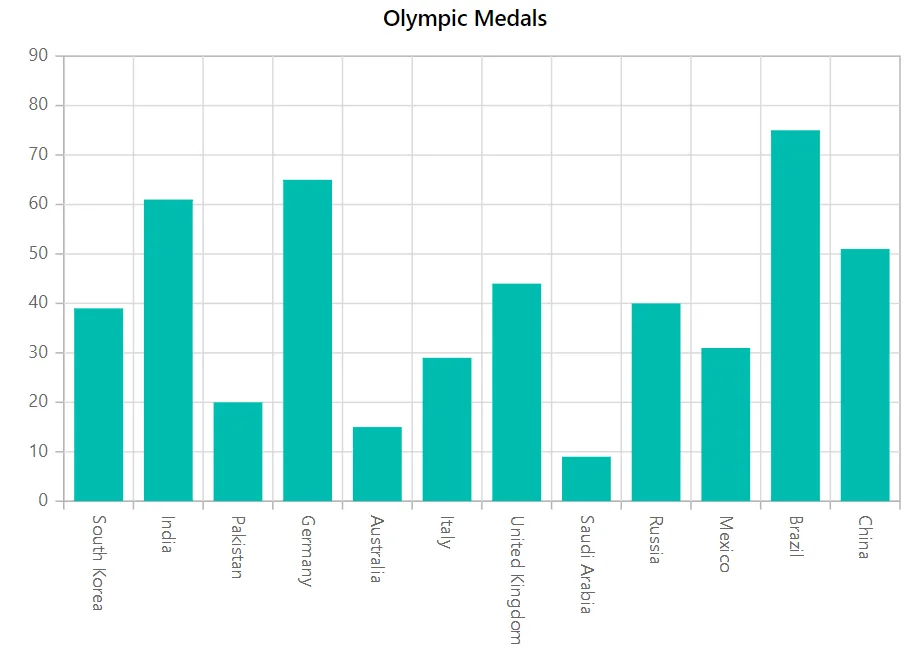

Blazor Column Chart with Smart Axis Label in Rotate90

Axis labels positioning

The axis labels can be put Outside of the axis line by default, however the LabelPosition property can also be used to position them Inside the axis line.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals" >
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       LabelPosition="AxisPosition.Inside"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column"/>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "South Korea", Y= 39 },
		new ChartData { X= "India", Y= 61 },
		new ChartData { X= "Pakistan", Y= 20 },
		new ChartData { X= "Germany", Y= 65 },
		new ChartData { X= "Australia", Y= 15 },
		new ChartData { X= "Italy", Y= 29 },
		new ChartData { X= "United Kingdom", Y= 44 },
		new ChartData { X= "Saudi Arabia", Y= 9 },
		new ChartData { X= "Russia", Y= 40 },
		new ChartData { X= "Mexico", Y= 31 },
		new ChartData { X= "Brazil", Y= 75 },
		new ChartData { X= "China", Y= 51 }
    };
}

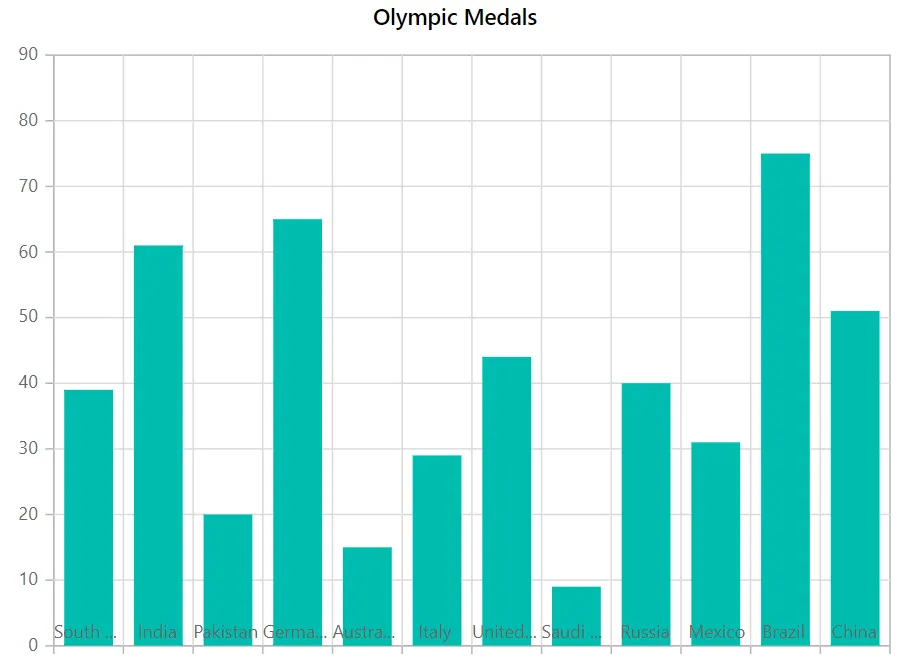

Changing Axis Label Position in Blazor Column Chart

Multilevel labels

The MultiLevelLabels property allows to add any number of layers of labels to the axis. The following properties can be used to configure this property.

Categories

The Start, End, Text, and MaximumTextWidth of multilevel labels can be customized using the ChartCategories which accepts the collections of ChartCategory.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartMultiLevelLabels>
            <ChartMultiLevelLabel>
                <ChartCategories>
                        <ChartCategory Start="-0.5" End="3.5" Text="Half yearly 1" MaximumTextWidth=50></ChartCategory>
                        <ChartCategory Start="3.5" End="7.5" Text="Half yearly 2" MaximumTextWidth=50></ChartCategory>
                </ChartCategories>
            </ChartMultiLevelLabel>
        </ChartMultiLevelLabels>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public int start = 0, end = 30;

    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "Russia", Y= 50 },
		new ChartData { X= "China", Y= 40 },
		new ChartData { X= "Japan", Y= 70 },
		new ChartData { X= "Australia", Y= 60 },
		new ChartData { X= "France", Y= 70 },
		new ChartData { X= "Germany", Y= 40 },
		new ChartData { X= "Italy", Y= 40 },
		new ChartData { X= "United states", Y= 30 },
    };
}

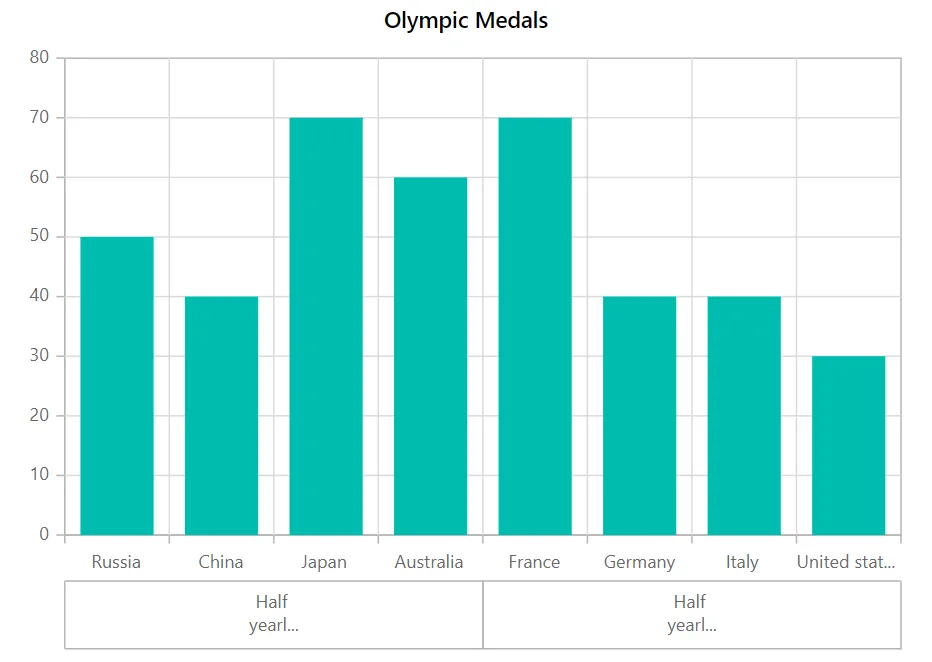

Blazor Column Chart with Multilevel Labels

Overflow

Using the Overflow property, one can Trim or Wrap the multilevel labels.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartMultiLevelLabels>
            <ChartMultiLevelLabel Overflow="TextOverflow.Trim">
                <ChartCategories>
                        <ChartCategory Start="-0.5" End="3.5" Text="Half yearly 1" MaximumTextWidth=50></ChartCategory>
                        <ChartCategory Start="3.5" End="7.5" Text="Half yearly 2" MaximumTextWidth=50></ChartCategory>
                </ChartCategories>
            </ChartMultiLevelLabel>
        </ChartMultiLevelLabels>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{

    public int start = 0, end = 30;

    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "Russia", Y= 50 },
		new ChartData { X= "China", Y= 40 },
		new ChartData { X= "Japan", Y= 70 },
		new ChartData { X= "Australia", Y= 60 },
		new ChartData { X= "France", Y= 70 },
		new ChartData { X= "Germany", Y= 40 },
		new ChartData { X= "Italy", Y= 40 },
		new ChartData { X= "United states", Y= 30 },
    };
}

Blazor Column Chart Multilevel Labels with Overflow

Alignment

The Alignment property allows to place multilevel labels in a Far, Center, or Near location.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartMultiLevelLabels>
            <ChartMultiLevelLabel Alignment="Alignment.Far">
                <ChartCategories>
                        <ChartCategory Start="-0.5" End="3.5" Text="Half yearly 1" MaximumTextWidth=100></ChartCategory>
                        <ChartCategory Start="3.5" End="7.5" Text="Half yearly 2" MaximumTextWidth=100></ChartCategory>
                </ChartCategories>
            </ChartMultiLevelLabel>
        </ChartMultiLevelLabels>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{

    public int start = 0, end = 30;

    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "Russia", Y= 50 },
		new ChartData { X= "China", Y= 40 },
		new ChartData { X= "Japan", Y= 70 },
		new ChartData { X= "Australia", Y= 60 },
		new ChartData { X= "France", Y= 70 },
		new ChartData { X= "Germany", Y= 40 },
		new ChartData { X= "Italy", Y= 40 },
		new ChartData { X= "United states", Y= 30 },
    };
}

Changing Multilevel Labels Alignment in Blazor Column Chart

Text customization

The Size, Color, FontFamily, FontWeight, FontStyle, Opacity, TextAlignment and TextOverflow properties can be customized using the TextStyle of multilevel labels.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartMultiLevelLabels>
            <ChartMultiLevelLabel>
                <ChartCategories>
                        <ChartCategory Start="-0.5" End="3.5" Text="Half yearly 1" MaximumTextWidth=100></ChartCategory>
                        <ChartCategory Start="3.5" End="7.5" Text="Half yearly 2" MaximumTextWidth=100></ChartCategory>
                </ChartCategories>
                <ChartAxisMultiLevelLabelTextStyle Size="14px" Color="red"/>
            </ChartMultiLevelLabel>
        </ChartMultiLevelLabels>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{

    public int start = 0, end = 30;

    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "Russia", Y= 50 },
		new ChartData { X= "China", Y= 40 },
		new ChartData { X= "Japan", Y= 70 },
		new ChartData { X= "Australia", Y= 60 },
		new ChartData { X= "France", Y= 70 },
		new ChartData { X= "Germany", Y= 40 },
		new ChartData { X= "Italy", Y= 40 },
		new ChartData { X= "United states", Y= 30 },
    };
}

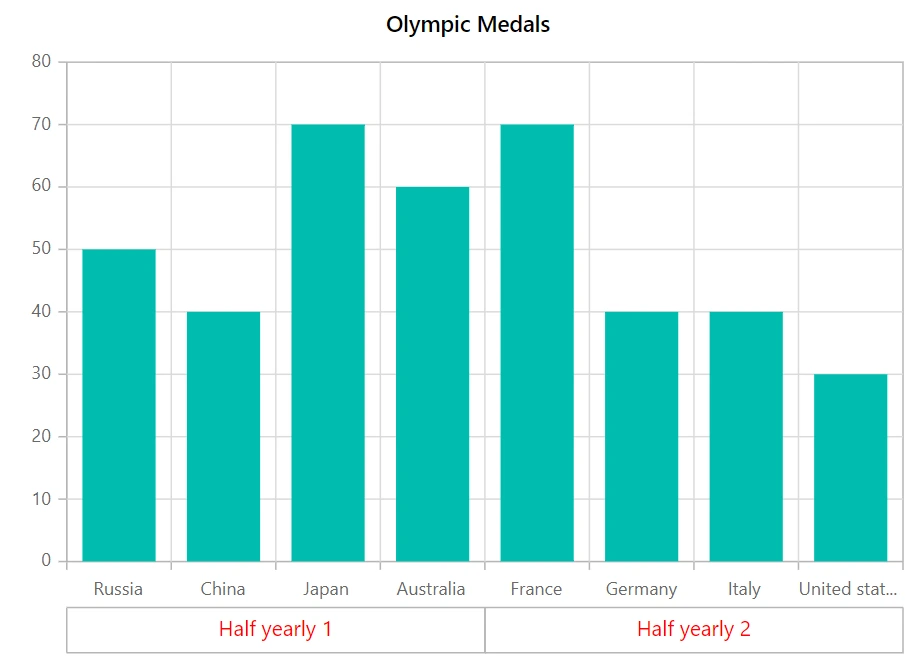

Customizing Multilevel Labels Text in Blazor Column Chart

Border customization

The Width, Color, and Type of the border can be customized using the ChartAxisMultiLevelLabelBorder. Rectangle, Brace, WithoutBorder, WithoutTopBorder, WithoutTopandBottomBorder, Auto, and CurlyBrace are the different types of borders available.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartMultiLevelLabels>
            <ChartMultiLevelLabel>
                <ChartCategories>
                        <ChartCategory Start="-0.5" End="3.5" Text="Half yearly 1" MaximumTextWidth="50"></ChartCategory>
                        <ChartCategory Start="3.5" End="7.5" Text="Half yearly 2" MaximumTextWidth="50"></ChartCategory>
                </ChartCategories>
                <ChartAxisMultiLevelLabelBorder Type="BorderType.Brace" Color="blue" Width=2></ChartAxisMultiLevelLabelBorder>
            </ChartMultiLevelLabel>
        </ChartMultiLevelLabels>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{

    public int start = 0, end = 30;

    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData { X= "Russia", Y= 50 },
		new ChartData { X= "China", Y= 40 },
		new ChartData { X= "Japan", Y= 70 },
		new ChartData { X= "Australia", Y= 60 },
		new ChartData { X= "France", Y= 70 },
		new ChartData { X= "Germany", Y= 40 },
		new ChartData { X= "Italy", Y= 40 },
		new ChartData { X= "United states", Y= 30 },
	};
}

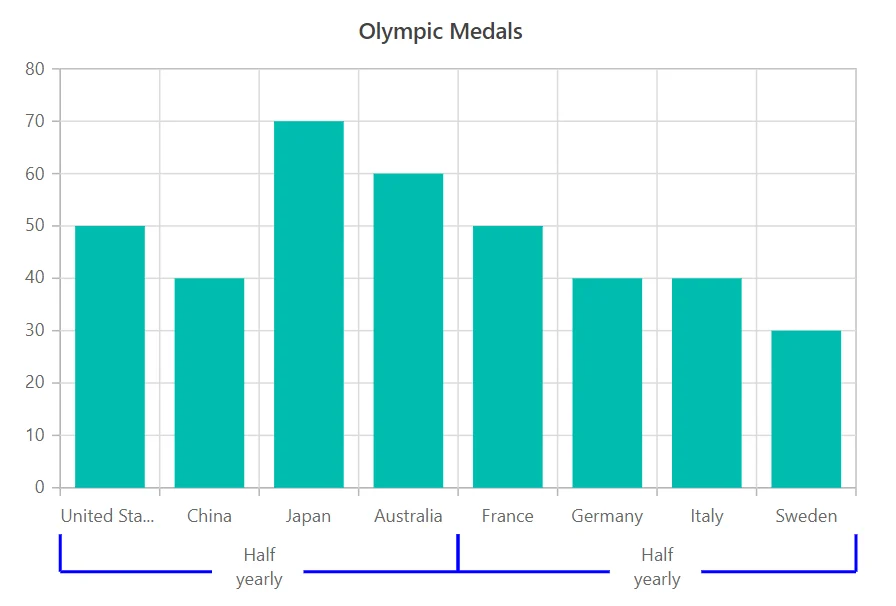

Customizing Multilevel Labels Border in Blazor Column Chart

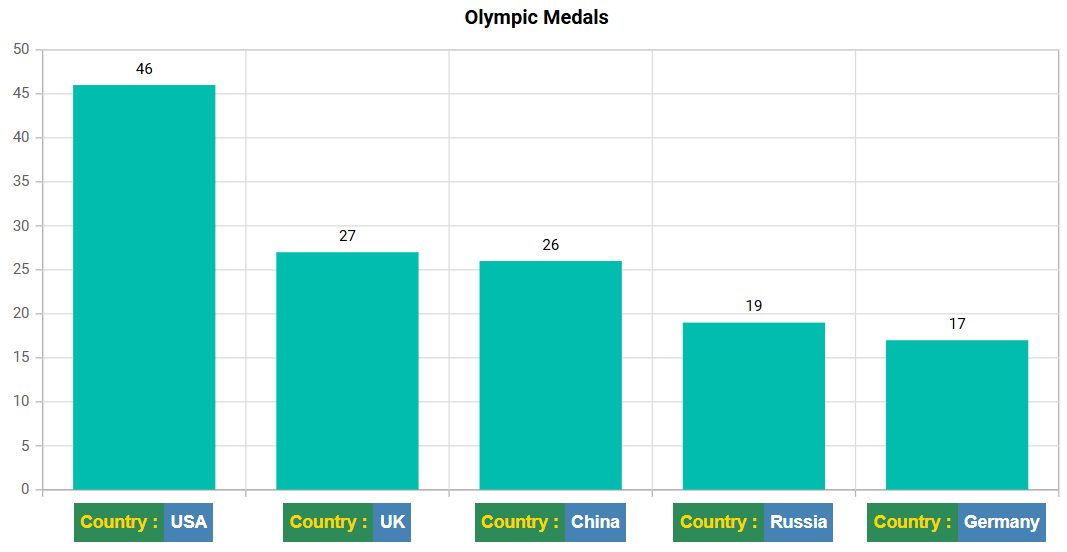

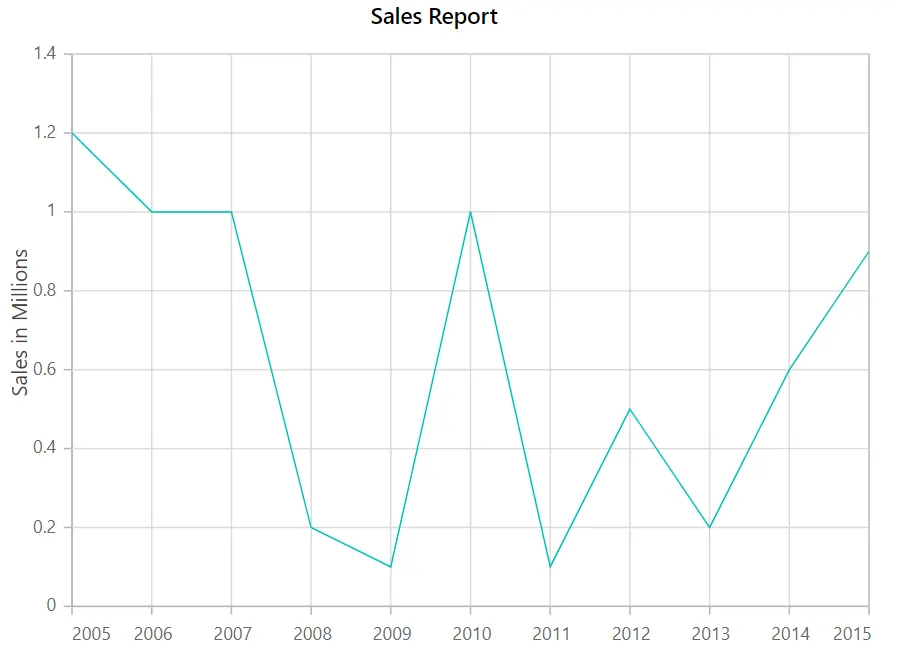

Edge label placement

The longer text labels at the axes edges may only be partially visible in the chart. To avoid this, utilize the EdgeLabelPlacement property, which moves or hides the label within the chart area for a better user experience using the Shift and Hide options. None will leave the text as it is.

@using Syncfusion.Blazor.Charts

<SfChart Title="Sales Report">
    <ChartPrimaryXAxis LabelPlacement="LabelPlacement.OnTicks" EdgeLabelPlacement="EdgeLabelPlacement.Shift" ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartAxisLabelStyle Size="18px" Color="red" />
    </ChartPrimaryXAxis>

	<ChartPrimaryYAxis Title="Sales in Millions" >
	</ChartPrimaryYAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="X" YName="Y" Type="ChartSeriesType.Line">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> MetalDetails = new List<ChartData>
	{
        new ChartData { X= "2005", Y= 1.2},
        new ChartData { X= "2006", Y= 1 },
        new ChartData { X= "2007", Y= 1 },
        new ChartData { X= "2008", Y= 0.2},
        new ChartData { X= "2009", Y= 0.1},
        new ChartData { X= "2010", Y= 1 },
        new ChartData { X= "2011", Y= 0.1},
        new ChartData { X= "2012", Y= 0.5},
        new ChartData { X= "2013", Y= 0.2},
        new ChartData { X= "2014", Y= 0.6},
        new ChartData { X= "2015", Y= 0.9},
    };
}

Displaying Blazor Chart Axis Label in Edge Position

Labels customization

The label Color and Size can be customized to specify in ChartAxisLabelStyle.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartAxisLabelStyle Size="18px" Color="red" />
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData{ Country= "United States", Gold=50  },
		new ChartData{ Country= "China", Gold=40 },
		new ChartData{ Country= "Japan", Gold=70 },
		new ChartData{ Country= "Australia", Gold=60},
		new ChartData{ Country= "France", Gold=50 },
		new ChartData{ Country= "Germany", Gold=40 },
		new ChartData{ Country= "Italy", Gold=40 },
		new ChartData{ Country= "Sweden", Gold=30 }
    };
}

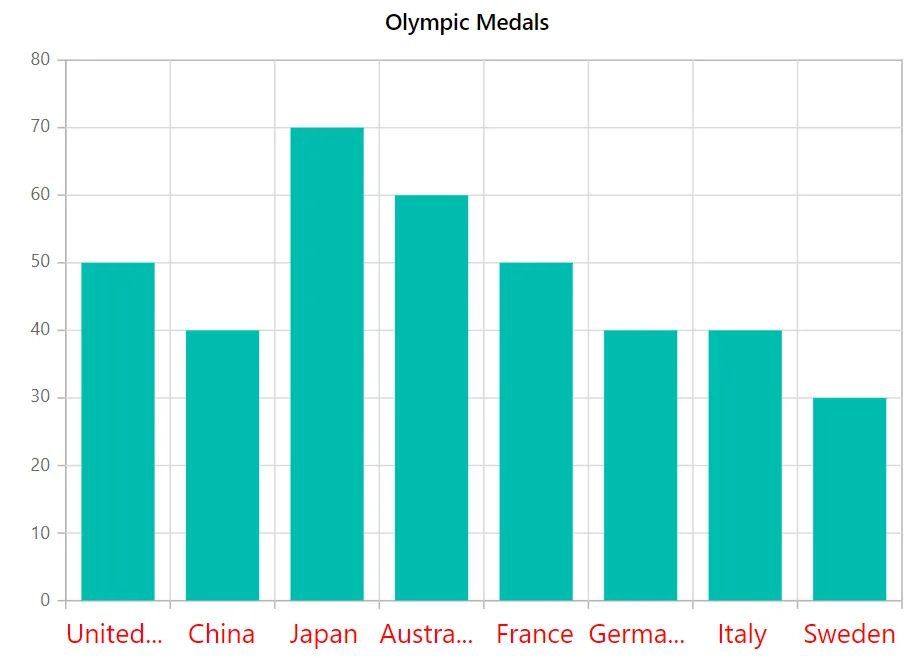

Blazor Column Chart Axis with Custom Label

Trim label

The label can be trimmed using the EnableTrim property, and the width of the label can be modified using the MaximumLabelWidth property in the axis. The default value of MaximumLabelWidth property is 34px.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis EnableTrim="true" MaximumLabelWidth="40" ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
		new ChartData{ Country= "United States", Gold=50  },
		new ChartData{ Country= "China", Gold=40 },
		new ChartData{ Country= "Japan", Gold=70 },
		new ChartData{ Country= "Australia", Gold=60},
		new ChartData{ Country= "France", Gold=50 },
		new ChartData{ Country= "Germany", Gold=40 },
		new ChartData{ Country= "Italy", Gold=40 },
		new ChartData{ Country= "Sweden", Gold=30 }
    };
}

Label Trimming in Blazor Column Chart Axis

Line break

The <br> tag can used to separate the long axis label into multiple lines.

@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
        <ChartAxisMajorGridLines Width="0"></ChartAxisMajorGridLines>
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" XName="Country" YName="Gold" Type="ChartSeriesType.Bar">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
	{
        new ChartData{ Country= "Australia", Gold=60},
        new ChartData{ Country= "China", Gold=40 },
        new ChartData{ Country= "Japan", Gold=70 },
        new ChartData{ Country= "United States<br>Of America", Gold=50  },
        new ChartData{ Country= "France", Gold=50 },
        new ChartData{ Country= "Germany", Gold=40 },
        new ChartData{ Country= "Italy", Gold=40 },
        new ChartData{ Country= "Sweden", Gold=30 }
    };
}

Blazor Column Chart Axis with Line break Label

Label format

Learn more about axis label format in-relation to axis types from the pages below.

Label customization using event

You can customize the axis labels by using OnAxisLabelRender event. Below properties in event args can be used to customize the label rendering.

  • LabelStyle – Specifies the font information of the axis label with following properties,

    Properties Description
    Color To customize the color of the text.
    FontFamily To customize the font family of label.
    FontStyle To customize the font style.
    FontWeight To customize the font weight.
    Opacity To customize the transparency of text.
  • Text – Get or sets the text to be displayed in the axis label. You can change the text based on Value and Axis properties.
  • Value – Specifies the value of the axis label. For CategoryAxis, it denotes the index of the datapoints and for numerix and date time axis Value denotes the actual value of the datapoints.
  • Axis – Specifies the axis for which labels are rendering.
  • Cancel- Gets or sets whether to cancel the rendering of particular label.
@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartEvents OnAxisLabelRender="AxisLabelEvent"></ChartEvents>

    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class SalesInfo
    {
        public string Month { get; set; }
        public double SalesValue { get; set; }
    }

    public List<SalesInfo> Sales = new List<SalesInfo>
    {
        new SalesInfo { Month = "Jan", SalesValue = 35 },
        new SalesInfo { Month = "Feb", SalesValue = 28 },
        new SalesInfo { Month = "Mar", SalesValue = 34 },
        new SalesInfo { Month = "Apr", SalesValue = 32 },
        new SalesInfo { Month = "May", SalesValue = 40 },
        new SalesInfo { Month = "Jun", SalesValue = 32 },
        new SalesInfo { Month = "Jul", SalesValue = 35 }
    };

    public void AxisLabelEvent(AxisLabelRenderEventArgs args)
    {
       if (args.Axis.Name == "PrimaryXAxis")
        {
            args.LabelStyle.Color = "Red";
             if (args.Value == 4)
             args.Text = "chart";

        } else if (args.Axis.Name == "PrimaryYAxis")
        {
            args.LabelStyle.Color = "Blue";

        }
    }
}

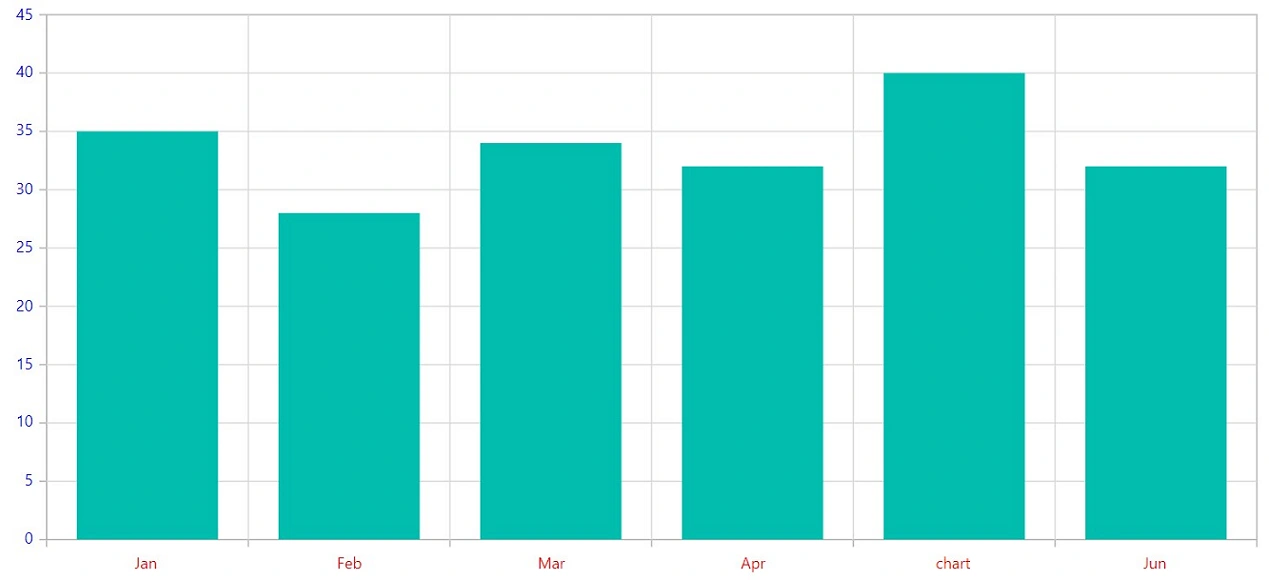

Blazor Column Chart Axis with Label customization

NOTE

View Sample in GitHub.

See also

NOTE

Refer to our Blazor Charts feature tour page for its groundbreaking feature representations and also explore our Blazor Chart Example to know various chart types and how to represent time-dependent data, showing trends at equal intervals.
