Lazy Loading in Blazor Chart component

22 Jul 2021 / 1 minute to read

Lazy loading allows you to load data for chart on demand. Chart will fire the OnScrollChanged event, in that we can get the minimum and maximum range of the axis, based on this, we can upload the data to chart.

Copied to clipboard
   <ChartEvents OnScrollChanged="@ScrollChange"></ChartEvents>

  void ScrollChange(ScrollEventArgs e)
    {
        this.dataSource = GetRangeData(Convert.ToInt32(e.CurrentRange.Minimum), Convert.ToInt32(e.CurrentRange.Maximum));
        this.StateHasChanged();
    }
lazy-loading.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts
@using System.Collections.ObjectModel

@if (dataSource != null)
{

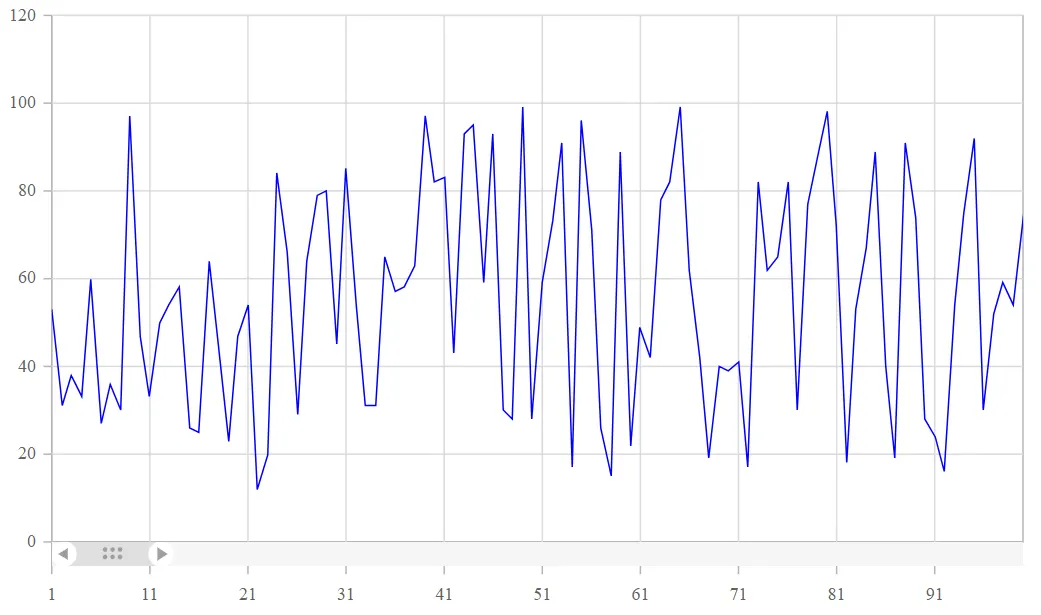

    <SfChart Title="Lazy Loading Chart" @ref="chartObj">
        <ChartEvents OnScrollChanged="@ScrollChange"></ChartEvents>
        <ChartPrimaryXAxis>
            <ChartAxisScrollbarSettings Enable="true" PointsLength="1000"></ChartAxisScrollbarSettings>
        </ChartPrimaryXAxis>
        <ChartSeriesCollection>
            <ChartSeries DataSource="@dataSource" Fill="@color" XName="x" YName="y" Type="ChartSeriesType.Line">
            </ChartSeries>
        </ChartSeriesCollection>
    </SfChart>
}
else
{
    <p>Chart Loading</p>
}

@code {

    public SfChart chartObj;
    int count = 1;
    public string color = "blue";
    Random random = new Random();
    ObservableCollection<ColumnChartData> dataSource;
    protected override void OnInitialized()
    {
        dataSource = this.GetData();
    }
    void ScrollChange(ScrollEventArgs e)
    {
        this.dataSource = GetRangeData(Convert.ToInt32(e.CurrentRange.Minimum), Convert.ToInt32(e.CurrentRange.Maximum));
    }
    ObservableCollection<ColumnChartData>
    GetRangeData(int min, int max)
    {
        ObservableCollection<ColumnChartData> data = new ObservableCollection<ColumnChartData>();
        for (; min <= max; min++)
        {
            data.Add(new ColumnChartData { x = min, y = random.Next(10, 100) });
        }
        return data;
    }
    public class ColumnChartData
    {
        public double x { get; set; }
        public double y { get; set; }
    }
    ObservableCollection<ColumnChartData> GetData()
    {
        ObservableCollection<ColumnChartData> data = new ObservableCollection<ColumnChartData>();
        for (; count <= 100; count++)
        {
            data.Add(new ColumnChartData { x = count++, y = random.Next(10, 100) });
        }
        return data;
    }
}

Note: You can refer to our Blazor Charts feature tour page for its groundbreaking feature representations. You can also explore our Blazor Chart example to knows various chart types and how to represent time-dependent data, showing trends in data at equal intervals.
