Legend in Blazor Chart component

08 Apr 2021 / 3 minutes to read

Legend provides information about the series rendered in the chart.

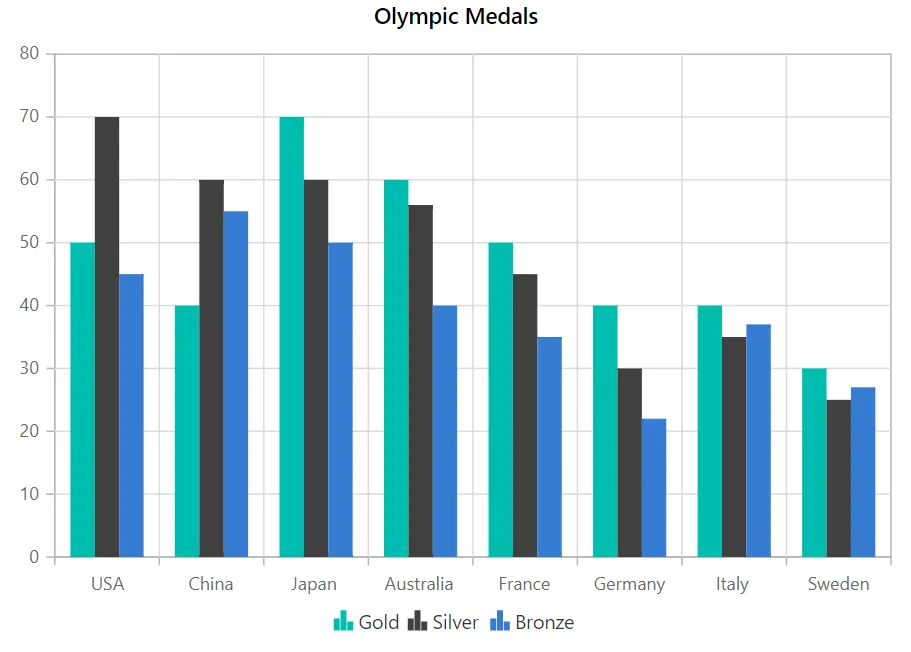

Enable Legend

You can use legend for the chart by setting the Visible property to true in ChartLegendSettings.

legend.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Inflation - Consumer Price">
    <ChartPrimaryXAxis LabelFormat="yyyy" IntervalType="IntervalType.Years" ValueType="Syncfusion.Blazor.Charts.ValueType.DateTime"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@ConsumerReports" Name="Germany" XName="XValue" YName="YValue" Type="ChartSeriesType.Column"/>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true"/>
</SfChart>

@code{
    public class ChartData
    {
        public DateTime XValue { get; set; }
        public double YValue { get; set; }
    }

    public List<ChartData> ConsumerReports = new List<ChartData> {
            new ChartData { XValue = new DateTime(2005, 01, 01), YValue = 21 },
            new ChartData { XValue = new DateTime(2006, 01, 01), YValue = 24 },
            new ChartData { XValue = new DateTime(2007, 01, 01), YValue = 36 },
            new ChartData { XValue = new DateTime(2008, 01, 01), YValue = 38 },
            new ChartData { XValue = new DateTime(2009, 01, 01), YValue = 54 },
            new ChartData { XValue = new DateTime(2010, 01, 01), YValue = 57 },
            new ChartData { XValue = new DateTime(2011, 01, 01), YValue = 70 },
        };
}

Enable Legend

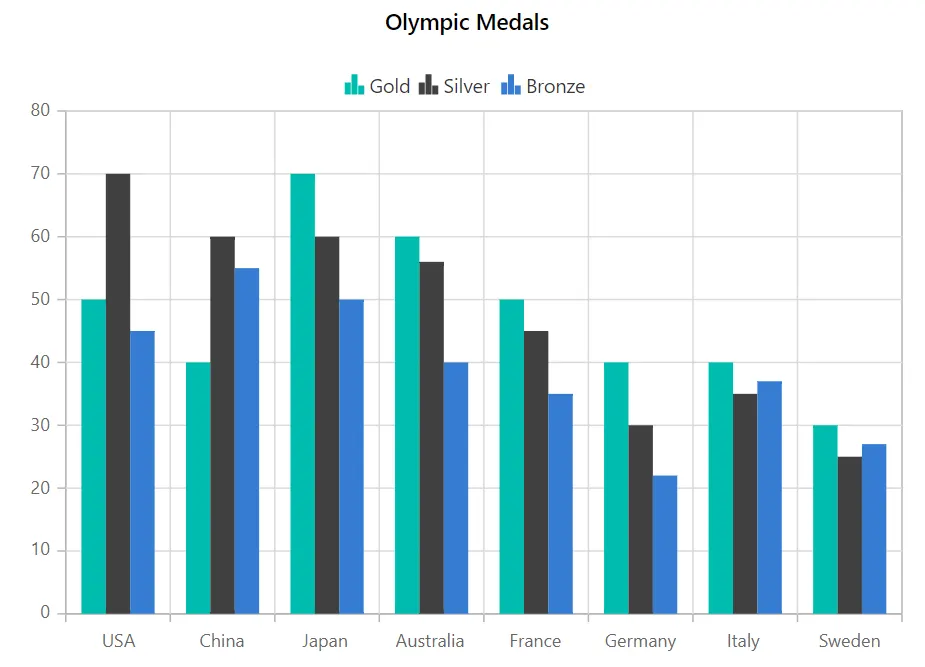

Position and Alignment

By using the Position property, you can position the legend at left, right, top or bottom of the chart. The legend is positioned at the bottom of the chart, by default.

default.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">

    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" Opacity="1" YName="Gold" Type="ChartSeriesType.Column"/>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" Opacity="1" YName="Silver" Type="ChartSeriesType.Column"/>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column"/>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Position="LegendPosition.Top"/>
</SfChart>

@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
        };
}

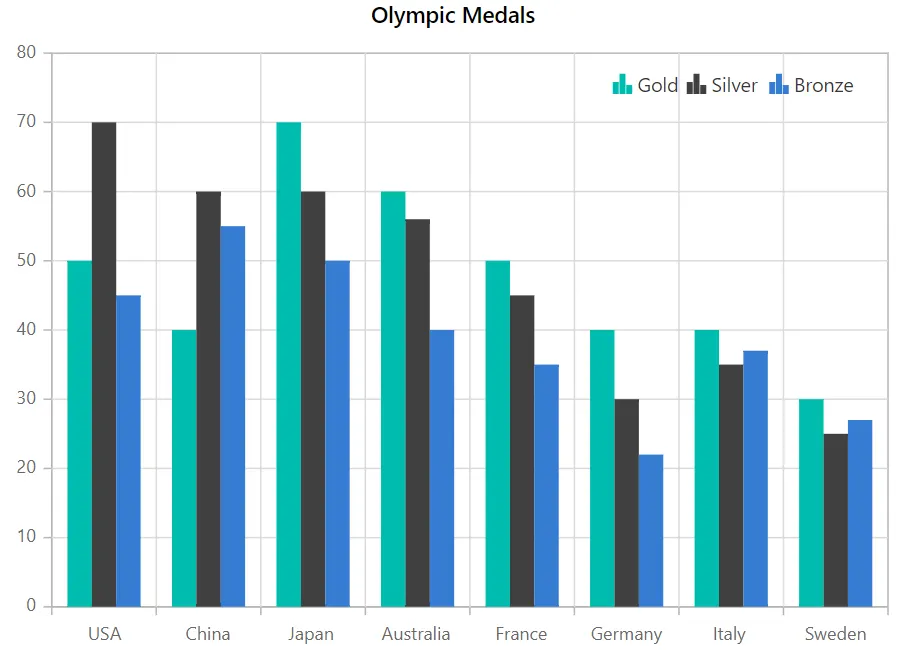

Custom position helps you to position the legend anywhere in the chart using x, y coordinates.

position.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Inflation - Consumer Price">

    <ChartPrimaryXAxis LabelFormat="yyyy" RangePadding="ChartRangePadding.Additional" ValueType="Syncfusion.Blazor.Charts.ValueType.DateTime"/>

    <ChartPrimaryYAxis LabelFormat="{value}%" RangePadding="ChartRangePadding.None" Minimum="0" Maximum="100" Interval="20"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="XValue" Width="2" Opacity="1" YName="YValue" Type="ChartSeriesType.Column"/>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="XValue" Width="2" Opacity="1" YName="YValue1" Type="ChartSeriesType.Column"/>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Position="LegendPosition.Top"/>
</SfChart>

@code{
    public class ChartData
    {
        public DateTime XValue { get; set; }
        public double YValue { get; set; }
        public double YValue1 { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData> {
            new ChartData { XValue = new DateTime(2005, 01, 01), YValue = 21, YValue1 = 28 },
            new ChartData { XValue = new DateTime(2006, 01, 01), YValue = 24, YValue1 = 44 },
            new ChartData { XValue = new DateTime(2007, 01, 01), YValue = 36, YValue1 = 48 },
            new ChartData { XValue = new DateTime(2008, 01, 01), YValue = 38, YValue1 = 50 },
            new ChartData { XValue = new DateTime(2009, 01, 01), YValue = 54, YValue1 = 66 },
            new ChartData { XValue = new DateTime(2010, 01, 01), YValue = 57, YValue1 = 78 },
            new ChartData { XValue = new DateTime(2011, 01, 01), YValue = 70, YValue1 = 84 },
        };
}

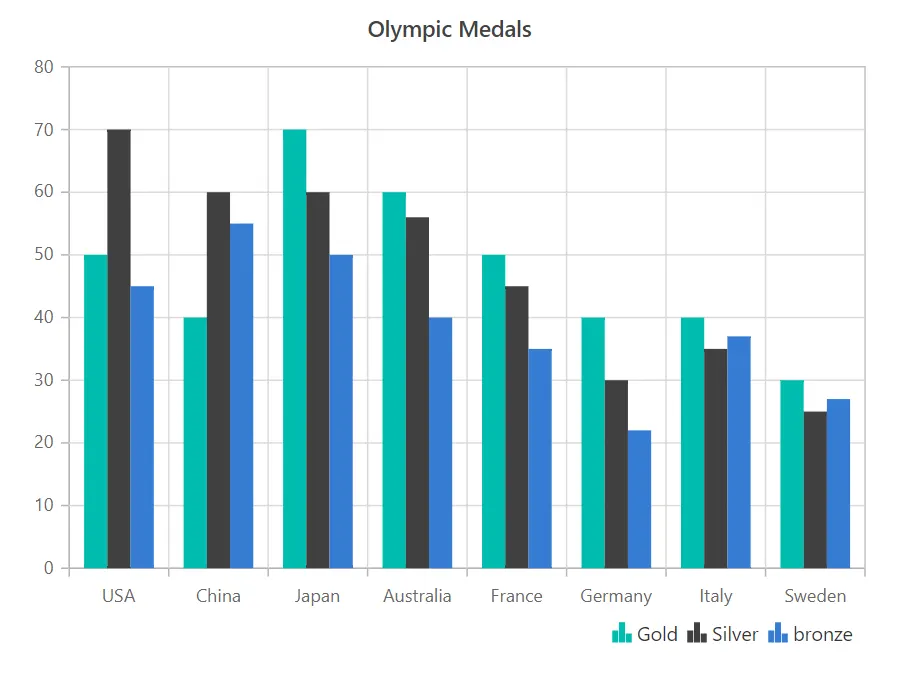

Legend Alignment

You can align the legend at Center, Far or Near to the chart using Alignment property.

alignment.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Alignment="Alignment.Far"></ChartLegendSettings>
</SfChart>

@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
        };

}

Legend Alignment

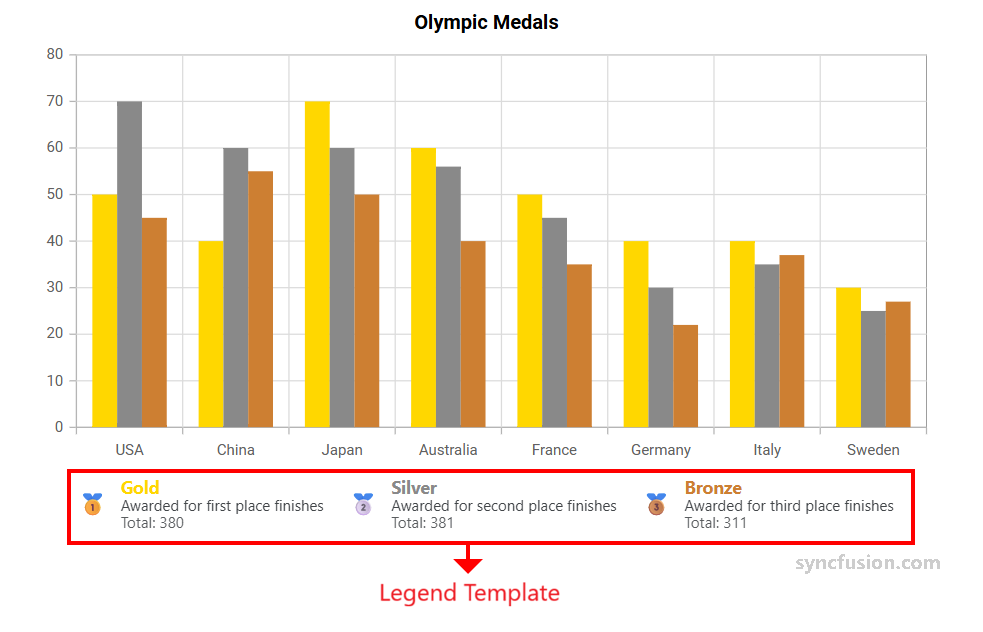

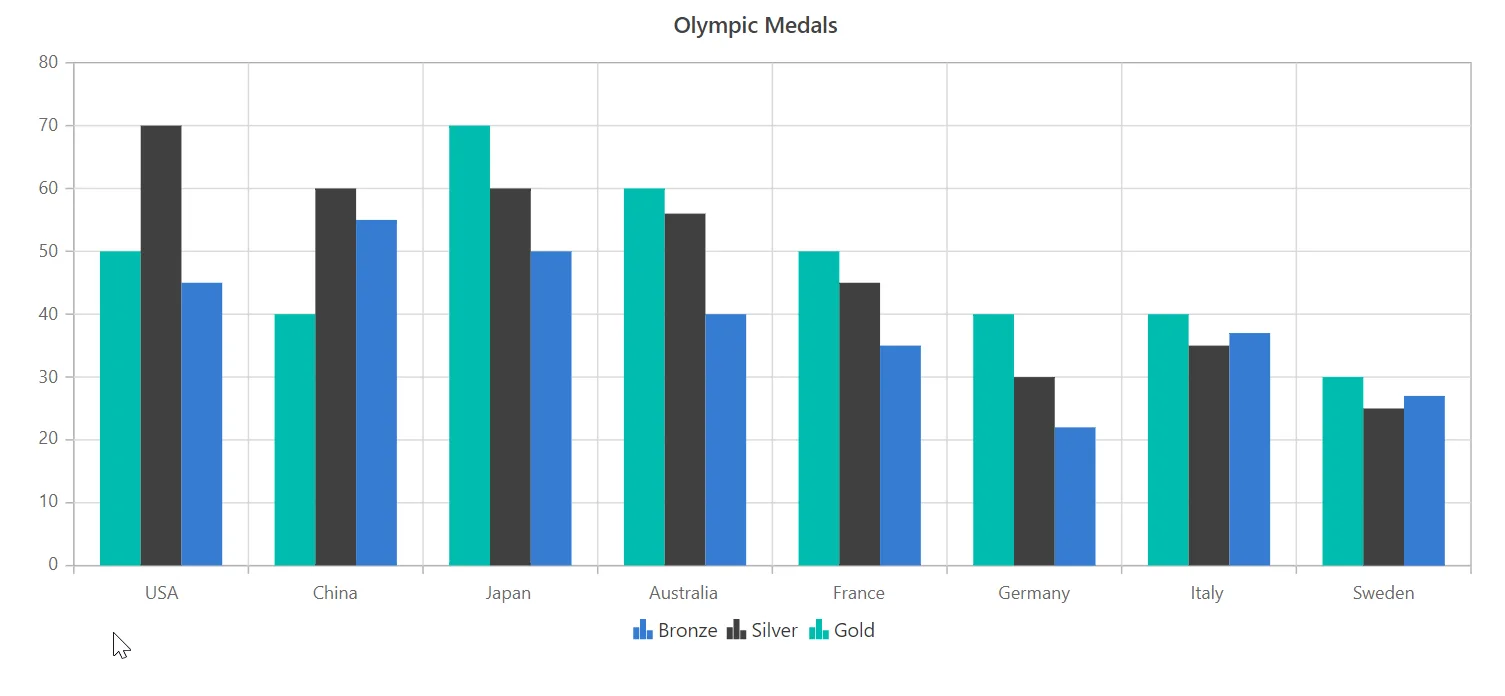

Customization

To change the legend icon shape, you can use LegendShape property in the Series. By default legend icon shape is SeriesType.

custom.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Position="LegendPosition.Custom">
        <ChartLocation X="200" Y="100"/>
    </ChartLegendSettings>
</SfChart>

@code{


    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
    {
        new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
        new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
        new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
        new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
        new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
        new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
        new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
        new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
        };
}

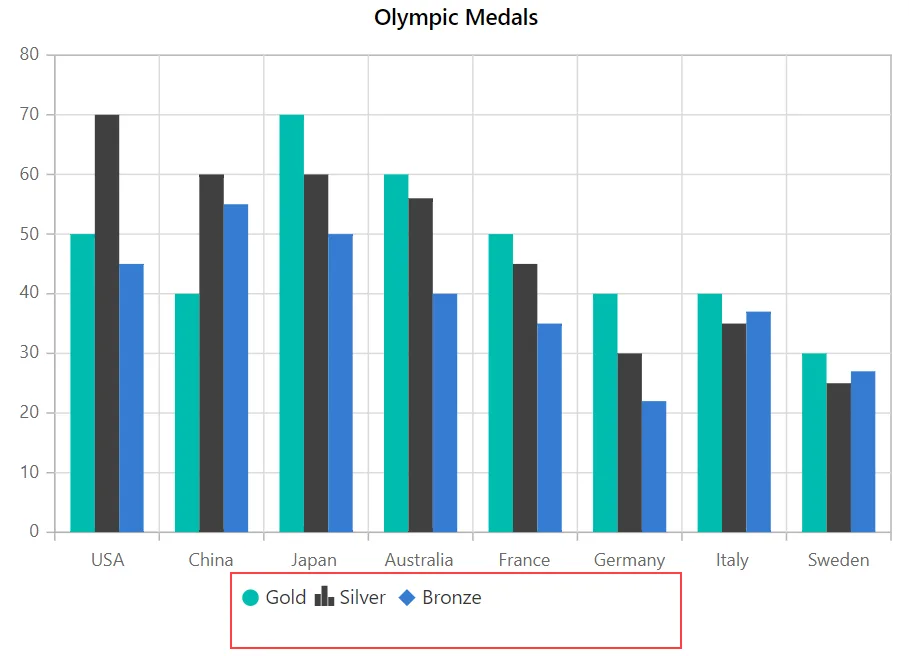

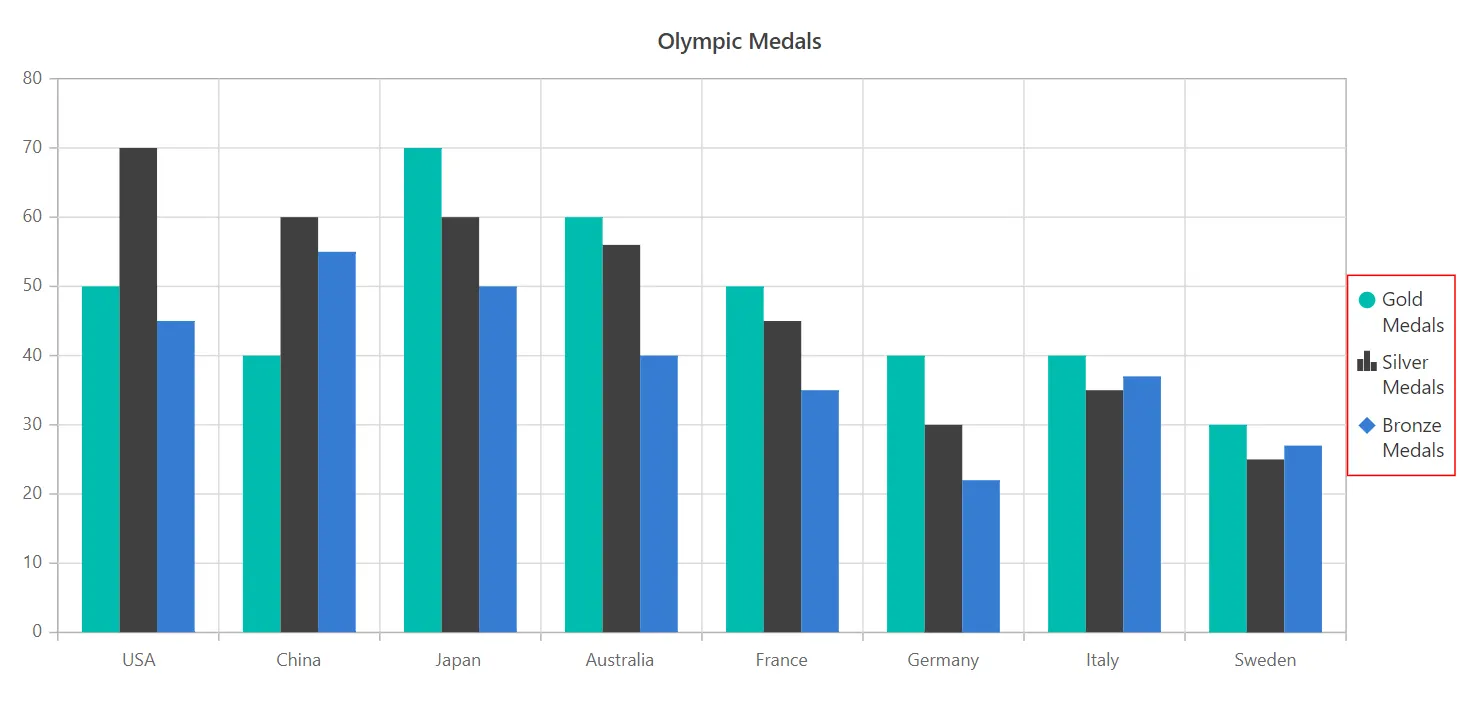

Legend Size

By default, legend takes 20% - 25% of the chart’s height, when it is placed on top or bottom position and 20% - 25% of the chart’s width, when placed on left or right position of the chart. You can change this default legend size by using the Width and Height property.

size.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" LegendShape="LegendShape.Circle" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" LegendShape="LegendShape.SeriesType" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" LegendShape="LegendShape.Diamond" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Height="50" Width="300" >
        <ChartLegendBorder Color="red" Width="3"/>
    </ChartLegendSettings>
</SfChart>

@code{

    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }

    };

}

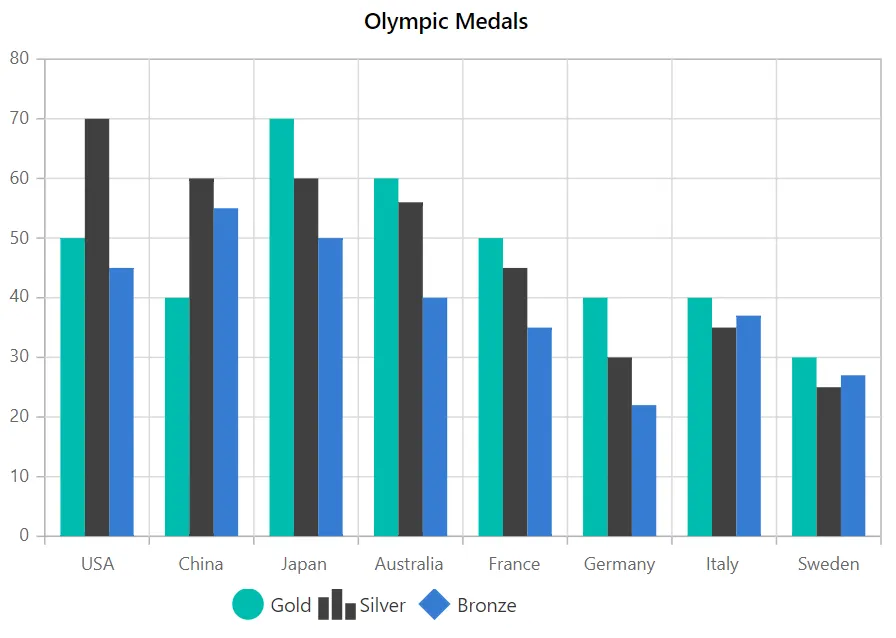

Legend Item Size

You can customize the size of the legend items by using the ShapeHeight and ShapeWidth property.

item-size.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" LegendShape="LegendShape.Circle" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" LegendShape="LegendShape.SeriesType" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" LegendShape="LegendShape.Diamond" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Height="50" Width="300" ShapeHeight="20" ShapeWidth="20">
        <ChartLegendBorder Color="red" Width="3"/>
    </ChartLegendSettings>
</SfChart>

@code{

    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }

    };

}

Legend Alignment

Paging for Legend

Paging will be enabled by default, when the legend items exceeds the legend bounds. You can view each legend items by navigating between the pages using navigation buttons.

paging.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" LegendShape="LegendShape.Circle" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" LegendShape="LegendShape.SeriesType" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" LegendShape="LegendShape.Diamond" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" Width="100" Height="70" Padding="10" ShapePadding="10" >
    </ChartLegendSettings>
</SfChart>

@code{

    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
   };

}

Series Selection on Legend

By default, legend click enables you to collapse the series visibility. On other hand, if you need to select a series through legend click, disable the ToggleVisibility.

selection.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals" SelectionMode="SelectionMode.Series">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category"/>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" LegendShape="LegendShape.Circle" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Silver" XName="Country" Width="2" LegendShape="LegendShape.SeriesType" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" LegendShape="LegendShape.Diamond" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" ToggleVisibility="false"/>
</SfChart>
@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
        };
}

Collapsing Legend Item

By default, series name will be displayed as legend. To skip the legend for a particular series, you can give empty string to the series name.

collapse.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfChart Title="Olympic Medals">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@MedalDetails" Name="Gold" XName="Country" Width="2" LegendShape="LegendShape.Circle" Opacity="1" YName="Gold" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="" XName="Country" Width="2" LegendShape="LegendShape.SeriesType" Opacity="1" YName="Silver" Type="ChartSeriesType.Column">
        </ChartSeries>
        <ChartSeries DataSource="@MedalDetails" Name="Bronze" XName="Country" Width="2" LegendShape="LegendShape.Diamond" Opacity="1" YName="Bronze" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>

    <ChartLegendSettings Visible="true" ToggleVisibility="true">
    </ChartLegendSettings>
</SfChart>
@code{
    public class ChartData
    {
        public string Country { get; set; }
        public double Gold { get; set; }
        public double Silver { get; set; }
        public double Bronze { get; set; }
    }

    public List<ChartData> MedalDetails = new List<ChartData>
{
            new ChartData{ Country= "USA", Gold=50, Silver=70, Bronze=45 },
            new ChartData{ Country="China", Gold=40, Silver= 60, Bronze=55 },
            new ChartData{ Country= "Japan", Gold=70, Silver= 60, Bronze=50 },
            new ChartData{ Country= "Australia", Gold=60, Silver= 56, Bronze=40 },
            new ChartData{ Country= "France", Gold=50, Silver= 45, Bronze=35 },
            new ChartData{ Country= "Germany", Gold=40, Silver=30, Bronze=22 },
            new ChartData{ Country= "Italy", Gold=40, Silver=35, Bronze=37 },
            new ChartData{ Country= "Sweden", Gold=30, Silver=25, Bronze=27 }
        };
}

Collapsing Legend Item

 Note: You can refer to our Blazor Charts feature tour page for its groundbreaking feature representations. You can also explore our Blazor Chart example to knows various chart types and how to represent time-dependent data, showing trends in data at equal intervals.

See Also
