Working with Data in Blazor Chart component

The Chart uses SfDataManager, which supports both RESTful JSON data services binding and IEnumerable binding. The DataSource value can be assigned either with the property values from SfDataManager or list of business objects. It supports the following kinds of data binding method:

List binding
Remote data

List binding

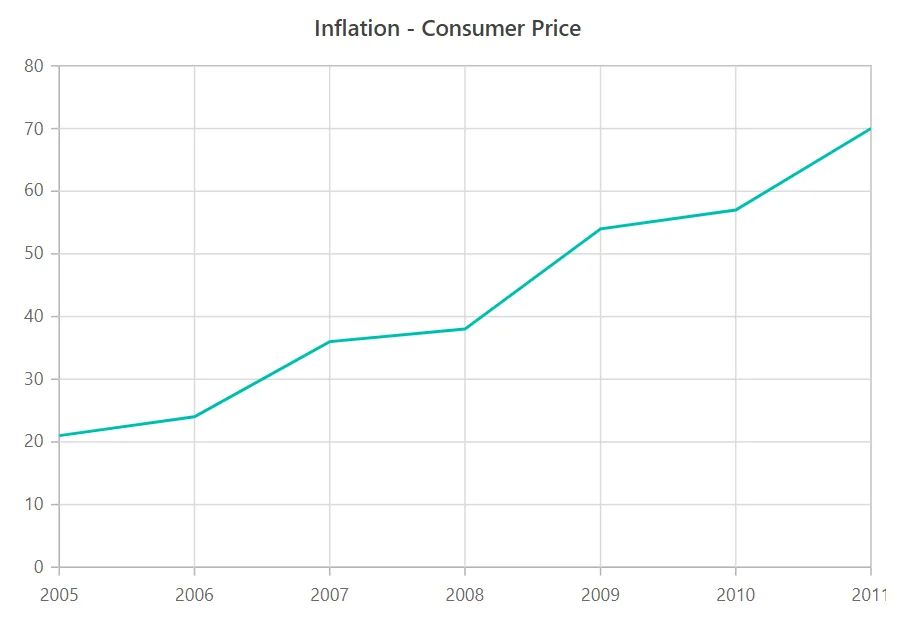

To bind list to the chart, you can assign a IEnumerable object to the DataSource property. The list data source can also be provided as an instance of SfDataManager or by using SfDataManager component. Now map the fields in list to XName and YName properties.

local-data.razor

@using Syncfusion.Blazor.Charts

<SfChart Title="Inflation - Consumer Price" Width="60%">
    <ChartPrimaryXAxis IntervalType="IntervalType.Years" LabelFormat="y" ValueType="Syncfusion.Blazor.Charts.ValueType.DateTime"></ChartPrimaryXAxis>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@ConsumerReports" XName="XValue" YName="YValue" Type="ChartSeriesType.Line">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public DateTime XValue;
        public double YValue;
    }

    public List<ChartData> ConsumerReports = new List<ChartData>
    {
            new ChartData { XValue = new DateTime(2005, 01, 01), YValue = 21 },
            new ChartData { XValue = new DateTime(2006, 01, 01), YValue = 24 },
            new ChartData { XValue = new DateTime(2007, 01, 01), YValue = 36 },
            new ChartData { XValue = new DateTime(2008, 01, 01), YValue = 38 },
            new ChartData { XValue = new DateTime(2009, 01, 01), YValue = 54 },
            new ChartData { XValue = new DateTime(2010, 01, 01), YValue = 57 },
            new ChartData { XValue = new DateTime(2011, 01, 01), YValue = 70 },
        };
}

Local Data

Remote Data

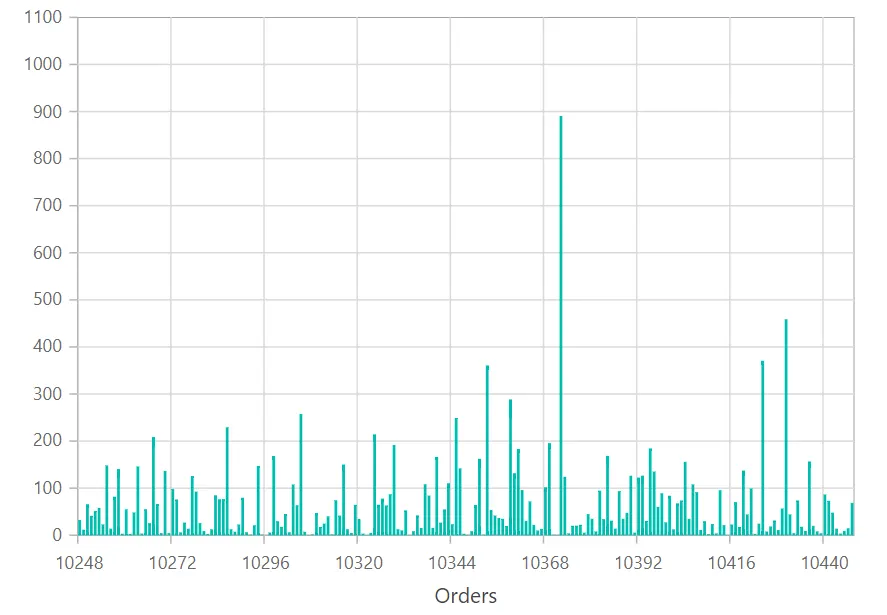

To bind remote data to chart component, assign service data as an instance of SfDataManager to the DataSource property or by using EjsDataManager component. To interact with remote data source, provide the endpoint Url.

remote-data.razor

@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Charts

<SfChart>
    <sfDataManager Url="https://services.odata.org/V4/Northwind/Northwind.svc/Orders" Adaptor="Adaptors.ODataV4Adaptor"></sfDataManager>

    <ChartPrimaryXAxis Title="Orders" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       RangePadding="ChartRangePadding.Additional"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries XName="OrderID" YName="Freight" Type="ChartSeriesType.Column"></ChartSeries>
    </ChartSeriesCollection>
</SfChart>

Binding with OData services

OData is a standardized protocol for creating and consuming data. You can retrieve data from OData service using the SfDataManager. Refer to the following code example for remote Data binding using OData service.

Binding with OData v4 services

The ODataV4 is an improved version of OData protocols, and the SfDataManager can also retrieve and consume OData v4 services. For more details on OData v4 services, refer to the OData documentation. To bind OData v4 service, use the ODataV4Adaptor.

Remote Data

Web API

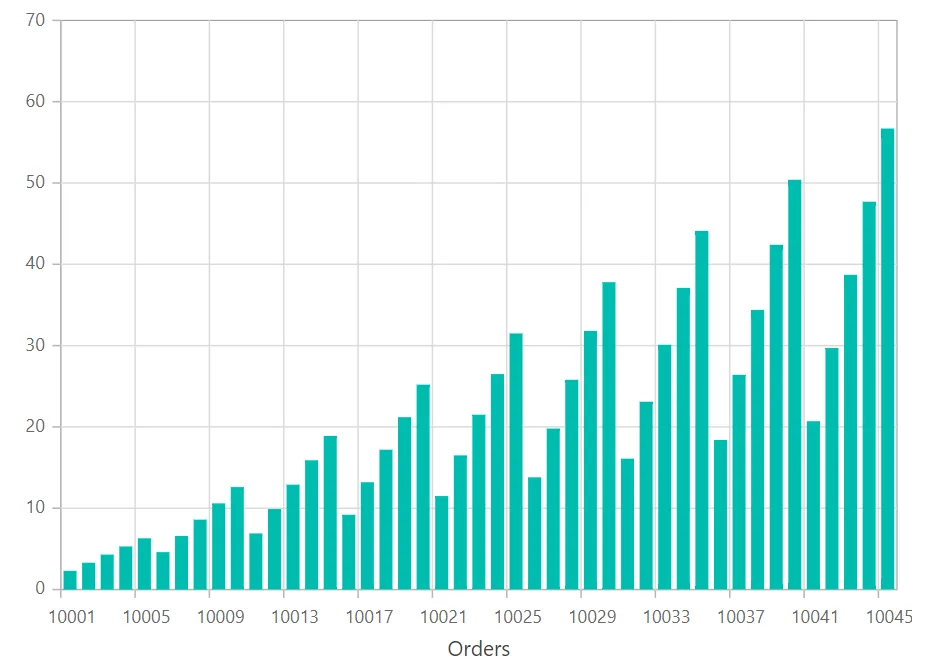

You can use WebApiAdaptor to bind chart with Web API created using OData endpoint.

@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Charts

<SfChart>
    <SfDataManager Url="https://ej2services.syncfusion.com/production/web-services/api/Orders" Adaptor="Adaptors.WebApiAdaptor"></SfDataManager>

    <ChartPrimaryXAxis Title="Orders" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       RangePadding="ChartRangePadding.Additional"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries XName="OrderID" YName="Freight" Type="ChartSeriesType.Column"></ChartSeries>
    </ChartSeriesCollection>
</SfChart>

Web API

Enable EjsDataManager after initial rendering

It is possible to render the datasource in Chart after initial rendering. This can be achieved by conditionally enabling the SfDataManager component after Chart rendering.

The following sample code demonstrates enabling data manager condition in the Chart on button click,

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Charts

<SfChart>
    @if (IsInitialRender)
    {
        <SfDataManager Url="https://ej2services.syncfusion.com/production/web-services/api/Orders" Adaptor="Adaptors.WebApiAdaptor">
        </SfDataManager>
    }

    <ChartPrimaryXAxis Title="Orders" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       RangePadding="ChartRangePadding.Additional"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries XName="OrderID" YName="Freight" Type="ChartSeriesType.Column"></ChartSeries>
    </ChartSeriesCollection>
</SfChart>

<SfButton OnClick="Enable" CssClass="e-primary" IsPrimary="true" Content="Enable data manager"></SfButton>

@code{
    public bool IsInitialRender = false;

    public void Enable()
    {
        // Enabling condition to render the data manager
        this.IsInitialRender = true;
    }
}

Sending additional parameters to the server

To add a custom parameter to the data request. Assign the Query object with additional parameters to the Chart’s Query property.

The following sample code demonstrates sending parameters using the Query property in the series,

@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Charts

<SfChart>
    <SfDataManager Url="https://mvc.syncfusion.com/Services/Northwnd.svc/Tasks/">
    </SfDataManager>

    <ChartPrimaryXAxis Title="Assignee" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       RangePadding="ChartRangePadding.Additional"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries Query="new ej.data.Query().take(10).where('Estimate', 'lessThan', 3, false)" XName="Assignee" YName="Estimate" Type="ChartSeriesType.Column"></ChartSeries>
    </ChartSeriesCollection>
</SfChart>

Change Query parameter value dynamically

It is possible to dynamically modify Chart’s Query property value.

The following sample code demonstrates achieving this,

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Charts

<SfButton Content="Modify query data" OnClick="BtnClick"></SfButton>
<SfChart>
    <SfDataManager Url="https://mvc.syncfusion.com/Services/Northwnd.svc/Tasks/">
    </SfDataManager>

    <ChartPrimaryXAxis Title="Assignee" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"
                       RangePadding="ChartRangePadding.Additional"></ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries Query="@QueryData" XName="Assignee" YName="Estimate" Type="ChartSeriesType.Column"></ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    private string QueryData = "new ej.data.Query().take(10).where('Estimate', 'lessThan', 3, false)";
    private string UpdatedQueryData = "new ej.data.Query().take(5).where('Estimate', 'lessThan', 3, false)";

    public void BtnClick(UIMouseEventArgs args)
    {
        QueryData = UpdatedQueryData;
    }
}

Before modify:

Before Modify query dynamically

After modified:

After Modify query dynamically

Empty points

The Data points that contains NaN value are considered as empty points. By using EmptyPointSettings property in series, you can customize the empty point. Default Mode of the empty point is Gap.

empty-points.razor

@using Syncfusion.Blazor.Charts

<SfChart Title="Inflation - Consumer Price" Width="60%">
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@ConsumerReports" XName="XValue" YName="YValue" Type="ChartSeriesType.Column">
            <ChartEmptyPointSettings Fill="blue" Mode="@mode"></ChartEmptyPointSettings>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public String XValue;
        public double YValue;
    }
    public string mode = "Average";
    public List<ChartData> ConsumerReports = new List<ChartData> {
            new ChartData { XValue = "Rice", YValue = 80 },
            new ChartData { XValue = "Wheat", YValue = Double.NaN },
            new ChartData { XValue = "Oil", YValue = 70 },
            new ChartData { XValue = "Corn", YValue = 60 },
            new ChartData { XValue = "Gram", YValue = Double.NaN },
            new ChartData { XValue = "Milk", YValue = 70 },
            new ChartData { XValue = "Peas", YValue = 80 },
            new ChartData { XValue = "Fruit", YValue = 60 },
            new ChartData { XValue = "Butter", YValue = Double.NaN },
        };
}

Customizing empty point

Specific color for empty point can be set by Fill property in EmptyPointSettings. Border for a empty point can be set by Border property.

custom-emptypoint.razor

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
    </ChartPrimaryXAxis>

    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesReports" XName="Month" YName="Sales" Type="ChartSeriesType.Column">
            <ChartEmptyPointSettings Fill="blue" Mode="@Mode"></ChartEmptyPointSettings>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code{
    public class ChartData
    {
        public string Month;
        public Nullable<double> Sales;
    }
    public string Mode = "Average";
    public List<ChartData> SalesReports = new List<ChartData>
        {
               new ChartData{ Month="Jan", Sales= 35 },
               new ChartData{ Month= "Feb", Sales= 28 },
               new ChartData{ Month="Mar", Sales=null },
               new ChartData{ Month="Apr", Sales=32 },
               new ChartData{ Month="May", Sales=40 },
               new ChartData{ Month= "Jun", Sales=32 },
               new ChartData{ Month="Jul", Sales=35 },
               new ChartData{ Month="Aug", Sales=null },
               new ChartData{ Month="Sep", Sales=38 },
               new ChartData{ Month="Oct", Sales=30 },
               new ChartData{ Month="Nov", Sales=25 },
               new ChartData{ Month= "Dec", Sales=32 }
            };
}

Empty points

Entity Framework

Entity Framework acts as a modern object-database mapper for .NET. This section explains how to consume data from the Microsoft SQL Server database and bind it to the chart component.

Create DBContext class

The first step is to create a DBContext class called OrderContext for establishing connection to a Microsoft SQL Server database.

    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using Microsoft.EntityFrameworkCore;
    using System.ComponentModel.DataAnnotations;
    using EFChart.Data;

    namespace EFChart.Data
    {
        public class OrderContext : DbContext
        {
            public virtual DbSet<Order> Orders { get; set; }

            protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
            {
                if (!optionsBuilder.IsConfigured)
                {
                    // Configures the context to connect to a Microsoft SQL Serve database
                    optionsBuilder.UseSqlServer(@"Data Source=(LocalDB)\MSSQLLocalDB;AttachDbFilename='D:\blazor\EFTreeMap\App_Data\NORTHWND.MDF';Integrated Security=True;Connect Timeout=30");
                }
            }
        }

        public class Order
        {
            [Key]
            public int? OrderID { get; set; }
            [Required]
            public string CustomerID { get; set; }
            [Required]
            public int EmployeeID { get; set; }
        }
    }

Create data access layer to perform data operation

Now need to create a class called OrderDataAccessLayer, which acts as a data access layer to retrieve the records from the database table.

    using Microsoft.EntityFrameworkCore;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using static BlazorApp1.Data.OrderContext;
    using EFChart.Data;

    namespace EFChart.Data
    {
        public class OrderDataAccessLayer
        {
            OrderContext db = new OrderContext();

            //To Get all Orders details
            public DbSet<Order> GetAllOrders()
            {
                try
                {
                    return db.Orders;
                }
                catch
                {
                    throw;
                }
            }
        }
    }

Creating Web API Controller

A Web API Controller must be created which allows the chart to directly consume data from the Entity framework.

    using System;
    using System.Collections;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using Microsoft.AspNetCore.Http;
    using Microsoft.AspNetCore.Mvc;
    using Microsoft.Extensions.Primitives;
    using static BlazorApp1.Data.OrderContext;
    using EFChart.Data;

    namespace EFChart.Controller
    {
        [Route("api/[controller]")]
        [ApiController]
        public class DefaultController : ControllerBase
        {
            OrderDataAccessLayer db = new OrderDataAccessLayer();
            [HttpGet]
            public object Get()
            {
                IQueryable<Order> data = db.GetAllOrders().AsQueryable();
                var count = data.Count();
                var queryString = Request.Query;
                if (queryString.Keys.Contains("$inlinecount"))
                {
                    StringValues Skip;
                    StringValues Take;
                    int skip = (queryString.TryGetValue("$skip", out Skip)) ? Convert.ToInt32(Skip[0]) : 0;
                    int top = (queryString.TryGetValue("$top", out Take)) ? Convert.ToInt32(Take[0]) : data.Count();
                    return new { Items = data.Skip(skip).Take(top), Count = count };
                }
                else
                {
                    return data;
                }
            }
        }
    }

Add Web API Controller services in Startup.cs

Open the Startup.cs file and add services and endpoints required for Web API Controller as follows.

using EFChart.Data;
using Newtonsoft.Json.Serialization;

namespace BlazorApplication
{
    public class Startup
    {
        ....
        ....
        public void ConfigureServices(IServiceCollection services)
        {
            ....
            ....
            services.AddSingleton<OrderDataAccessLayer>();

            // Adds services for controllers to the specified Microsoft.Extensions.DependencyInjection.IServiceCollection.
            services.AddControllers().AddNewtonsoftJson(options =>
            {
                options.SerializerSettings.ContractResolver = new DefaultContractResolver();
            });
        }

        public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
            ....
            ....
            app.UseEndpoints(endpoints =>
            {
                // Adds endpoints for controller actions to the Microsoft.AspNetCore.Routing.IEndpointRouteBuilder
                endpoints.MapDefaultControllerRoute();
                .....
                .....
            });
        }
    }
}

Configure chart component

Configure the chart to bind data using either DataSource property or SfDataManager.

For instance, to bind data directly from the data access layer class OrderDataAccessLayer, assign the DataSource property to be OrderData.GetAllOrders().

    @using EFChart.Data;
    @inject OrderDataAccessLayer OrderData;

    @using Syncfusion.Blazor.Charts

    <SfChart DataSource="@OrderData.GetAllOrders()">
      <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
      </ChartPrimaryXAxis>
      <ChartSeriesCollection>
        <ChartSeries XName="CustomerID" YName="OrderID" Type="ChartSeriesType.Column">
        </ChartSeries>
      </ChartSeriesCollection>
    </SfChart>
    @code{

    }

On the other hand, to configure the chart using Web API, provide the appropriate endpoint Url within SfDataManager along with Adaptor. Here, need to use WebApiAdaptor in-order to interact with the Web API to consume data from the entity framework appropriately.

@using Syncfusion.Blazor.Charts
@using Syncfusion.Blazor.Data

<div class="control-section">
    <div>
        <SfChart>
          <SfDataManager Url="api/Default" Adaptor="Syncfusion.Blazor.Adaptors.WebApiAdaptor">
          </SfDataManager>
          <ChartPrimaryXAxis ValueType="Syncfusion.Blazor.Charts.ValueType.Category">
          </ChartPrimaryXAxis>
          <ChartSeriesCollection>
             <ChartSeries XName="CustomerID" YName="OrderID" Type="ChartSeriesType.Column">
             </ChartSeries>
          </ChartSeriesCollection>
        </SfChart>
    </div>
</div>
@code{

}

Working with Data in Blazor Chart component

List binding

Remote Data

Binding with OData services

Binding with OData v4 services

Web API

Enable EjsDataManager after initial rendering

Sending additional parameters to the server

Change Query parameter value dynamically

Empty points

Entity Framework

Create DBContext class

Create data access layer to perform data operation

Creating Web API Controller

Add Web API Controller services in Startup.cs

Configure chart component

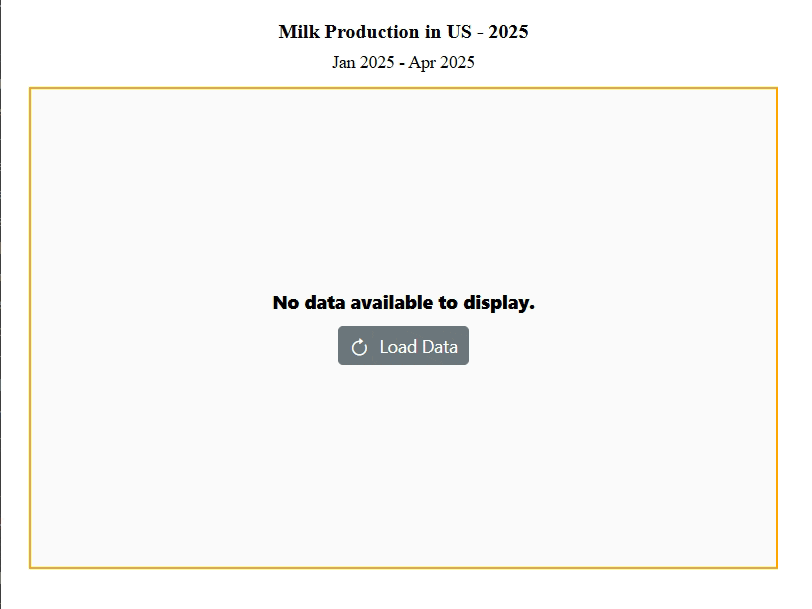

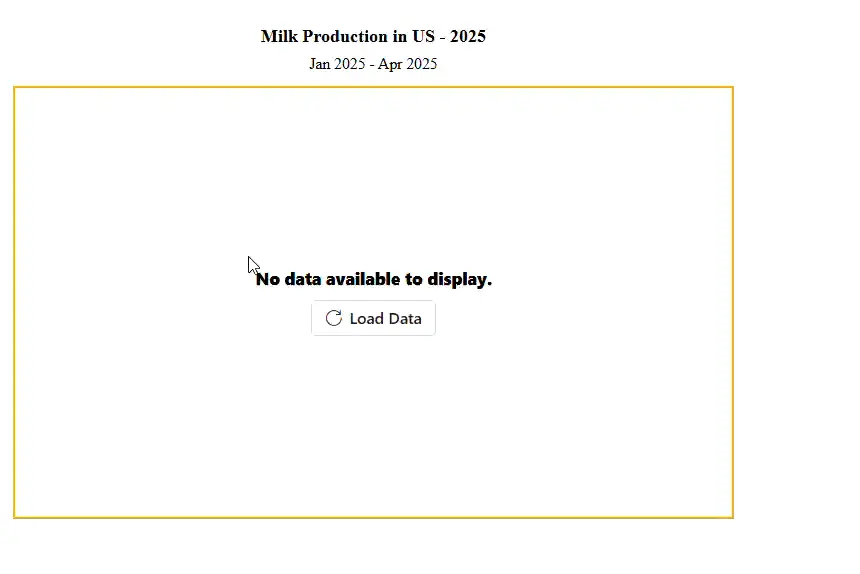

See Also
