Templates in Blazor Chat UI component
17 Dec 202412 minutes to read
The Chat UI component provides several templates for customizing the appearance of the empty conversation area, messages, typing indicator, and more. These templates provide flexibility for users to create a unique, personalized chat experience.

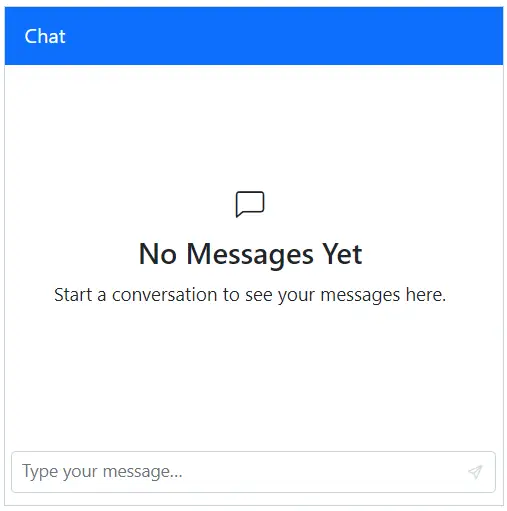

Empty chat template
You can use the EmptyChatTemplate tag to customize the chat interface when no messages are displayed. Personalized content, such as welcome messages or images, can be added to create an engaging and inviting experience for users starting a conversation.
@using Syncfusion.Blazor.InteractiveChat
<div style="height: 400px; width: 400px;">
<SfChatUI>
<EmptyChatTemplate>
<div class="empty-chat-text">
<h4><span class="e-icons e-comment-show"></span></h4>
<h4>No Messages Yet</h4>
<p>Start a conversation to see your messages here.</p>
</div>
</EmptyChatTemplate>
</SfChatUI>
</div>
<style>
.empty-chat-text {
font-size: 15px;
text-align: center;
margin-top: 90px;
}
</style>

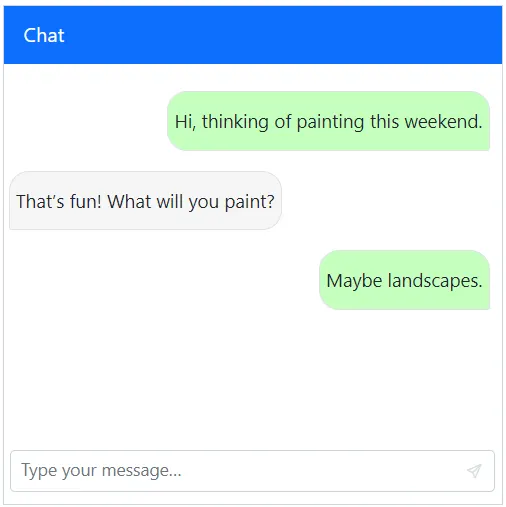

Message template
You can use the MessageTemplate tag to customize the appearance and styling of each chat message. Modify text styling, layout, and other design elements to ensure a personalized chat experience. The template context includes Message and Index items.
@using Syncfusion.Blazor.InteractiveChat
<div class="template-chatui" style="height: 400px; width: 400px;">
<SfChatUI ID="chatUser" User="CurrentUserModel" Messages="ChatUserMessages">
<MessageTemplate>
<div class="message-items e-card">
<div class="message-text">@((MarkupString)context.Message.Text)</div>
</div>
</MessageTemplate>
</SfChatUI>
</div>
@code {
private static UserModel CurrentUserModel = new UserModel() { ID = "User1", User = "Albert" };
private static UserModel MichaleUserModel = new UserModel() { ID = "User2", User = "Michale Suyama" };
private List<ChatMessage> ChatUserMessages = new List<ChatMessage>()
{
new ChatMessage() { Text = "Hi, thinking of painting this weekend.", Author = CurrentUserModel },
new ChatMessage() { Text = "That’s fun! What will you paint?", Author = MichaleUserModel },
new ChatMessage() { Text = "Maybe landscapes.", Author = CurrentUserModel }
};
}
<style>
.template-chatui .e-right .message-items {
border-radius: 16px 16px 2px 16px;
background-color: #c5ffbf;
}
.template-chatui .e-left .message-items {
border-radius: 16px 16px 16px 2px;
background-color: #f5f5f5;
}
.template-chatui .message-items {
padding: 5px;
}
</style>

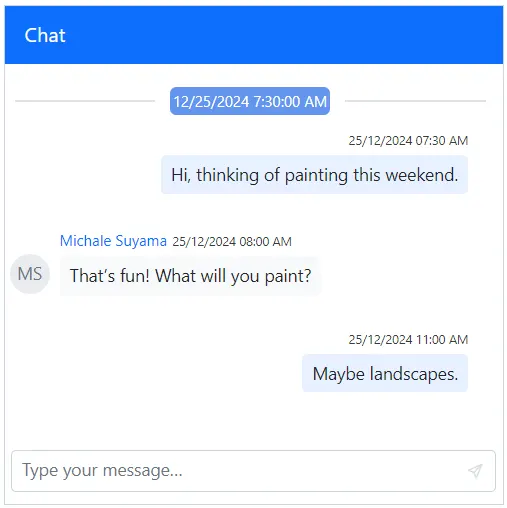

Time break template
You can use the TimeBreakTemplate tag to customize the template, such as showing “Today,” “Yesterday,” or specific dates. This enhances conversation organization by clearly separating messages based on time, improving readability for the user. The template context includes MessageDate.
@using Syncfusion.Blazor.InteractiveChat
<div class="template-chatui" style="height: 400px; width: 400px;">
<SfChatUI ID="chatUser" User="CurrentUserModel" Messages="ChatUserMessages" ShowTimeBreak="true">
<TimeBreakTemplate>
<div class="timebreak-wrapper">@(context.MessageDate.Value)</div>
</TimeBreakTemplate>
</SfChatUI>
</div>
@code {
private static UserModel CurrentUserModel = new UserModel() { ID = "User1", User = "Albert" };
private static UserModel MichaleUserModel = new UserModel() { ID = "User2", User = "Michale Suyama" };
private List<ChatMessage> ChatUserMessages = new List<ChatMessage>()
{
new ChatMessage() { Text = "Hi, thinking of painting this weekend.", Author = CurrentUserModel, Timestamp = new DateTime(2024,12,25,7,30,0) },
new ChatMessage() { Text = "That’s fun! What will you paint?", Author = MichaleUserModel, Timestamp = new DateTime(2024,12,25,8,0,0) },
new ChatMessage() { Text = "Maybe landscapes.", Author = CurrentUserModel, Timestamp = new DateTime(2024,12,25,11,0,0) }
};
}
<style>
.template-chatui .timebreak-wrapper {
background-color: #6495ed;
color: #ffffff;
border-radius: 5px;
padding: 2px;
}
</style>

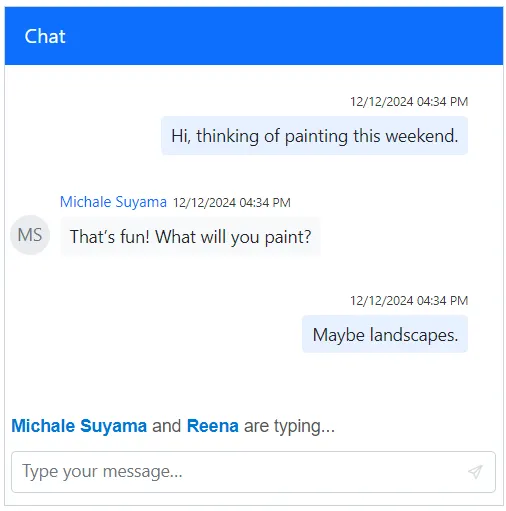

Typing indicator template
You can use the TypingUsersTemplate tag to customize the display of users currently typing in the chat. It allows for styling and positioning of the typing indicator, enhancing the user experience. The template context includes Users.
@using Syncfusion.Blazor.InteractiveChat
<div class="template-chatui" style="height: 400px; width: 400px;">
<SfChatUI ID="chatUser" User="CurrentUserModel" Messages="ChatUserMessages" TypingUsers="TypingUsers">
<TypingUsersTemplate>
<div class="typing-wrapper">
@for (int i = 0; i < context.Users.Count; i++)
{
if (i == context.Users.Count - 1 && i > 0)
{
<span>and </span>
}
<span class="typing-user">@context.Users[i].User</span>
}
<span> are typing...</span>
</div>
</TypingUsersTemplate>
</SfChatUI>
</div>
@code {
private static UserModel CurrentUserModel = new UserModel() { ID = "User1", User = "Albert" };
private static UserModel MichaleUserModel = new UserModel() { ID = "User2", User = "Michale Suyama" };
private static UserModel ReenaUserModel = new UserModel() { ID = "User2", User = "Reena" };
private List<UserModel> TypingUsers = new List<UserModel>() { MichaleUserModel, ReenaUserModel };
private List<ChatMessage> ChatUserMessages = new List<ChatMessage>()
{
new ChatMessage() { Text = "Hi, thinking of painting this weekend.", Author = CurrentUserModel },
new ChatMessage() { Text = "That’s fun! What will you paint?", Author = MichaleUserModel },
new ChatMessage() { Text = "Maybe landscapes.", Author = CurrentUserModel }
};
}
<style>
.typing-wrapper {
display: flex;
gap: 4px;
align-items: center;
font-family: Arial, sans-serif;
font-size: 14px;
color: #555;
margin: 5px 0;
}
.typing-user {
font-weight: bold;
color: #0078d4;
}
</style>

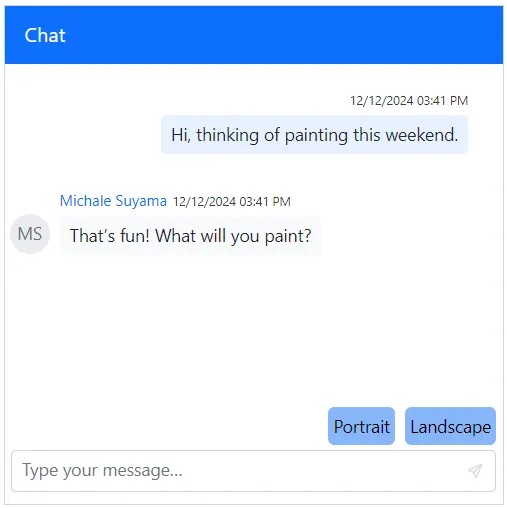

Suggestion template
You can use the SuggestionTemplate tag to customize the quick reply suggestions that appear above the input field. Templates here can help create visually appealing and functional suggestion layouts. The template context includes Suggestion and Index items.
@using Syncfusion.Blazor.InteractiveChat
<div class="template-chatui" style="height: 400px; width: 400px;">
<SfChatUI ID="chatUser" User="CurrentUserModel" Messages="ChatUserMessages" Suggestions="@Suggestions">
<SuggestionTemplate>
<div class='suggestion-item active'>
<div class="content">@context.Suggestions</div>
</div>
</SuggestionTemplate>
</SfChatUI>
</div>
@code {
private static UserModel CurrentUserModel = new UserModel() { ID = "User1", User = "Albert" };
private static UserModel MichaleUserModel = new UserModel() { ID = "User2", User = "Michale Suyama" };
private List<string> Suggestions = new List<string>() { "Portrait", "Landscape" };
private List<ChatMessage> ChatUserMessages = new List<ChatMessage>()
{
new ChatMessage() { Text = "Hi, thinking of painting this weekend.", Author = CurrentUserModel },
new ChatMessage() { Text = "That’s fun! What will you paint?", Author = MichaleUserModel }
};
}
<style>
.template-chatui .e-suggestion-list li {
padding: 0;
border: none;
box-shadow: none;
}
.template-chatui .suggestion-item {
display: flex;
align-items: center;
background-color: #87b6fb;
color: black;
padding: 4px;
gap: 5px;
height: 30px;
border-radius: 5px;
}
.template-chatui .suggestion-item .content {
padding: 0;
text-overflow: ellipsis;
white-space: nowrap;
overflow: hidden;
}
</style>

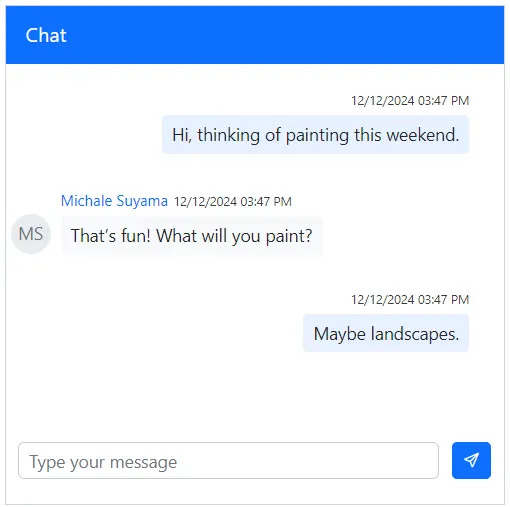

Footer template
You can use the FooterTemplate tag to customize the default footer area and manage message send actions with a personalized design. This flexibility allows users to create unique footers that meet their specific needs.
@using Syncfusion.Blazor.InteractiveChat
<div class="template-chatui" style="height: 400px; width: 400px;">
<SfChatUI @ref="ChatUI" ID="chatUser" User="CurrentUserModel" Messages="ChatUserMessages">
<FooterTemplate>
<div class="custom-footer">
<input id="textArea" @bind="textAreaValue" class="e-input" placeholder="Type your message"></input>
<button id="sendPrompt" @onclick="AddMessage" class="e-btn e-primary e-icons e-send"></button>
</div>
</FooterTemplate>
</SfChatUI>
</div>
@code {
private SfChatUI ChatUI;
private static UserModel CurrentUserModel = new UserModel() { ID = "User1", User = "Albert" };
private static UserModel MichaleUserModel = new UserModel() { ID = "User2", User = "Michale Suyama" };
private string textAreaValue = string.Empty;
private void AddMessage()
{
if (!string.IsNullOrEmpty(textAreaValue))
{
var value = textAreaValue;
textAreaValue = String.Empty;
ChatUI.Messages.Add(new ChatMessage() { Text = value, Author = CurrentUserModel });
}
}
private List<ChatMessage> ChatUserMessages = new List<ChatMessage>()
{
new ChatMessage() { Text = "Hi, thinking of painting this weekend.", Author = CurrentUserModel },
new ChatMessage() { Text = "That’s fun! What will you paint?", Author = MichaleUserModel },
new ChatMessage() { Text = "Maybe landscapes.", Author = CurrentUserModel }
};
}
<style>
.template-chatui .e-chat-ui .e-footer {
margin: unset;
align-self: auto;
}
.custom-footer {
display: flex;
gap: 10px;
padding: 10px;
background-color: transparent;
}
#textArea {
width: 100%;
border-radius: 5px;
border: 1px solid #ccc;
}
</style>
