Floating Panels in Blazor Dashboard Layout Component

4 Aug 20265 minutes to read

The Dashboard Layout component provides panel floating functionality through the AllowFloating property. The default value of AllowFloating is true. When the property is enabled, panels automatically move upward to occupy any available empty cells in preceding rows. This behavior helps utilize the available Dashboard space efficiently and maintains a compact layout arrangement.

When the property is disabled, panels retain their configured row and column positions, even if empty cells are available above them.

Floating Behavior

AllowFloating is Enabled

When the AllowFloating property is set to true, panels automatically float upward and occupy vacant spaces in the previous rows. This minimizes unused space and optimizes the overall Dashboard layout.

AllowFloating is Disabled

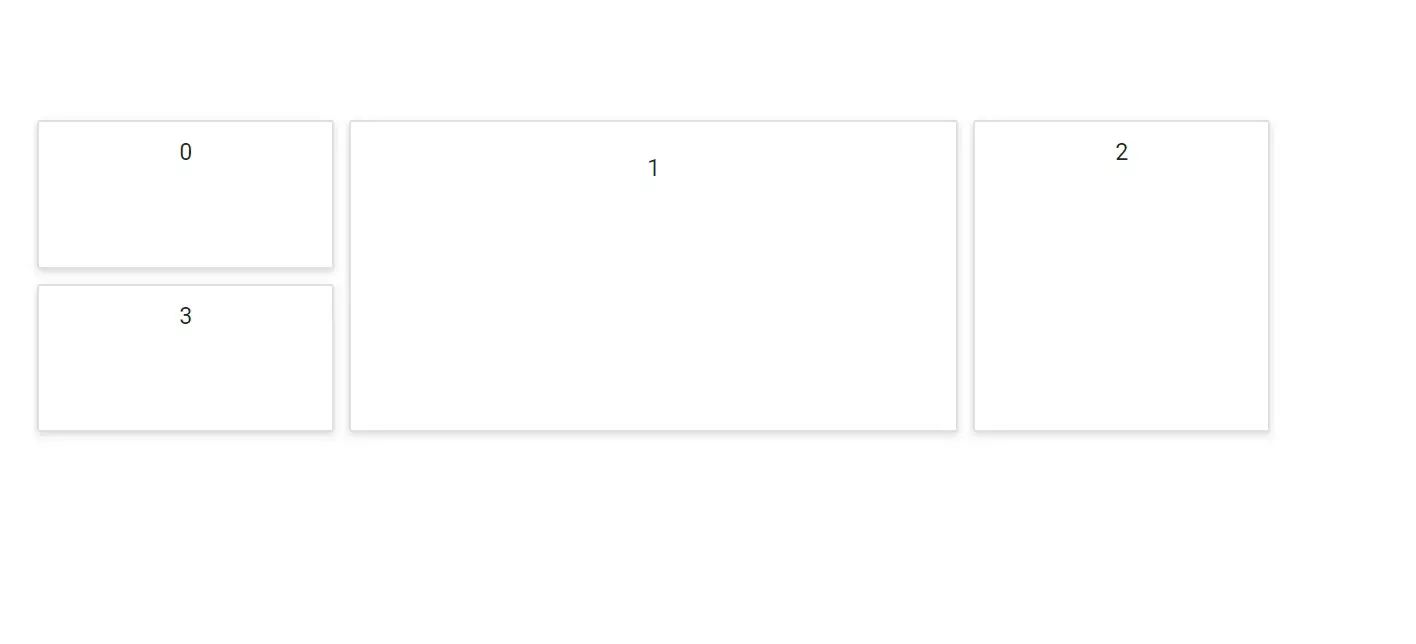

When the AllowFloating property is set to false, panels remain fixed in their assigned positions and do not move to fill empty spaces. This preserves the original panel arrangement within the Dashboard.

Basic Example

The following example demonstrates how to disable the floating behavior using the AllowFloating property:

@using Syncfusion.Blazor.Layouts

<SfDashboardLayout CellSpacing="@(new double[] { 10, 10 })"
                   Columns="5"
                   CellAspectRatio="2"
                   AllowFloating="false">
    <DashboardLayoutPanels>
        <DashboardLayoutPanel SizeX="1" SizeY="1" Row="0" Column="0">
            <ContentTemplate>
                <div>0</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="2" SizeY="2" Row="1" Column="1">
            <ContentTemplate>
                <div>1</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="1" SizeY="2" Row="0" Column="3">
            <ContentTemplate>
                <div>2</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="1" SizeY="1" Row="1" Column="0">
            <ContentTemplate>
                <div>3</div>
            </ContentTemplate>
        </DashboardLayoutPanel>
    </DashboardLayoutPanels>
</SfDashboardLayout>

<style>
    .e-panel-content {
        text-align: center;
        margin-top: 10px;
    }
</style>

Dynamically Enable or Disable Floating

You can dynamically change the floating behavior at runtime by binding the AllowFloating property to a Boolean variable. In the following example, a button is used to toggle the floating functionality.

@using Syncfusion.Blazor.Layouts

<button @onclick="ToggleFloating"
        class="btn btn-primary"
        style="margin-bottom:15px;">
    Toggle Floating (@allowFloating)
</button>

<SfDashboardLayout @key="allowFloating"
                   CellSpacing="@(new double[] { 10, 10 })"
                   Columns="5"
                   CellAspectRatio="2"
                   AllowFloating="@allowFloating">
    <DashboardLayoutPanels>
        <DashboardLayoutPanel SizeX="1" SizeY="1" Row="0" Column="0">
            <ContentTemplate>
                <div>0</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="2" SizeY="2" Row="1" Column="1">
            <ContentTemplate>
                <div>1</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="1" SizeY="2" Row="0" Column="3">
            <ContentTemplate>
                <div>2</div>
            </ContentTemplate>
        </DashboardLayoutPanel>

        <DashboardLayoutPanel SizeX="1" SizeY="1" Row="1" Column="0">
            <ContentTemplate>
                <div>3</div>
            </ContentTemplate>
        </DashboardLayoutPanel>
    </DashboardLayoutPanels>
</SfDashboardLayout>

@code {
    private bool allowFloating = false;

    private void ToggleFloating()
    {
        allowFloating = !allowFloating;
    }
}

<style>
    .e-panel-content {
        text-align: center;
        margin-top: 10px;
    }
</style>

Note: When updating the AllowFloating property dynamically, use the @key directive to recreate the Dashboard Layout component and ensure that the floating behavior is refreshed correctly.
