Column Template in Blazor DataGrid

14 Aug 202318 minutes to read

NOTE

Before adding column template to the DataGrid, it is recommended to go through the template section topic to configure the template.

To know about Column Template in Blazor DataGrid Component, you can check this video.

The Column template has options to display custom element value or content in the column. You can use the Template of the GridColumn component to specify the custom content. Inside the Template, you can access the data using the implicit named parameter context.

NOTE

The column template feature is used to render the customized element value in the UI for a particular column. The data operations like filtering, sorting, etc., will not work based on the column template values. It will be handled based on the values you have provided to the particular column in the datasource.

@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Employees">
    <GridColumns>
        <GridColumn HeaderText="Employee Image" TextAlign="TextAlign.Center" Width="120">
            <Template>
                @{
                    var employee = (context as EmployeeData);
                    <div class="image">
                        <img src="@($"scripts/Images/Employees/{employee.EmployeeID}.png")" alt="@employee.EmployeeID" />
                    </div>
                }
            </Template>
        </GridColumn>
        <GridColumn Field=@nameof(EmployeeData.EmployeeID) HeaderText="Employee ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="First Name" Width="130"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.HireDate) HeaderText="Hire Date" Format="d" TextAlign="TextAlign.Right" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .image img {
        height: 55px;
        width: 55px;
        border-radius: 50px;
        box-shadow: inset 0 0 1px #e0e0e0, inset 0 0 14px rgba(0, 0, 0, 0.2);
    }
</style>

@code{
    public List<EmployeeData> Employees { get; set; }

    protected override void OnInitialized()
    {
        Employees = Enumerable.Range(1, 9).Select(x => new EmployeeData()
        {
            EmployeeID = x,
            FirstName = (new string[] { "Nancy", "Andrew", "Janet", "Margaret", "Steven" })[new Random().Next(5)],
            LastName = (new string[] { "Davolio", "Fuller", "Leverling", "Peacock", "Buchanan" })[new Random().Next(5)],
            Title = (new string[] { "Sales Representative", "Vice President, Sales", "Sales Manager",
                                    "Inside Sales Coordinator" })[new Random().Next(4)],
            HireDate = DateTime.Now.AddDays(-x),
        }).ToList();
    }

    public class EmployeeData
    {
        public int? EmployeeID { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Title { get; set; }
        public DateTime? HireDate { get; set; }
    }
}

The following screenshot represents the column Template.
Blazor DataGrid with Column template

Render other components in a column

It is possible to render the other components in a column using the column template feature of the Grid.

In the following sample, the SfDropDownList component is rendered in the First Name column using the column template.

@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.DropDowns

<SfGrid  DataSource="@Employees">
    <GridColumns>
        <GridColumn Field=@nameof(EmployeeData.EmployeeID) TextAlign="TextAlign.Right" HeaderText="Employee ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="First Name">
            <Template>
                <SfDropDownList TValue="string" Placeholder="Andrew" TItem="EmployeeNames" Width="300px"  DataSource="@EmployeeDetails">
                    <DropDownListFieldSettings Value="Name"></DropDownListFieldSettings>
                </SfDropDownList>
            </Template>
        </GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Format="C2"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.HireDate) HeaderText="Hire Date" Format="d" TextAlign="TextAlign.Right" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

@code{
    public List<EmployeeData> Employees { get; set; }
    public List<EmployeeNames> EmployeeDetails { get; set; }

    protected override void OnInitialized()
    {
        Employees = Enumerable.Range(1, 5).Select(x => new EmployeeData()
        {
            EmployeeID = x,
            FirstName = (new string[] { "Nancy", "Andrew", "Janet", "Margaret", "Steven" })[new Random().Next(5)],
            Title = (new string[] { "Sales Representative", "Vice President, Sales", "Sales Manager",
                                    "Inside Sales Coordinator" })[new Random().Next(4)],
            HireDate = DateTime.Now.AddDays(-x),
        }).ToList();

        EmployeeDetails = Enumerable.Range(1, 5).Select(x => new EmployeeNames()
        {
            Id = x,
            Name = (new string[] { "Nancy", "Andrew", "Janet", "Margaret", "Steven" })[new Random().Next(5)]
        }).ToList();
    }

    public class EmployeeData
    {
        public int? EmployeeID { get; set; }
        public string FirstName { get; set; }
        public string Title { get; set; }
        public DateTime? HireDate { get; set; }
    }

    public class EmployeeNames
    {
        public int Id { get; set; }
        public string Name { get; set; }
    }
}

Using conditions inside template

Template elements can be rendered based on required conditions inside the Template of the GridColumn component.

In the following code, checkbox is rendered based on Discontinued field value in the datasource. This data can be accessed inside the Template using the implicit named parameter context.

@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Employees">
    <GridColumns>
        <GridColumn HeaderText="Employee Status" TextAlign="TextAlign.Center" Width="120">
            <Template>
                @{
                    var employee = (context as EmployeeData);
                    <div class="template_checkbox">
                        @if (employee.Discontinued)
                        {
                            <input type="checkbox" checked>
                        }
                        else
                        {
                            <input type="checkbox">
                        }
                    </div>
                }
            </Template>
        </GridColumn>
        <GridColumn Field=@nameof(EmployeeData.EmployeeID) TextAlign="TextAlign.Center" HeaderText="Employee ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="First Name" Width="130"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.LastName) HeaderText="Last Name" Width="130"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.HireDate) HeaderText="Hire Date" Format="d" TextAlign="TextAlign.Right" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

@code{
    public List<EmployeeData> Employees { get; set; }

    protected override void OnInitialized()
    {
        Employees = Enumerable.Range(1, 9).Select(x => new EmployeeData()
        {
            EmployeeID = x,
            FirstName = (new string[] { "Nancy", "Andrew", "Janet", "Margaret", "Steven" })[new Random().Next(5)],
            LastName = (new string[] { "Davolio", "Fuller", "Leverling", "Peacock", "Buchanan" })[new Random().Next(5)],
            Title = (new string[] { "Sales Representative", "Vice President, Sales", "Sales Manager",
                                    "Inside Sales Coordinator" })[new Random().Next(4)],
            HireDate = DateTime.Now.AddDays(-x),
            Discontinued = (new Boolean[] { true, false})[new Random().Next(2)]
        }).ToList();
    }

    public class EmployeeData
    {
        public int? EmployeeID { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Title { get; set; }
        public DateTime? HireDate { get; set; }
        public Boolean Discontinued { get; set; }
    }
}

The following screenshot represents the Conditional Template.

Blazor DataGrid with Conditional Template

Using image inside template

This can be achieved using the Column template property as it has options to display custom elements like, image content in the column. You can use the Template of the GridColumn component to specify the custom image content. Inside the Template , you can access the data using the implicit named parameter context.

@using Syncfusion.Blazor.Grids

<SfGrid  DataSource="@Employees">
    <GridColumns>
        <GridColumn HeaderText="Employee Image" TextAlign="TextAlign.Center" Width="120">
            <Template>
                @{
                    var employee = (context as EmployeeData);
                    <div class="image">
                        <img src="@($"scripts/Images/Employees/{employee.EmployeeID}.png")" alt="@employee.EmployeeID" />
                    </div>
                }
            </Template>
        </GridColumn>
        <GridColumn Field=@nameof(EmployeeData.EmployeeID) TextAlign="TextAlign.Right" HeaderText="Employee ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="First Name" Width="130"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Format="C2" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.HireDate) HeaderText="Hire Date" Format="d" TextAlign="TextAlign.Right" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .image img {
        height: 55px;
        width: 55px;
        border-radius: 50px;
        box-shadow: inset 0 0 1px #e0e0e0, inset 0 0 14px rgba(0, 0, 0, 0.2);
    }
</style>

@code{
    public List<EmployeeData> Employees { get; set; }

    protected override void OnInitialized()
    {
        Employees = Enumerable.Range(1, 5).Select(x => new EmployeeData()
        {
            EmployeeID = x,
            FirstName = (new string[] { "Nancy", "Andrew", "Janet", "Margaret", "Steven" })[new Random().Next(5)],
            Title = (new string[] { "Sales Representative", "Vice President, Sales", "Sales Manager",
                                    "Inside Sales Coordinator" })[new Random().Next(4)],
            HireDate = DateTime.Now.AddDays(-x),
        }).ToList();
    }

    public class EmployeeData
    {
        public int? EmployeeID { get; set; }
        public string FirstName { get; set; }
        public string Title { get; set; }
        public DateTime? HireDate { get; set; }
    }
}

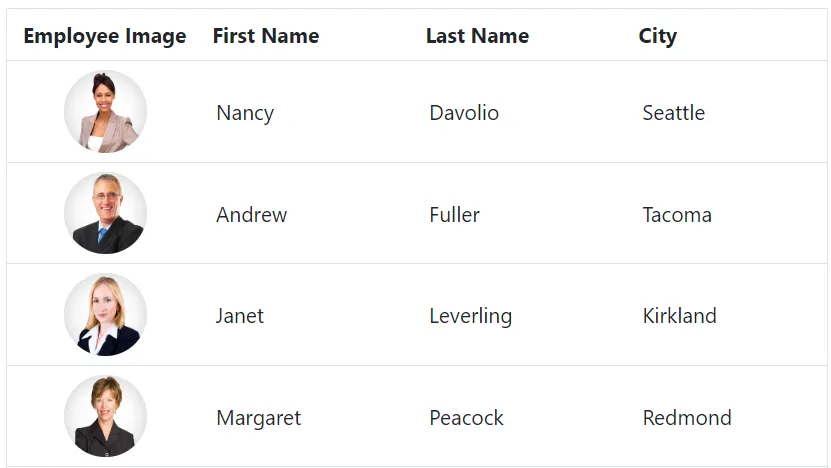

The following screenshot represents the Image Template.
Blazor DataGrid with Image Template

The Column template property can be used to provide routing links inside the Template property of the GridColumn. For routing, UriHelper can be utilized.

This can be achieved by initially defining an anchor tag inside the column template and binding click event to it. In this event, the DataGrid data context is passed on to its function.

@inject NavigationManager UriHelper
@using Syncfusion.Blazor.Grids

<SfGrid  DataSource="@Employees">
    <GridColumns>
        <GridColumn Field=@nameof(EmployeeData.EmployeeID) TextAlign="TextAlign.Center" HeaderText="Employee ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Name) HeaderText="First Name" Width="130"></GridColumn>
        <GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Width="120"></GridColumn>
        <GridColumn HeaderText="User profile" TextAlign="TextAlign.Center" Width="120">
            <Template>
                @{
                    var Employee = (context as EmployeeData);
                    <div><a href="#" @onclick="@(() => Navigate(Employee))">View</a></div>
                }
            </Template>
        </GridColumn>
    </GridColumns>
</SfGrid>

@code{

    List<EmployeeData> Employees = new List<EmployeeData>
    {
        new EmployeeData() { EmployeeID = 1, Name = "Nancy Fuller", Link = "nancy_fuller", Title = "Vice President" },
        new EmployeeData() { EmployeeID = 2, Name = "Steven Buchanan", Link = "steven_buchanan", Title = "Sales Manager" },
        new EmployeeData() { EmployeeID = 3, Name = "Janet Leverling", Link = "janet_leverling", Title = "Sales Representative" },
        new EmployeeData() { EmployeeID = 4, Name = "Andrew Davolio", Link = "andrew_davolio", Title = "Inside Sales Coordinator" }
    };

    public class EmployeeData
    {
        public int EmployeeID { get; set; }
        public string Name { get; set; }
        public string Title { get; set; }
        public string Link { get; set; }
    }
    private void Navigate(EmployeeData Employee)
    {
        UriHelper.NavigateTo($"{ Employee.Link}/{Employee.EmployeeID.ToString()}/{Employee.Name}/{ Employee.Title}");
    }
}

In the above code, the url to be navigated is specified in the Link variable of the DataGrid data. Based on this, the page is routed to the corresponding url.

After that, add new razor page for routing with routing url along with the parameters to be received, and initialize it with the required details.

@page "/nancy_fuller/{EmpID}/{Name}/{Title}"

<h2>Hello @Name!</h2>
<br>
<h4><u>Employee Details</u></h4>
<br>
<div><b>Employee ID:</b><div class="details">@EmpID</div></div>
<div><b>Position:</b><div class="details">@Title</div></div>

@code {
    [Parameter]
    public string EmpID { get; set; }
    [Parameter]
    public string Name { get; set; }
    [Parameter]
    public string Title { get; set; }
}

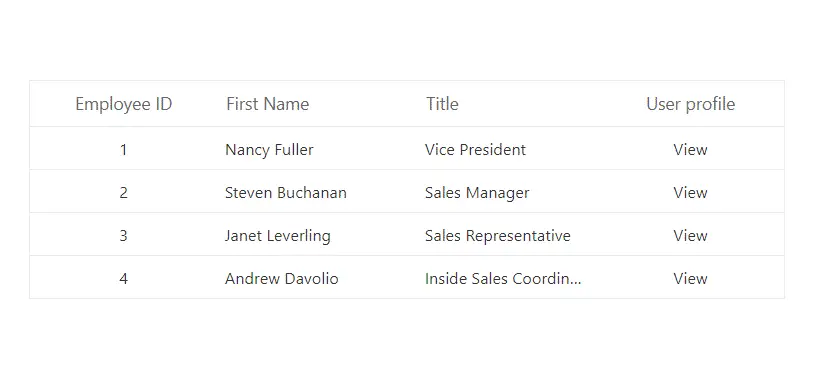

The following GIF represents template routing in DataGrid
Blazor DataGrid with Routing Template
