Filtering in Blazor DataGrid Component
14 Aug 202314 minutes to read
Filtering allows you to view particular records based on filter criteria. To enable filtering in the DataGrid, set the AllowFiltering to true. Filtering options can be configured through GridFilterSettings component.
@using Syncfusion.Blazor.Grids
<SfGrid DataSource="@Orders" AllowFiltering="true" AllowPaging="true">
<GridColumns>
<GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
<GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
<GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
</GridColumns>
</SfGrid>
@code{
public List<Order> Orders { get; set; }
protected override void OnInitialized()
{
Orders = Enumerable.Range(1, 75).Select(x => new Order()
{
OrderID = 1000 + x,
CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
Freight = 2.1 * x,
OrderDate = (new DateTime[] { new DateTime(2010, 5, 1), new DateTime(2010, 5, 2), new DateTime(2010, 5, 3), })[new Random().Next(3)],
}).ToList();
}
public class Order
{
public int? OrderID { get; set; }
public string CustomerID { get; set; }
public DateTime? OrderDate { get; set; }
public double? Freight { get; set; }
}
}

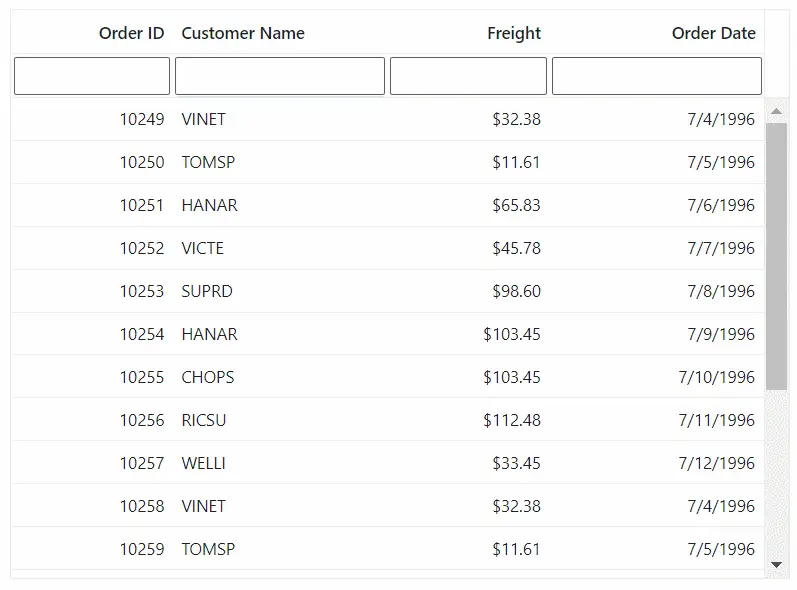

The following screenshot shows filtering using FilterBar
- You can apply and clear filtering by using FilterByColumn and ClearFiltering methods.
- To disable filtering for a particular column, set AllowFiltering property of GridColumn as false.
Initial filter
To apply the filter at initial rendering, set the filter Predicate object in Columns property of GridFilterSettings component.
@using Syncfusion.Blazor.Grids
<SfGrid DataSource="@Orders" AllowFiltering="true">
<GridFilterSettings>
<GridFilterColumns>
<GridFilterColumn Field = "CustomerID" MatchCase =false Operator = "Operator.StartsWith" Predicate = "and" Value = "@val" ></GridFilterColumn>
</GridFilterColumns>
</GridFilterSettings>
<GridColumns>
<GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
<GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
<GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
</GridColumns>
</SfGrid>
@code{
public List<Order> Orders { get; set; }
public string val="ANANTR";
protected override void OnInitialized()
{
Orders = Enumerable.Range(1, 75).Select(x => new Order()
{
OrderID = 1000 + x,
CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
Freight = 2.1 * x,
OrderDate = (new DateTime[] { new DateTime(2010, 5, 1), new DateTime(2010, 5, 2), new DateTime(2010, 5, 3), })[new Random().Next(3)]
}).ToList();
}
public class Order
{
public int? OrderID { get; set; }
public string CustomerID { get; set; }
public DateTime? OrderDate { get; set; }
public double? Freight { get; set; }
}
}

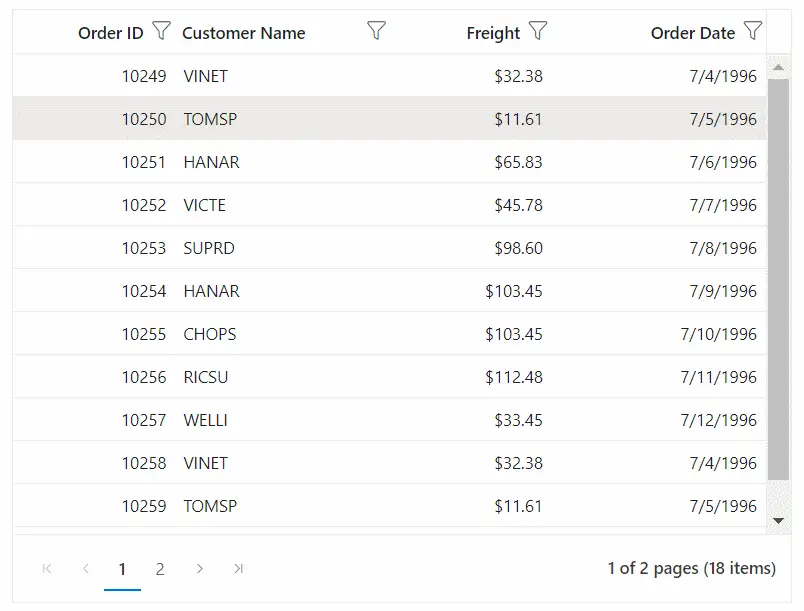

The following screenshot shows Initial filtering using FilterBar
Filter operators
The filter operator for a column can be defined in the Operator in Columns property of GridFilterSettings component.
The available operators and their supported data types are:
Operator | Description | Supported Types |
---|---|---|
StartsWith | Checks whether the value begins with the specified value. | String |
EndsWith | Checks whether the value ends with the specified value. | String |
Contains | Checks whether the value contains the specified value. | String |
Equal | Checks whether the value is equal to the specified value. | String | Number | Boolean | Date |
NotEqual | Checks for values not equal to the specified value. | String | Number | Boolean | Date |
GreaterThan | Checks whether the value is greater than the specified value. | Number | Date |
GreaterThanOrEqual | Checks whether a value is greater than or equal to the specified value. | Number | Date |
LessThan | Checks whether the value is less than the specified value. | Number | Date |
LessThanOrEqual | Checks whether the value is less than or equal to the specified value. | Number | Date |
By default, the Operator value is Equal in Columns property of GridFilterSettings component.
Get filtered records when using remote data source
Use the GetFilteredRecordsAsync method to retrieve the details of the filtered records from the Grid component. The GetFilteredRecordsAsync
method returns the filtered records in the form of objects when using a remote data source. So, you need to deserialize the object to retrieve the filtered records.
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Buttons
@using Newtonsoft.Json
<SfButton OnClick="Click">GetFilteredRecord</SfButton>
<SfGrid @ref="Grid" TValue="EmployeeData" ID="Grid" AllowPaging="true" AllowFiltering="true">
<SfDataManager Url="https://services.odata.org/V4/Northwind/Northwind.svc/Orders/" Adaptor="Adaptors.ODataV4Adaptor"></SfDataManager>
<GridColumns>
<GridColumn Field=@nameof(EmployeeData.OrderID) TextAlign="TextAlign.Center" HeaderText="Order ID" Width="120"></GridColumn>
<GridColumn Field=@nameof(EmployeeData.EmployeeID) TextAlign="TextAlign.Center" HeaderText="Customer ID" Width="120"></GridColumn>
<GridColumn Field=@nameof(EmployeeData.CustomerID) TextAlign="TextAlign.Center" HeaderText="Customer Name" Width="130"></GridColumn>
</GridColumns>
</SfGrid>
@code{
SfGrid<EmployeeData> Grid;
public class EmployeeData
{
public int OrderID { get; set; }
public string CustomerID { get; set; }
public int EmployeeID { get; set; }
}
public async Task Click()
{
var filteredData = await Grid.GetFilteredRecordsAsync();
List<EmployeeData> filteredList = JsonConvert.DeserializeObject<List<EmployeeData>>(JsonConvert.SerializeObject(filteredData));
}
}
Filter enum column
Filter the enum type data in the grid column using the Filter Template feature of the Grid.
In the following sample, the SfDropDownList
component is rendered in the FilterTemplate for the Type column. The enumerated list data can be bound to the Type column. In the ValueChange event of the SfDropDownList
, dynamically filter the Type column using the FilterByColumnAsync method of the Grid.
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.DropDowns
<SfGrid @ref="Grid" DataSource="@Orders" AllowFiltering="true">
<GridColumns>
<GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
<GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
<GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(Order.Type) HeaderText="Type" Type="ColumnType.String" Width="130">
<FilterTemplate>
<SfDropDownList Placeholder="Type" ID="Type" Value="@((string)(context as PredicateModel).Value)" DataSource="@FilterDropData" TValue="string" TItem="Data">
<DropDownListEvents TItem="Data" ValueChange="Change" TValue="string"></DropDownListEvents>
<DropDownListFieldSettings Value="Type" Text="Type"></DropDownListFieldSettings>
</SfDropDownList>
</FilterTemplate>
</GridColumn>
</GridColumns>
</SfGrid>
@code{
public SfGrid<Order> Grid;
public List<Order> Orders { get; set; }
protected override void OnInitialized()
{
Random rnd = new Random();
var values = Enum.GetValues(typeof(FileType));
Orders = Enumerable.Range(1, 75).Select(x => new Order()
{
OrderID = 1000 + x,
CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
Freight = 2.1 * x,
OrderDate = (new DateTime[] { new DateTime(2010, 5, 1), new DateTime(2010, 5, 2), new DateTime(2010, 5, 3), })[new Random().Next(3)],
Type = (FileType)(values.GetValue(rnd.Next(values.Length)))
}).ToList();
}
public class Order
{
public int? OrderID { get; set; }
public string CustomerID { get; set; }
public DateTime? OrderDate { get; set; }
public double? Freight { get; set; }
public FileType Type { get; set; }
}
public enum FileType : short
{
Base = 1,
Replace = 2,
Delta = 3
}
public class Data
{
public string Type { get; set; }
}
List<Data> FilterDropData = new List<Data>
{
new Data() { Type= "All" },
new Data() { Type= "Base" },
new Data() { Type= "Replace" },
new Data() { Type= "Delta" }
};
public async Task Change(ChangeEventArgs<string, Data> args)
{
if (args.Value == "All")
{
await this.Grid.ClearFilteringAsync();
}
else
{
await this.Grid.FilterByColumnAsync("Type", "contains", args.Value);
}
}
}
You can find the fully working sample here.
Filter multiple values using method
To apply a filter to a column with multiple values in the Grid, you can utilize the FilterByColumnAsync method. This method allows you to pass a list of multiple values as an argument to the FilterByColumnAsync
method to perform filtering actions on a specific GridColumn
.
In the following example, this is demonstrated by filtering the CustomerID column using the “Contains” operator with multiple values.
@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Grids
<SfButton OnClick="FilterColumn" Content="FilterRecord"></SfButton>
<SfGrid DataSource="@Orders" @ref="Grid" AllowFiltering="true" AllowPaging="true">
<GridColumns>
<GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
<GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
<GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
</GridColumns>
</SfGrid>
@code {
public List<Order> Orders { get; set; }
public SfGrid<Order> Grid { get; set; }
protected override void OnInitialized()
{
Orders = Enumerable.Range(1, 75).Select(x => new Order()
{
OrderID = 1000 + x,
CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
Freight = 2.1 * x,
OrderDate = (new DateTime[] { new DateTime(2010, 5, 1), new DateTime(2010, 5, 2), new DateTime(2010, 5, 3), })[new Random().Next(3)]
}).ToList();
}
public class Order
{
public int? OrderID { get; set; }
public string? CustomerID { get; set; }
public DateTime? OrderDate { get; set; }
public double? Freight { get; set; }
}
private async Task FilterColumn()
{
await Grid.FilterByColumnAsync("CustomerID", "equal", new List<string> { "BOLID", "BLONP" });
}
}
The following screenshot shows filter multiple values using FilterBycolumnAsync method,
