Editing customization in Syncfusion Blazor DataGrid

7 Nov 202521 minutes to read

The appearance of editing elements in the Syncfusion^® Blazor DataGrid can be customized using CSS. Styling options are available for different parts of the editing interface:

Edited and newly added rows: Highlights rows that are being modified or newly inserted.
Edit form input fields: Displays text boxes used to enter or update values during editing.
Edit dialog header: Shows the title or context of the current editing operation.
Command column buttons: Displays action buttons such as Edit, Delete, Update, and Cancel.

Customize edited and added row elements

The .e-editedrow and .e-addedrow classes style edited and newly added rows. Apply CSS to make these rows stand out:

.e-grid .e-editedrow table, .e-grid .e-addedrow table {
	    background-color: #62b2eb;
}

Adjust properties such as background-color or border styles to highlight rows that are in edit mode.

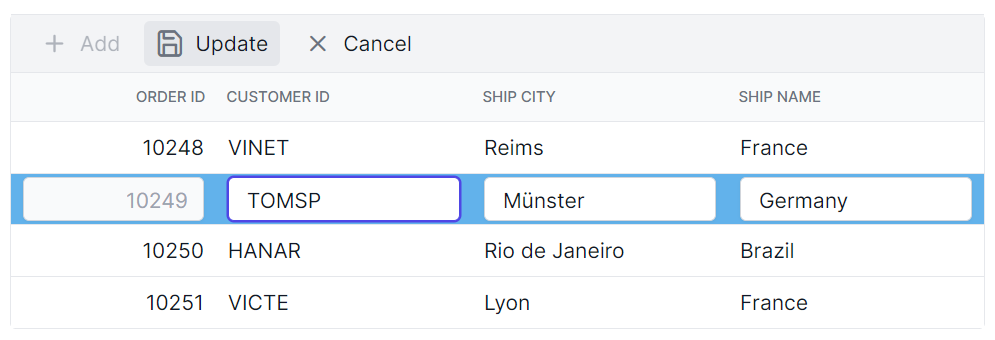

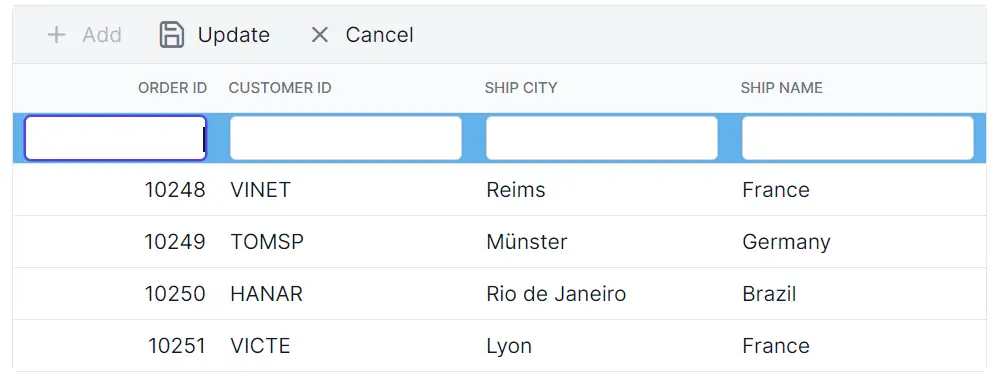

Edited and added rows
Edited row styling

Customize edited row input elements

The .e-gridform and .e-input classes style inputs inside the inline edit form in the Blazor DataGrid. Use CSS to adjust their appearance:

.e-grid .e-gridform .e-rowcell .e-input-group .e-input {
    font-family: cursive;
    color:rgb(214, 33, 123)
}

Modify properties such as font-family, color, or padding to improve readability.

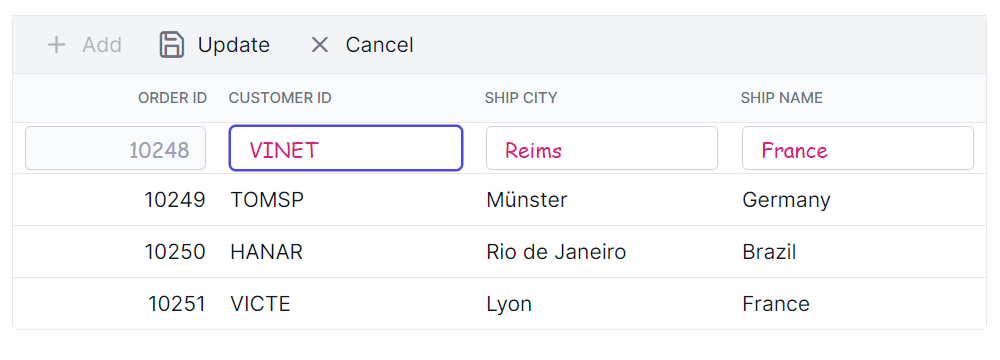

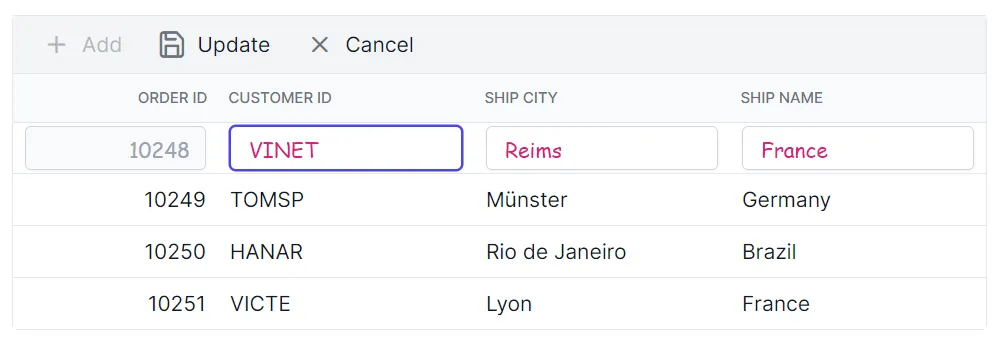

Edited row inputs with custom font and text color

Index.razor
OrderData.cs
@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Orders" Height="315" AllowPaging="true" Toolbar="ToolbarItems">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true"></GridEditSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="140"></GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipCity) HeaderText="Ship City" Width="110"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipName) HeaderText="Ship Name" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .e-grid .e-editedrow table,
    .e-grid .e-addedrow table { background-color: #62b2eb; }
    .e-grid .e-gridform .e-rowcell .e-input-group .e-input { font-family: cursive; color: rgb(214,33,123); }
    .e-grid .e-gridform .e-rowcell:focus-visible { outline: 2px solid #005a9e; outline-offset: -2px; }
</style>

@code {
    private List<OrderData> Orders { get; set; }
    private readonly List<string> ToolbarItems = new() { "Add", "Edit", "Delete", "Update", "Cancel" };
    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}
internal sealed class OrderData
{
    private static readonly List<OrderData> Data = new();

    public OrderData(int orderID, string customerID, string shipCity, string shipName, double freight, string shipCountry)
    {
        OrderID = orderID;
        CustomerID = customerID;
        ShipCity = shipCity;
        ShipName = shipName;
        Freight = freight;
        ShipCountry = shipCountry;
    }

    internal static List<OrderData> GetAllRecords()
    {
        if (Data.Count == 0)
        {
            Data.Add(new OrderData(10248, "VINET", "Reims", "Vins et alcools Chevalier", 32.38, "France"));
            Data.Add(new OrderData(10249, "TOMSP", "Münster", "Toms Spezialitäten", 11.61, "Germany"));
            Data.Add(new OrderData(10250, "HANAR", "Rio de Janeiro", "Hanari Carnes", 65.83, "Brazil"));
            Data.Add(new OrderData(10251, "VICTE", "Lyon", "Victuailles en stock", 41.34, "France"));
            Data.Add(new OrderData(10252, "SUPRD", "Charleroi", "Suprêmes délices", 51.30, "Belgium"));
            Data.Add(new OrderData(10253, "HANAR", "Rio de Janeiro", "Hanari Carnes", 58.17, "Brazil"));
            Data.Add(new OrderData(10254, "CHOPS", "Bern", "Chop-suey Chinese", 22.98, "Switzerland"));
            Data.Add(new OrderData(10255, "RICSU", "Genève", "Richter Supermarkt", 148.33, "Switzerland"));
            Data.Add(new OrderData(10256, "WELLI", "Resende", "Wellington Import Export", 13.97, "Brazil"));
            Data.Add(new OrderData(10257, "HILAA", "San Cristóbal", "Hila Alimentos", 81.91, "Venezuela"));
            Data.Add(new OrderData(10258, "ERNSH", "Graz", "Ernst Handel", 140.51, "Austria"));
            Data.Add(new OrderData(10259, "CENTC", "México D.F.", "Centro comercial", 3.25, "Mexico"));
            Data.Add(new OrderData(10260, "OTTIK", "Köln", "Ottilies Käseladen", 55.09, "Germany"));
            Data.Add(new OrderData(10261, "QUEDE", "Rio de Janeiro", "Que delícia", 3.05, "Brazil"));
            Data.Add(new OrderData(10262, "RATTC", "Albuquerque", "Rattlesnake Canyon Grocery", 48.29, "USA"));
        }
        return Data;
    }

    public int OrderID { get; }
    public string CustomerID { get; }
    public string ShipCity { get; }
    public string ShipName { get; }
    public double Freight { get; }
    public string ShipCountry { get; }
}

The .e-edit-dialog and .e-dlg-header-content classes style the dialog header when dialog editing is enabled. Apply CSS to differentiate the header:

.e-edit-dialog .e-dlg-header-content {
    background-color: #deecf9;
}

Change properties such as background-color to visually separate the header from the rest of the dialog content.

Edit dialog header with custom background color

Index.razor
OrderData.cs
@using Syncfusion.Blazor.Grids
<SfGrid DataSource="@Orders" Height="315" AllowPaging="true" Toolbar="ToolbarItems">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true" Mode="EditMode.Dialog"></GridEditSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="140"></GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipCity) HeaderText="Ship City" Width="110"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipName) HeaderText="Ship Name" Width="150"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .e-edit-dialog .e-dlg-header-content { background-color: #deecf9; color: #0b345d; }
    .e-edit-dialog .e-dlg-header-content .e-btn.e-dlg-closeicon-btn:focus-visible { outline: 2px solid #005a9e; outline-offset: 2px; }
</style>

@code {
    private List<OrderData> Orders { get; set; }
    private readonly List<string> ToolbarItems = new() { "Add", "Edit", "Delete", "Update", "Cancel" };

    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}
internal sealed class OrderData
{
    private static readonly List<OrderData> Data = new();

    public OrderData(int orderID, string customerID, string shipCity, string shipName, double freight, string shipCountry)
    {
        OrderID = orderID;
        CustomerID = customerID;
        ShipCity = shipCity;
        ShipName = shipName;
        Freight = freight;
        ShipCountry = shipCountry;
    }

    internal static List<OrderData> GetAllRecords()
    {
        if (Data.Count == 0)
        {
            Data.Add(new OrderData(10248, "VINET", "Reims", "Vins et alcools Chevalier", 32.38, "France"));
            Data.Add(new OrderData(10249, "TOMSP", "Münster", "Toms Spezialitäten", 11.61, "Germany"));
            Data.Add(new OrderData(10250, "HANAR", "Rio de Janeiro", "Hanari Carnes", 65.83, "Brazil"));
            Data.Add(new OrderData(10251, "VICTE", "Lyon", "Victuailles en stock", 41.34, "France"));
            Data.Add(new OrderData(10252, "SUPRD", "Charleroi", "Suprêmes délices", 51.30, "Belgium"));
            Data.Add(new OrderData(10253, "HANAR", "Rio de Janeiro", "Hanari Carnes", 58.17, "Brazil"));
            Data.Add(new OrderData(10254, "CHOPS", "Bern", "Chop-suey Chinese", 22.98, "Switzerland"));
            Data.Add(new OrderData(10255, "RICSU", "Genève", "Richter Supermarkt", 148.33, "Switzerland"));
            Data.Add(new OrderData(10256, "WELLI", "Resende", "Wellington Import Export", 13.97, "Brazil"));
            Data.Add(new OrderData(10257, "HILAA", "San Cristóbal", "Hila Alimentos", 81.91, "Venezuela"));
            Data.Add(new OrderData(10258, "ERNSH", "Graz", "Ernst Handel", 140.51, "Austria"));
            Data.Add(new OrderData(10259, "CENTC", "México D.F.", "Centro comercial", 3.25, "Mexico"));
            Data.Add(new OrderData(10260, "OTTIK", "Köln", "Ottilies Käseladen", 55.09, "Germany"));
            Data.Add(new OrderData(10261, "QUEDE", "Rio de Janeiro", "Que delícia", 3.05, "Brazil"));
            Data.Add(new OrderData(10262, "RATTC", "Albuquerque", "Rattlesnake Canyon Grocery", 48.29, "USA"));
        }
        return Data;
    }

    public int OrderID { get; }
    public string CustomerID { get; }
    public string ShipCity { get; }
    public string ShipName { get; }
    public double Freight { get; }
    public string ShipCountry { get; }
}

Customize command column buttons

The .e-edit, .e-delete, .e-update, and .e-cancel-icon classes style the command column buttons in the Blazor DataGrid. Use CSS to adjust their appearance:

.e-grid .e-delete::before ,.e-grid .e-cancel-icon::before{
    color: #f51717;
}
.e-grid .e-edit::before, .e-grid .e-update::before {
    color: #077005;
}

Style properties like color, font-size, and font-weight can be adjusted to differentiate action icons and enhance visibility during interaction.

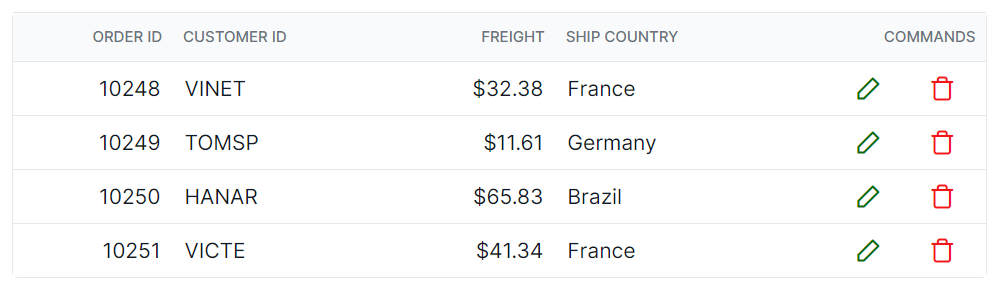

Command buttons with custom delete and cancel icon colors

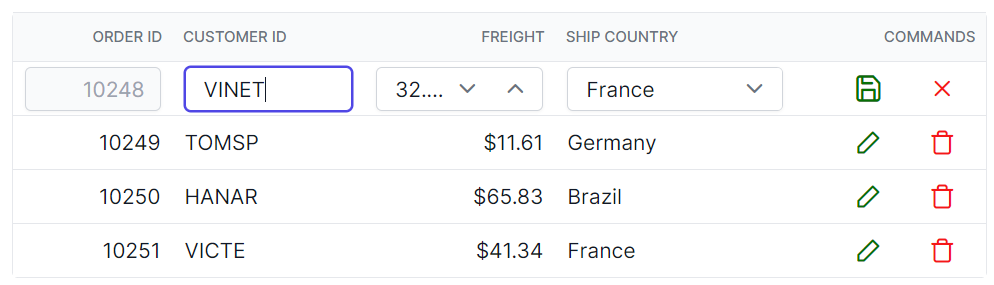

Command buttons with custom edit and save icon colors

Index.razor
OrderData.cs
@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Orders" Height="315" AllowPaging="true">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true"></GridEditSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="140"></GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.Freight) HeaderText="Freight" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipCountry) HeaderText="Ship Country" Width="130"></GridColumn>
        <GridColumn HeaderText="Manage Records" Width="160">
            <GridCommandColumns>
                <GridCommandColumn Type="CommandButtonType.Edit" ButtonOption="@(new CommandButtonOptions { IconCss = "e-icons e-edit", CssClass = "e-flat" })"></GridCommandColumn>
                <GridCommandColumn Type="CommandButtonType.Delete" ButtonOption="@(new CommandButtonOptions { IconCss = "e-icons e-delete", CssClass = "e-flat" })"></GridCommandColumn>
                <GridCommandColumn Type="CommandButtonType.Save" ButtonOption="@(new CommandButtonOptions { IconCss = "e-icons e-update", CssClass = "e-flat" })"></GridCommandColumn>
                <GridCommandColumn Type="CommandButtonType.Cancel" ButtonOption="@(new CommandButtonOptions { IconCss = "e-icons e-cancel-icon", CssClass = "e-flat" })"></GridCommandColumn>
            </GridCommandColumns>
        </GridColumn>
    </GridColumns>
</SfGrid>
<style>
    .e-grid .e-delete::before ,.e-grid .e-cancel-icon::before{
        color: #f51717;
    }
    .e-grid .e-edit::before, .e-grid .e-update::before {
        color: #077005;
    }
</style>
@code {
    private List<OrderData> Orders { get; set; }
    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}
internal sealed class OrderData
{
    private static readonly List<OrderData> Data = new();

    public OrderData(int orderID, string customerID, string shipCity, string shipName, double freight, string shipCountry)
    {
        OrderID = orderID;
        CustomerID = customerID;
        ShipCity = shipCity;
        ShipName = shipName;
        Freight = freight;
        ShipCountry = shipCountry;
    }

    internal static List<OrderData> GetAllRecords()
    {
        if (Data.Count == 0)
        {
            Data.Add(new OrderData(10248, "VINET", "Reims", "Vins et alcools Chevalier", 32.38, "France"));
            Data.Add(new OrderData(10249, "TOMSP", "Münster", "Toms Spezialitäten", 11.61, "Germany"));
            Data.Add(new OrderData(10250, "HANAR", "Rio de Janeiro", "Hanari Carnes", 65.83, "Brazil"));
            Data.Add(new OrderData(10251, "VICTE", "Lyon", "Victuailles en stock", 41.34, "France"));
            Data.Add(new OrderData(10252, "SUPRD", "Charleroi", "Suprêmes délices", 51.30, "Belgium"));
            Data.Add(new OrderData(10253, "HANAR", "Rio de Janeiro", "Hanari Carnes", 58.17, "Brazil"));
            Data.Add(new OrderData(10254, "CHOPS", "Bern", "Chop-suey Chinese", 22.98, "Switzerland"));
            Data.Add(new OrderData(10255, "RICSU", "Genève", "Richter Supermarkt", 148.33, "Switzerland"));
            Data.Add(new OrderData(10256, "WELLI", "Resende", "Wellington Import Export", 13.97, "Brazil"));
            Data.Add(new OrderData(10257, "HILAA", "San Cristóbal", "Hila Alimentos", 81.91, "Venezuela"));
            Data.Add(new OrderData(10258, "ERNSH", "Graz", "Ernst Handel", 140.51, "Austria"));
            Data.Add(new OrderData(10259, "CENTC", "México D.F.", "Centro comercial", 3.25, "Mexico"));
            Data.Add(new OrderData(10260, "OTTIK", "Köln", "Ottilies Käseladen", 55.09, "Germany"));
            Data.Add(new OrderData(10261, "QUEDE", "Rio de Janeiro", "Que delícia", 3.05, "Brazil"));
            Data.Add(new OrderData(10262, "RATTC", "Albuquerque", "Rattlesnake Canyon Grocery", 48.29, "USA"));
        }
        return Data;
    }

    public int OrderID { get; }
    public string CustomerID { get; }
    public string ShipCity { get; }
    public string ShipName { get; }
    public double Freight { get; }
    public string ShipCountry { get; }
}
