Filtering in Syncfusion Blazor DataGrid

2 May 202514 minutes to read

You can customize the appearance of filtering elements in the Syncfusion Blazor DataGrid using CSS. Below are examples of how to customize various filtering elements, including filter bar cell elements, filter bar input elements, focus styles, clear icons, filter icons, filter dialog content, filter dialog footer, filter dialog input elements, filter dialog button elements, and Excel filter dialog number filters.

Customizing the filter bar cell element

To customize the appearance of the filter bar cell element in the Grid header, you can use the following CSS code:

.e-grid .e-filterbarcell {
    background-color: #045fb4;
}

In this example, the .e-filterbarcell class targets the filter bar cell element in the Grid header. You can modify the background-color property to change the color of the filter bar cell element.

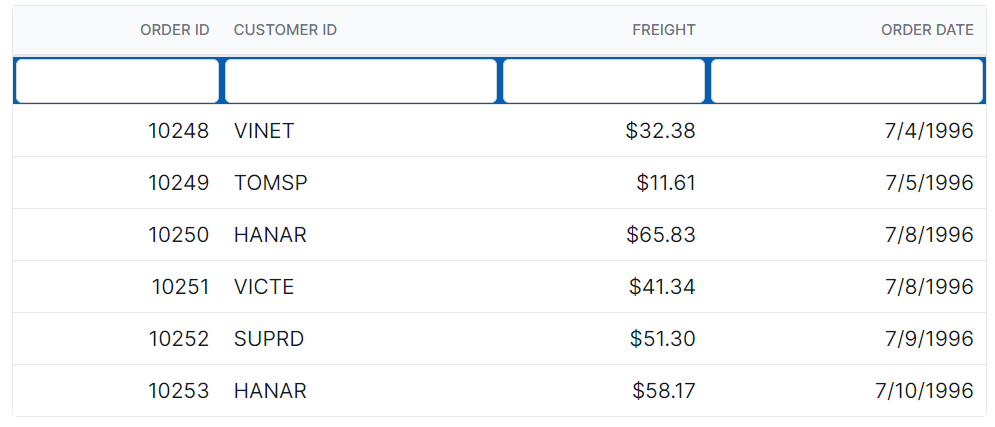

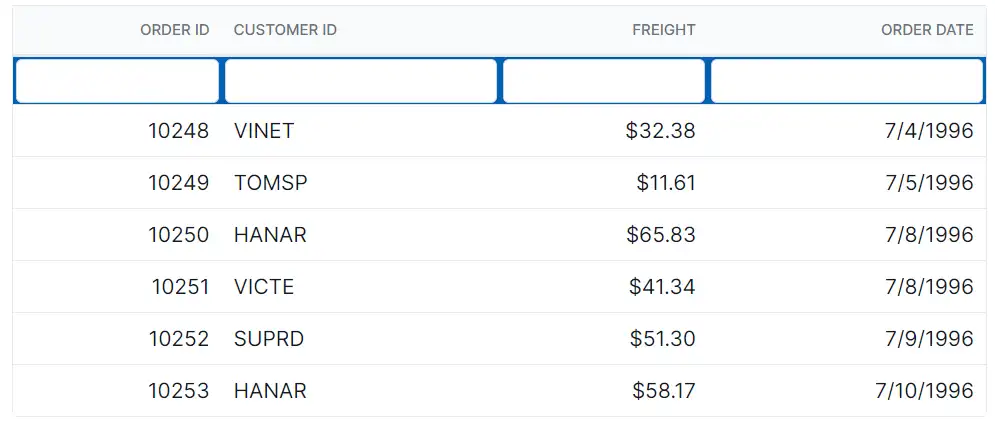

Filter bar cell element

Customizing the filter bar input element

To customize the appearance of the filter bar input element in the Grid header, you can use the following CSS code:

.e-grid .e-filterbarcell .e-input-group input.e-input{
    font-family: cursive;
}

In this example, the .e-filterbarcell class targets the filter bar cell element, and the .e-input class targets the input element within the cell. You can modify the font-family property to change the font of the filter bar input element.

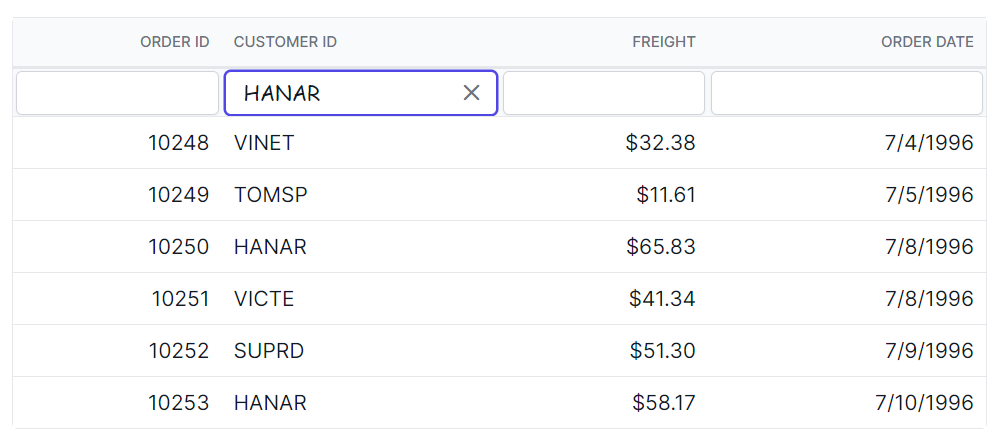

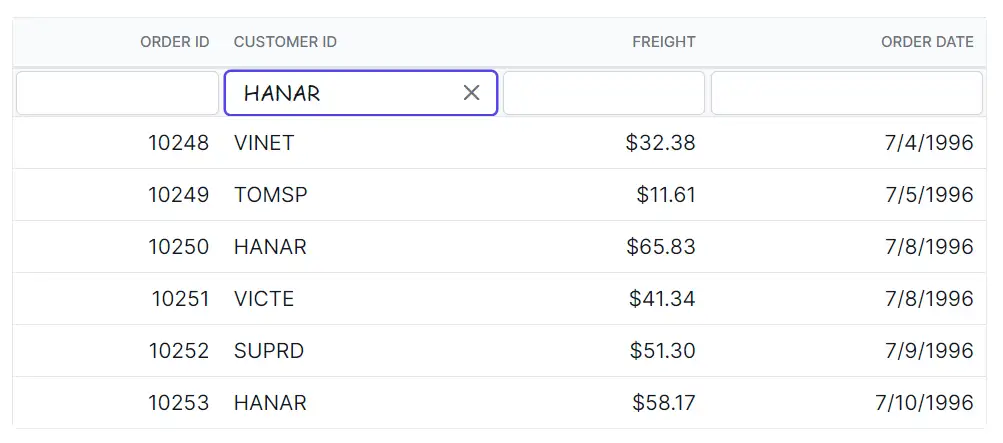

Filter bar input element

Customizing the filter bar input focus

To customize the appearance of the filter bar input element’s focus highlight, you can use the following CSS code:

.e-grid .e-filterbarcell .e-input-group.e-input-focus{
    background-color: #deecf9;
}

In this example, the .e-filterbarcell class targets the filter bar cell element, and the .e-input-group.e-input-focus class targets the focused input element. You can modify the background-color property to change the color of the focus highlight.

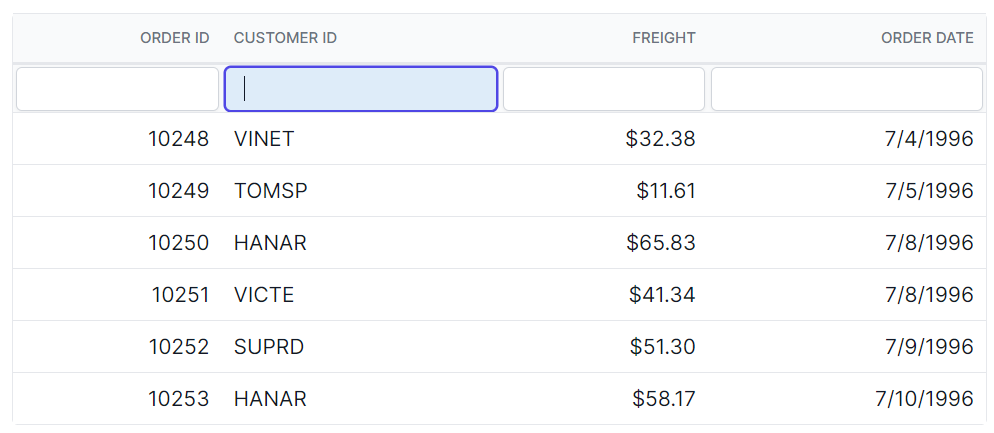

Filter bar input focus

Customizing the filter bar input clear icon

To customize the appearance of the filter bar input element’s clear icon, you can use the following CSS code:

.e-grid .e-filterbarcell .e-input-group .e-clear-icon::before {
    content: '\e72c';
}

In this example, the .e-clear-icon class targets the clear icon element within the input group. You can modify the content property to change the icon displayed.

Filter bar input clear icon

@using Syncfusion.Blazor.Grids

<SfGrid @ref="Grid" DataSource="@Orders" Height="315" AllowFiltering="true" AllowPaging="true">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right" Width="140"></GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.Freight) HeaderText="Freight" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.OrderDate) HeaderText="Order Date" Format="d" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .e-grid .e-filterbarcell .e-input-group.e-input-focus{
        background-color: #deecf9;
    }
    .e-grid .e-filterbarcell .e-input-group .e-clear-icon::before {
        content: '\e72c';
    }
    .e-grid .e-filterbarcell .e-input-group input.e-input{
        font-family: cursive;
    }
    .e-grid .e-filterbarcell {
        background-color: #045fb4;
    }
</style>

@code {
    private SfGrid<OrderData> Grid;
    public List<OrderData> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}
public class OrderData
{
    public static List<OrderData> Orders = new List<OrderData>();

    public OrderData(int orderID, string customerID, double freight, DateTime orderDate)
    {
        this.OrderID = orderID;
        this.CustomerID = customerID;
        this.Freight = freight;
        this.OrderDate = orderDate;
    }

    public static List<OrderData> GetAllRecords()
    {
        if (Orders.Count == 0)
        {
            Orders.Add(new OrderData(10248, "VINET", 32.38, new DateTime(2024, 1, 10)));
            Orders.Add(new OrderData(10249, "TOMSP", 11.61, new DateTime(2024, 1, 11)));
            Orders.Add(new OrderData(10250, "HANAR", 65.83, new DateTime(2024, 1, 12)));
            Orders.Add(new OrderData(10251, "VICTE", 41.34, new DateTime(2024, 1, 13)));
            Orders.Add(new OrderData(10252, "SUPRD", 51.3, new DateTime(2024, 1, 14)));
            Orders.Add(new OrderData(10253, "HANAR", 58.17, new DateTime(2024, 1, 15)));
            Orders.Add(new OrderData(10254, "CHOPS", 22.98, new DateTime(2024, 1, 16)));
            Orders.Add(new OrderData(10255, "RICSU", 148.33, new DateTime(2024, 1, 17)));
            Orders.Add(new OrderData(10256, "WELLI", 13.97, new DateTime(2024, 1, 18)));
            Orders.Add(new OrderData(10257, "HILAA", 81.91, new DateTime(2024, 1, 19)));
        }

        return Orders;
    }

    public int OrderID { get; set; }
    public string CustomerID { get; set; }
    public double Freight { get; set; }
    public DateTime OrderDate { get; set; }
}

Customizing the Blazor DataGrid filtering icon

To customize the appearance of the Grid’s filtering icon in the Grid header, you can use the following CSS code:

.e-grid .e-icon-filter::before{
    content: '\e81e';
}

In this example, the .e-icon-filter class targets the filtering icon element. You can modify the content property to change the icon displayed.

Grid filtering icon

Customizing the filter dialog content

To customize the appearance of the filter dialog’s content element, you can use the following CSS code:

.e-grid .e-filter-popup .e-dlg-content {
    background-color: #deecf9;
}

In this example, the .e-filter-popup .e-dlg-content classes target the content element within the filter dialog. You can modify the background-color property to change the color of the dialog’s content.

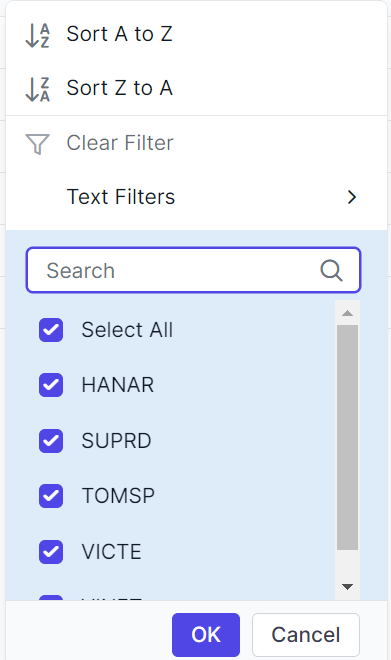

Filter dialog content

To customize the appearance of the filter dialog’s footer element, you can use the following CSS code:

.e-grid .e-filter-popup .e-footer-content {
    background-color: #deecf9;
}

In this example, the .e-filter-popup .e-footer-content classes target the footer element within the filter dialog. You can modify the background-color property to change the color of the dialog’s footer.

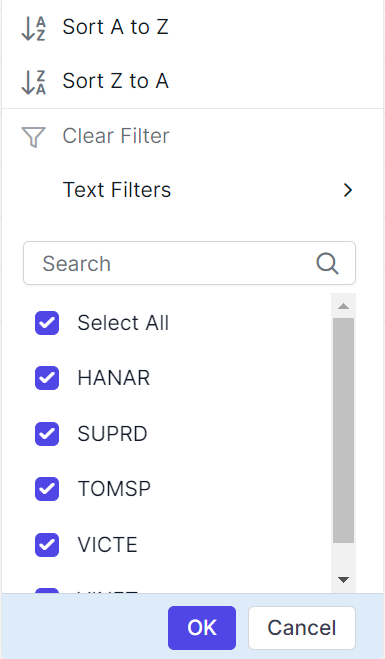

Filter dialog footer

Customizing the filter dialog input element

To customize the appearance of the filter dialog’s input elements, you can use the following CSS code:

.e-grid .e-filter-popup .e-input-group input.e-input{
    font-family: cursive;
}

In this example, the .e-filter-popup class targets the filter dialog, and the .e-input class targets the input elements within the dialog. You can modify the font-family property to change the font of the input elements.

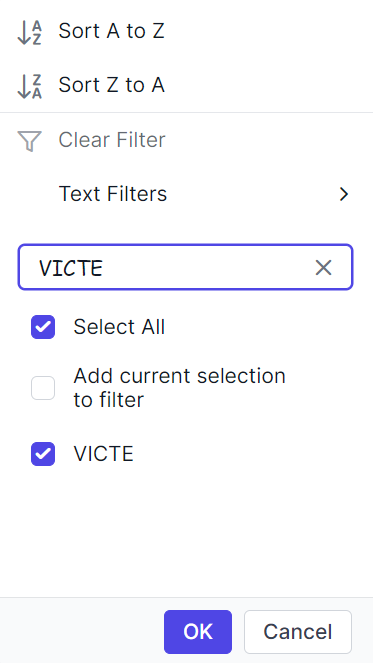

Filter dialog input element

Customizing the filter dialog button element

To customize the appearance of the filter dialog’s button elements, you can use the following CSS code:

.e-grid .e-filter-popup .e-btn{
    font-family: cursive;
}

In this example, the .e-filter-popup class targets the filter dialog, and the .e-btn class targets the button elements within the dialog. You can modify the font-family property to change the font of the button elements.

Filter dialog button element

Customizing the excel filter dialog number filters element

To customize the appearance of the excel filter dialog’s number filters, you can use the following CSS code:

.e-grid .e-filter-popup .e-contextmenu-container ul{
    background-color: #deecf9;
}

In this example, the .e-filter-popup .e-contextmenu-container ul classes target the number filter elements within the excel filter dialog. You can modify the background-color property to change the color of these elements.

Excel filter dialog number filters element

@using Syncfusion.Blazor.Grids

<SfGrid @ref="Grid" DataSource="@Orders" Height="315" AllowFiltering="true" AllowPaging="true">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridFilterSettings Type="Syncfusion.Blazor.Grids.FilterType.Menu"></GridFilterSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right" Width="140"></GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.Freight) HeaderText="Freight" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.OrderDate) HeaderText="Order Date" Format="d" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .e-grid .e-icon-filter::before{
        content: '\e81e';
    }
    .e-grid .e-filter-popup .e-contextmenu-container ul{
        background-color: #deecf9;
    }
    .e-grid .e-filter-popup .e-btn{
        font-family: cursive;
    }
    .e-grid .e-filter-popup .e-input-group input.e-input{
        font-family: cursive;
    }
    .e-grid .e-filter-popup .e-footer-content {
        background-color: #deecf9;
    }
    .e-grid .e-filter-popup .e-dlg-content {
        background-color: #deecf9;
    }
</style>

@code {
    private SfGrid<OrderData> Grid;
    public List<OrderData> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}
public class OrderData
{
    public static List<OrderData> Orders = new List<OrderData>();

    public OrderData(int orderID, string customerID, double freight, DateTime orderDate)
    {
        this.OrderID = orderID;
        this.CustomerID = customerID;
        this.Freight = freight;
        this.OrderDate = orderDate;
    }

    public static List<OrderData> GetAllRecords()
    {
        if (Orders.Count == 0)
        {
            Orders.Add(new OrderData(10248, "VINET", 32.38, new DateTime(2024, 1, 10)));
            Orders.Add(new OrderData(10249, "TOMSP", 11.61, new DateTime(2024, 1, 11)));
            Orders.Add(new OrderData(10250, "HANAR", 65.83, new DateTime(2024, 1, 12)));
            Orders.Add(new OrderData(10251, "VICTE", 41.34, new DateTime(2024, 1, 13)));
            Orders.Add(new OrderData(10252, "SUPRD", 51.3, new DateTime(2024, 1, 14)));
            Orders.Add(new OrderData(10253, "HANAR", 58.17, new DateTime(2024, 1, 15)));
            Orders.Add(new OrderData(10254, "CHOPS", 22.98, new DateTime(2024, 1, 16)));
            Orders.Add(new OrderData(10255, "RICSU", 148.33, new DateTime(2024, 1, 17)));
            Orders.Add(new OrderData(10256, "WELLI", 13.97, new DateTime(2024, 1, 18)));
            Orders.Add(new OrderData(10257, "HILAA", 81.91, new DateTime(2024, 1, 19)));
        }

        return Orders;
    }

    public int OrderID { get; set; }
    public string CustomerID { get; set; }
    public double Freight { get; set; }
    public DateTime OrderDate { get; set; }
}
