Toolbar customization in Syncfusion Blazor DataGrid

7 Nov 20256 minutes to read

The appearance of toolbar elements in the Syncfusion^® Blazor DataGrid can be customized using CSS. Styling options are available for different parts of the toolbar interface:

• Toolbar root container: The outer wrapper that contains all toolbar items.
• Toolbar buttons: Shows interactive elements used for actions such as Add, Edit, Delete, Update, and Cancel.

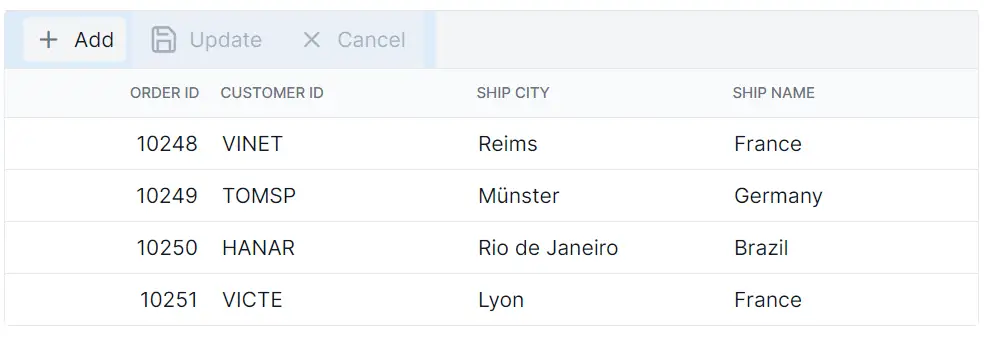

Customize the toolbar root element

The .e-toolbar-items class styles the toolbar root container in the Blazor DataGrid. This container holds all toolbar items and can be styled using CSS:

.e-grid .e-toolbar-items {
    background-color: #deecf9;
}

Properties such as background-color, padding, border, and box-shadow can be modified to suit the layout design.

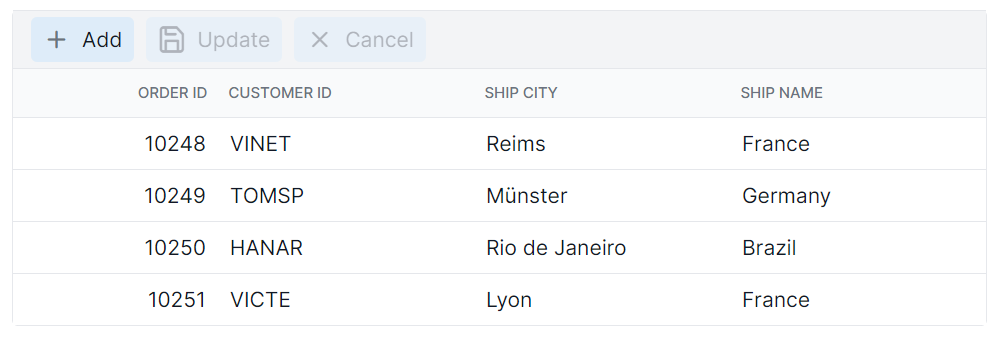

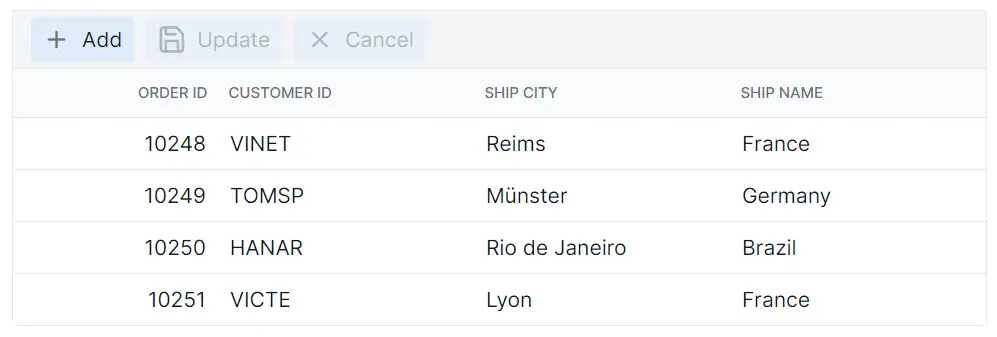

Customize the toolbar button elements

The .e-btn class inside .e-toolbar defines the appearance of toolbar buttons in the Blazor DataGrid. Apply CSS to customize their styling:

.e-grid .e-toolbar .e-btn {
    background-color: #deecf9;
}

Properties such as background-color, color, border, font-size, and padding can be adjusted to align with the design. Ensure that customized colors meet WCAG contrast guidelines and that focus indicators remain visible for keyboard navigation.

Index.razor

@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Orders"
        Height="315"
        AllowPaging="true"
        Toolbar="@(new List<string> { "Add", "Edit", "Delete", "Cancel", "Update" })">
    <GridPageSettings PageSize="8"></GridPageSettings>
    <GridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true"></GridEditSettings>
    <GridColumns>
        <GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="140"><GridColumn>
        <GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer ID" Width="120"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipCity) HeaderText="Ship City" Width="100"></GridColumn>
        <GridColumn Field=@nameof(OrderData.ShipName) HeaderText="Ship Name" Width="100"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
   .e-grid .e-toolbar-items {
        background-color: #deecf9;
    }
   .e-grid .e-toolbar .e-btn {
        background-color: #c8ddf1;
    }
</style>

@code {
    private List<OrderData> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = OrderData.GetAllRecords();
    }
}

OrderData.cs

internal sealed class OrderData
{
    private static readonly List<OrderData> Data = new List<OrderData>();

    internal OrderData(int orderID, string customerID, string shipCity, string shipName)
    {
        OrderID = orderID;
        CustomerID = customerID;
        ShipCity = shipCity;
        ShipName = shipName;
    }

    public static List<OrderData> GetAllRecords()
    {
        if (Data.Count == 0)
        {
            Data.Add(new OrderData(10248, "VINET", "Reims", "Vins et alcools Chevalier"));
            Data.Add(new OrderData(10249, "TOMSP", "Münster", "Toms Spezialitäten"));
            Data.Add(new OrderData(10250, "HANAR", "Rio de Janeiro", "Hanari Carnes"));
            Data.Add(new OrderData(10251, "VICTE", "Lyon", "Victuailles en stock"));
            Data.Add(new OrderData(10252, "SUPRD", "Charleroi", "Suprêmes délices"));
            Data.Add(new OrderData(10253, "HANAR", "Rio de Janeiro", "Hanari Carnes"));
            Data.Add(new OrderData(10254, "CHOPS", "Bern", "Chop-suey Chinese"));
            Data.Add(new OrderData(10255, "RICSU", "Genève", "Richter Supermarkt"));
            Data.Add(new OrderData(10256, "WELLI", "Resende", "Wellington Import Export"));
            Data.Add(new OrderData(10257, "HILAA", "San Cristóbal", "Hila Alimentos"));
            Data.Add(new OrderData(10258, "ERNSH", "Graz", "Ernst Handel"));
            Data.Add(new OrderData(10259, "CENTC", "México D.F.", "Centro comercial"));
            Data.Add(new OrderData(10260, "OTTIK", "Köln", "Ottilies Käseladen"));
            Data.Add(new OrderData(10261, "QUEDE", "Rio de Janeiro", "Que delícia"));
            Data.Add(new OrderData(10262, "RATTC", "Albuquerque", "Rattlesnake Canyon Grocery"));
        }

        return Data;
    }

    public int OrderID { get; set; }
    public string CustomerID { get; set; }
    public string ShipCity { get; set; }
    public string ShipName { get; set; }
}
