Exporting Blazor DataGrid with templates
20 May 202524 minutes to read
The Syncfusion Blazor DataGrid offers the option to export the column, detail, and caption templates to an PDF document. The template contains images, hyperlinks, and customized text.

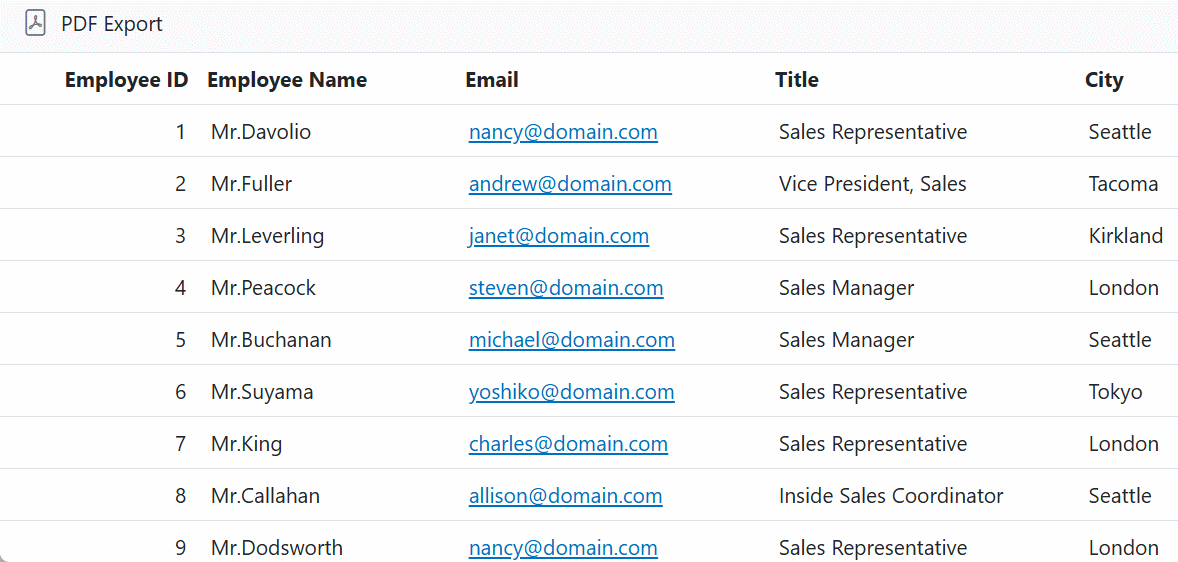

Exporting with column template
The PDF export functionality allows you to export Grid columns that include images, hyperlinks, and custom text to a PDF document.
To export the template columns into an PDF document, set the IncludeTemplateColumn property of the PdfExportProperties to true in the OnToolbarClick event, and pass it to the ExportToPdfAsync method.
The template values cannot be directly exported into the cells. To customize the values of the template columns in PDF document, you must use PdfQueryCellInfoEvent event.
PDF Export supports base64 string to export the images.
The following sample demonstrates how to export template columns such as FirstName and EmailID into an PDF document:
@using Syncfusion.Blazor.Grids
<SfGrid ID="Grid" @ref="DefaultGrid" DataSource="@EmployeeData.GetAllRecords()" Toolbar="@(new List<string>() { "PdfExport" })" AllowPdfExport="true" AllowPaging="true">
<GridEvents PdfQueryCellInfoEvent="PdfQueryCellInfoHandler" OnToolbarClick="ToolbarClickHandler" TValue="EmployeeData"></GridEvents>
<GridColumns>
<GridColumn Field=@nameof(EmployeeData.EmployeeID) HeaderText="Employee ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
<GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="Employee Name" Width="150">
<Template>
@{
var con = (context as EmployeeData);
}
<span>[email protected]</span>
</Template>
</GridColumn>
<GridColumn Field=@nameof(EmployeeData.EmailID) HeaderText="Email" Width="180">
<Template>
@{
var employee = (context as EmployeeData);
}
<a href="mailto:@employee.EmailID">@employee.EmailID</a>
</Template>
</GridColumn>
<GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Width="180"></GridColumn>
<GridColumn Field=@nameof(EmployeeData.City) HeaderText="City" Width="120"></GridColumn>
</GridColumns>
</SfGrid>
@code {
private SfGrid<EmployeeData> DefaultGrid;
public List<EmployeeData> Orders { get; set; }
public bool OrderDateVisible { get; set; } = false;
protected override void OnInitialized()
{
Orders = EmployeeData.GetAllRecords();
}
public async Task ToolbarClickHandler(ClickEventArgs args)
{
if (args.Item.Id == "Grid_pdfexport") // Id is the combination of Grid's ID and item name.
{
PdfExportProperties ExportProperties = new PdfExportProperties();
ExportProperties.IncludeTemplateColumn = true; // Ensures template columns are included in the export.
await this.DefaultGrid.ExportToPdfAsync(ExportProperties);
}
}
public void PdfQueryCellInfoHandler(PdfQueryCellInfoEventArgs<EmployeeData> args)
{
if (args.Column.Field == "FirstName")
{
args.Cell.Value = "Mr." + args.Data.FirstName;
}
else if (args.Column.Field == "EmailID")
{
args.Cell.Value = $"{args.Data.EmailID}";
}
}
}public class EmployeeData
{
public static List<EmployeeData> Employees = new List<EmployeeData>();
public EmployeeData(int employeeID, string firstName, string emailID, string title, string city)
{
EmployeeID = employeeID;
FirstName = firstName;
EmailID = emailID;
Title = title;
City = city;
}
public static List<EmployeeData> GetAllRecords()
{
if (Employees.Count == 0)
{
Employees.Add(new EmployeeData(1, "Davolio", "[email protected]", "Sales Representative", "Seattle"));
Employees.Add(new EmployeeData(2, "Fuller", "[email protected]", "Vice President, Sales", "Tacoma"));
Employees.Add(new EmployeeData(3, "Leverling", "[email protected]", "Sales Representative", "Kirkland"));
Employees.Add(new EmployeeData(4, "Peacock", "[email protected]", "Sales Manager", "London"));
Employees.Add(new EmployeeData(5, "Buchanan", "[email protected]", "Sales Manager", "Seattle"));
Employees.Add(new EmployeeData(6, "Suyama", "[email protected]", "Sales Representative", "Tokyo"));
Employees.Add(new EmployeeData(7, "King", "[email protected]", "Sales Representative", "London"));
Employees.Add(new EmployeeData(8, "Callahan", "[email protected]", "Inside Sales Coordinator", "Seattle"));
Employees.Add(new EmployeeData(9, "Dodsworth", "[email protected]", "Sales Representative", "London"));
}
return Employees;
}
public int EmployeeID { get; set; }
public string FirstName { get; set; }
public string EmailID { get; set; }
public string Title { get; set; }
public string City { get; set; }
}

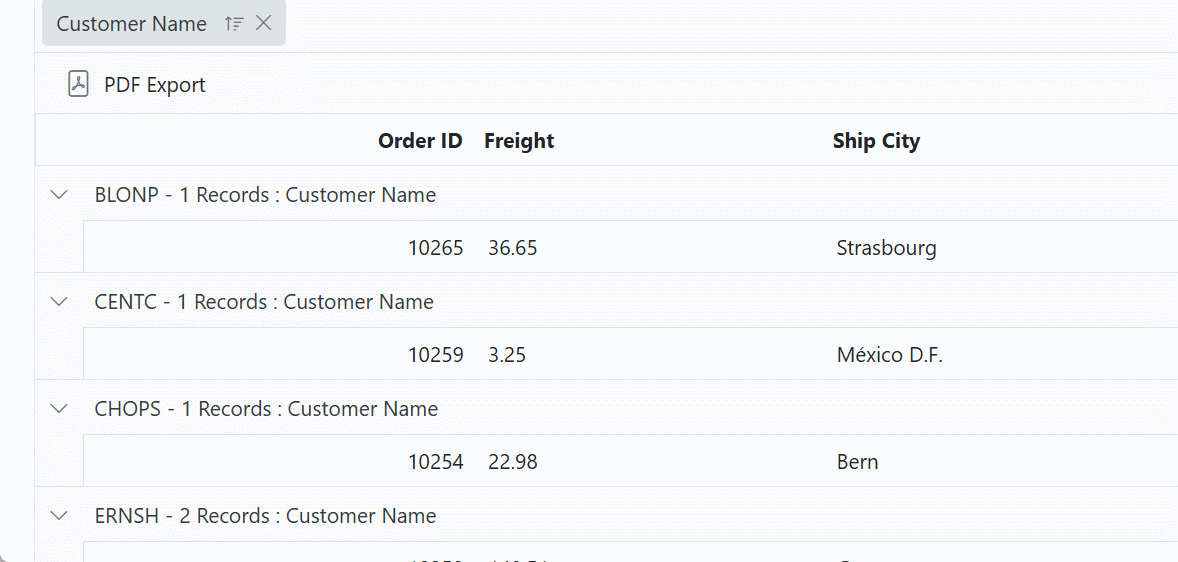

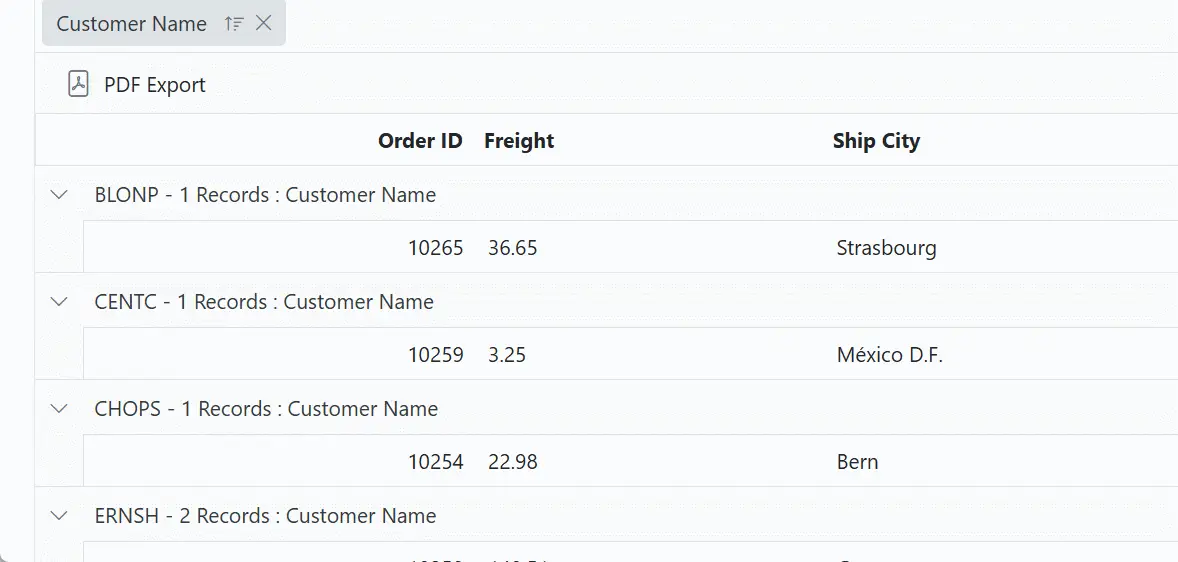

Exporting with group caption template
The Syncfusion Blazor DataGrid allows you to export the Grid data along with a custom caption template into an PDF document. This feature can be useful when you want to provide meaningful group captions (e.g., count of records) in the exported PDF document.
To customize the caption text in the exported PDF document, you can handle the PdfGroupCaptionTemplateInfo event. This event provides you with the necessary information to set the group caption in the exported PDF document, such as the group key, record count, and header text. Within the event, you can set a customized group caption using args.Cell.Value property.
The following example demonstrates how the Grid is grouped by the CustomerID field and exports the Grid data to PDF with a custom group caption template, utilizing the OnToolbarClick event and the ExportToPdfAsync method:
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Navigations
<SfGrid ID="Grid" @ref="Grid" DataSource="@GridData" AllowGrouping="true" Height="315px" Toolbar="@(new List<string>() { "PdfExport" })" AllowPdfExport="true">
<GridEvents OnToolbarClick="ToolbarClickHandler" PdfGroupCaptionTemplateInfo="PdfGroupCaptionInfoHandler" TValue="OrderData"></GridEvents>
<GridColumns>
<GridColumn Field=@nameof(OrderData.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="90"></GridColumn>
<GridColumn Field=@nameof(OrderData.CustomerID) HeaderText="Customer Name" TextAlign="TextAlign.Right" Width="100"></GridColumn>
<GridColumn Field=@nameof(OrderData.Freight) HeaderText="Freight" Width="80"></GridColumn>
<GridColumn Field=@nameof(OrderData.ShipCity) HeaderText="Ship City" Width="100"></GridColumn>
</GridColumns>
<GridGroupSettings Columns=@(new string[] { "CustomerID" })>
<CaptionTemplate>
@{
var order = (context as CaptionTemplateContext);
<span>@order.Key - @order.Count Records : @order.HeaderText</span>
}
</CaptionTemplate>
</GridGroupSettings>
</SfGrid>
@code {
private SfGrid<OrderData> Grid;
public List<OrderData> GridData { get; set; }
protected override void OnInitialized()
{
GridData = OrderData.GetAllRecords();
}
public async Task ToolbarClickHandler(ClickEventArgs args)
{
if (args.Item.Id == "Grid_pdfexport")
{
await Grid.ExportToPdfAsync();
}
}
// Customize the group caption in the exported PDF document.
public void PdfGroupCaptionInfoHandler(PdfCaptionTemplateArgs args)
{
args.Cell.Value = args.Key + "-" + args.Count + " Records: " + args.HeaderText;
}
}public class OrderData
{
public OrderData(int orderID, string customerID, double freight, string shipCity)
{
this.OrderID = orderID;
this.CustomerID = customerID;
this.Freight = freight;
this.ShipCity = shipCity;
}
public static List<OrderData> GetAllRecords()
{
return new List<OrderData>
{
new OrderData(10248, "VINET", 32.38, "Reims"),
new OrderData(10249, "TOMSP", 11.61, "Münster"),
new OrderData(10250, "HANAR", 65.83, "Rio de Janeiro"),
new OrderData(10251, "VICTE", 41.34, "Lyon"),
new OrderData(10252, "SUPRD", 51.30, "Charleroi"),
new OrderData(10253, "HANAR", 58.17, "Rio de Janeiro"),
new OrderData(10254, "CHOPS", 22.98, "Bern"),
new OrderData(10255, "RICSU", 148.33, "Genève"),
new OrderData(10256, "WELLI", 13.97, "Resende"),
new OrderData(10257, "HILAA", 81.91, "San Cristóbal"),
new OrderData(10258, "ERNSH", 140.51, "Graz"),
new OrderData(10259, "CENTC", 3.25, "México D.F."),
new OrderData(10260, "OTTIK", 55.09, "Köln"),
new OrderData(10261, "QUEDE", 3.05, "Rio de Janeiro"),
new OrderData(10262, "RATTC", 48.29, "Albuquerque"),
new OrderData(10263, "ERNSH", 76.56, "Graz"),
new OrderData(10264, "FOLKO", 67.10, "Bräcke"),
new OrderData(10265, "BLONP", 36.65, "Strasbourg"),
new OrderData(10266, "WARTH", 27.19, "Stavanger"),
new OrderData(10267, "FRANK", 65.83, "München")
};
}
public int OrderID { get; set; }
public string CustomerID { get; set; }
public double Freight { get; set; }
public string ShipCity { get; set; }
}

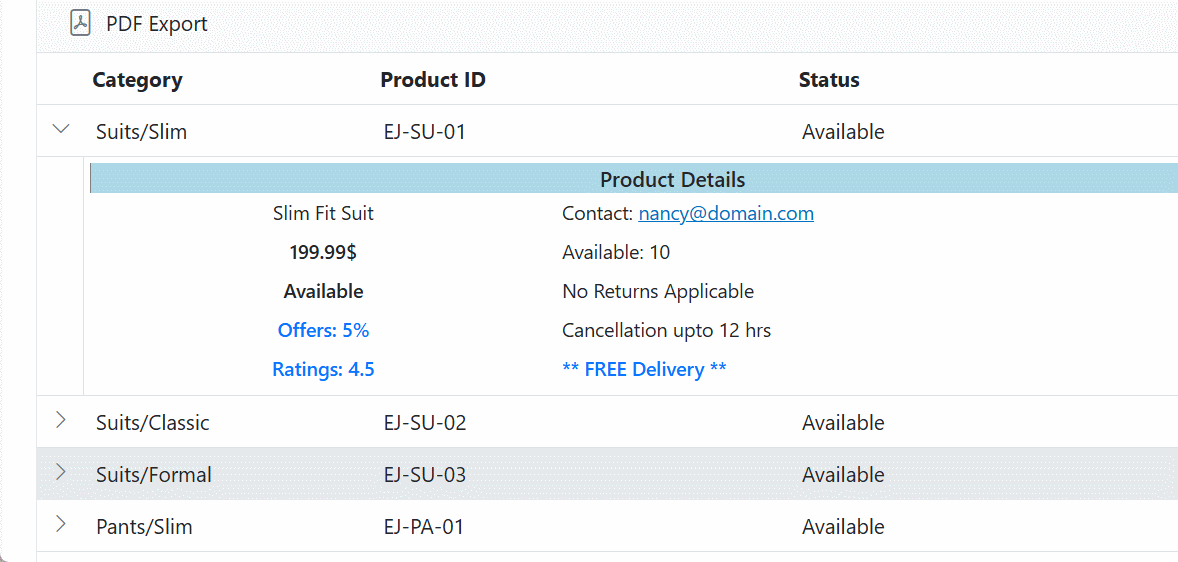

Exporting with detail template
The Syncfusion Blazor DataGrid provides the capability to export both parent and child (detail) records, including nested data, to an PDF document. By default, the Grid exports the parent Grid along with expanded detail rows only. To customize the exporting behavior, utilize the PdfExportProperties.PdfDetailRowMode property within the OnToolbarClick event, and pass it to the ExportToPdfAsync method. The available options include:
| Mode | Behavior |
|---|---|
| Expand | Exports the parent Grid with expanded detail rows. |
| None | Exports the parent Grid alone. |
You can customize and format the detail rows in the exported PDF document using the PdfDetailTemplateExporting event. In this event, the detail rows of the PDF document are formatted in accordance with their parent row details.
In the following example:
-
The detail row content is formatted by specifying:
These are based on the parent row’s details to dynamically generate content within the PDF document.
-
Additionally, custom styles can be applied to specific cells using the Style property.
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor
<SfGrid @ref="DefaultGrid" ID="Grid" DataSource="@Employees" Toolbar="@(new List<string>() { "PdfExport" })" AllowPdfExport="true" Height="450px">
<GridTemplates>
<DetailTemplate>
@{
var employee = (context as ProductData);
<table class="detailtable" width="100%">
<colgroup>
<col width="40%" />
<col width="60%" />
</colgroup>
<thead>
<tr>
<th colspan="2" style="font-weight: 500;text-align: center;background-color: #ADD8E6;">
Product Details
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align: center;">
<span>@employee.ProductDesc</span>
</td>
<td>
<span class="link">
Contact: <a href="mailto:${@employee.Contact}">@employee.Contact</a>
</span>
</td>
</tr>
<tr>
<td style="text-align: center;">
<span style="font-weight: 500;"> @employee.Cost</span>
</td>
<td>
<span>Available: @employee.Available </span>
</td>
</tr>
<tr>
<td style="text-align: center;">
<span class="${Status}" style="font-weight: 500;"> @employee.Status</span>
</td>
<td>
<span>@employee.ReturnPolicy</span>
</td>
</tr>
<tr>
<td style="text-align: center;">
<span style="font-weight: 500;color: #0a76ff;">Offers: @employee.Offers </span>
</td>
<td>
<span>@employee.Cancellation</span>
</td>
</tr>
<tr>
<td style="text-align: center;">
<span style="font-weight: 500;color: #0a76ff;"> Ratings: @employee.Ratings</span>
</td>
<td>
<span style="font-weight: 500;color: #0a76ff;">@employee.Delivery</span>
</td>
</tr>
</tbody>
</table>
}
</DetailTemplate>
</GridTemplates>
<GridEvents PdfDetailTemplateExporting="PdfDetailTemplateHandler" OnToolbarClick="ToolbarClickHandler" TValue="ProductData"></GridEvents>
<GridColumns>
<GridColumn Field=@nameof(ProductData.Category) HeaderText="Category" Width="110"> </GridColumn>
<GridColumn Field=@nameof(ProductData.ProductID) HeaderText="Product ID" Width="160"> </GridColumn>
<GridColumn Field=@nameof(ProductData.Status) HeaderText="Status" Width="180"></GridColumn>
</GridColumns>
</SfGrid>
<style type="text/css" class="cssStyles">.detailtable td {
font-size: 13px;
padding: 4px;
max-width: 0;
overflow: hidden;
text-overflow: ellipsis;
white-space: nowrap;
font-weight: normal;
}
</style>@code {
SfGrid<ProductData>DefaultGrid;
public List<ProductData>Employees {get;set;}
public async Task ToolbarClickHandler(ClickEventArgs args) {
if (args.Item.Id=="Grid_pdfexport") // Id is the combination of Grid's ID and item name.
{
PdfExportProperties PdfExportProperties=new PdfExportProperties();
PdfExportProperties.PdfDetailRowMode=PdfDetailRowMode.Expand;
await this.DefaultGrid.ExportToPdfAsync(PdfExportProperties);
}
}
public void PdfDetailTemplateHandler(PdfDetailTemplateEventArgs<ProductData> args) {
var pdfRows=new List<PdfDetailTemplateRow>();
var data=args.ParentRow.Data;
// Define number of columns in detail section.
args.RowInfo.ColumnCount=2;
// Set the header row for detail section.
args.RowInfo.Headers=new List<PdfDetailTemplateRow>() {
new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
Index=0,
CellValue="Product Details",
ColumnSpan=2,
Style=new PdfThemeStyle() {
Bold=true,
FontColor="#0A76FF",
FontSize=13
}}}}};
// Add each row of product details.
pdfRows.Add(new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
CellValue=data.ProductDesc, Index=0
},
new PdfDetailTemplateCell() {
Index=1, Hyperlink=new Hyperlink() {
DisplayText=data.Contact, Target=data.Contact
}}}});
pdfRows.Add(new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
CellValue=data.Cost, Index=0
},
new PdfDetailTemplateCell() {
Index=1, CellValue="Available :" + data.Available
}}});
pdfRows.Add(new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
CellValue=data.Status, Index=0
},
new PdfDetailTemplateCell() {
Index=1, CellValue=data.ReturnPolicy
}}});
pdfRows.Add(new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
CellValue="Offers :" + data.Offers, Index=0, Style=new PdfThemeStyle() {
FontColor="#0A76FF", FontSize=12
}},
new PdfDetailTemplateCell() {
Index=1, CellValue=data.Cancellation
}}});
pdfRows.Add(new PdfDetailTemplateRow() {
Cells=new List<PdfDetailTemplateCell>() {
new PdfDetailTemplateCell() {
CellValue="Ratings: " + data.Ratings, Index=0, Style=new PdfThemeStyle() {
FontColor="#0A76FF", FontSize=12
}},
new PdfDetailTemplateCell() {
Index=1, CellValue=data.Delivery, Style=new PdfThemeStyle() {
FontColor="#0A76FF", FontSize=12
}}}});
// Assign the list of rows to the RowInfo.
args.RowInfo.Rows=pdfRows;
}
protected override void OnInitialized() {
Employees=ProductData.GetAllRecords();
}
}public class ProductData
{
public static List<ProductData> Products = new List<ProductData>();
public ProductData(string category, string offers, string cost, string available, string itemID, string productID,string contact, string status, string productDesc, string returnPolicy, string delivery, string cancellation, string ratings)
{
Category = category;
Offers = offers;
Cost = cost;
Available = available;
ItemID = itemID;
ProductID = productID;
Contact = contact;
Status = status;
ProductDesc = productDesc;
ReturnPolicy = returnPolicy;
Delivery = delivery;
Cancellation = cancellation;
Ratings = ratings;
}
public string Category { get; set; }
public string Offers { get; set; }
public string Cost { get; set; }
public string Available { get; set; }
public string ItemID { get; set; }
public string ProductID { get; set; }
public string Contact { get; set; }
public string Status { get; set; }
public string ProductDesc { get; set; }
public string ReturnPolicy { get; set; }
public string Delivery { get; set; }
public string Cancellation { get; set; }
public string Ratings { get; set; }
public static List<ProductData> GetAllRecords()
{
if (Products.Count == 0)
{
Products.Add(new ProductData("Suits/Slim", "5%", "199.99$", "10", "Suit-001", "EJ-SU-01", "[email protected]", "Available", "Slim Fit Suit", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.5"));
Products.Add(new ProductData("Suits/Classic", "12%", "249.99$", "8", "Suit-002", "EJ-SU-02", "[email protected]", "Available", "Classic Fit Suit", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.8"));
Products.Add(new ProductData("Suits/Formal", "5%", "149.99$", "15", "Suit-003", "EJ-SU-03", "[email protected]", "Available", "Formal Fit Suit", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.7"));
Products.Add(new ProductData("Pants/Slim", "10%", "19.99$", "50", "Pant-001", "EJ-PA-01", "[email protected]", "Available", "Slim Fit Pants", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.2"));
Products.Add(new ProductData("Pants/Casual", "15%", "25.99$", "35", "Pant-002", "EJ-PA-02", "[email protected]", "Available", "Casual Cotton Pants", "Return within 7 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.4"));
Products.Add(new ProductData("Shirts/Formal", "8%", "39.99$", "20", "Shirt-001", "EJ-SH-01", "[email protected]", "Available", "Formal Cotton Shirt", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.6"));
Products.Add(new ProductData("Shirts/Casual", "10%", "29.99$", "60", "Shirt-002", "EJ-SH-02", "[email protected]", "Available", "Casual Check Shirt", "Return within 15 days", "** FREE Delivery **", "Cancellation upto 48 hrs", "4.3"));
Products.Add(new ProductData("Shirts/Denim", "6%", "49.99$", "25", "Shirt-003", "EJ-SH-03", "[email protected]", "Available", "Denim Shirt", "Return within 10 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.1"));
Products.Add(new ProductData("Jackets/Leather", "18%", "199.99$", "5", "Jacket-001", "EJ-JA-01", "[email protected]", "Available", "Leather Jacket", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 6 hrs", "4.9"));
Products.Add(new ProductData("Jackets/Bomber", "20%", "129.99$", "12", "Jacket-002", "EJ-JA-02", "[email protected]", "Available", "Bomber Jacket", "Return within 7 days", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.6"));
Products.Add(new ProductData("T-Shirts/Graphic", "10%", "19.99$", "80", "TShirt-001", "EJ-TS-01", "[email protected]", "Available", "Graphic Tee", "Return within 15 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.5"));
Products.Add(new ProductData("T-Shirts/Plain", "5%", "14.99$", "90", "TShirt-002", "EJ-TS-02", "[email protected]", "Available", "Plain T-Shirt", "Return within 10 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.2"));
Products.Add(new ProductData("T-Shirts/Sports", "12%", "24.99$", "70", "TShirt-003", "EJ-TS-03", "[email protected]", "Available", "Sports Tee", "Return within 7 days", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.7"));
Products.Add(new ProductData("Jeans/Skinny", "15%", "59.99$", "30", "Jeans-001", "EJ-JE-01", "[email protected]", "Available", "Skinny Fit Jeans", "Return within 15 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.6"));
Products.Add(new ProductData("Jeans/Straight", "8%", "54.99$", "40", "Jeans-002", "EJ-JE-02", "[email protected]", "Available", "Straight Cut Jeans", "Return within 10 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.4"));
Products.Add(new ProductData("Sweaters/Wool", "10%", "34.99$", "18", "Sweater-001", "EJ-SW-01", "[email protected]", "Available", "Woolen Sweater", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 6 hrs", "4.3"));
Products.Add(new ProductData("Sweaters/Cotton", "7%", "29.99$", "22", "Sweater-002", "EJ-SW-02", "[email protected]", "Available", "Cotton Sweater", "Return within 10 days", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.2"));
Products.Add(new ProductData("Blazers/Formal", "14%", "89.99$", "10", "Blazer-001", "EJ-BL-01", "[email protected]", "Available", "Formal Blazer", "Return within 5 days", "** FREE Delivery **", "Cancellation upto 6 hrs", "4.7"));
Products.Add(new ProductData("Blazers/Casual", "10%", "79.99$", "14", "Blazer-002", "EJ-BL-02", "[email protected]", "Available", "Casual Blazer", "No Returns Applicable", "** FREE Delivery **", "Cancellation upto 12 hrs", "4.5"));
Products.Add(new ProductData("Hoodies/Zip", "0%", "39.99$", "0", "Hoodie-001", "EJ-HO-01", "[email protected]", "Unavailable", "Zip-up Hoodie", "Return within 10 days", "** FREE Delivery **", "Cancellation upto 24 hrs", "4.6"));
}
return Products;
}
}
If ColumnCount is not provided or is less than the number of cells in the first row of Headers/Rows, the columns in the detail row of the PDF Grid will be generated based on the count of cells in the first row of Headers/Rows.

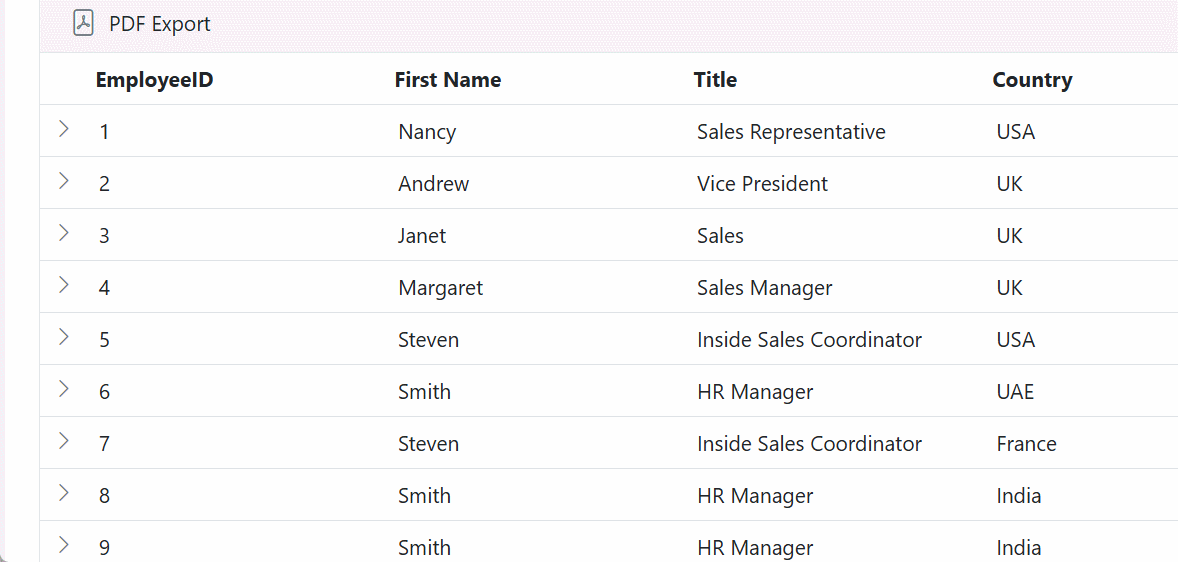

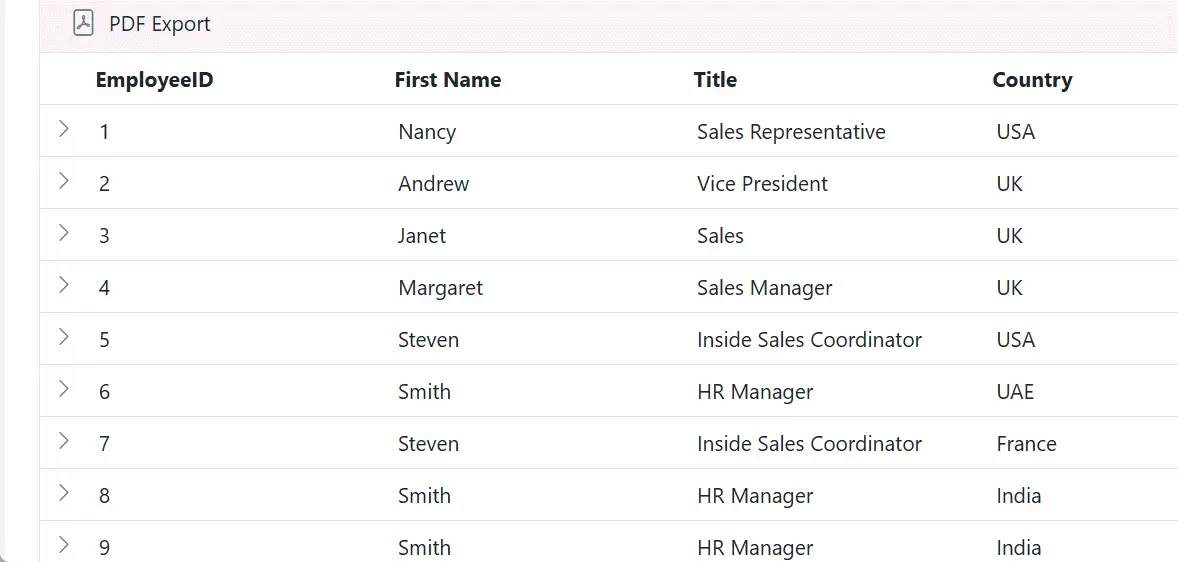

Exporting hierarchical Blazor DataGrid using detail template
The Syncfusion Blazor DataGrid allows you to export hierarchical Grid data to PDF document using the detail template feature. This is particularly useful for scenarios where data is nested within parent rows (such as employee details and their related orders), and you need to export both the parent and child records to a single PDF document.
You can customize and format the detail rows in the exported PDF document using the PdfDetailTemplateExporting event. In this event, the detail rows of the PDF document are formatted in accordance with their parent row details.
In the following example:
-
The detail row content is formatted by specifying the Headers and Rows based on the parent row’s data.
-
A nested level of child records is achieved using the ChildRowInfo property.
-
This property is set to Expand within the OnToolbarClick event to ensure that all detail rows are expanded and included in the export.
-
Finally, the configured export settings are passed to the ExportToPdfAsync method to generate the PDF document with hierarchical data.
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Data
<SfGrid @ref="Grid" ID="Grid" DataSource="@Employees" AllowPdfExport="true" Toolbar="@(new List<string>() { "PdfExport" })">
<GridTemplates>
<DetailTemplate>
@{
var employee = (context as EmployeeData);
}
<SfGrid DataSource="@Orders" Query="@(new Query().Where("EmployeeID", "equal", employee.EmployeeID))">
<GridTemplates>
<DetailTemplate Context="CustomerContext">
@{
var customer = (CustomerContext as Order);
}
<SfGrid DataSource="@OrderInfo" TValue="OrderDetails" Query="@(new Query().Where("OrderID", "equal", customer.OrderID))">
<GridColumns>
<GridColumn Field=@nameof(OrderDetails.CustomerID) HeaderText="Customer ID" TextAlign="TextAlign.Right" Width="110"> </GridColumn>
<GridColumn Field=@nameof(OrderDetails.Title) HeaderText="Title" Width="110"></GridColumn>
<GridColumn Field=@nameof(OrderDetails.Address) HeaderText="Address" TextAlign="TextAlign.Right" Width="90" Format="C2"></GridColumn>
<GridColumn Field=@nameof(OrderDetails.Country) HeaderText="Country" Width="110"></GridColumn>
</GridColumns>
</SfGrid>
</DetailTemplate>
</GridTemplates>
<GridColumns>
<GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="110"> </GridColumn>
<GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="110"></GridColumn>
<GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" TextAlign="TextAlign.Right" Width="90" Format="C2"></GridColumn>
<GridColumn Field=@nameof(Order.ShipCity) HeaderText="Ship City" Width="110"></GridColumn>
</GridColumns>
</SfGrid>
</DetailTemplate>
</GridTemplates>
<GridEvents PdfDetailTemplateExporting="PdfDetailTemplateHandler" OnToolbarClick="ToolbarClickHandler" TValue="EmployeeData"></GridEvents>
<GridColumns>
<GridColumn Field=@nameof(EmployeeData.EmployeeID) HeaderText="EmployeeID" Width="110"> </GridColumn>
<GridColumn Field=@nameof(EmployeeData.FirstName) HeaderText="First Name" Width="110"> </GridColumn>
<GridColumn Field=@nameof(EmployeeData.Title) HeaderText="Title" Width="110"></GridColumn>
<GridColumn Field=@nameof(EmployeeData.Country) HeaderText="Country" Width="110"></GridColumn>
</GridColumns>
</SfGrid>
@code {
private SfGrid<EmployeeData> Grid;
public List<EmployeeData> Employees { get; set; }
public List<OrderDetails> OrderInfo { get; set; }
public static List<Order> Orders { get; set; }
protected override void OnInitialized()
{
Employees = EmployeeData.GetAllRecords();
Orders = Order.GetAllRecords();
OrderInfo = OrderDetails.GetAllRecords();
}
// Handles toolbar click event (for PDF export).
public async Task ToolbarClickHandler(ClickEventArgs args)
{
if (args.Item.Id == "Grid_pdfexport") // Id is the combination of Grid's ID and item name.
{
PdfExportProperties PdfExportProperties = new PdfExportProperties();
// Specify that detailed rows should be expanded.
PdfExportProperties.PdfDetailRowMode = PdfDetailRowMode.Expand;
// Export the data to PDF document.
await this.Grid.ExportToPdfAsync(PdfExportProperties);
}
}
// Customizes the PDF detail export for each employee.
public void PdfDetailTemplateHandler(PdfDetailTemplateEventArgs<EmployeeData> args)
{
var pdfRows = new List<PdfDetailTemplateRow>();
// Fetch all orders for the current employee.
var data = Orders.ToList().Where(_ => _.EmployeeID == args.ParentRow.Data.EmployeeID).ToList();
for (var i = 0; i < data.Count(); i++)
{
var row = data[i];
// Fetch all order details for the current order.
var childData = OrderInfo.ToList().Where(_ => _.OrderID == row.OrderID).ToList();
var pdfchildRows = new List<PdfDetailTemplateRow>();
var pdfRow = ProcessPdfRow(new List<string>() { row.OrderID.ToString(), row.CustomerID.ToString(), row.Freight.ToString(), row.ShipCity });
// For each order detail (child row), create an PDF row with the following details.
for (var j = 0; j < childData.Count; j++)
{
var childRow = childData[j];
pdfchildRows.Add(ProcessPdfRow(new List<string>() { childRow.CustomerID.ToString(), childRow.Title.ToString(), childRow.Address.ToString(), childRow.Country }));
}
// Add the child rows under the parent row.
pdfRow.ChildRowInfo = new PdfDetailTemplateRowSettings()
{
// Set headers for child rows (order details).
Headers = new List<PdfDetailTemplateRow>()
{
ProcessPdfRow(new List<string>() { "Customer Name", "Title", "Address", "Country" })
},
// Set the child rows (the actual order details).
Rows = pdfchildRows };
// Add the row to the list of rows for this employee's orders.
pdfRows.Add(pdfRow);
}
// Set the parent row headers (order-related information).
args.RowInfo.Headers = new List<PdfDetailTemplateRow>() { ProcessPdfRow(new List<string>() { "Order ID", "Customer ID", "Freight", "Ship City" }) };
// Set the final row data (parent and child rows) for the PDF export.
args.RowInfo.Rows = pdfRows;
}
// Converts a list of cell values into an PDF row.
PdfDetailTemplateRow ProcessPdfRow(List<string> value)
{
var cells = new List<PdfDetailTemplateCell>();
// Populate each cell with the corresponding value.
for (var j = 0; j < value.Count(); j++)
{
cells.Add(new PdfDetailTemplateCell { CellValue = $"{value[j]}", Index = j });
}
// Return the PDF row with its cells.
return new PdfDetailTemplateRow { Cells = cells };
}
}public class EmployeeData
{
public EmployeeData(int employeeID, string firstName, string title, string city, string country)
{
this.EmployeeID = employeeID;
this.FirstName = firstName;
this.Title = title;
this.City = city;
this.Country = country;
}
public static List<EmployeeData> GetAllRecords()
{
return new List<EmployeeData>
{
new EmployeeData(1, "Nancy", "Sales Representative", "Texas", "USA"),
new EmployeeData(2, "Andrew", "Vice President", "London", "UK"),
new EmployeeData(3, "Janet", "Sales", "London", "UK"),
new EmployeeData(4, "Margaret", "Sales Manager", "London", "UK"),
new EmployeeData(5, "Steven", "Inside Sales Coordinator", "Vegas", "USA"),
new EmployeeData(6, "Smith", "HR Manager", "Dubai", "UAE"),
new EmployeeData(7, "Steven", "Inside Sales Coordinator", "Paris", "France"),
new EmployeeData(8, "Smith", "HR Manager", "Mumbai", "India"),
new EmployeeData(9, "Smith", "HR Manager", "Chennai", "India")
};
}
public int EmployeeID { get; set; }
public string FirstName { get; set; }
public string Title { get; set; }
public string City { get; set; }
public string Country { get; set; }
}public class Order
{
public Order(int employeeID, int orderID, string customerID, string shipCity, double freight)
{
this.EmployeeID = employeeID;
this.OrderID = orderID;
this.CustomerID = customerID;
this.ShipCity = shipCity;
this.Freight = freight;
}
public static List<Order> GetAllRecords()
{
return new List<Order>
{
new Order(1, 1001, "Nancy", "Texas", 2.1 * 1),
new Order(2, 1002, "Andrew", "London", 2.1 * 2),
new Order(3, 1003, "Janet", "London", 2.1 * 3),
new Order(4, 1004, "Margaret", "London", 2.1 * 4),
new Order(5, 1005, "Steven", "Vegas", 2.1 * 5),
new Order(6, 1006, "Smith", "Dubai", 2.1 * 6),
new Order(7, 1007, "Steven", "Paris", 2.1 * 7),
new Order(8, 1008, "Smith", "Mumbai", 2.1 * 8),
new Order(9, 1009, "Smith", "Chennai", 2.1 * 9),
new Order(2, 1010, "Smith", "Chennai", 2.1 * 9),
new Order(3, 1011, "Smith", "Chennai", 2.1 * 9),
new Order(3, 1012, "Smith", "Chennai", 2.1 * 9)
};
}
public int EmployeeID { get; set; }
public int OrderID { get; set; }
public string CustomerID { get; set; }
public string ShipCity { get; set; }
public double Freight { get; set; }
}public class OrderDetails
{
public OrderDetails(int orderID, string title, string customerID, string country, string address)
{
this.OrderID = orderID;
this.Title = title;
this.CustomerID = customerID;
this.Country = country;
this.Address = address;
}
public static List<OrderDetails> GetAllRecords()
{
return new List<OrderDetails>
{
new OrderDetails(1001, "Sales Representative", "Nancy", "Germany", "Obere Str. 57"),
new OrderDetails(1002, "HR Manager", "Andrew", "Mexico", "Avda. de la Constitución 2222"),
new OrderDetails(1003, "Vice President", "Janet", "Mexico", "Mataderos 2312"),
new OrderDetails(1004, "Inside Sales Coordinator", "Margaret", "Mexico", "Mataderos 2312"),
new OrderDetails(1005, "HR Manager", "Steven", "Spain", "C/ Araquil, 67"),
new OrderDetails(1006, "Vice President", "Smith", "Mexico", "Avda. de la Constitución 2222"),
new OrderDetails(1007, "Sales", "Steven", "France", "24, place Kléber"),
new OrderDetails(1008, "HR Manager", "Smith", "Spain", "C/ Araquil, 67"),
new OrderDetails(1009, "Sales", "Smith", "Mexico", "Mataderos 2312"),
new OrderDetails(1010, "Vice President", "Smith", "Spain", "C/ Araquil, 67"),
new OrderDetails(1011, "Inside Sales Coordinator", "Smith", "Mexico", "Mataderos 2312"),
new OrderDetails(1012, "HR Manager", "Smith", "India", "45A")
};
}
public int OrderID { get; set; }
public string Title { get; set; }
public string CustomerID { get; set; }
public string Country { get; set; }
public string Address { get; set; }
}
