BPMN text annotation in Blazor Diagram Component

5 Aug 20214 minutes to read

  • A BPMN object can be associated with a text annotation that does not affect the flow but gives details about objects within a flow. The annotation property of the node is used to connect an annotation element to the BPMN node.

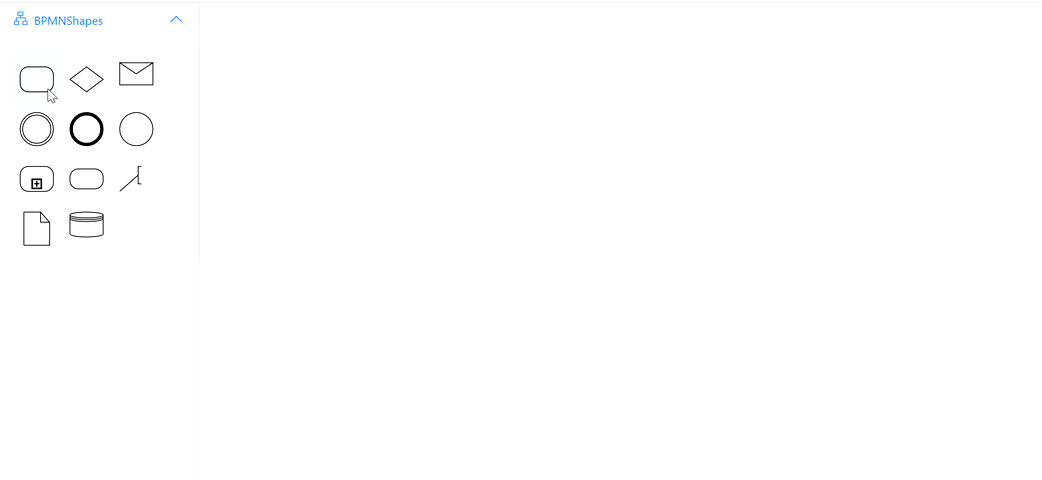

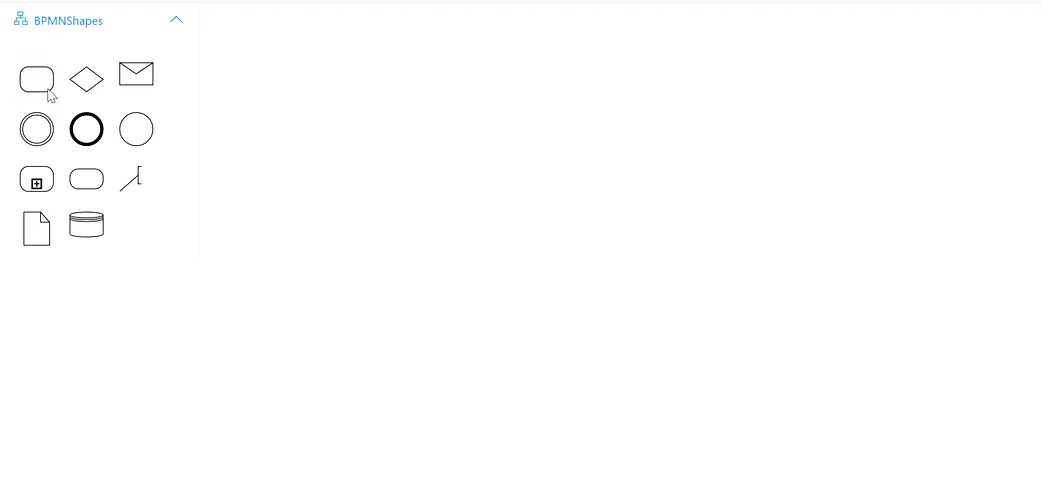

  • The annotation element can be switched from a BPMN node to another BPMN node simply by dragging the source end of the annotation connector into the other BPMN node.

  • The annotation angle property is used to set the angle between the BPMN shape and the annotation.

  • The annotation direction property is used to set the direction of the text annotation.

  • To set the size for text annotation, use width and height properties.

  • The annotation length property is used to set the distance between the BPMN shape and the annotation.

  • The annotation text property defines the additional information about the flow object in a BPMN process.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    // Initialize node collection with Node
    DiagramObjectCollection<Node> nodes;

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        Node node = new Node()
        {
            // Position of the node
            OffsetX = 100,
            OffsetY = 100,
            // Size of the node
            Width = 100,
            Height = 100,
            // Unique Id of the node
            ID = "node1",
            // Sets type as Bpmn and shape as DataObject
            Shape = new BpmnShape()
            {
                Type = Shapes.Bpmn,
                Shape = BpmnShapes.DataObject,
                // Sets collection as true when Dataobject is not a Single instance
                DataObject = new BpmnDataObject()
                {
                    Collection = true,
                    Type = BpmnDataObjects.Input
                }
            },
            // Sets the id, angle, and text for the annotation
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation()
                {
                    ID="Left",
                    RotateAngle=45,
                    Content="Left"
                }
            }
        };
        nodes.Add(node);
    }
}

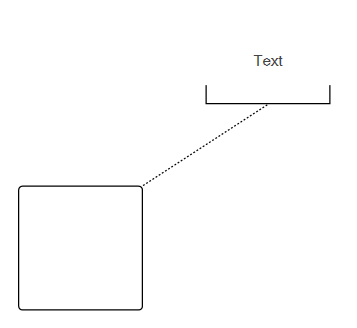

BPMN Text Annotation
