Interaction in Blazor Diagram Component
14 Mar 202422 minutes to read
Connectors can be selected, dragged, and routed over the diagram page.
How to select and unselect the connector
A connector can be selected at runtime by using the Select method and clear the selection in the diagram using the ClearSelection. The following code explains how to select and clear selection in the diagram.
@using Syncfusion.Blazor.Diagram
@using System.Collections.ObjectModel
@using Syncfusion.Blazor.Buttons
<SfButton Content="Select" OnClick="@OnSelect" />
<SfButton Content="UnSelect" OnClick="@UnSelect" />
<SfDiagramComponent @ref="Diagram" Width="1000px" Height="500px" Connectors="@connectors">
</SfDiagramComponent>
@code
{
SfDiagramComponent Diagram;
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
Dictionary<string, object> ConnectorInfo = new Dictionary<string, object>();
ConnectorInfo.Add("connectorInfo", "Central Connector");
Connector Connector = new Connector()
{
ID = "connector1",
SourcePoint = new DiagramPoint()
{
X = 100,
Y = 100
},
TargetPoint = new DiagramPoint()
{
X = 200,
Y = 200
},
Type = ConnectorSegmentType.Orthogonal,
TargetDecorator = new DecoratorSettings()
{
Shape = DecoratorShape.Arrow,
Style = new ShapeStyle()
{
Fill = "#6495ED",
StrokeColor = "#6495ED",
StrokeWidth = 1
}
},
Style = new ShapeStyle()
{
StrokeColor = "#6495ED",
StrokeWidth = 1
},
AdditionalInfo = ConnectorInfo
};
connectors.Add(Connector);
}
public void OnSelect()
{
// Select the Connector.
Diagram.Select(new ObservableCollection<IDiagramObject> { Diagram.GetObject(Diagram.Connectors[0].ID) as IDiagramObject });
}
public void UnSelect()
{
// Clear selection in the diagram.
Diagram.ClearSelection();
}
}You can download a complete working sample from GitHub
And also the selection can be enabled during the interaction.
- An element can be selected by clicking that element.
- When you select the elements in the diagram, the SelectionChanging and SelectionChanged events get triggered and do customization in this event.
How to drag a connector
A connector can be dragged at runtime by using the Drag method. The following code explains how to drag the connector by using the drag method.
@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.Buttons
<SfButton Content="Drag" OnClick="@OnDrag" />
<SfDiagramComponent @ref="Diagram" Width="1000px" Height="500px" Connectors="@connectors">
</SfDiagramComponent>
@code
{
SfDiagramComponent Diagram;
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
Dictionary<string, object> ConnectorInfo = new Dictionary<string, object>();
ConnectorInfo.Add("connectorInfo", "Central Connector");
Connector Connector = new Connector()
{
ID = "connector1",
SourcePoint = new DiagramPoint()
{
X = 100,
Y = 100
},
TargetPoint = new DiagramPoint()
{
X = 200,
Y = 200
},
Type = ConnectorSegmentType.Orthogonal,
TargetDecorator = new DecoratorSettings()
{
Shape = DecoratorShape.Arrow,
Style = new ShapeStyle()
{
Fill = "black",
StrokeColor = "black",
StrokeWidth = 1
}
},
Style = new ShapeStyle()
{
StrokeColor = "black",
StrokeWidth = 1
},
AdditionalInfo = ConnectorInfo
};
connectors.Add(Connector);
}
public void OnDrag()
{
// Drag the connector.
Diagram.Drag(Diagram.Connectors[0], 10, 10);
}
}You can download a complete working sample from GitHub
And also drag the connector during the interaction.
- An object can be dragged by clicking and dragging it. When multiple elements are selected, dragging any one of the selected elements move all the selected elements.
- When you drag the elements in the diagram, the PositionChanging and PositionChanged events get triggered and do customization in this event.
End point dragging
The connector can be selected by clicking it. When the connector is selected, circles will be added on the starting and ending of the connector that is represented by Thumbs. Clicking and dragging those handles helps you to adjust the source and target points.
@using Syncfusion.Blazor.Diagram
<SfDiagramComponent @ref="Diagram" Width="1000px" Height="500px" Connectors="@connectors">
</SfDiagramComponent>
@code
{
SfDiagramComponent Diagram;
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
Dictionary<string, object> ConnectorInfo = new Dictionary<string, object>();
ConnectorInfo.Add("connectorInfo", "Central Connector");
Connector Connector = new Connector()
{
ID = "connector1",
SourcePoint = new DiagramPoint()
{
X = 100,
Y = 100
},
TargetPoint = new DiagramPoint()
{
X = 200,
Y = 200
},
Type = ConnectorSegmentType.Orthogonal,
TargetDecorator = new DecoratorSettings()
{
Shape = DecoratorShape.Arrow,
Style = new ShapeStyle()
{
Fill = "black",
StrokeColor = "black",
StrokeWidth = 1
}
},
Style = new ShapeStyle()
{
StrokeColor = "black",
StrokeWidth = 1
},
AdditionalInfo = ConnectorInfo
};
connectors.Add(Connector);
}
}You can download a complete working sample from GitHub
How to route the connectors

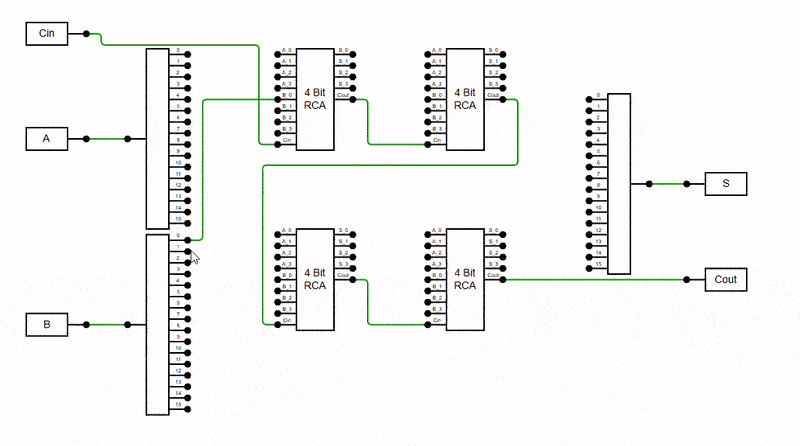

The connectors may overlap with adjacent nodes when a node is positioned so that it encounters the connector. This overlap can reduce the clarity of the connector’s path. To prevent this, the Routing process can be utilized.
Routing is the process of adjusting the geometry of connectors to prevent them from overlapping with any nearby nodes in their path. This feature can be activated by adding Routing enum value to the Constraints property of diagram.
@using Syncfusion.Blazor.Diagram
<SfDiagramComponent Width="1000px" Height="500px" Connectors="@connectors" Nodes="@nodes" Constraints="@diagramConstraints">
</SfDiagramComponent>
@code
{
// Enable routing constraints for diagram.
DiagramConstraints diagramConstraints = DiagramConstraints.Default | DiagramConstraints.Routing;
// Intialize the node collection.
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
// Intialize the connector collection.
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
nodes = new DiagramObjectCollection<Node>()
{
new Node() { ID = "node1", OffsetX = 100, OffsetY = 300, Width = 100, Height =100 },
new Node() { ID = "node2", OffsetX = 600, OffsetY = 100, Width = 100, Height = 100 },
new Node() { ID = "node3", OffsetX = 400, OffsetY = 250, Width = 100, Height = 100 }
};
connectors = new DiagramObjectCollection<Connector>(){
new Connector()
{
ID = "connector1",
SourceID = "node1", TargetID = "node2",
Type = ConnectorSegmentType.Orthogonal
}
};
}
}
You can download a complete working sample from GitHub.
Note: Routing is applicable only for orthogonal connectors.
How to enable or disable routing for nodes

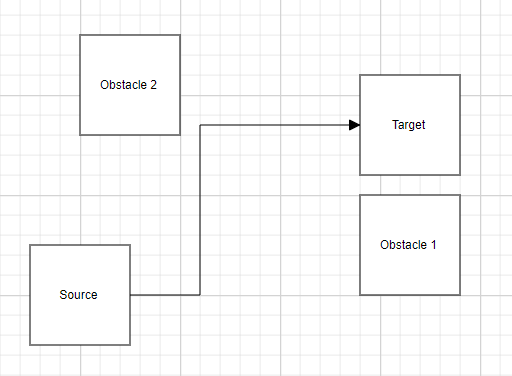

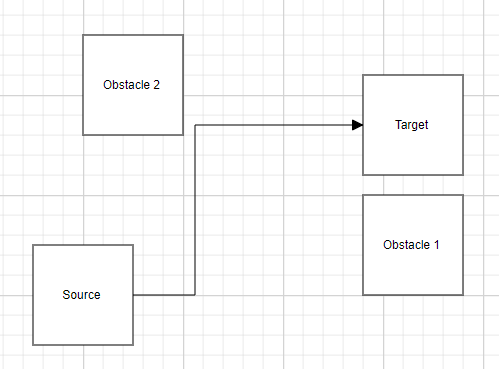

By default, connectors treat all nodes as obstacles, causing connections to navigate around the node boundaries. However, you can disable this behavior and allow connectors to ignore the node as an obstacle by removing the RoutingObstacle from the node’s Constraints property.
@using Syncfusion.Blazor.Diagram
<SfDiagramComponent Width="1000px" Height="500px" NodeCreating="@OnNodeCreating" ConnectorCreating="@OnConnectorCreating" Connectors="@connectors" Nodes="@nodes" Constraints="@diagramConstraints">
<SnapSettings Constraints="SnapConstraints.None"></SnapSettings>
</SfDiagramComponent>
@code
{
// Enable routing constraints for the diagram.
DiagramConstraints diagramConstraints = DiagramConstraints.Default | DiagramConstraints.Routing;
// Intialize the node collection.
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
// Intialize the connector collection.
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
nodes = new DiagramObjectCollection<Node>()
{
new Node() { ID = "Source", OffsetX = 100, OffsetY = 300, Width = 100, Height =100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Source" } }, Ports=new DiagramObjectCollection<PointPort>(){ new PointPort(){ ID="port1", Offset=new DiagramPoint() { X = 1, Y = 0.5 } } } },
new Node() { ID = "Target", OffsetX = 800, OffsetY = 300, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Target" } }, Ports=new DiagramObjectCollection<PointPort>(){ new PointPort(){ ID="port1", Offset=new DiagramPoint() { X = 0, Y = 0.5 } } } },
new Node() { ID = "RoutingObstacle", OffsetX = 300, OffsetY = 300, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Routing Obstacle" } }, },
new Node() { ID = "NonRoutingObstacle", OffsetX = 500, OffsetY = 250, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Non-Routing Obstacle" } }, Constraints = NodeConstraints.Default & ~NodeConstraints.RoutingObstacle }
};
connectors = new DiagramObjectCollection<Connector>(){
new Connector()
{
ID = "connector1",
SourceID = "Source", TargetID = "Target", SourcePortID="port1", TargetPortID="port1",
Type = ConnectorSegmentType.Orthogonal
}
};
}
private void OnNodeCreating(IDiagramObject obj)
{
if (obj is Node node)
{
node.Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeColor = "#6BA5D7" };
}
}
private void OnConnectorCreating(IDiagramObject obj)
{
if (obj is Connector connector)
{
connector.Style = new ShapeStyle() { StrokeColor = "#6BA5D7", StrokeWidth = 1 };
connector.TargetDecorator = new DecoratorSettings()
{
Shape = DecoratorShape.Arrow,
Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeColor = "#6BA5D7", StrokeWidth = 1 }
};
}
}
}
You can download a complete working sample from GitHub.
How to enable or disable routing for connectors
By default, each connector’s routing process is inherited based on the value of the diagram’s Constraints property. If you wish to independently control the routing of a specific connector regardless of the diagram settings, you can achieve this by removing the InheritRouting enum value from the connector’s Constraints property. Then, add the Routing enum value to enable routing or remove it to disable routing altogether.
@using Syncfusion.Blazor.Diagram
<SfDiagramComponent Width="1000px" Height="500px" NodeCreating="@OnNodeCreating" ConnectorCreating="@OnConnectorCreating" Connectors="@connectors" Nodes="@nodes" Constraints="@diagramConstraints">
<SnapSettings Constraints="SnapConstraints.None"></SnapSettings>
</SfDiagramComponent>
@code
{
// Enable routing constraints for the diagram.
DiagramConstraints diagramConstraints = DiagramConstraints.Default | DiagramConstraints.Routing;
//Intialize the node collection
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
//Intialize the connector collection
DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
protected override void OnInitialized()
{
nodes = new DiagramObjectCollection<Node>()
{
new Node() { ID = "Source", OffsetX = 90, OffsetY = 290, Width = 100, Height =100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Source1" } }, Ports=new DiagramObjectCollection<PointPort>(){ new PointPort(){ ID="port1", Offset=new DiagramPoint() { X = 1, Y = 0.5 } } } },
new Node() { ID = "Target", OffsetX = 700, OffsetY = 304, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Target1" } }, Ports=new DiagramObjectCollection<PointPort>(){ new PointPort(){ ID="port1", Offset=new DiagramPoint() { X = 0, Y = 0.5 } } } },
new Node() { ID = "Source2", OffsetX = 120, OffsetY = 150, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Source2" } }, },
new Node() { ID = "Target2", OffsetX = 490, OffsetY = 250, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Target2" } } },
new Node() { ID = "Obstacle", OffsetX = 291, OffsetY = 300, Width = 100, Height = 100, Annotations= new DiagramObjectCollection<ShapeAnnotation>(){ new ShapeAnnotation() { Content="Obstacle" } }, },
};
connectors = new DiagramObjectCollection<Connector>(){
new Connector()
{
ID = "connector1",
SourceID = "Source", TargetID = "Target",
Type = ConnectorSegmentType.Orthogonal,
// Disable the inherit routing for the connector
Constraints = ConnectorConstraints.Default & ~ConnectorConstraints.InheritRouting,
Annotations = new DiagramObjectCollection<PathAnnotation>(){ new PathAnnotation(){ Content = "Without Routing" } }
},
new Connector()
{
ID = "connector2",
SourceID = "Source2", TargetID = "Target2",
Type = ConnectorSegmentType.Orthogonal,
// Enable the routing for the connector
Constraints = (ConnectorConstraints.Default & ~ConnectorConstraints.InheritRouting) | ConnectorConstraints.Routing,
Annotations = new DiagramObjectCollection<PathAnnotation>(){ new PathAnnotation(){ Content = "With Routing" } }
}
};
}
private void OnNodeCreating(IDiagramObject obj)
{
if (obj is Node node)
{
node.Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeColor = "#6BA5D7" };
}
}
private void OnConnectorCreating(IDiagramObject obj)
{
if (obj is Connector connector)
{
connector.Style = new ShapeStyle() { StrokeColor = "#6BA5D7", StrokeWidth = 1 };
connector.TargetDecorator = new DecoratorSettings()
{
Shape = DecoratorShape.Arrow,
Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeColor = "#6BA5D7", StrokeWidth = 1 }
};
}
}
}
You can download a complete working sample from GitHub.
How to flip the connector
The Flip is performed to give the mirrored image of the original element.
For more information about the connector flip, refer to Connector Flip.
