Selection

DiagramSelectionSettings provides a visual representation of selected elements. It behaves like a container and allows to update the size, position, and rotation angle of the selected elements through interaction and by using program. Single or multiple elements can be selected at a time.

Single selection

An element can be selected by clicking that element. During single click, all previously selected items are cleared. The following image shows how the selected elements are visually represented.

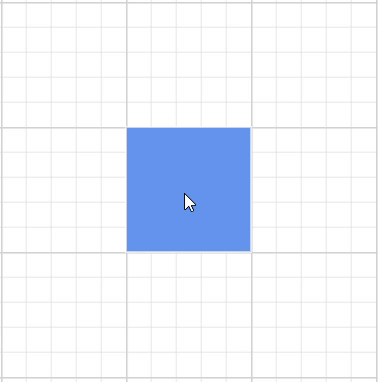

Single Selection in Blazor Diagram

  • While selecting the diagram elements, the following events can be used to do your customization.
  • When selecting/unselecting the diagram elements, the following events get triggered and do customization on those events.
Events EventArgs Description
SelectionChanging SelectionChangingEventArgs Notify when clicking to select the elements in the diagram.
SelectionChanged SelectionChangedEventArgs Notify after clicking to select the elements in the diagram.
<SfDiagramComponent Height="600px" Nodes="@NodeCollection"
    SelectionChanging="OnSelectionChanging"
    SelectionChanged="OnSelectionChanged">
</SfDiagramComponent>
@code
{
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            OffsetX = 100,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node",
        };
        NodeCollection.Add(node);
    }
    //To notify selection changing event, before selecting the nodes/connectors in the diagram.
    private void OnSelectionChanging(SelectionChangingEventArgs args)
    {
        //Sets true to cancel the element's selection.
        args.Cancel = true;
    }
    //To notify selection changed event, after selecting the nodes/connectors in the diagram.
    private void OnSelectionChanged(SelectionChangedEventArgs args)
    {
        //Action to be performed.
    }
}

Selecting a group

When a child element of any group is clicked, its contained group is selected instead of the child element. With consecutive clicks on the selected element, selection is changed from top to bottom in the hierarchy of parent group to its children.

Multiple selection

Multiple elements can be selected with the following ways:

  • Ctrl+Click

During single click, any existing item in the selection list is cleared, and only the recently clicked item remains in the selection list. To avoid clearing the previously selected item, Ctrl key must be on hold when clicking.

  • Selection rectangle/rubber band selection

Clicking and dragging the diagram area allows to create a rectangular region. The elements that are covered under the rectangular region are selected at the end.

Multiple Selection in Blazor Diagram

Select/Unselect elements using program

The Select and ClearSelection methods help to select or clear the selection of the elements at runtime.

Get the currently selected items from the Nodes and Connectors collection of the SelectionSettings property of the diagram model.

Select entire elements in diagram programmatically

The SelectAll method is used to select all the elements such as nodes/connectors in the diagram. Refer to the following link which shows how to use SelectAll method on the diagram.

Drag

  • An object can be dragged by clicking and dragging it. When multiple elements are selected, dragging any one of the selected elements moves every selected element.
  • When you drag the elements in the diagram, the following events are triggered and do customization on those events.
Events EventArgs Description
PositionChanging PositionChangingEventArgs Notify while dragging the elements in the diagram.
PositionChanged PositionChangedEventArgs Notify when the element’s position has changed in the diagram.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@NodeCollection"
    PositionChanging="OnPositionChanging"
    PositionChanged="OnPositionChanged">
</SfDiagramComponent>
@code
{
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            OffsetX = 100,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node",
        };
        NodeCollection.Add(node);
    }
    //Event to notify while dragging the elements in the diagram.
    private void OnPositionChanging(PositionChangingEventArgs args)
    {
        //sets true to cancel the element's dragging
        args.Cancel = true;
    }
    //Event to notify once element's position has changed in the diagram.
    private void OnPositionChanged(PositionChangedEventArgs args)
    {
        //Action to be performed.
    }
}

For more information about dragging, refer Node Drag

Resize

  • Selector is surrounded by eight thumbs. When dragging these thumbs, selected items can be resized.
  • When one corner of the selector is dragged, opposite corner is in a static position.
  • When a node is resized, the following events get triggered.
Events EventArgs Description
SizeChanging SizeChangingEventArgs Notify while resizing the elements in the diagram.
SizeChanged SizeChangedEventArgs Notify when the element’s size has changed in the diagram.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@NodeCollection"
    SizeChanging="OnSizeChanging"
    SizeChanged="OnSizeChanged">
</SfDiagramComponent>

@code
{
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            OffsetX = 100,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node",
        };
        NodeCollection.Add(node);
    }
    //Event to notify while resizing the elements in the diagram.
    private void OnSizeChanging(SizeChangingEventArgs args)
    {
        //sets true to cancel the element's resizing
        args.Cancel = true;
    }
    //Event to notify once element's size has changed in the diagram.
    private void OnSizeChanged(SizeChangedEventArgs args)
    {
        //Action to be performed.
    }
}

For more information about resizing, refer Node Resize

Note: While dragging and resizing, the objects are snapped towards the nearest objects to make better alignments. For better alignments, refer to Snapping.

Rotate

  • A rotate handler is placed above the selector. Clicking and dragging the handler in a circular direction lead to rotate the node.
  • The node is rotated with reference to the static pivot point.
  • Pivot thumb (thumb at the middle of the node) appears while rotating the node to represent the static point.
  • When a node is rotated, the following events get triggered.
Events EventArgs Description
RotationChanging RotationChangingEventArgs Notify while rotating the elements in the diagram.
RotationChanged RotationChangedEventArgs Notify when the element’s rotate angle has changed in the diagram.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@NodeCollection"
    RotationChanging="OnRotationChanging"
    RotationChanged="OnRotationChanged">
</SfDiagramComponent>

@code
{
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            OffsetX = 100,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node",
        };
        NodeCollection.Add(node);
    }
    //Event to notify while rotating the elements in the diagram.
    private void OnRotationChanging(RotationChangingEventArgs args)
    {
        //sets true to cancel the element's rotation
        args.Cancel = true;
    }
    //Event to notify once element's rotate angle has changed in the diagram.
    private void OnRotationChanged(RotationChangedEventArgs args)
    {
        //Action to be performed.
    }
}

For more information about resizing, refer Node Rotate

Connection editing

  • Each segment of a selected connector is editable with some specific handles/thumbs.

End point handles

Source and target points of the selected connectors are represented with two handles. Clicking and dragging those handles help you to adjust the source and target points.

For more information, refer End Point Dragging

  • If you drag the connector end points, then the following events can be used to do your customization.
  • When you connect connector with ports/node or disconnect from it, the following events are triggered.
Events EventArgs Description
ConnectionChanging ConnectionChangingEventArgs Notify while creating the connection between the nodes in the diagram.
ConnectionChanged ConnectionChangedEventArgs Notify once the connection has been created between the nodes in the diagram.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@NodeCollection" Connectors="@Connectors"
    ConnectionChanging="OnConnectionChanging"
    ConnectionChanged="OnConnectionChanged">
</SfDiagramComponent>

@code
{
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    public DiagramObjectCollection<Connector> Connectors = new DiagramObjectCollection<Connector>();
    protected override void OnInitialized()
    {
        Node node1 = new Node()
        {
            OffsetX = 100,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node1",
        };
        NodeCollection.Add(node1);

        Node node2 = new Node()
        {
            OffsetX = 300,
            OffsetY = 200,
            Height = 100,
            Width = 100,
            ID = "node2",
        };
        NodeCollection.Add(node2);

        Connector Connector = new Connector()
        {
            ID = "connector1",
            //Source node id of the connector.
            SourceID = "node1",
            TargetDecorator = new DecoratorSettings()
            {
                Style = new ShapeStyle()
                {
                    Fill = "#6495ED",
                    StrokeColor = "#6495ED",
                }
            },
            //Target node id of the connector.
            TargetID = "node2",
            Style = new ShapeStyle()
            {
                Fill = "#6495ED",
                StrokeColor = "#6495ED",
            },
            // Type of the connector.
            Type = ConnectorSegmentType.Straight,
        };
        Connectors.Add(Connector);
    }
    //Event to notify while creating the connection between the nodes in the diagram.
    private void OnConnectionChanging(ConnectionChangingEventArgs args)
    {
        //Sets true to cancel the element's resizing.
        args.Cancel = true;
    }
    //Event to notify once created the connection between the nodes in the diagram.
    private void OnConnectionChanged(ConnectionChangedEventArgs args)
    {
        //Action to be performed.
    }
}

Straight segment editing

  • End point of each straight segment is represented by a thumb that enables to edit the segment.
  • Any number of new segments can be inserted into a straight line by clicking, when Shift and Ctrl keys are pressed (Ctrl+Shift+Click).
  • Straight segments can be removed by clicking the segment end point, when Ctrl and Shift keys are pressed (Ctrl+Shift+Click).

For more information about straight segment editing, refer Straight Segment Editing

Orthogonal segment editing

  • Orthogonal thumbs allow you to adjust the length of adjacent segments by clicking and dragging it.
  • When necessary, some segments are added or removed automatically, when dragging the segment. This is to maintain proper routing of orthogonality between segments.
  • When editing the segment collection of connector, the following event gets triggered.
Events EventArgs Description
SegmentCollectionChange SegmentCollectionChangeEventArgs Notify when the connector’s segment collection has modified in the diagram.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Width="1000px" Height="500px" Connectors="@Connectors" SegmentCollectionChange="OnSegmentChange">
</SfDiagramComponent>
@code{
    //Defines diagram's connector collection.
    DiagramObjectCollection<Connector> Connectors = new DiagramObjectCollection<Connector>();
    protected override void OnInitialized()
    {

        Connector connector = new Connector()
        {
            ID = "connector1",
            SourcePoint = new DiagramPoint()
            {
                X = 100,
                Y = 100
            },
            // Enable DragSegmentThumb constraints to segment editing.
            Constraints = ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb,
            Style = new ShapeStyle() { StrokeColor = "#6f409f", StrokeWidth = 1 },
            TargetPoint = new DiagramPoint() { X = 300, Y = 300 },
             //Specify the segments type as Orthogonal.
            Type = ConnectorSegmentType.Orthogonal,
             //Create a new segment with length and direction.
            Segments = new DiagramObjectCollection<ConnectorSegment>()
            {
                new OrthogonalSegment
                {
                    Length = 100,
                    Type = ConnectorSegmentType.Orthogonal,
                    Direction = Direction.Right,
                },
                new OrthogonalSegment
                {
                    Length = 100,
                    Type = ConnectorSegmentType.Orthogonal,
                    Direction = Direction.Bottom,
                }
            },
            TargetDecorator = new DecoratorSettings()
            {
                Shape = DecoratorShape.Arrow,
                Style = new ShapeStyle()
                {
                    Fill = "#6f409f",
                    StrokeColor = "#6f409f",
                    StrokeWidth = 1
                }
            }

        };
        Connectors.Add(connector);
    }
    //Event to notify while modifying the segment collection for the connector.
    private void OnSegmentChange(SegmentCollectionChangeEventArgs args)
    {
        //Action to be performed.
    }
}

For more information about orthogonal segment editing, refer Orthogonal Segment Editing.

User handles

  • User handles are used to add some frequently used commands around the selector. To create user handles, define and add them to the UserHandles collection of the SelectionSettings property.
  • The Name property of user handle is used to define the name of the user handle and it is further used to find the user handle at runtime and do any customization.

How to align the user handle based on the node boundary

User handles can be aligned relative to the node boundaries. It has Margin, Offset, Side, HorizontalAlignment, and VerticalAlignment settings. It is quite tricky when all four alignments are used together, but gives more control over alignment.

How to position the user handle

The Offset property of UserHandle is used to align the user handle based on fractions. 0 represents top/left corner, 1 represents bottom/right corner, and 0.5 represents half of width/height.

How to align the user handle based on the connector boundary

The Side property of UserHandle is used to align the user handle by using the Top, Bottom, Left, and Right options.

Add Horizontal and vertical alignments to the user handle

The HorizontalAlignment property of UserHandle is used to set how the user handle is horizontally aligned at the position based on the Offset. The VerticalAlignment property is used to set how user handle is vertically aligned at the position.

Add Margin to the user handle

Margin is an absolute value used to add some blank space in any one of its four sides. The UserHandle can be displaced with the Margin property.

Notification for the mouse button clicked

The diagram component notifies the mouse button clicked. For example, whenever the right mouse button is clicked, the clicked button is notified as right. The mouse click is notified with,

Notification Description
Left When the left mouse button is clicked, left is notified
Middle When the mouse wheel is clicked, middle is notified
Right When the right mouse button is clicked, right is notified
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@nodes" Click='@OnClick' />

@code
{
    public DiagramObjectCollection<Node> nodes;

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        // A node is created and stored in nodes array.
        Node node = new Node()
        {
            // Position of the node.
            OffsetX = 250,
            OffsetY = 250,
            // Size of the node.
            Width = 100,
            Height = 100,
            // Add node.
            Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeDashArray = "5,5", StrokeColor = "red", StrokeWidth = 2 },
        };
        nodes.Add(node);
    }

    private void OnClick(ClickEventArgs args)
    {
        Console.WriteLine("Button", args.Button);
    }
}

Appearance of the user handle

The appearance of the user handle can be customized by using the Size, BorderColor, BackgroundColor, Visible, PathData, and PathColor properties of the UserHandle.

Zoom pan the diagram

  • When a large diagram is loaded, only certain portion of the diagram is visible. The remaining portions are clipped. Clipped portions can be explored by scrolling the scrollbars or panning the diagram.
  • Diagram can be zoomed in or out by using Ctrl + mouse wheel.

Zoom Pan in Blazor Diagram

Keyboard shortcuts

Diagram provides support to interact with the elements with key gestures. By default, some in-built commands are bound with a relevant set of key combinations.

The following table illustrates those commands with the associated key values.

Shortcut Key Command Description
Ctrl + A SelectAll Select all nodes/connectors in the diagram.
Ctrl + C Copy Copy the diagram selected elements.
Ctrl + V Paste Pastes the copied elements.
Ctrl + X Cut Cuts the selected elements.
Ctrl + Z Undo Reverses the last editing action performed on the diagram.
Ctrl + Y Redo Restores the last editing action when no other actions have occurred since the last undo on the diagram.
Delete Delete Deletes the selected elements.
Ctrl/Shift + Click on object   Multiple selection (Selector binds all selected nodes/connectors).
Up Arrow Nudge(Direction.Up) NudgeUp: Moves the selected elements towards up by one pixel.
Down Arrow Nudge(Direction.Down) NudgeDown: Moves the selected elements towards down by one pixel.
Left Arrow Nudge(Direction.Left) NudgeLeft: Moves the selected elements towards left by one pixel.
Right Arrow Nudge(Direction.Right) NudgeRight: Moves the selected elements towards right by one pixel.
Ctrl + MouseWheel Zoom Zoom (Zoom in/Zoom out the diagram).
F2 StartTextEdit Starts to edit the label of selected element.
Esc   Sets the label mode as view and stops editing.

See Also
