Node Shapes in Blazor Diagram Component

5 Aug 202124 minutes to read

Diagram provides support to add different kind of nodes. They are as follows:

  • Image node
  • HTML template shape
  • Path node
  • Basic shapes
  • Flow shapes
  • SVG node

Image node

Diagram allows to add images as Image nodes. The shape property of node allows you to set the type of node and for image nodes, it should be set as Image. In addition, the source property of shape enables you to set the image source.

The following code illustrates how an image node is created.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Height = 100,
            Width = 100,
            //Position of the node
            OffsetX = 100,
            OffsetY = 100,
            Shape = new Image()
            {
                Type = Shapes.Image,
                Source = "/diagram/images/syncfusion.png"
            }
        };
        nodes.Add(node);
    }
}

Image node in Blazor Diagram

Base64 encoded image into the image node

The following code illustrates how add Base64 image into image node.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes"></SfDiagramComponent>

@code
{
    //Initialize node collection with node
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Height = 100,
            Width = 100,
            //Position of the node
            OffsetX = 100,
            OffsetY = 100,
            //Sets type of the shape as image
            Shape = new Image()
            {
                Type = Shapes.Image,
            },
            Style = new ShapeStyle() { StrokeColor = "White" }
        };
        nodes.Add(node);
    }
}

Image node in Blazor Diagram

Deploy your HTML file in the web application and export the diagram (image node) or else the image node will not be exported in the Chrome and Firefox due to security issues.

Image alignment

Stretch and align the image content anywhere but within the node boundary. The scale property of the node allows to stretch the image as you desired (either to maintain proportion or to stretch). By default, the Scale property of the node is set as Meet. The following code illustrates how to scale or stretch the content of the image node.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Height = 100,
            Width = 100,
            //Position of the node
            OffsetX = 100,
            OffsetY = 100,
            Shape = new Image()
            {
                Type = Shapes.Image,
                Source = "/diagram/images/productmanager.png",
                Scale = Scale.Meet,
                Align = ImageAlignment.XMinYMax
            }
        };
        nodes.Add(node);
    }
}
  • Align property of the shape helps to align the image based on the x and y values in the node boundary. The following table illustrates the various image alignments in the node boundary.
Scale Values Align Values Result
Meet XMinYMax Node Image alignment in Blazor Diagram
Meet XMinYMin Node Image alignment in Blazor Diagram
Meet XMaxYMax Node Image alignment in Blazor Diagram
None XMinYMax Node Image alignment in Blazor Diagram
None XMinYMin Node Image alignment in Blazor Diagram
Slice XMinYMax Node Image alignment in Blazor Diagram
Slice XMinYMin Node Image alignment in Blazor Diagram

HTML template shape

Html elements can be embedded in the diagram through Html type node. The shape property of node allows you to set the type of node and to create a HTML node it should be set as HTML. The following code illustrates how an Html node is created.

@using Syncfusion.Blazor.Diagram

@* Add a Namespace for a syncfusion control used in Diagrm HTML node *@
@using Syncfusion.Blazor.CircularGauge

@* Initialize Diagram with node template *@
<SfDiagramComponent Height="600px" Nodes="@nodes">
    <DiagramTemplates>
        <NodeTemplate>
            @{
                <SfCircularGauge Width="300px" Height="300px">
                    <CircularGaugeAxes>
                        <CircularGaugeAxis StartAngle="210" EndAngle="150" Minimum="0" Maximum="120" Radius="80%">
                            <CircularGaugeAxisLineStyle Width="10" Color="transparent">
                            </CircularGaugeAxisLineStyle>
                            <CircularGaugeAxisLabelStyle UseRangeColor="false">
                                <CircularGaugeAxisLabelFont Size="12px" FontFamily="Roboto" FontStyle="Regular">
                                </CircularGaugeAxisLabelFont>
                            </CircularGaugeAxisLabelStyle>
                            <CircularGaugeAxisMajorTicks Height="10" Offset="5" UseRangeColor="false">
                            </CircularGaugeAxisMajorTicks>
                            <CircularGaugeAxisMinorTicks Height="0" Width="0" UseRangeColor="false">
                            </CircularGaugeAxisMinorTicks>
                            <CircularGaugeAnnotations>
                                <CircularGaugeAnnotation Radius="30%" Angle="0" ZIndex="1" Content="Speedometer">
                                    <ContentTemplate>
                                        <div><span style="font-size:14px; color:#9E9E9E; font-family:Regular; margin-left: -33px">Speedometer</span></div>
                                    </ContentTemplate>
                                </CircularGaugeAnnotation>
                                <CircularGaugeAnnotation Radius="40%" Angle="180" ZIndex="1" Content="65 MPH">
                                    <ContentTemplate>
                                        <div><span style="font-size:20px; color:#424242; font-family:Regular; margin-left: -33px">65 MPH</span></div>
                                    </ContentTemplate>
                                </CircularGaugeAnnotation>
                            </CircularGaugeAnnotations>
                            <CircularGaugeRanges>
                                <CircularGaugeRange Start="0" End="40" Color="#30B32D" StartWidth="10" EndWidth="10" RoundedCornerRadius="0">
                                </CircularGaugeRange>
                                <CircularGaugeRange Start="40" End="80" Color="#FFDD00" StartWidth="10" EndWidth="10" RoundedCornerRadius="0">
                                </CircularGaugeRange>
                                <CircularGaugeRange Start="80" End="120" Color="#F03E3E" StartWidth="10" EndWidth="10" RoundedCornerRadius="0">
                                </CircularGaugeRange>
                            </CircularGaugeRanges>
                            <CircularGaugePointers>
                                <CircularGaugePointer Value="65" Radius="60%" PointerWidth="8">
                                    <CircularGaugePointerAnimation Enable="true"></CircularGaugePointerAnimation>
                                    <CircularGaugeCap Radius="7">
                                    </CircularGaugeCap>
                                    <CircularGaugeNeedleTail Length="18%">
                                    </CircularGaugeNeedleTail>
                                </CircularGaugePointer>
                            </CircularGaugePointers>
                        </CircularGaugeAxis>
                    </CircularGaugeAxes>
                </SfCircularGauge>
            }
        </NodeTemplate>
    </DiagramTemplates>
</SfDiagramComponent>

@code
{
    //Initialize node collection with node
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Width = 300,
            Height = 300,
            //Position of the node
            OffsetX = 400,
            OffsetY = 300,
            //sets the type of the shape as HTML
            Shape = new Shape()
            {
                Type = Shapes.HTML,
            }
        };
        nodes.Add(node);
    }
}

HTML node in Blazor Diagram

HTML node cannot be exported to image format, like JPEG, PNG and BMP. It is by design, while exporting the diagram is drawn in a canvas. Further, this canvas is exported into image formats. Currently, drawing in a canvas equivalent from all possible HTML is not feasible. Hence, this limitation. Also , HTML node always appears as topmost layer ( whose index is the higher index, even though it is defined at the last).

Basic shapes

The Basic shapes are common shapes that are used to represent the geometrical information visually. To create basic shapes, the type of the shape should be set as Basic. Its shape property can be set with any one of the built-in shapes. To render a rounded rectangle, you need to set the type as basic and shape as rectangle. Set the CornerRadius property to specify the radius of rounded rectangle.

The following code example illustrates how to create a basic shape.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    //Initialize node collection with node
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Height = 100,
            Width = 100,
            //Position of the node
            OffsetX = 100,
            OffsetY = 100,
            //sets the type of the shape as basic
            Shape = new BasicShape() { Type = Shapes.Basic, Shape = BasicShapes.Rectangle, CornerRadius = 10 },
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        nodes.Add(node);
    }
}

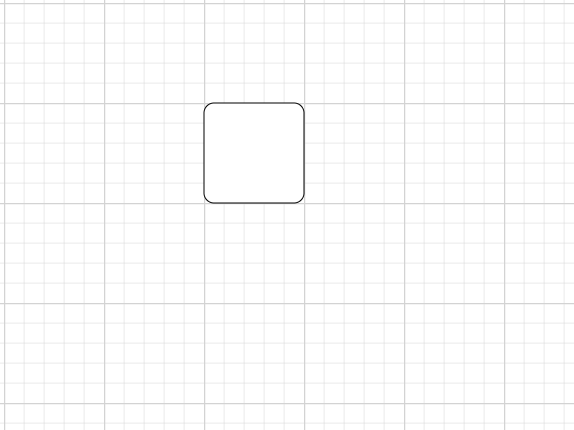

By default, the Shape property of the node is set as Basic.Default property for shape is Rectangle.
When the Shape is not set for a basic shape, it is considered as a Rectangle.
The CornerRadius property is applicable only for basic shape.

The list of basic shapes are as follows.

BasicShape node in Blazor Diagram

Path shape

The Path node is a commonly used basic shape that allows visually to represent the geometrical information. As node path data, any geometrical data can be provided. You can create your own Geometry and assign it to data if you want anything different from the standard figures. A geometry does not require any dimension specifications, such as width or height, because it specifies its own size. If the node’s size is set, the geometry is extended to fit the node’s dimensions.

To create a path node, specify the shape as Path. The path property of node allows you to define the path to be drawn. The following code illustrates how a path node is created.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />
@code
{
       //Initialize node collection with node
       DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>()
       {
         // Creates a path node
         new Node()
         {
             ID="node1",
             //Size of the node
             Height=100,
             Width=100,
             //Position of the node
             OffsetX=100,
             OffsetY=100,
             //Sets the type of the shape as path
             Shape=new Path()
             {
                 Type=Shapes.Path,
                 Data="M 355.31 12.07 C 352.11 5.95 345.35 -1.14 331.41 0.15 C 290.33 3.93 209.61 81.48 190.42 111.69 C 189.66 107.76 187.9 101.49 184.12 98.05 C 189.5 87.75 198.01 69.64 201.57 52.48 C 202.4 52.26 203.12 51.68 203.34 50.44 C 203.72 48.34 204 46.22 204.39 44.13 C 205.01 40.62 199.99 39.43 199.42 42.91 C 199.06 45.06 198.69 47.15 198.35 49.31 C 198.16 50.6 198.69 51.62 199.54 52.14 C 196.08 68.87 187.75 86.63 182.43 96.81 C 181.52 96.29 180.53 95.87 179.41 95.7 C 179.09 95.65 178.8 95.72 178.5 95.71 C 178.19 95.72 177.91 95.65 177.59 95.7 C 176.46 95.87 175.48 96.29 174.56 96.81 C 169.24 86.63 160.92 68.87 157.46 52.14 C 158.3 51.62 158.83 50.6 158.65 49.31 C 158.3 47.15 157.93 45.06 157.58 42.91 C 157.01 39.43 151.99 40.62 152.61 44.13 C 152.99 46.22 153.28 48.34 153.66 50.44 C 153.87 51.68 154.6 52.27 155.42 52.48 C 158.98 69.63 167.49 87.75 172.87 98.05 C 169.09 101.49 167.33 107.76 166.57 111.69 C 147.39 81.48 66.67 3.93 25.59 0.15 C 11.65 -1.14 4.89 5.95 1.69 12.07 C -2.05 19.07 0.84 33.48 6.24 58.46 C 8.66 69.55 11.16 80.96 12.94 92.2 C 13.89 98.36 14.79 104.49 15.64 110.36 C 19.39 136.89 22.52 158.97 32.64 166.04 C 35.41 167.98 38.65 168.78 42.61 168.24 C 52.26 165.95 63.79 164.03 75.99 162.67 C 64.03 171.47 49.08 185.81 44.17 204.84 C 40.38 219.72 43.37 234.86 53.01 250.05 C 64.37 267.81 76.02 279.48 86.91 287.09 C 108.68 302.31 127.52 301.24 135.48 300.78 C 136.3 300.77 136.94 300.71 137.56 300.69 C 143.62 300.61 147.76 291.39 156.6 270.51 C 160.94 260.34 167.39 245.19 172.83 237.47 C 173.97 240.31 177.22 242.31 178.92 242.87 C 178.78 242.94 178.62 243.07 178.49 243.12 C 178.65 243.08 178.83 242.97 179 242.91 C 179.1 242.94 179.25 243.02 179.34 243.04 C 179.26 243.01 179.13 242.93 179.04 242.89 C 180.83 242.24 183.05 240.25 184.16 237.48 C 189.6 245.19 196.05 260.34 200.39 270.52 C 209.23 291.4 213.38 300.61 219.43 300.7 C 220.05 300.72 220.69 300.77 221.51 300.78 C 229.47 301.25 248.31 302.31 270.08 287.1 C 280.97 279.49 292.62 267.81 303.98 250.05 C 313.62 234.86 316.6 219.72 312.82 204.84 C 307.91 185.82 292.96 171.48 281 162.67 C 293.2 164.03 304.73 165.95 314.38 168.24 C 318.34 168.78 321.58 167.98 324.35 166.04 C 334.47 158.97 337.6 136.89 341.35 110.37 C 342.19 104.49 343.1 98.37 344.05 92.2 C 345.83 80.96 348.33 69.55 350.75 58.46 C 356.16 33.48 359.05 19.07 355.31 12.07 z M 183.92 237.56 C 182.35 240.3 180.35 242.13 178.97 242.86 C 177.49 242.19 174.7 240.38 173.08 237.56 C 173.08 237.56 166.19 138.22 166.91 113.58 C 166.91 113.58 169.24 97.92 178.5 97.81 C 187.76 97.92 190.09 113.58 190.09 113.58 C 190.81 138.22 183.92 237.56 183.92 237.56 z"
             },
             Style=new ShapeStyle()
             {
                 Fill="Orange"
             }
        }
    };
}

Path shape node in Blazor Diagram

Flow Shapes

The Flow shapes are used to represent the process flow. It is used for analyzing, designing and managing for documentation process. To create a flow shape, specify the shape type as Flow. Flow shapes and by default, it is considered as Process. The following code example illustrates how to create a flow shape.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    //Initialize node collection with node
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            //Size of the node
            Height = 100,
            Width = 100,
            //Position of the node
            OffsetX = 100,
            OffsetY = 100,
            //Sets the type of the shape as flow
            Shape = new FlowShape()
            {
                Type = Shapes.Flow,
                Shape = FlowShapes.DirectData
            }
        };
        nodes.Add(node);
    }
}

The list of flow shapes are as follows.

FlowShape node in Blazor Diagram

SVG template shape

Diagram provides support to embed SVG element into a node. The shape property of node allows you to set the type of node. To create a SVG node, it should be set as native. The following code illustrates how a SVG node is created.

@using Syncfusion.Blazor.Diagram

@* Initialize Diagram *@
<SfDiagramComponent Height="600px" Nodes="@nodes">
    <SnapSettings Constraints="SnapConstraints.None"></SnapSettings>
    <DiagramTemplates>
        <NodeTemplate>
            @{
                if ((context as Node).Shape.Type == Shapes.Native)
                {
                    <svg viewBox="0 0 100 100" xmlns="http://www.w3.org/2000/svg">
                        <!-- Using g to inherit presentation attributes -->
                        <g fill="white" stroke="green" stroke-width="5">
                            <circle cx="40" cy="40" r="25" />
                            <circle cx="60" cy="60" r="25" />
                        </g>
                    </svg>
                }
            }
        </NodeTemplate>
    </DiagramTemplates>
</SfDiagramComponent>

@code
{
    //Initialize node collection with node
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node = new Node()
        {
            ID = "node1",
            // Size of the node
            Height = 100,
            Width = 100,
            // Position of the node
            OffsetX = 100,
            OffsetY = 100,
            //Sets type of the shape as Native
            Shape = new Shape() { Type = Shapes.Native },
        };
        nodes.Add(node);
    }
}

Svg node in Blazor Diagram

Like HTML node, the SVG node also cannot be exported to image format. Fill color of svg node can be overridden by the inline style or fill of the SVG element specified in the template.
