User Handles for node, connector in Blazor Diagram Component

1 Nov 202124 minutes to read

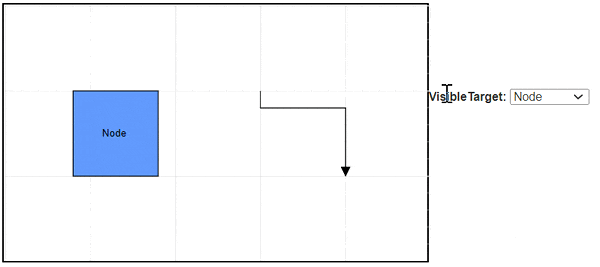

The user handles are customizable handles that can be used to perform custom actions and default clipboard actions.

Initialization an user handle

The user handle can enables for the selected nodes/connectors by setting a SelectorConstraints as UserHandle and then use the UserHandle class to define the userhandle object and add that to UserHandles collection of the DiagramSelectionSettings. The following code example used to enable and create an user handles for the diagram nodes/connectors.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px"
                    Nodes="@nodes"
                    SelectionSettings="@SelectedModel">
    <SnapSettings>
        <HorizontalGridLines LineColor="White" LineDashArray="2,2" />
        <VerticalGridLines LineColor="White" LineDashArray="2,2" />
    </SnapSettings>
</SfDiagramComponent>

@code
{
    // Defines diagram's nodes collection
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    // Defines diagram's SelectionSettings
    DiagramSelectionSettings SelectedModel = new DiagramSelectionSettings();
    DiagramObjectCollection<UserHandle> UserHandles = new DiagramObjectCollection<UserHandle>();
    protected override void OnInitialized()
    {
        //Creating the userhandle for cloning the objects
        UserHandle cloneHandle = new UserHandle()
        {
            //Name of the user handle
            Name = "clone",
            //Set pathdata for userhandle
            PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z",
            //Set visibility for the user handle
            Visible = true,
            //Set the position for the user handle
            Offset = 0,
            //Set side based on the given offset
            Side = Direction.Bottom,
            //set margin for the user handle
            Margin = new Margin() { Top = 0, Bottom = 0, Left = 0, Right = 0 }
        };
        //Add user handle to the collection...
        UserHandles = new DiagramObjectCollection<UserHandle>()
        {
            cloneHandle
        };
        SelectedModel = new DiagramSelectionSettings()
        {
            //Enable userhandle for selected model...
            Constraints = SelectorConstraints.UserHandle,
            UserHandles = this.UserHandles
        };
        nodes = new DiagramObjectCollection<Node>();
        Node diagramNode = new Node()
        {
            ID = "node1",
            OffsetX = 100,
            OffsetY = 100,
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "none" },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>() { new ShapeAnnotation { Content = "Node" } }
        };
        nodes.Add(diagramNode);
    }
}

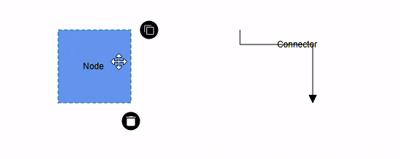

Blazor Diagram Node with User Handle

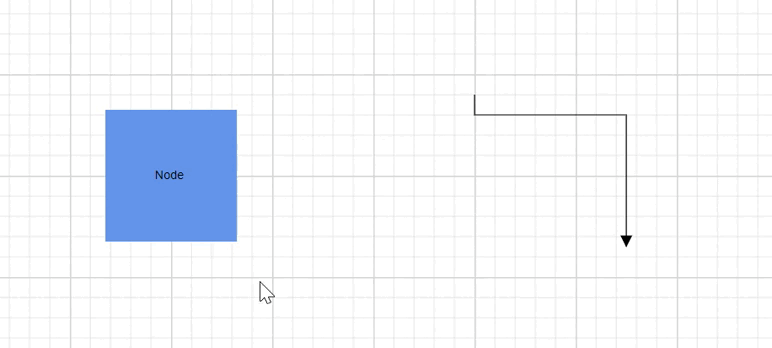

Customization

Position

The Offset property of user handle is used to align the user handles based on fractions. 0 represents Top-Left corner, 1 represents Bottom-Right corner, and 0.5 represents half of Width or Height. The Side property is used to set how the user handle is aligned based on the given Offset.

The following table shows all the possible alignments visually shows the user handle positions.

Offset Side Output
0 Left Blazor Diagram Node with User Handle at TopLeft Corner

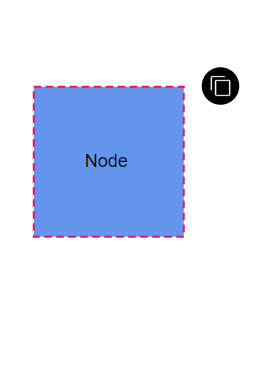

0 Right Blazor Diagram Node with User Handle at TopRight Corner
0 Top Blazor Diagram Node with User Handle at Top Corner
0 Bottom Blazor Diagram Node with User Handle at LeftBottom Corner
1 Left Blazor Diagram Node with User Handle at Left Corner
1 Right Blazor Diagram Node with User Handle at RightBottom Corner
1 Top Blazor Diagram Node with User Handle at RightTop Corner
1 Bottom Blazor Diagram Node with User Handle at Bottom Corner

Size

Diagram allows you set size for user handles by using the Size property. The default value of the Size property is 25.

Style

You can change the style of the user handles with the specific properties of PathColor, BorderColor, BackgroundColor and BorderWidth. The following code explains how to customize the appearance of the user handles.

  • The user handle’s PathColor property used to change the color of the given PathData of the user handle.

  • The user handle BorderColor, BackgroundColor properties are used to define the background color and border color of the user handle and the BorderWidth property is used to define the border width of the user handles.

  • The Visible property indicating whether the user handle is visible in the user interface.

The following code explains how to customize the appearance of the user handle.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@nodes" SelectionSettings="@SelectedModel">
    <SnapSettings>
        <HorizontalGridLines LineColor="White" LineDashArray="2,2"/>
        <VerticalGridLines LineColor="White" LineDashArray="2,2"/>
    </SnapSettings>
</SfDiagramComponent>

@code
{
    // Defines diagram's nodes collection
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    // Defines diagram's SelectionSettings
    DiagramSelectionSettings SelectedModel = new DiagramSelectionSettings();
    DiagramObjectCollection<UserHandle> UserHandles = new DiagramObjectCollection<UserHandle>();

    protected override void OnInitialized()
    {
        //Creating the userhandle for cloning the objects
        UserHandle cloneHandle = new UserHandle()
        {
            //Name of the user handle
            Name = "clone",
            //Set pathdata for userhandle
            PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z",
            //Set visibility for the user handle
            Visible = true,
            //Set the position for the user handle
            Offset = 1,
            //Set side based on the given offset
            Side = Direction.Bottom,
            //set margin for the user handle
            Margin = new Margin() { Top = 0, Bottom = 0, Left = 0, Right = 0 },
            //Set size of the user handle
            Size = 50,
            //Set pathcolor for given pathdata
            PathColor = "yellow",
            //Set Border color of the user handle
            BorderColor = "red",
            //Set Background Color of the user handle
            BackgroundColor = "green",
            //Set Border Width Color of the user handle
            BorderWidth = 3,
        };
        //Add user handle to the collection...
        UserHandles = new DiagramObjectCollection<UserHandle>()
        {
            cloneHandle
        };
        SelectedModel = new DiagramSelectionSettings()
        {
            //Enable userhandle for selected model...
            Constraints = SelectorConstraints.UserHandle,
            UserHandles = this.UserHandles
        };
        nodes = new DiagramObjectCollection<Node>();
        Node diagramNode = new Node()
        {
            ID = "node1",
            OffsetX = 100,
            OffsetY = 100,
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "none" },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>() { new ShapeAnnotation { Content = "Node" } }
        };
        nodes.Add(diagramNode);
    }
}

Customizing Appearance of Userhandle in Blazor Diagram

Fixed user handles

The FixedUserHandle is used to add some frequently used commands around the node and connector even without selecting it.

Initialization an fixed user handles

To create the fixed user handles, define and add them to the collection of nodes and connectors property. The following code example used to create an fixed user handles for the nodes and connectors.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    // Defines diagram's nodes collection
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        Node node1 = new Node()
        {
            OffsetX = 250,
            OffsetY = 250,
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
            // A fixed user handle is created and stored in fixed user handle collection of Node.
            FixedUserHandles = new DiagramObjectCollection<NodeFixedUserHandle>()
            {
                new NodeFixedUserHandle()
                {
                    ID = "user1",
                    Height = 20,
                    Width = 20,
                    Visibility = true,
                    Padding = new Margin() { Bottom = 1, Left = 1, Right = 1, Top = 1 },
                    Margin = new Margin() { Right = 20 }, Offset = new DiagramPoint() { X = 0 , Y = 0 },
                    PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z"
                },
            }
        };
        nodes.Add(node1);
    }
}

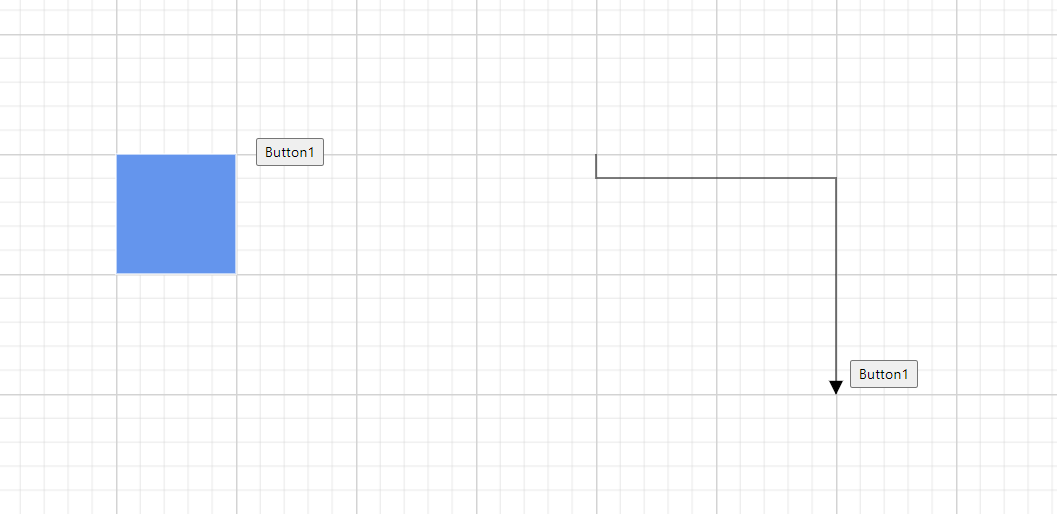

Customization the fixed user handle

  • The ID property of fixed user handle is used to define the unique identification of the fixed user handle and it is further used to add custom events to the fixed user handle.

  • The fixed user handle can be positioned relative to the node and connector boundaries. It has Offset, Padding and CornerRadius settings. It is used to position and customize the fixed user handle.

  • The Padding is used to leave the space that is inside the fixed user handle between the icon and border.

  • The CornerRadius allows to create fixed user handles with rounded corners. The radius of the rounded corner is set with the CornerRadius property.

The PathData needs to be provided to render fixed user handle.

Size

Diagram allows you set size for the fixed user handles by using the Width and Height property. The default value of the Width and Height property is 10.

Style

  • You can change the style of the fixed user handles with the specific properties of borderColor, borderWidth, and backgroundColor by using the Stroke, StrokeThickness, and Fill properties, and the icon BorderColor, and BorderWidth by using the IconStroke and IconStrokeThickness properties.

  • The fixed user handle’s IconStroke and IconStrokeThickness property used to change the stroke color and stroke width of the given PathData.

  • The fixed user handle Stroke and Fill properties are used to define the background color and border color of the user handle and the StrokeThickness property is used to define the border width of the fixed user handle.

  • The Visibility property indicating whether the fixed user handle is visible in the user interface.

The following code explains how to customize the appearance of the fixed user handles.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Connectors="@connectors">
    <SnapSettings>
        <HorizontalGridLines LineColor="White" LineDashArray="2,2"/>
        <VerticalGridLines LineColor="White" LineDashArray="2,2"/>
    </SnapSettings>
</SfDiagramComponent>

@code
{
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        connectors = new DiagramObjectCollection<Connector>();
        Connector connector = new Connector()
        {
            SourcePoint = new DiagramPoint() { X = 100, Y = 100 },
            TargetPoint = new DiagramPoint() { X = 200, Y = 200 },
            Type = ConnectorSegmentType.Orthogonal,
            Style = new ShapeStyle() { StrokeColor = "#6495ED" },
            // A fixed user handle is created and stored in fixed user handle collection of Connector.
            FixedUserHandles = new DiagramObjectCollection<ConnectorFixedUserHandle>()
            {
                new ConnectorFixedUserHandle()
                {
                    ID = "user1",
                    Height = 25,
                    Width = 25,
                    Offset = 0.5,
                    Alignment = FixedUserHandleAlignment.After,
                    Displacement = new DiagramPoint() { Y = 10 },
                    Visibility = true, Padding = new Margin() { Bottom = 1, Left = 1, Right = 1, Top = 1 },
                    PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z"
                }
            },
        };
        connectors.Add(connector);
    }
}

The fixed user handle id need to be unique.

Customizing the node fixed user handle

The node fixed user handle can be aligned relative to the node boundaries. It has Margin and Offset settings. It is quite useful to position the node fixed user handle and used together and gives you more control over the node fixed user handle positioning.

Margin for the node fixed user handle

Margin is an absolute value used to add some blank space in any one of its four sides. The fixed user handle can be displaced with the Margin property.

Offset for the node fixed user handle

The Offset property of fixed user handle is used to align the user handle based on the X and Y points. (0,0) represents the top-left corner and (1,1) represents the bottom-right corner.

The following table shows all the possible alignments visually shows the fixed user handle positions.

Offset Margin Output
(0,0) Right = 20 Blazor Diagram with Fixed User Handle at LeftTop Position

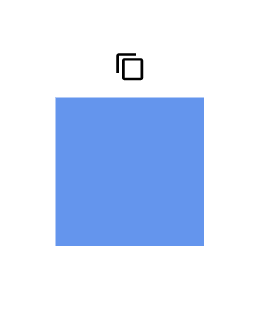

(0.5,0) Bottom = 20 Blazor Diagram with Fixed User Handle at CenterTop Position
(1,0) Left = 20 Blazor Diagram with Fixed User Handle at RightTop Position
(0,0.5) Right = 20 Blazor Diagram with Fixed User Handle at LeftCenter Position
(1,0.5) Left = 20 Blazor Diagram with Fixed User Handle at RightCenter Position
(0,1) Right = 20 Blazor Diagram with Fixed User Handle at LeftBottom Position
(0.5,1) Top = 20 Blazor Diagram with Fixed User Handle at CenterBottom Position
(1,1) Left = 20 Blazor Diagram with Fixed User Handle at RightBottom Position

The following code explains how to customize the node fixed user handle.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@nodes">
    <SnapSettings>
        <HorizontalGridLines LineColor="White" LineDashArray="2,2"/>
        <VerticalGridLines LineColor="White" LineDashArray="2,2"/>
    </SnapSettings>
</SfDiagramComponent>

@code
{
    // Defines diagram's nodes collection
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        //Creating the userhandle for cloning the objects
        nodes = new DiagramObjectCollection<Node>();
        Node diagramNode = new Node()
        {
            OffsetX = 250,
            OffsetY = 250,
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
            // A fixed user handle is created and stored in fixed user handle collection of Node.
            FixedUserHandles = new DiagramObjectCollection<NodeFixedUserHandle>()
            {
                new NodeFixedUserHandle()
                {
                    ID = "user1",
                    Height = 20,
                    Width = 20,
                    Visibility = true,
                    Padding = new Margin() { Bottom = 1, Left = 1, Right = 1, Top = 1 },
                    Margin = new Margin() { Left = 20 },
                    Offset = new DiagramPoint() { Y = 0 },
                    PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z"
                },
            }
        };
        nodes.Add(diagramNode);
    }
}

Customizing the connector fixed user handle

  • The connector fixed user handle can be aligned relative to the connector boundaries. It has alignment, displacement and offset settings. It is useful to position the connector fixed user handle and used together and gives you more control over the connector fixed user handle positioning.

  • The Offset and Alignment properties of fixed user handle allows you to align the connector fixed user handles to the segments.

Offset for the connector fixed user handle

The Offset property of connector fixed user handle is used to align the user handle based on fractions. 0 represents the connector source point, 1 represents the connector target point, and 0.5 represents the center point of the connector segment.

Alignment

The connector’s fixed user handle can be aligned over its segment path using the Alignment property of fixed user handle.

The following table shows all the possible alignments visually shows the fixed user handle positions.

Offset Alignment Output
0 Before Displaying Fixed User Handle in Before Blazor Diagram Connector
0.5 Center Displaying Fixed User Handle in Center of Blazor Diagram Connector
1 After Displaying Fixed User Handle in After Blazor Diagram Connector

Displacement

  • The Displacement property allows you to specify the space to be left from the connector segment based on the x and y value provided.

The following table shows all the possible alignments visually shows the fixed user handle positions.

Displacement Alignment Output
y = 10 Before Displaying Fixed User Handle Before Blazor Diagram Node
y = 10 After Displaying Fixed User Handle Before Blazor Diagram Node

Displacement will not be done if the alignment is set to be center.

The following code explains how to customize the connector fixed user handle.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Connectors="@connectors">
    <SnapSettings>
        <HorizontalGridLines LineColor="White" LineDashArray="2,2"/>
        <VerticalGridLines LineColor="White" LineDashArray="2,2"/>
    </SnapSettings>
</SfDiagramComponent>

@code
{
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        connectors = new DiagramObjectCollection<Connector>();
        Connector connector = new Connector()
        {
            SourcePoint = new DiagramPoint() { X = 100, Y = 100 },
            TargetPoint = new DiagramPoint() { X = 200, Y = 200 },
            Type = ConnectorSegmentType.Orthogonal,
            Style = new ShapeStyle() { StrokeColor = "#6495ED" },
            // A fixed user handle is created and stored in fixed user handle collection of Connector.
            FixedUserHandles = new DiagramObjectCollection<ConnectorFixedUserHandle>()
            {
                new ConnectorFixedUserHandle()
                {
                    ID = "user1",
                    Height = 25,
                    Width = 25,
                    Offset = 0.5,
                    Alignment = FixedUserHandleAlignment.After,
                    Displacement = new DiagramPoint { Y = 10 },
                    Visibility = true, Padding = new Margin() { Bottom = 1, Left = 1, Right = 1, Top = 1 },
                    PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z"
                }
            }
        };
        connectors.Add(connector);
    }
}

FixedUserHandle Event

The Diagram control provides following event for the fixed user handle.

Event Name Event Type Description
FixedUserHandleClick FixedUserHandleClickEventArgs Triggered when the mouse pointer is over the user handle and mouse button is up.
@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px"
                    FixedUserHandleClick="Changed" Nodes="@nodes" @ref="diagram">
</SfDiagramComponent>

@code
{
    SfDiagramComponent diagram;

    public void Changed(FixedUserHandleClickEventArgs args)
    {
        if ((args.Element as Node).ID == "node1" && args.FixedUserHandle.ID == "user1")
        {
            diagram.Copy();
            diagram.Paste();
        }
    }

    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        Node node1 = new Node()
        {
            OffsetX = 250,
            OffsetY = 250,
            ID = "node1",
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6BA5D7", StrokeColor = "white" },
            // A fixed user handle is created and stored in fixed user handle collection of Node.
            FixedUserHandles = new DiagramObjectCollection<NodeFixedUserHandle>()
            {
                new NodeFixedUserHandle()
                {
                    ID = "user1",
                    Height = 20,
                    Width = 20,
                    Visibility = true,
                    Padding = new Margin() { Bottom = 1, Left = 1, Right = 1, Top = 1 },
                    Margin = new Margin() { Right = 20 },
                    Offset = new DiagramPoint() { X = 0 , Y = 0 },
                    PathData = "M60.3,18H27.5c-3,0-5.5,2.4-5.5,5.5v38.2h5.5V23.5h32.7V18z M68.5,28.9h-30c-3,0-5.5,2.4-5.5,5.5v38.2c0,3,2.4,5.5,5.5,5.5h30c3,0,5.5-2.4,5.5-5.5V34.4C73.9,31.4,71.5,28.9,68.5,28.9z M68.5,72.5h-30V34.4h30V72.5z"
                },
            }
        };
        nodes.Add(node1);
    }
}
