Orthogonal Segments in Blazor Diagram Component

12 Nov 202412 minutes to read

How to create orthogonal segment

Orthogonal segments are used to create segments that are perpendicular to each other. Set the segment Type as Orthogonal to create a default orthogonal segment and need to specify Type. The following code example illustrates how to create a default orthogonal segment.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Width="1000px" Height="500px" Connectors="@connectors">
</SfDiagramComponent>

@code
{
    //Defines diagram's connector collection.
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        Connector Connector = new Connector()
        {
            ID = "connector1",
            SourcePoint = new DiagramPoint()
            {
                X = 100,
                Y = 100
            },
            Style = new ShapeStyle() { StrokeColor = "#6f409f", StrokeWidth = 1 },
            TargetPoint = new DiagramPoint() { X = 200, Y = 200 },
             //Specify the segments type as Orthogonal.
            Type = ConnectorSegmentType.Orthogonal,
            TargetDecorator = new DecoratorSettings()
            {
                Shape = DecoratorShape.Arrow,
                Style = new ShapeStyle()
                {
                    Fill = "#6f409f",
                    StrokeColor = "#6f409f",
                    StrokeWidth = 1
                }
            }
        };
        connectors.Add(Connector);
    }
}

You can download a complete working sample from GitHub

The Length and Direction properties allow you to define the flow and length of the segment. The following code example illustrates how to create customized orthogonal segments.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Width="1000px" Height="500px" Connectors="@connectors">
</SfDiagramComponent>

@code
{
    //Defines diagram's connector collection.
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        Connector Connector = new Connector()
        {
            ID = "connector1",
            SourcePoint = new DiagramPoint()
            {
                X = 100,
                Y = 100
            },
            Style = new ShapeStyle() { StrokeColor = "#6f409f", StrokeWidth = 1 },
            TargetPoint = new DiagramPoint() { X = 200, Y = 200 },
            Type = ConnectorSegmentType.Orthogonal,
            //Create a new segment with length and direction.
            Segments = new DiagramObjectCollection<ConnectorSegment>()
            {
                new OrthogonalSegment
                {
                    Length = 100,
                    Type = ConnectorSegmentType.Orthogonal,
                    Direction = Direction.Right
                },
                new OrthogonalSegment
                {
                    Length = 100,
                    Type = ConnectorSegmentType.Orthogonal,
                    Direction = Direction.Bottom,
                }
            },
            TargetDecorator = new DecoratorSettings()
            {
                Shape = DecoratorShape.Arrow,
                Style = new ShapeStyle()
                {
                    Fill = "#6f409f",
                    StrokeColor = "#6f409f",
                    StrokeWidth = 1
                }
            }
        };
        connectors.Add(Connector);
    }
}

You can download a complete working sample from GitHub

NOTE

You need to mention the segment type as you mentioned in the connector type. There should be no contradiction between connector type and segment type.

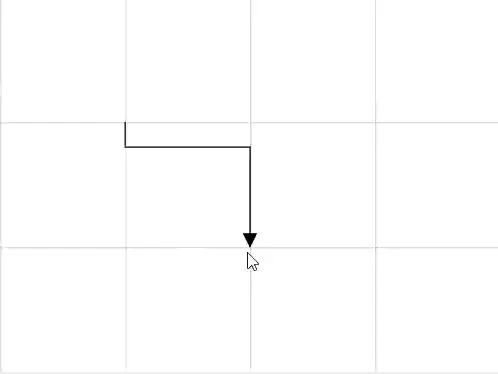

Orthogonal segment editing

• Orthogonal thumbs allow you to adjust the length of adjacent segments by clicking and dragging them.
• When necessary, some segments are added or removed automatically, when dragging the segment. This is to maintain proper routing of orthogonality between segments.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Width="1000px"  Height="500px" Connectors="@connectors">
</SfDiagramComponent>

@code
{
    //Reference the diagram
    SfDiagramComponent Diagram;
    //Initialize the diagram's node collection.
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        Connector Connector = new Connector()
        // Enable the segment editing.
        {
            ID = "Connector2",
            Constraints = ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb,
            Type = ConnectorSegmentType.Orthogonal,
            SourcePoint = new DiagramPoint { X = 400, Y = 100 },
            TargetPoint = new DiagramPoint { X = 500, Y = 200 }
        };
        connectors.Add(Connector);
    }
}

You can download a complete working sample from GitHub

How to customize Orthogonal Segment Thumb Shape

The Orthogonal connector can have multiple segments between the source and target points. By default, these segments are rendered as circles, but this can be customized either globally or for individual connectors using the SegmentThumbSettings class.

To change the segment thumb shape for all Orthogonal connectors, configure the SegmentThumbSettings property of the SfDiagramComponent class and set the Shape property to the desired shape.

To customize the segment thumb shape for a specific connector, first disable the InheritSegmentThumbShape constraint. Then, configure the SegmentThumbSettings property of the Connector class, specifying the desired shape using the Shape property of the SegmentThumbSettings class.

The following predefined shapes are available for segment thumbs:

Shape name	Shape
Rhombus
Square
Rectangle
Ellipse
Circle
Arrow
OpenArrow
Fletch
OpenFetch
IndentedArrow
OutdentedArrow
DoubleArrow

The following code example illustrates how to customize orthogonal segment thumb shape.

@using Syncfusion.Blazor.Diagram
<SfDiagramComponent @ref="Diagram" Width="1000px"  Height="500px" Connectors="@connectors">
</SfDiagramComponent>
@code
{
    SfDiagramComponent Diagram;
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
    protected override void OnInitialized()
    {
        Connector Connector = new Connector()
        {
            ID = "Connector2",
            Constraints = ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb,
            Type = ConnectorSegmentType.Orthogonal,
            SourcePoint = new DiagramPoint { X = 400, Y = 100 },
            TargetPoint = new DiagramPoint { X = 500, Y = 200 },
            SegmentThumbSettings = new SegmentThumbSettings() {Shape = SegmentThumbShapes.IndentedArrow}
        };
        connectors.Add(Connector);
    }
}

You can download a complete working sample from GitHub

When the InheritSegmentThumbShape constraint is enabled in the connector, the shape specified at the diagram level will be applied to the connector segment thumb. This allows for consistent segment thumb shapes across the entire diagram.

The following code example illustrates how to customize orthogonal segment thumb shape using InheritSegmentThumbShape.

@using Syncfusion.Blazor.Diagram
<SfDiagramComponent @ref="Diagram" Width="1000px"  Height="500px" Connectors="@connectors" ConnectorSegmentThumb="@segmentThumbSettings">
</SfDiagramComponent>
@code
{
    SfDiagramComponent Diagram;
    DiagramObjectCollection<Connector> connectors = new DiagramObjectCollection<Connector>();
    SegmentThumbSettings segmentThumbSettings = new SegmentThumbSettings(){Shape = SegmentThumbShapes.Fletch};
    protected override void OnInitialized()
    {
        Connector Connector = new Connector()
        {
            ID = "Connector2",
            Constraints = ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb | ConnectorConstraints.InheritSegmentThumbShape,
            Type = ConnectorSegmentType.Orthogonal,
            SourcePoint = new DiagramPoint { X = 400, Y = 100 },
            TargetPoint = new DiagramPoint { X = 500, Y = 200 }
        };
        connectors.Add(Connector);
    }
}

You can download a complete working sample from GitHub

Note: This feature ensures that the shape is updated regardless of whether the InheritSegmentThumbShape enum value is added to the Constraints property of the diagram. If you apply the InheritSegmentThumbShape constraints, the shape will be updated at the diagram level. Without these constraints, the shape will be updated at the connector level.
To make the shapes visible, ensure that the DragSegmentThumb enum is added to the connector’s constraints.
