Context Menu in Blazor Diagram Component

28 May 202420 minutes to read

In Graphical User Interface (GUI), a context menu is a certain type of menu that appears when you perform right-click operation. You can create a nested level of context menu items.
Diagram provides some in-built context menu items and allows you to define custom menu items through the ContextMenuSettings property.

How to enable default context menu

The Show property helps you to enable or disable the context menu. Diagram provides default context menu items such as copy, cut, paste, select all, undo, redo and group options. The following code shows how to enable the default context menu items.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px">
    <ContextMenuSettings Show="true">
    </ContextMenuSettings>
</SfDiagramComponent>

You can download a complete working sample from GitHub

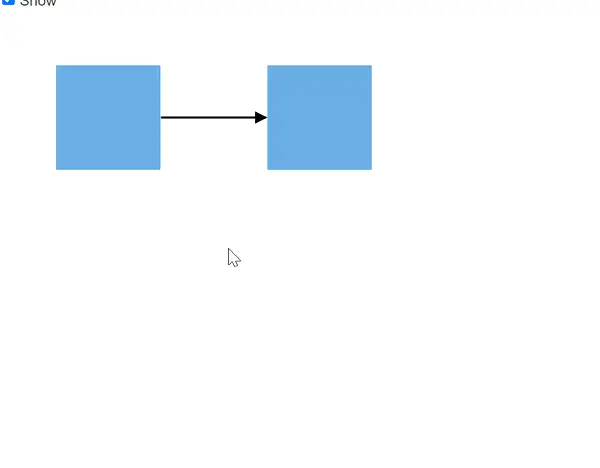

Default Context Menu

The following code shows how to disable the default context menu items.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px">
    <ContextMenuSettings Show="false">
    </ContextMenuSettings>
</SfDiagramComponent>

How to add custom items to the context menu

Custom context menu provides an option to add the new custom items to the context menu.

  • Apart from the default context menu items, Define some additional context menu items. Those additional items must be defined and added to the Items property of the context menu.

  • The context menu Text and ID properties allows you to set the text and ID for the context menu item.

  • You can set an navigation url for the context menu item using the context menu Url property.

  • The IconCss property defines the class or multiple classes separated by a space for the menu item that is used to include an icon. The Menu item consists of the font icon and sprite image.

  • The Separator property defines the horizontal lines that are used to separate the menu items. You cannot select the separators. Using the separator attribute, you can enable separators to group the menu items.

  • You can Hide/Show menu item using the Hidden property.

  • You can Enable/Disable menu item using the Disabled property.

  • You can add submenu items using the Items property.

Custom context menu along with default context menu

The following code example shows how to add custom context menu items along with the default context menu. Set the ShowCustomMenuOnly property to false to render both the custom context menu and default context menu.

@using Syncfusion.Blazor.Diagram
@using System.Collections.ObjectModel

<SfDiagramComponent @ref="diagram" Height="600px" Width="90%" @bind-Nodes="nodes" @bind-Connectors="connectors">
    <ContextMenuSettings Show="true"
                         ShowCustomMenuOnly="false"
                         Items="@Items">
    </ContextMenuSettings>
</SfDiagramComponent>

@code {
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes;
    DiagramObjectCollection<Connector> connectors;
    List<ContextMenuItem> Items;

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        connectors = new DiagramObjectCollection<Connector>();

        Items = new List<ContextMenuItem>()
        {
                new ContextMenuItem()
                {
                    Text = "Save As...",
                    ID = "save",
                    IconCss = "e-save",
                },
                new ContextMenuItem()
                {
                    Text = "Delete",
                    ID = "delete",
                    IconCss = "e-delete"
                }
        };

        Node node1 = new Node()
        {
            ID = "node1",
            Height = 100,
            Width = 100,
            OffsetX = 100,
            OffsetY = 100,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeColor = "white",
                StrokeWidth = 1
            }
        };
        Node node2 = new Node()
        {
            ID = "node2",
            Height = 100,
            Width = 100,
            OffsetX = 300,
            OffsetY = 100,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeColor = "white",
                StrokeWidth = 1
            }
        };
        nodes.Add(node1);
        nodes.Add(node2);

        Connector connector1 = new Connector()
        {
            ID = "connector1",
            SourceID = "node1",
            TargetID = "node2",
            Type = ConnectorSegmentType.Straight,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeWidth = 2
            }
        };
        connectors.Add(connector1);
    }
}

You can download a complete working sample from GitHub

How to show custom context menu alone

Set the ShowCustomMenuOnly property to true to only display the custom context menu items.
The following code example shows how to show custom context menu items alone.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px">
    <ContextMenuSettings Show="true" ShowCustomMenuOnly="true">
    </ContextMenuSettings>
</SfDiagramComponent>

You can download a complete working sample from GitHub

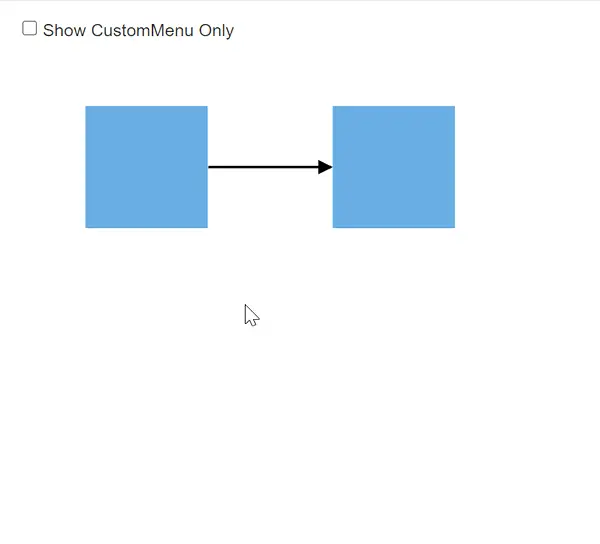

Custom Context Menu

How to customize context menu items using template

Diagram provides template support for context menu. The context menu items can be customized using the ContextMenuTemplate at the tag level. The following code explains how to define template for context menu items.

@using Syncfusion.Blazor.Diagram
@using System.Collections.ObjectModel


<SfDiagramComponent @ref="diagram" Height="600px" Width="90%" @bind-Nodes="nodes"
                    @bind-Connectors="connectors">
    <ContextMenuSettings @bind-Show="@show"
                        @bind-ShowCustomMenuOnly="customMenuOnly"
                        @bind-Items="@Items">
    <ContextMenuTemplate>
        @context.Text
        <span class="shortcut">@((@context.Text == "Save As...") ? "Ctrl + S" : "")</span>
    </ContextMenuTemplate>
    </ContextMenuSettings>
</SfDiagramComponent>

@code {
    //Reference the diagram
    SfDiagramComponent diagram;
    //Define diagram nodes collection
    DiagramObjectCollection<Node> nodes;
    //Define diagram connectors collection
    DiagramObjectCollection<Connector> connectors;

    List<ContextMenuItem> Items;
    bool customMenuOnly = false;
    bool show = true;

    protected override void OnInitialized()
    {
    //Initialize diagram nodes collection
    nodes = new DiagramObjectCollection<Node>();
    //Initialize diagram connectors collection
    connectors = new DiagramObjectCollection<Connector>();

    Items = new List<ContextMenuItem>()
    {
            new ContextMenuItem()
            {
                Text = "Save As...",
                ID = "save",
                IconCss = "e-save",
            },
            new ContextMenuItem()
            {
                Text = "Delete",
                ID = "delete",
                IconCss = "e-delete"
            }
    };

    Node node1 = new Node()
        {
            ID = "node1",
            Height = 100,
            Width = 100,
            OffsetX = 100,
            OffsetY = 100,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeColor = "white",
                StrokeWidth = 1
            }
        };
    Node node2 = new Node()
        {
            ID = "node2",
            Height = 100,
            Width = 100,
            OffsetX = 300,
            OffsetY = 100,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeColor = "white",
                StrokeWidth = 1
            }
        };
    nodes.Add(node1);
    nodes.Add(node2);

    Connector connector1 = new Connector()
        {
            ID = "connector1",
            SourceID = "node1",
            TargetID = "node2",
            Type = ConnectorSegmentType.Straight,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeWidth = 2
            }
        };
    connectors.Add(connector1);
    }
}

You can download a complete working sample from GitHub

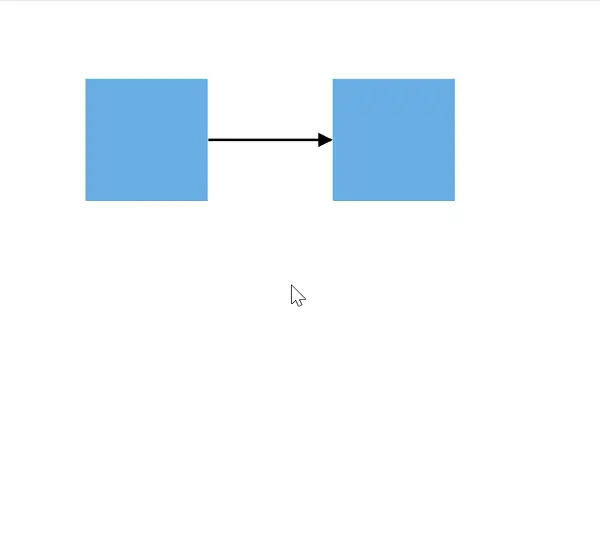

Context Menu Template

Events

The Diagram control provides event support for the context menu that triggers when rendering the context menu and when clicking the items of the context menu.

ContextMenuOpening

The Diagram control triggers the event ContextMenuOpening when performing right click on the diagram or the diagram elements such as Node, Connector and Groups. To explore about arguments, refer to the DiagramMenuOpeningEventArgs.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px">
    <ContextMenuSettings Show="true" ShowCustomMenuOnly="false" ContextMenuOpening="@OnContextMenuOpen">
    </ContextMenuSettings>
</SfDiagramComponent>

@code
{
    public void OnContextMenuOpen(DiagramMenuOpeningEventArgs arg)
    {
        //Action to be performed
    }
}

You can download a complete working sample from GitHub

ContextMenuItemClicked

The Diagram control triggers the event ContextMenuItemClicked when the context menu item is clicked. To explore about arguments, refer to the DiagramMenuClickEventArgs.

@using Syncfusion.Blazor.Diagram
@using System.Collections.ObjectModel

<SfDiagramComponent Height="600px">
    <ContextMenuSettings Show="true" ShowCustomMenuOnly="false" ContextMenuItemClicked="@ContextMenuItemClickHandler">
    </ContextMenuSettings>
</SfDiagramComponent>

@code
{
    public void ContextMenuItemClickHandler(DiagramMenuClickEventArgs arg)
    {
        //Action to be performed
    }
}

You can download a complete working sample from GitHub

The following code example shows how to add separate custom context menu items for nodes and connectors. In the following code, the node color context menu item only renders for the node and the connector color context menu item only renders for the connector.

@using Syncfusion.Blazor.Diagram
<SfDiagramComponent @ref="@diagram" Height="600px"
           Nodes="@NodeCollection"
           Connectors="@ConnectorCollection">

    <ContextMenuSettings Show="true" Items="@contextMenuItemModels" ShowCustomMenuOnly="true" ContextMenuOpening="@OnContextMenuOpen">
    </ContextMenuSettings>
</SfDiagramComponent>

@code
{
    //Reference to diagram
    SfDiagramComponent diagram;
    //Defines diagram's nodes collection
    public DiagramObjectCollection<Node> NodeCollection = new DiagramObjectCollection<Node>();
    //Defines diagram's connector collection
    public DiagramObjectCollection<Connector> ConnectorCollection = new DiagramObjectCollection<Connector>();

    protected override void OnInitialized()
    {
        //Create a node
        Node node1 = new Node()
        {
            ID = "node1",
            Height = 100,
            Width = 100,
            OffsetX = 100,
            OffsetY = 100,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeColor = "white",
                StrokeWidth = 1
            }
        };
        Node node2 = new Node()
            {
                ID = "node2",
                Height = 100,
                Width = 100,
                OffsetX = 300,
                OffsetY = 100,
                Style = new ShapeStyle()
                {
                    Fill = "#6BA5D7",
                    StrokeColor = "white",
                    StrokeWidth = 1
                }
            };
        //Add node into node's collection
        NodeCollection.Add(node1);
        NodeCollection.Add(node2);

        Connector connector1 = new Connector()
        {
            ID = "connector1",
            SourceID = "node1",
            TargetID = "node2",
            Type = ConnectorSegmentType.Straight,
            Style = new ShapeStyle()
            {
                Fill = "#6BA5D7",
                StrokeWidth = 2
            }
        };
        ConnectorCollection.Add(connector1);
    }
    List<ContextMenuItem> contextMenuItemModels = new List<ContextMenuItem>()
    {
        new ContextMenuItem()
        {
            Text ="Node Color",
            ID="Node",
            Items = new List<ContextMenuItem>()
            {
                new ContextMenuItem(){  Text ="Red", ID="Red", },
                new ContextMenuItem(){  Text ="Yellow", ID="Yellow", },
                new ContextMenuItem(){  Text ="Green", ID="Green", }
            }
        },
        new ContextMenuItem()
        {
            Text ="Connector Color",
            ID="Connector",
            Items = new List<ContextMenuItem>()
            {
                new ContextMenuItem(){  Text ="Red", ID="black", },
                new ContextMenuItem(){  Text ="Yellow", ID="blue", },
                new ContextMenuItem(){  Text ="Green", ID="brown", }
            }
        },
    };

    public void OnContextMenuOpen(DiagramMenuOpeningEventArgs arg)
    {
        if (diagram.SelectionSettings.Nodes.Count > 0)
        {
            arg.HiddenItems.Add("Connector");
        }
        if (diagram.SelectionSettings.Connectors.Count > 0)
        {
            arg.HiddenItems.Add("Node");
        }
    }
}

You can download a complete working sample from GitHub
