Swimlane-Palette in Blazor Diagram Component

14 Nov 20256 minutes to read

Diagram supports adding lanes and phases to the symbol palette.

How to Add Lanes and Phases to the Symbol Palette

Swimlane elements such as Lane and Phase can be used to visualize the symbols.

The following code shows how to add lanes and phases to a palette.

@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.Diagram.SymbolPalette

<div class="control-section">
    <div style="width:80%;">
        <div id="palette-space" class="sb-mobile-palette" style="border: 2px solid #b200ff">
            <SfSymbolPaletteComponent @ref="@symbolpalette" Height="300px" Width="200px"
                                      Palettes="@Palettes" SymbolHeight="60" SymbolWidth="60" SymbolMargin="@SymbolMargin">
            </SfSymbolPaletteComponent>
        </div>
    </div>
</div>

@code
{
    //Reference the symbolnpreview.
    DiagramSize SymbolPreview;
    //Define symbol margin.
    SymbolMargin SymbolMargin = new SymbolMargin { Left = 15, Right = 15, Top = 15, Bottom = 15 };

    SfSymbolPaletteComponent symbolpalette;

    //Define palettes collection.
    DiagramObjectCollection<Palette> Palettes = new DiagramObjectCollection<Palette>();

    // Define the palette's swimlane-shape collection.
    DiagramObjectCollection<NodeBase> SwimlaneNodes = new DiagramObjectCollection<NodeBase>();

    protected override void OnInitialized()
    {
        InitPaletteModel();
    }

    private void InitPaletteModel()
    {
        Palettes = new DiagramObjectCollection<Palette>();

        SwimlaneNodes = new DiagramObjectCollection<NodeBase>();

        //Create a horizontal lane.
        Lane horizontalLane = new Lane()
            {
                ID = "HorizontalSwimlane",
                Orientation = Orientation.Horizontal,
                Height = 100,
                Width = 150,
                // Style = new TextStyle() { Fill = "orange", StrokeColor = "black" },
                Header = new SwimlaneHeader()
                {
                    Annotation = new ShapeAnnotation() { Content = "Lane Title" },
                    Style = new TextStyle() { Fill = "lightblue", StrokeColor = "black" },
                    Width = 25,
                    Height = 100
                },
            };

        //Create a vertical lane.
        Lane verticalLane = new Lane()
            {
                ID = "VerticalSwimlane",
                Orientation = Orientation.Vertical,
                Height = 150,
                Width = 100,
                // Style = new TextStyle() { Fill = "orange", StrokeColor = "black" },
                Header = new SwimlaneHeader()
                {
                    Annotation = new ShapeAnnotation() { Content = "Lane Title" },
                    Style = new TextStyle() { Fill = "lightblue", StrokeColor = "black" },
                    Width = 100,
                    Height = 25
                },
            };

        //Create a horizontal phase.
        Phase horizontalPhase = new Phase() { ID = "HorizontalPhase", Orientation = Orientation.Horizontal, Width = 80, Height = 1, Style = new ShapeStyle() { Fill = "#5b9bd5", StrokeColor = "#5b9bd5" } };

        //Create a vertical phase.
        Phase verticalPhase = new Phase() { ID = "VerticalPhase", Orientation = Orientation.Vertical, Width = 1, Height = 80, Style = new ShapeStyle() { Fill = "#5b9bd5", StrokeColor = "#5b9bd5" } };

        SwimlaneNodes = new DiagramObjectCollection<NodeBase>()
        {
            horizontalLane,
            verticalLane,
            horizontalPhase,
            verticalPhase
        };

        Palettes = new DiagramObjectCollection<Palette>()
        {
            new Palette(){Symbols =SwimlaneNodes,Title="Swimlane Shapes",ID="SwimlaneShapes" },
        };
      }
}

A complete working sample can be downloaded from GitHub

Swimlane SymbolPalette Shapes

How to Drag and Drop Swimlane Shapes from the Symbol Palette

  • Drag-and-drop is supported for swimlane symbols.
  • When a lane symbol is dropped, if the diagram already contains a swimlane with the same orientation, the lane is added and stacked inside the swimlane based on order. Otherwise, a new swimlane is created.
  • A phase will only drop on a swimlane shape with the same orientation.

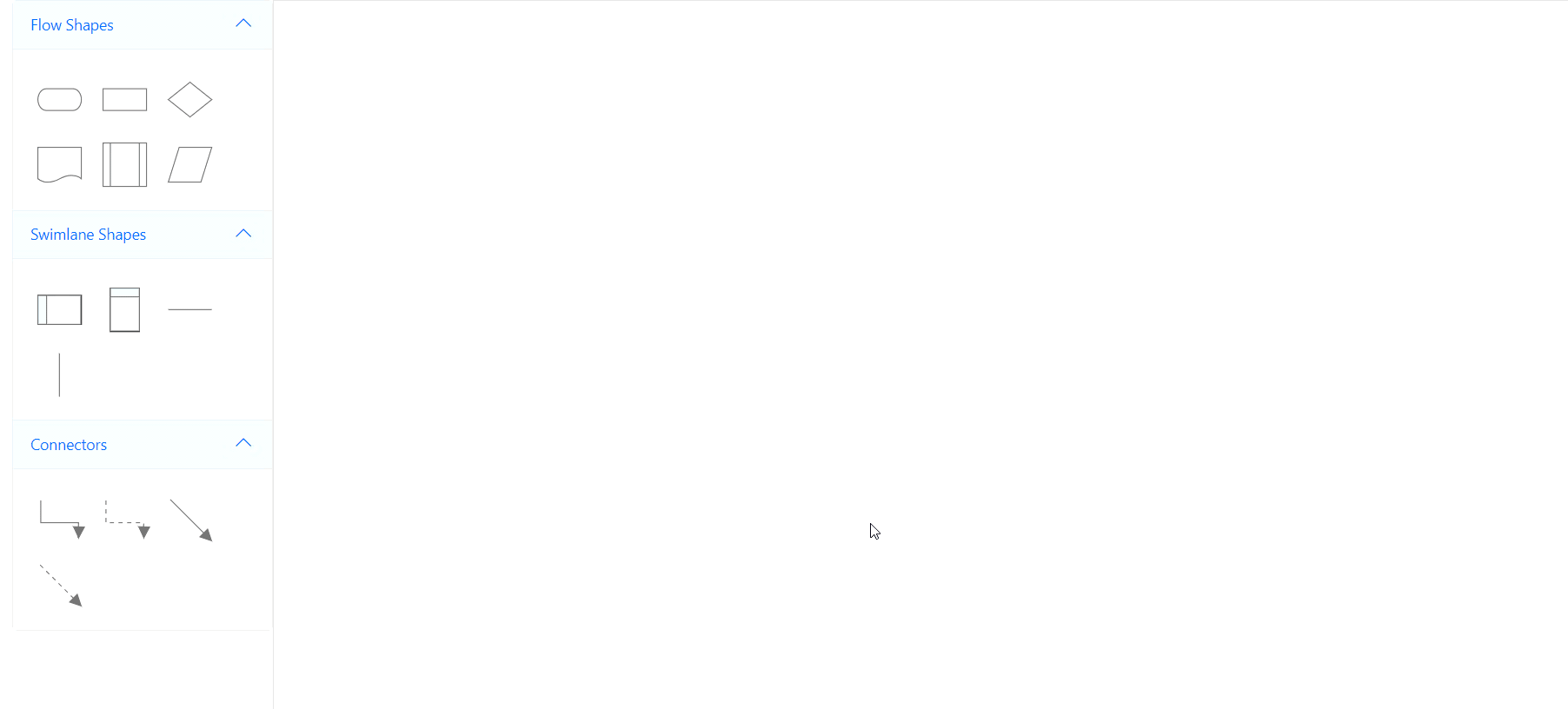

The following image shows dragging a symbol from the palette.

Drag Symbol from Palette
