Sequence Diagram Model in Blazor diagram component

19 Jun 202524 minutes to read

A sequence diagram is a type of interaction diagram that visually represents how objects communicate with each other in a particular sequence over time. The SfDiagramComponent in the Syncfusion Blazor suite supports the creation and visualization of Uml sequence diagrams through the dedicated UmlSequenceDiagramModel class.

To enable this functionality, assign an instance of UmlSequenceDiagramModel to the Model property of the SfDiagramComponent. This model encapsulates all necessary elements—such as lifelines, messages, activation boxes, and fragments—required to render a complete sequence diagram.

Sequence Diagram Elements

A sequence diagram consists of several key elements, including participants, messages, activation boxes, and fragments. Each of these components plays a crucial role in representing the flow of interaction between objects over time.

The diagram component allows you to define and manage these elements through the UmlSequenceDiagramModel. Below is an overview of how each element can be implemented:

• Participants: Represent the lifelines (such as actors or systems) involved in the interaction.
• Messages: Indicate the communication between participants, including synchronous and asynchronous calls, returns, and self-messages.
• Activation Boxes: Represent the time during which a participant is active or performing an operation.
• Fragments: Define conditional or parallel behavior using constructs like alt, opt, and loop.

Each of these elements can be programmatically configured and customized to suit your application’s interaction flow.

Participants

The UmlSequenceParticipant class represents the entities involved in the sequence of interactions—such as users, systems, or services. In a sequence diagram, participants are displayed at the top of the diagram, with vertical lifelines extending downward to indicate their presence throughout the interaction flow.

Each participant serves as the source or target of messages and is essential for illustrating the communication between different components in the system.

You can define participants by adding instances of UmlSequenceParticipant to the Participants collection in the UmlSequenceDiagramModel.

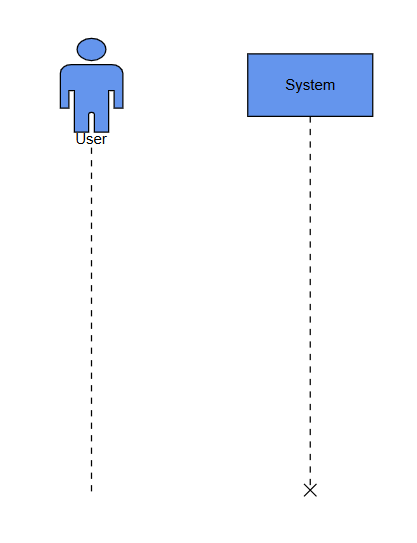

The following code example explains how to create participants in sequence diagram.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Height="600px" Model="@DiagramModel">
</SfDiagramComponent>

@code {
    private SfDiagramComponent Diagram;
    private UmlSequenceDiagramModel DiagramModel;

    protected override void OnInitialized()
    {
        // Create participants
        List<UmlSequenceParticipant> participants = new List<UmlSequenceParticipant>()
        {
            new UmlSequenceParticipant()
            {
                ID = "User",
                Content = "User",
                IsActor = true
            },
            new UmlSequenceParticipant()
            {
                ID = "System",
                Content = "System",
                IsActor = false,
                ShowDestructionMarker = true
            }
        };

        // Initialize the Uml sequence diagram model
        DiagramModel = new UmlSequenceDiagramModel()
            {
                Participants = participants
            };
    }
}

You can download a complete working sample from GitHub.

UmlSequenceParticipant Properties

Property	Type	Description
ID	string	A unique identifier for the participant
Content	string	The display text for the participant
IsActor	bool	Determines if the participant is displayed as an actor (true) or object (false)
ShowDestructionMarker	bool	Determines if a destruction marker (X) is shown at the end of the lifeline
ActivationBoxes	IEnumerable<UmlSequenceActivationBox>	Collection of activation boxes for this participant

Messages

The UmlSequenceMessage class represents communications or interactions between participants in a sequence diagram. Messages are visually displayed as arrows connecting the lifelines of two participants, indicating the direction and type of interaction.

These messages can represent various types of communication, such as:

• Synchronous messages (e.g., method calls)
• Asynchronous messages (e.g., signals or events)
• Return messages (e.g., responses or results)
• Self-messages (where a participant calls itself)

Messages are added to the Messages collection in the UmlSequenceDiagramModel, and can be customized to define their source, target, message type, and label.

Types of Messages

The UmlSequenceMessageType enum defines the following message types:

Message Type	Description	Example
Synchronous	The sender waits for a response
Asynchronous	The sender continues without waiting
Reply	A response to a previous message
Create	Creates a new participant
Delete	Terminates a participant
Self	A message from a participant to itself

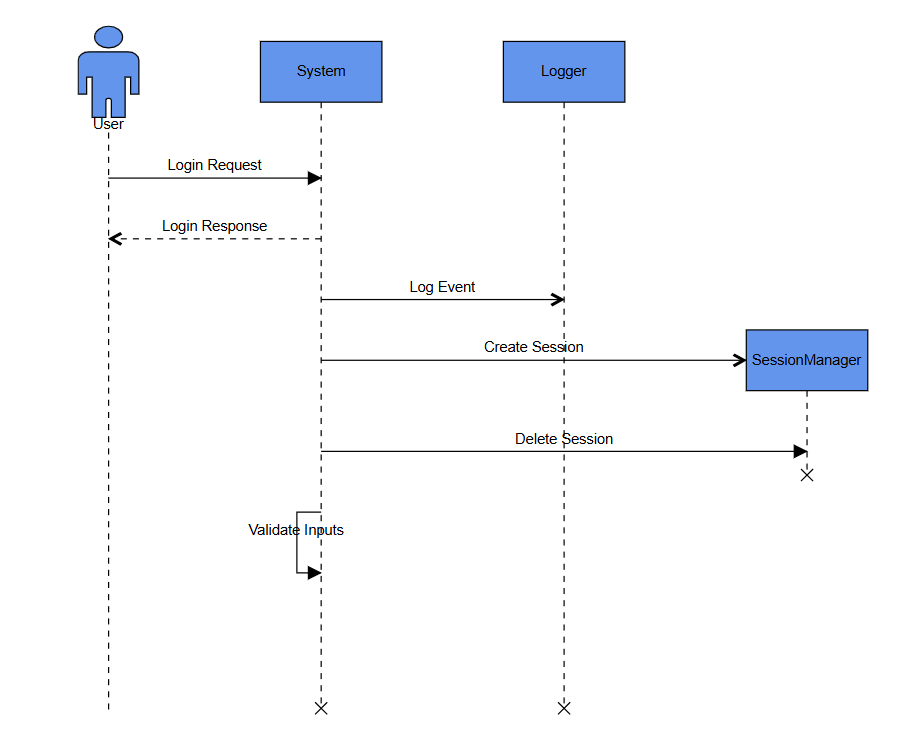

The following code example explains how to create messages in sequence diagram.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Height="600px" Model="@DiagramModel">
</SfDiagramComponent>

@code {
    private SfDiagramComponent Diagram;
    private UmlSequenceDiagramModel DiagramModel;

    protected override void OnInitialized()
    {
        // Create participants
        List<UmlSequenceParticipant> participants = new List<UmlSequenceParticipant>()
        {
            new UmlSequenceParticipant()
            {
                ID = "User",
                Content = "User",
                IsActor = true
            },
            new UmlSequenceParticipant()
            {
                ID = "System",
                Content = "System",
                IsActor = false,
                ShowDestructionMarker = true
            },
            new UmlSequenceParticipant()
            {
                ID = "Logger",
                Content = "Logger",
                IsActor = false,
                ShowDestructionMarker = true
            },
            new UmlSequenceParticipant()
            {
                ID = "SessionManager",
                Content = "SessionManager",
                IsActor = false
            }
        };

        // Create messages
        List<UmlSequenceMessage> messages = new List<UmlSequenceMessage>()
        {
            new UmlSequenceMessage()
            {
                ID = "MSG1",
                Content = "Login Request",
                FromParticipantID = "User",
                ToParticipantID = "System",
                MessageType = UmlSequenceMessageType.Synchronous
            },
            new UmlSequenceMessage()
            {
                ID = "MSG2",
                Content = "Login Response",
                FromParticipantID = "System",
                ToParticipantID = "User",
                MessageType = UmlSequenceMessageType.Reply
            },
            new UmlSequenceMessage()
            {
                ID = "MSG3",
                Content = "Log Event",
                FromParticipantID = "System",
                ToParticipantID = "Logger",
                MessageType = UmlSequenceMessageType.Asynchronous
            },
            new UmlSequenceMessage()
            {
                ID = "MSG4",
                Content = "Create Session",
                FromParticipantID = "System",
                ToParticipantID = "SessionManager",
                MessageType = UmlSequenceMessageType.Create
            },
            new UmlSequenceMessage()
            {
                ID = "MSG5",
                Content = "Delete Session",
                FromParticipantID = "System",
                ToParticipantID = "SessionManager",
                MessageType = UmlSequenceMessageType.Delete
            },
            new UmlSequenceMessage()
            {
                ID = "MSG6",
                Content = "Validate Inputs",
                FromParticipantID = "System",
                ToParticipantID = "System",
                MessageType = UmlSequenceMessageType.Self
            }
        };

        // Initialize Uml Sequence Diagram model
        DiagramModel = new UmlSequenceDiagramModel()
            {
                Participants = participants,
                Messages = messages
            };
    }
}

You can download a complete working sample from GitHub.

UmlSequenceMessage Properties

Property	Type	Description
ID	string	A unique identifier for the message
Content	string	The display text for the message
FromParticipantID	string	ID of the participant sending the message
ToParticipantID	string	ID of the participant receiving the message
MessageType	UmlSequenceMessageType	Type of the message (Synchronous, Asynchronous, Reply, Create, Delete, Self)

Activation Boxes

The UmlSequenceActivationBox class represents periods during which a participant is active—that is, when it is executing a process or handling a message. These are visually rendered as thin vertical rectangles placed on top of a participant’s lifeline.

Activation boxes typically begin when a message is received and end when the processing is complete. They help illustrate the execution flow and the duration of operations within the sequence diagram.

Activation boxes can be explicitly configured by adding them to the ActivationBoxes collection of the UmlSequenceParticipant, allowing precise control over their placement and duration.

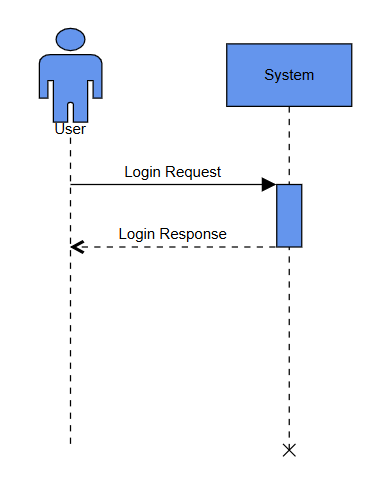

The following code example explains how to create activation boxes in sequence diagram.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Height="600px" Model="@DiagramModel">
</SfDiagramComponent>

@code {
    private SfDiagramComponent Diagram;
    private UmlSequenceDiagramModel DiagramModel;

    protected override void OnInitialized()
    {
        // Create participants with an activation box
        List<UmlSequenceParticipant> participants = new List<UmlSequenceParticipant>()
        {
            new UmlSequenceParticipant()
            {
                ID = "User",
                Content = "User",
                IsActor = true
            },
            new UmlSequenceParticipant()
            {
                ID = "System",
                Content = "System",
                IsActor = false,
                ShowDestructionMarker = true,
                ActivationBoxes = new List<UmlSequenceActivationBox>()
                {
                    new UmlSequenceActivationBox()
                    {
                        ID = "ActivateSystem",
                        StartMessageID = "MSG1",
                        EndMessageID = "MSG2"
                    }
                }
            }
        };

        // Create messages
        List<UmlSequenceMessage> messages = new List<UmlSequenceMessage>()
        {
            new UmlSequenceMessage()
            {
                ID = "MSG1",
                Content = "Login Request",
                FromParticipantID = "User",
                ToParticipantID = "System",
                MessageType = UmlSequenceMessageType.Synchronous
            },
            new UmlSequenceMessage()
            {
                ID = "MSG2",
                Content = "Login Response",
                FromParticipantID = "System",
                ToParticipantID = "User",
                MessageType = UmlSequenceMessageType.Reply
            }
        };

        // Initialize the model
        DiagramModel = new UmlSequenceDiagramModel()
            {
                Participants = participants,
                Messages = messages
            };
    }
}

You can download a complete working sample from GitHub.

UmlSequenceActivationBox Properties

Property	Type	Description
ID	string	A unique identifier for the activation box
StartMessageID	string	ID of the message that initiates the activation
EndMessageID	string	ID of the message that terminates the activation

Fragments

The UmlSequenceFragment class is used to group a set of messages based on specific conditions or interaction control structures within a sequence diagram. Fragments are displayed as rectangular enclosures that visually separate sections of the diagram, typically used to represent:

• Alternative flows (alt)
• Optional interactions (opt)
• Loops (loop)

You can configure fragments by adding them to the Fragments collection of the UmlSequenceDiagramModel, specifying the type of fragment, condition labels, and the associated messages or nested fragments it encompasses.

Types of Fragments

The UmlSequenceFragmentType enum defines the following fragment types:

Fragment Type	Description	Example

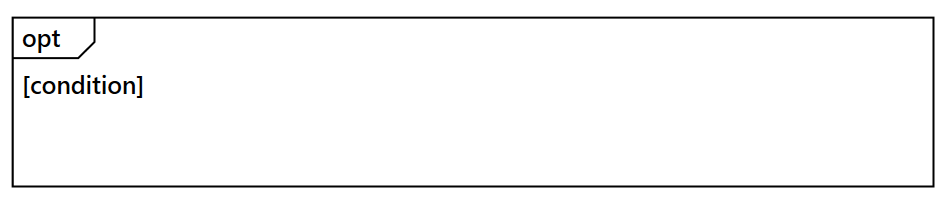

Optional	Represents a sequence that is executed only if a specified condition is met; otherwise, it is skipped.

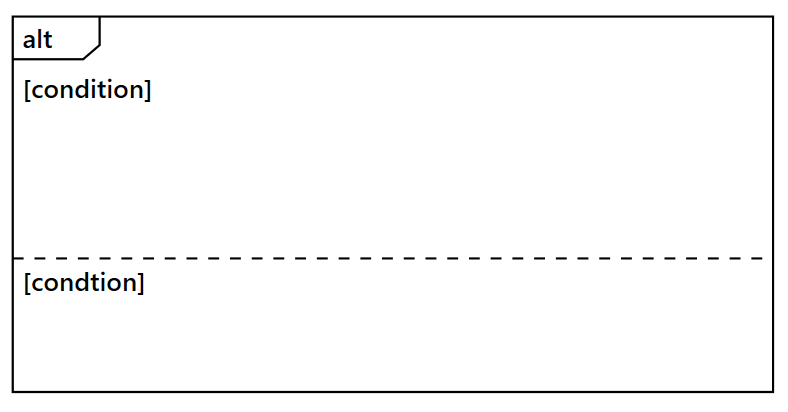

Alternative	Represents multiple conditional paths (if-else structure), where only one path executes based on the condition.

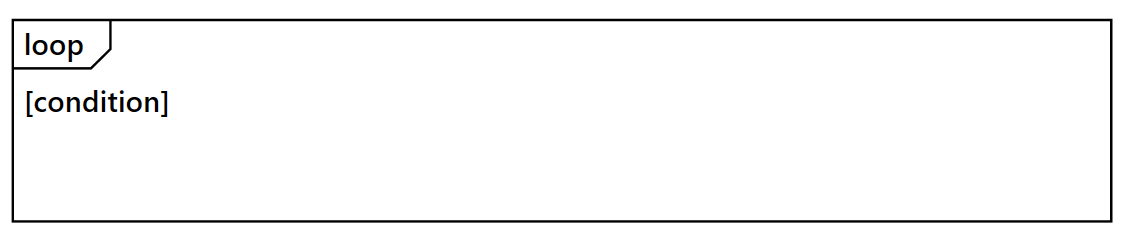

Loop	Represents a repeating sequence of interactions that continues based on a loop condition.

Creating Fragments

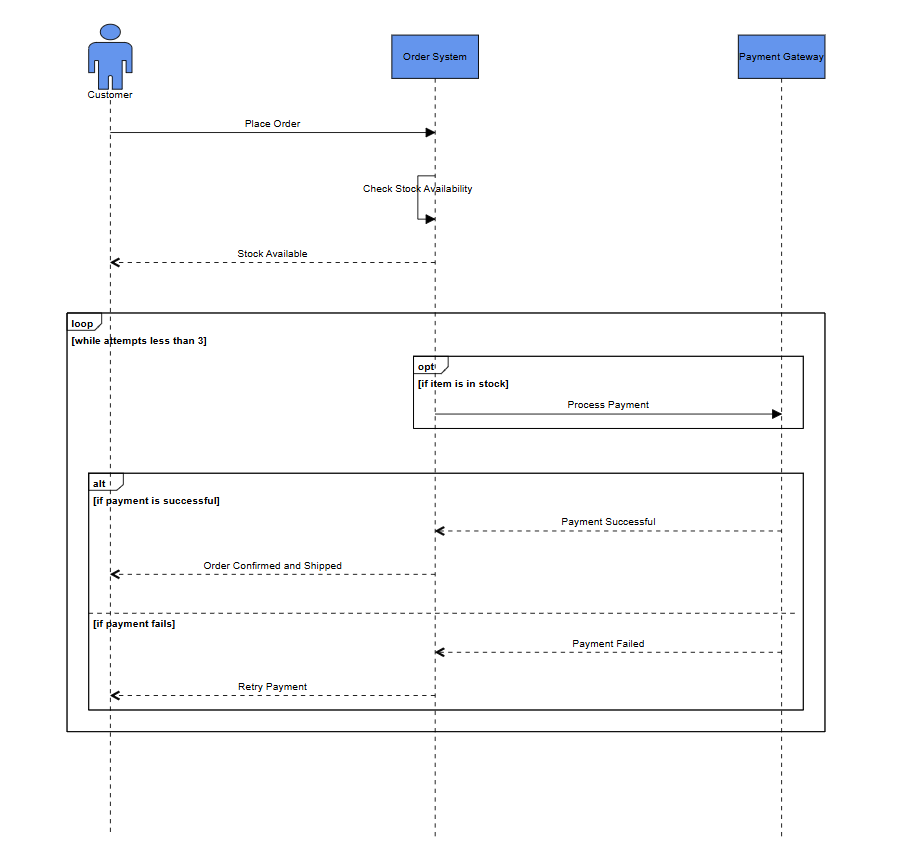

To create fragments in your sequence diagram, you will need to use the UmlSequenceFragment to define fragments and the UmlSequenceFragmentCondition to specify each condition block within those fragments.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Height="700px" Model="@DiagramModel">
</SfDiagramComponent>

@code {
    private SfDiagramComponent Diagram;
    private UmlSequenceDiagramModel DiagramModel;

    protected override void OnInitialized()
    {
        // Participants
        List<UmlSequenceParticipant> participants = new List<UmlSequenceParticipant>()
        {
            new UmlSequenceParticipant() { ID = "Customer", Content = "Customer", IsActor = true },
            new UmlSequenceParticipant() { ID = "OrderSystem", Content = "Order System", IsActor = false },
            new UmlSequenceParticipant() { ID = "PaymentGateway", Content = "Payment Gateway", IsActor = false }
        };

        // Messages
        List<UmlSequenceMessage> messages = new List<UmlSequenceMessage>()
        {
            new UmlSequenceMessage() { ID = "MSG1", Content = "Place Order", FromParticipantID = "Customer", ToParticipantID = "OrderSystem", MessageType = UmlSequenceMessageType.Synchronous },
            new UmlSequenceMessage() { ID = "MSG2", Content = "Check Stock Availability", FromParticipantID = "OrderSystem", ToParticipantID = "OrderSystem", MessageType = UmlSequenceMessageType.Synchronous },
            new UmlSequenceMessage() { ID = "MSG3", Content = "Stock Available", FromParticipantID = "OrderSystem", ToParticipantID = "Customer", MessageType = UmlSequenceMessageType.Reply },
            new UmlSequenceMessage() { ID = "MSG4", Content = "Process Payment", FromParticipantID = "OrderSystem", ToParticipantID = "PaymentGateway", MessageType = UmlSequenceMessageType.Synchronous },
            new UmlSequenceMessage() { ID = "MSG5", Content = "Payment Successful", FromParticipantID = "PaymentGateway", ToParticipantID = "OrderSystem", MessageType = UmlSequenceMessageType.Reply },
            new UmlSequenceMessage() { ID = "MSG6", Content = "Order Confirmed and Shipped", FromParticipantID = "OrderSystem", ToParticipantID = "Customer", MessageType = UmlSequenceMessageType.Reply },
            new UmlSequenceMessage() { ID = "MSG7", Content = "Payment Failed", FromParticipantID = "PaymentGateway", ToParticipantID = "OrderSystem", MessageType = UmlSequenceMessageType.Reply },
            new UmlSequenceMessage() { ID = "MSG8", Content = "Retry Payment", FromParticipantID = "OrderSystem", ToParticipantID = "Customer", MessageType = UmlSequenceMessageType.Reply }
        };

        // Fragments
        List<UmlSequenceFragment> fragments = new List<UmlSequenceFragment>()
        {
            new UmlSequenceFragment()
            {
                ID = "Frag3",
                FragmentType = UmlSequenceFragmentType.Loop,
                Conditions = new List<UmlSequenceFragmentCondition>
                {
                    new UmlSequenceFragmentCondition()
                    {
                        Content = "while attempts less than 3",
                        Fragments = new List<UmlSequenceFragment>()
                        {
                            new UmlSequenceFragment()
                            {
                                ID = "Frag1",
                                FragmentType = UmlSequenceFragmentType.Optional,
                                Conditions = new List<UmlSequenceFragmentCondition>()
                                {
                                    new UmlSequenceFragmentCondition()
                                    {
                                        Content = "if item is in stock",
                                        MessageIds = new List<string> { "MSG4" }
                                    }
                                }
                            },
                            new UmlSequenceFragment()
                            {
                                ID = "Frag2",
                                FragmentType = UmlSequenceFragmentType.Alternative,
                                Conditions = new List<UmlSequenceFragmentCondition>()
                                {
                                    new UmlSequenceFragmentCondition()
                                    {
                                        Content = "if payment is successful",
                                        MessageIds = new List<string>() { "MSG5", "MSG6" }
                                    },
                                    new UmlSequenceFragmentCondition()
                                    {
                                        Content = "if payment fails",
                                        MessageIds = new List<string>() { "MSG7", "MSG8" }
                                    }
                                }
                            }
                        }
                    }
                }
            }
        };

        // Assign model
        DiagramModel = new UmlSequenceDiagramModel()
            {
                SpaceBetweenParticipants = 300,
                Participants = participants,
                Messages = messages,
                Fragments = fragments
            };
    }
}

You can download a complete working sample from GitHub.

UmlSequenceFragment Properties

Property	Type	Description
ID	string	A unique identifier for the fragment
FragmentType	UmlSequenceFragmentType	Type of the fragment (Optional, Loop, Alternative)
Conditions	List<UmlSequenceFragmentCondition>	Collection of conditions for the fragment

UmlSequenceFragmentCondition Properties

Property	Type	Description
Content	string	Text describing the condition or parameter
MessageIds	List<string>	Collection of message IDs included in this condition section
Fragments	List<UmlSequenceFragment>	Collection of nested fragments (for complex structures)

Customizing Participant Spacing in Sequence Diagram

The SpaceBetweenParticipants property of the UmlSequenceDiagramModel controls the horizontal spacing between participants in the sequence diagram. By default, this value is set to 100, ensuring a uniform gap between lifelines.

You can customize this value to increase or decrease the spacing based on your diagram’s layout requirements or to accommodate longer participant names and message labels.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="Diagram" Height="600px" Model="@DiagramModel">
</SfDiagramComponent>

@code {
    private SfDiagramComponent Diagram;
    private UmlSequenceDiagramModel DiagramModel;

    protected override void OnInitialized()
    {
        // Create participants
        List<UmlSequenceParticipant> participants = new List<UmlSequenceParticipant>()
        {
            new UmlSequenceParticipant()
            {
                ID = "User",
                Content = "User",
                IsActor = true
            },
            new UmlSequenceParticipant()
            {
                ID = "System",
                Content = "System",
                IsActor = false,
                ShowDestructionMarker = true
            },
            new UmlSequenceParticipant()
            {
                ID = "Logger",
                Content = "Logger",
                IsActor = false,
                ShowDestructionMarker = true
            },
            new UmlSequenceParticipant()
            {
                ID = "SessionManager",
                Content = "SessionManager",
                IsActor = false
            }
        };

        // Create messages
        List<UmlSequenceMessage> messages = new List<UmlSequenceMessage>()
        {
            new UmlSequenceMessage()
            {
                ID = "MSG1",
                Content = "Login Request",
                FromParticipantID = "User",
                ToParticipantID = "System",
                MessageType = UmlSequenceMessageType.Synchronous
            },
            new UmlSequenceMessage()
            {
                ID = "MSG2",
                Content = "Login Response",
                FromParticipantID = "System",
                ToParticipantID = "User",
                MessageType = UmlSequenceMessageType.Reply
            },
            new UmlSequenceMessage()
            {
                ID = "MSG3",
                Content = "Log Event",
                FromParticipantID = "System",
                ToParticipantID = "Logger",
                MessageType = UmlSequenceMessageType.Asynchronous
            },
            new UmlSequenceMessage()
            {
                ID = "MSG4",
                Content = "Create Session",
                FromParticipantID = "System",
                ToParticipantID = "SessionManager",
                MessageType = UmlSequenceMessageType.Create
            },
            new UmlSequenceMessage()
            {
                ID = "MSG5",
                Content = "Delete Session",
                FromParticipantID = "System",
                ToParticipantID = "SessionManager",
                MessageType = UmlSequenceMessageType.Delete
            },
            new UmlSequenceMessage()
            {
                ID = "MSG6",
                Content = "Validate Inputs",
                FromParticipantID = "System",
                ToParticipantID = "System",
                MessageType = UmlSequenceMessageType.Self
            }
        };

        // Initialize Uml Sequence Diagram model
        DiagramModel = new UmlSequenceDiagramModel()
            {
                SpaceBetweenParticipants = 200,
                Participants = participants,
                Messages = messages
            };
    }
}

You can download a complete working sample from GitHub.
