Undo Redo support in Blazor Diagram Component
12 Dec 202411 minutes to read
The Blazor Diagram component tracks the history of actions performed after initialization and provides support to reverse and restore those changes.
Undo and redo
The Diagram offers built-in functionality to track changes made through both user interactions and public APIs. These changes can be reverted or restored using shortcut keys or commands.
Undo/redo through shortcut keys
Undo and redo commands can be executed through shortcut keys. Shortcut key for undo is Ctrl+Z and shortcut key for redo is Ctrl+Y.
Undo/redo through public APIs
The Undo and Redo methods allow you to programmatically revert or restore changes. The following code example illustrates how to undo/redo the changes through code.
SfDiagramComponent Diagram;
// Reverts the last action performed.
diagram.Undo();
// Restores the last undone action.
diagram.Redo();The HistoryChanged event is triggered when a change in the diagram is reverted or restored.
Group multiple changes
The History list feature enables users to revert or restore multiple changes through a single undo/redo command. This functionality is particularly useful when dealing with complex operations, such as modifying the fill color of multiple elements simultaneously.
To implement this feature, use the StartGroupAction method to signal the diagram to begin grouping changes. Once the desired changes are made, call the EndGroupAction method to indicate that the grouping process should stop. This approach allows for efficient management of multiple changes as a single unit in the undo/redo history.
The following code illustrates how to undo/redo to change multiple elements at a time.
SfDiagramComponent diagram;
//Starts grouping the changes.
diagram.StartGroupAction();
//Ends grouping the changes.
diagram.EndGroupAction();History change event
- This event can be utilized for customization purposes during interactions with diagram elements.
- When users interact with nodes or connectors, entries are added to the history list, triggering this event.
The HistoryChangedEventArgs provides notifications about changes occurring during the undo/redo process. This allows you to track and respond to modifications in the diagram’s state.
@using Syncfusion.Blazor.Diagram
@* Initialize Diagram *@
<SfDiagramComponent @ref="@diagram" Height="600px" HistoryChanged="@OnHistoryChange">
</SfDiagramComponent>
@code
{
SfDiagramComponent diagram;
public void OnHistoryChange(HistoryChangedEventArgs args)
{
//Causes of history change.
HistoryChangedAction ActionTrigger = args.ActionTrigger;
}
}You can download a complete working sample from GitHub
How to set stack limit

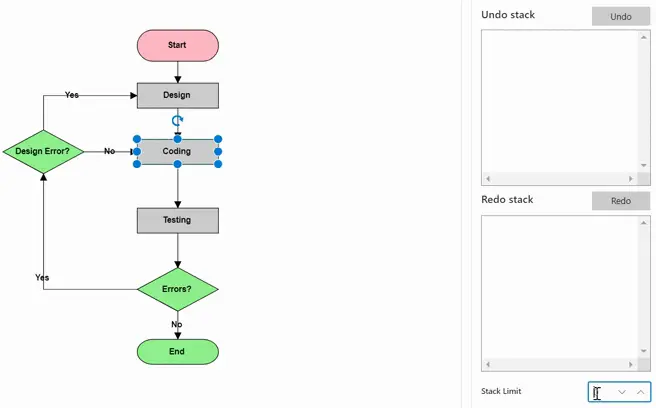

The StackLimit property of the history manager allows you to set a maximum number of history entries that can be stored in the history list. This limit helps control the memory usage and optimizes the performance of undo and redo operations by restricting the number of actions that can be undone or redone.
@using Syncfusion.Blazor.Diagram
@* Initialize Diagram *@
<SfDiagramComponent @ref="@diagram" Height="600px" Nodes="@nodes">
<DiagramHistoryManager StackLimit="@stackLimit"></DiagramHistoryManager>
</SfDiagramComponent>
@code
{
SfDiagramComponent diagram;
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
int stackLimit = 3;
protected override void OnInitialized()
{
Node diagramNode = new Node()
{
ID = "node1",
OffsetX = 300,
OffsetY = 140,
Width = 145,
Height = 60,
Style = new ShapeStyle()
{
Fill = "#357BD2",
StrokeColor = "White"
},
Shape = new FlowShape()
{
Type = NodeShapes.Flow,
Shape = NodeFlowShapes.Terminator
}
};
nodes.Add(diagramNode);
}
}Download a complete working sample from GitHub
How to track custom entry
Diagram offers robust functionality to monitor and track modifications made to custom properties. The following example demonstrates how to effectively implement change tracking for custom property alterations, enhancing the diagram’s undo-redo capabilities and providing better control over the diagram’s state.
@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.Buttons
<SfButton Content="CustomEntry" OnClick="@OnCustomEntry" />
@* Initialize Diagram *@
<SfDiagramComponent @ref="@diagram" Height="600px" Nodes="@nodes">
</SfDiagramComponent>
@code
{
SfDiagramComponent diagram;
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
protected override void OnInitialized()
{
nodes = new DiagramObjectCollection<Node>();
Dictionary<string, object> NodeInfo = new Dictionary<string, object>();
NodeInfo.Add("nodeInfo", "Central Node");
// A node is created and stored in the nodes collection.
Node node = new Node()
{
ID = "node1",
// Position of the node.
OffsetX = 250,
OffsetY = 250,
// Size of the node.
Width = 100,
Height = 100,
Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
AdditionalInfo = NodeInfo
};
// Add node.
nodes.Add(node);
}
private void OnCustomEntry()
{
HistoryEntry entry = new HistoryEntry();
entry.UndoObject = diagram.Nodes[0];
diagram.AddHistoryEntry(entry);
}
}You can download a complete working sample from GitHub
HistoryAdding Event
HistoryAdding event in the DiagramHistoryManager allows you to control the addition of history entries. This event is triggered before a new entry is added to the history stack. It provides a history entry as an argument and expects a boolean return value indicating whether the specific entry should be added (true) or discarded (false).
@using Syncfusion.Blazor.Diagram
@* Initialize Diagram *@
<SfDiagramComponent @ref="@diagram" Height="600px" Nodes="@nodes">
<DiagramHistoryManager HistoryAdding="@OnHistoryAdding"/>
</SfDiagramComponent>
@code
{
SfDiagramComponent diagram;
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
protected override void OnInitialized()
{
nodes = new DiagramObjectCollection<Node>();
// A node is created and stored in the nodes collection.
Node node = new Node()
{
ID = "node1",
// Position of the node.
OffsetX = 250,
OffsetY = 250,
// Size of the node.
Width = 100,
Height = 100,
Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" }
};
// Add node.
nodes.Add(node);
}
private void OnHistoryAdding(HistoryAddingEventArgs entry)
{
// Sets true to cancel undo/redo action.
entry.Cancel = true;
}
}You can download a complete working sample from GitHub
Custom undo redo
The custom undo-redo process allows you to store and manage actions that are not captured by the default undo-redo history list. This feature provides greater flexibility and control over the diagram’s state management.
The Undo method in the DiagramHistoryManager is invoked when a custom entry is in the undo stage. Similarly, the Redo method in the DiagramHistoryManager is triggered when a custom entry is in the redo stage. These methods enable you to implement custom logic for undoing and redoing specific actions in your diagram.
@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.Buttons
<SfButton Content="CustomEntry" OnClick="@OnCustomEntry" />
<SfDiagramComponent @ref="@diagram" Height="600px" Nodes="@nodes">
<DiagramHistoryManager StackLimit="@stackLimit" HistoryAdding="@OnHistoryAdding" Undo="@onCustomUndo" Redo="@onCustomRedo" />
</SfDiagramComponent>
@code
{
//Reference the diagram
SfDiagramComponent diagram;
//Intialize diagram's nodes collection
DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
string EventValue = string.Empty;
int stackLimit = 3;
protected override void OnInitialized()
{
Dictionary<string, object> NodeInfo = new Dictionary<string, object>();
NodeInfo.Add("nodeInfo", "Central Node");
// A node is created and stored in the nodes collection.
Node node = new Node()
{
ID = "node1",
// Position of the node
OffsetX = 250,
OffsetY = 250,
// Size of the node
Width = 100,
Height = 100,
Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
AdditionalInfo = NodeInfo
};
// Add node
nodes.Add(node);
}
private void OnCustomEntry()
{
HistoryEntry entry = new HistoryEntry();
entry.UndoObject = diagram.Nodes[0];
diagram.AddHistoryEntry(entry);
}
private void OnHistoryAdding(HistoryAddingEventArgs entry)
{
// Sets true to cancel undo/redo action.
entry.Cancel = false;
}
private void onCustomUndo(HistoryEntryBase entry)
{
(entry.RedoObject) = entry.UndoObject.Clone() as Node;
(entry.UndoObject as Node).AdditionalInfo[(entry.UndoObject as Node).ID] = "Start";
EventValue += "UndoObject:" + (entry.UndoObject as Node).AdditionalInfo[(entry.UndoObject as Node).ID];
}
private void onCustomRedo(HistoryEntryBase entry)
{
EventValue += "RedoObject:" + (entry.RedoObject as Node).AdditionalInfo[(entry.RedoObject as Node).ID];
var current = entry.UndoObject.Clone() as Node;
(entry.UndoObject as Node).AdditionalInfo[(entry.UndoObject as Node).ID] = "Description";
entry.RedoObject = current;
}
}You can download a complete working sample from GitHub
