Columns in Blazor Gantt Chart Component
13 Mar 202424 minutes to read
The column displays information from a bound data source, and you can edit the values of column to update the task details through Tree Grid. The operations such as sorting, filtering, and searching can be performed based on column definitions. To display a Gantt Chart column, the Field
property should be mapped from the data source to the column.
NOTE
If the column
Field
is not specified in the data source, the column values will be empty.
The TreeColumnIndex
property is used to define the expander column in the Gantt Chart component to expand and collapse the child rows.
Defining columns
Using the GanttColumns
property, you can define the columns and custom columns in Gantt Chart. If the columns are not defined, then the default columns will be rendered based on the mapped data source fields in the GanttTaskFields
property. If custom columns are required, then you can generate columns that was not defined in the GanttTaskFields
property.Refer to the following code example for defining the columns in Gantt Chart along with their widths.
@using Syncfusion.Blazor.Gantt
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="150"></GanttColumn>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="150"></GanttColumn>
<GanttColumn Field="StartDate" HeaderText="Start Date" Width="150"></GanttColumn>
<GanttColumn Field="EndDate" HeaderText="End Date" Width="150"></GanttColumn>
<GanttColumn Field="Duration" HeaderText="Duration" Width="150"></GanttColumn>
<GanttColumn Field="Progress" HeaderText="Progress" Width="150"></GanttColumn>
<GanttColumn Field="StartDateOnly" HeaderText="Start Date Only" Format="d" Type="Syncfusion.Blazor.Grids.ColumnType.DateOnly" Width="152" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="StartTimeOnly" HeaderText="Start Time Only" Type="Syncfusion.Blazor.Grids.ColumnType.TimeOnly" Width="150" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="Status" HeaderText="Status" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.DefaultEdit></GanttColumn>
<GanttColumn Field="WorkersCount" HeaderText="Workers Count" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.NumericEdit></GanttColumn>
</GanttColumns>
</SfGantt>
@code{
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public DateOnly? StartDateOnly { get; set; }
public TimeOnly? StartTimeOnly { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public string Status { get; set; }
public int WorkersCount { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=20, StartDateOnly = new DateOnly(2021, 03, 02), StartTimeOnly = new TimeOnly(10, 00, 00)},
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 5, Status="Progress", WorkersCount=10, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 04), StartTimeOnly = new TimeOnly(11, 30, 00)},
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 10, Status="Hold", WorkersCount=15, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 06), StartTimeOnly = new TimeOnly(12, 00, 00)},
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, Status="PostPoned", WorkersCount=5, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 08), StartTimeOnly = new TimeOnly(13, 30, 00)},
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=25,StartDateOnly = new DateOnly(2021, 07, 10), StartTimeOnly = new TimeOnly(14, 00, 00) },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, Status="PostPoned", WorkersCount=10, ParentId = 5 , StartDateOnly = new DateOnly(2021, 10, 12), StartTimeOnly = new TimeOnly(16, 00, 00)},
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, Status="Progress", WorkersCount=5, ParentId = 5, StartDateOnly = new DateOnly(2021, 10, 14), StartTimeOnly = new TimeOnly(17, 30, 00) },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, Status="Progress", WorkersCount=10, ParentId = 5,StartDateOnly = new DateOnly(2021, 10, 16), StartTimeOnly = new TimeOnly(18, 00, 00) }
};
return Tasks;
}
}
Header template
NOTE
Before adding the header template to the Gantt Chart, it is strongly recommended to go through the template section topic to configure the template.

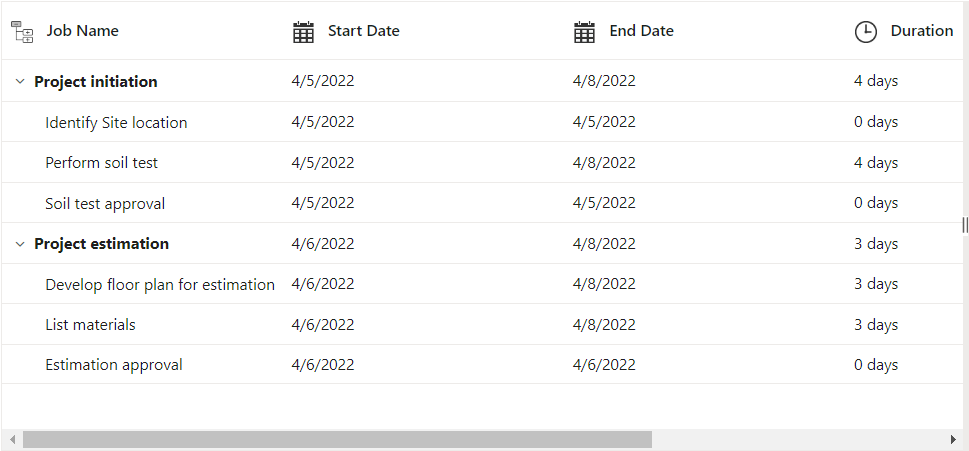

The Header Template has options to display custom element values or content in the header. You can use the HeaderTemplate of the GanttColumn component to specify the custom content.
@using Syncfusion.Blazor.Gantt
@using Syncfusion.Blazor.Grids
<SfGantt DataSource="@TaskCollection" Width="700px" Height="400px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="Parent_Id"></GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="250">
<HeaderTemplate>
<div>
<img src="https://ej2.syncfusion.com/demos/src/gantt/images/Task%20name.png" width="20" height="20" style="margin-right: 8px">
@((context as GridColumn).HeaderText)
</div>
</HeaderTemplate>
</GanttColumn>
<GanttColumn Field="StartDate" HeaderText="Start Date" Width="250">
<HeaderTemplate>
<div>
<img src="https://ej2.syncfusion.com/demos/src/gantt/images/Start%20date.png" width="20" height="20" style="margin-right: 8px">
@((context as GridColumn).HeaderText)
</div>
</HeaderTemplate>
</GanttColumn>
<GanttColumn Field="EndDate" HeaderText="End Date" Width="250">
<HeaderTemplate>
<div>
<img src="https://ej2.syncfusion.com/demos/src/gantt/images/Start%20date.png" width="20" height="20" style="margin-right: 8px">
@((context as GridColumn).HeaderText)
</div>
</HeaderTemplate>
</GanttColumn>
<GanttColumn Field="Duration" HeaderText="Duration" Width="250">
<HeaderTemplate>
<div>
<img src="https://ej2.syncfusion.com/demos/src/gantt/images/Duration.png" width="20" height="20" style="margin-right: 8px">
@((context as GridColumn).HeaderText)
</div>
</HeaderTemplate>
</GanttColumn>
<GanttColumn Field="Progress" HeaderText="Progress" Width="250">
<HeaderTemplate>
<div>
<img src="https://ej2.syncfusion.com/demos/src/gantt/images/Progress.png" width="20" height="20" style="margin-right: 8px">
@((context as GridColumn).HeaderText)
</div>
</HeaderTemplate>
</GanttColumn>
</GanttColumns>
</SfGantt>
<style>
@@font-face {
font-family: 'ej2-headertemplate';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1vTFIAAAEoAAAAVmNtYXDS2c5qAAABjAAAAEBnbHlmQmNFrQAAAdQAAANoaGVhZBRdbkIAAADQAAAANmhoZWEIUQQEAAAArAAAACRobXR4DAAAAAAAAYAAAAAMbG9jYQCOAbQAAAHMAAAACG1heHABHgENAAABCAAAACBuYW1lohGZJQAABTwAAAKpcG9zdA2o3w0AAAfoAAAAQAABAAAEAAAAAFwEAAAAAAAD9AABAAAAAAAAAAAAAAAAAAAAAwABAAAAAQAATBXy9l8PPPUACwQAAAAAANillKkAAAAA2KWUqQAAAAAD9APzAAAACAACAAAAAAAAAAEAAAADAQEAEQAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wLpYAQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAAAAAAAgAAAAMAAAAUAAMAAQAAABQABAAsAAAABgAEAAEAAucC6WD//wAA5wLpYP//AAAAAAABAAYABgAAAAIAAQAAAAAAjgG0ABEAAAAAA8kD8wADAAcACwAPABMAFwAbAB8AIwAnACsALwAzADcAOwBPAGsAACUVIzUjFSM1IxUjNSMVIzUjFSM1JRUjNSMVIzUjFSM1IxUjNSMVIzUlFSM1IxUjNSMVIzUjFSM1IxUjNQMVHwYhPwcRITcjDwghNS8HIzUjFSE1IwN2U1NTU1RTU1NTAuxTU1NTVFNTU1MC7FNTU1NUU1NTU1QCAwUGBggIA0QICAcHBQQBAvxsp30ICAcHAgUDAQEDlAECBAUHBwgIfVP+YFOzU1NTU1NTU1NTU6dUVFRUVFRUVFRUplNTU1NTU1NTU1P+NgQIBwcGBAMCAQIEBQcHAwgCdPoBAgQFAwcHCIF8CQgHBgUEAgFTU1MABAAAAAAD9APeADQAbQCuAQAAAAEfCDc1Lwc1PwIPBy8HHww3HwQPATMVPwc1Lx0jDwMfAgUdAR8GBTUzLxQjDx0BFxUfEDsBPxA1Nyc1LxIPEhUCCg8OGxcVExANCgMBAQMDCQQDAgECAxESEhMTExUUFRQTFBISEhEHCwYHCAkKCw0NDw8SuQQGAwIBAgRxlgsKCQcGBAMBAgMDAwUFBQcGBwgICQkKCgsKDAsMDQwNDQ4NDg45BQUDAQEEA/1eAgUGBwkKCwHjeggKDhEUFxs1FRMSEA4NCwoJBwcJBjwODg0ODQ0MDQwLDAoLCgoJCQgIBwYHBQUFAwMDAgEBAQECAgYICg0ODxISFBUXFwwMDA0MDQwMFxcVFBISDw4MCwgGAgIBAQICAwcJCw0PERITFRUXDAwMDA0NDAwMDAsXFRQTEQ8ODQoIBgICAVQEAwgJCgsMCwwbEBAREREZEA8VDAwKCgoIBwYFAwIBAQIDBQYHCAoUFQwLCwsLCgoJCAcGMwsWFhUVHB3QAQIEBggICgueDg4ODg0NDA0MCwsLCwoKCQgJBwgGBwUFBAQDAwECCw8NDxETCrIlawsKCAgGBAIB0AoLCwoLCQgNCAkLDA0NDg4ODg4ZFAIBAwMEBAUGBgYIBwkICQoKCwsLDAwMDA0ODQ4ODgH7DQwMDBgWFRQTERAODAoIBgICAQECAgYICgwOEBETFBUWGAwMDA0MDQwMCxcWFRMSEA8NDAkHAwIBAQEBAQECAwMICwwOEBETFBUWFwwMDQAAAAASAN4AAQAAAAAAAAABAAAAAQAAAAAAAQASAAEAAQAAAAAAAgAHABMAAQAAAAAAAwASABoAAQAAAAAABAASACwAAQAAAAAABQALAD4AAQAAAAAABgASAEkAAQAAAAAACgAsAFsAAQAAAAAACwASAIcAAwABBAkAAAACAJkAAwABBAkAAQAkAJsAAwABBAkAAgAOAL8AAwABBAkAAwAkAM0AAwABBAkABAAkAPEAAwABBAkABQAWARUAAwABBAkABgAkASsAAwABBAkACgBYAU8AAwABBAkACwAkAacgZWoyLWhlYWRlcnRlbXBsYXRlUmVndWxhcmVqMi1oZWFkZXJ0ZW1wbGF0ZWVqMi1oZWFkZXJ0ZW1wbGF0ZVZlcnNpb24gMS4wZWoyLWhlYWRlcnRlbXBsYXRlRm9udCBnZW5lcmF0ZWQgdXNpbmcgU3luY2Z1c2lvbiBNZXRybyBTdHVkaW93d3cuc3luY2Z1c2lvbi5jb20AIABlAGoAMgAtAGgAZQBhAGQAZQByAHQAZQBtAHAAbABhAHQAZQBSAGUAZwB1AGwAYQByAGUAagAyAC0AaABlAGEAZABlAHIAdABlAG0AcABsAGEAdABlAGUAagAyAC0AaABlAGEAZABlAHIAdABlAG0AcABsAGEAdABlAFYAZQByAHMAaQBvAG4AIAAxAC4AMABlAGoAMgAtAGgAZQBhAGQAZQByAHQAZQBtAHAAbABhAHQAZQBGAG8AbgB0ACAAZwBlAG4AZQByAGEAdABlAGQAIAB1AHMAaQBuAGcAIABTAHkAbgBjAGYAdQBzAGkAbwBuACAATQBlAHQAcgBvACAAUwB0AHUAZABpAG8AdwB3AHcALgBzAHkAbgBjAGYAdQBzAGkAbwBuAC4AYwBvAG0AAAAAAgAAAAAAAAAKAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAADAQIBAwEEAAtCVF9DYWxlbmRhcghlbXBsb3llZQAA) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-grid .e-icon-userlogin::before {
font-family: 'ej2-headertemplate';
width: 15px !important;
content: '\e702';
}
.e-grid .e-icon-calender::before {
font-family: 'ej2-headertemplate';
width: 15px !important;
content: '\e960';
}
</style>
@code{
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public int? Parent_Id { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21)},
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, Parent_Id = 1},
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 40, Parent_Id = 1},
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, Parent_Id =1},
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21)},
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, Parent_Id =5},
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, Parent_Id =5},
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, Parent_Id =5}
};
return Tasks;
} }
Format
To format the cell values based on a specific culture, use the GanttColumn.Format
property. The Blazor Gantt Chart component uses the Internationalization
library to format number
and date
values.
@using Syncfusion.Blazor.Gantt
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="150"></GanttColumn>
<GanttColumn Field="Progress" Format="@NumberFormat" Width="250"></GanttColumn>
</GanttColumns>
</SfGantt>
@code{
private List<TaskData> TaskCollection { get; set; }
private string NumberFormat = "C";
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 40, ParentId = 1 },
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, ParentId = 5 },
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, ParentId = 5 },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, ParentId = 5 }
};
return Tasks;
}
}
NOTE
By default, the
number
anddate
values are formatted inen-US
culture.
Number formatting
The number or integer values can be formatted using the following format strings.
Format | Description | Remarks |
---|---|---|
N | Denotes numeric type. | The numeric format is followed by an integer value like N2 or N3, which denotes the number of precisions to be allowed. |
C | Denotes currency type. | The currency format is followed by an integer value like C2 or C3, which denotes the number of precisions to be allowed. |
P | Denotes percentage type | The percentage format expects the input value to be in the range of 0 to 100. For example, the cell value 0.2 is formatted as 20% . The percentage format is followed by an integer value like P2, P3, which denotes the number of precisions to be allowed. |
Date formatting
You can format date values either using the built-in date format string or a custom format string. For the built-in date format, you can specify the GanttColumn.Format
property as string (example: yMd
).
You can also use the custom format string to format the date values. Some of the custom formats and the formatted date values are given in the following table.
Format | Formatted value |
---|---|
{ type:’date’, format:’dd/MM/yyyy’ } | 04/07/2022 |
{ type:’date’, format:’dd.MM.yyyy’ } | 04.07.2022 |
{ type:’date’, skeleton:’short’ } | 7/4/22 |
{ type: ‘dateTime’, format: ‘dd/MM/yyyy hh:mm tt’ } | 04/07/2022 12:00 AM |
{ type: ‘dateTime’, format: ‘MM/dd/yyyy hh:mm:ss tt’ } | 07/04/2022 12:00:00 AM |
@using Syncfusion.Blazor.Gantt
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="150"></GanttColumn>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="250"></GanttColumn>
<GanttColumn Field="StartDate" Format="@DateFormat"></GanttColumn>
<GanttColumn Field="Duration"></GanttColumn>
</GanttColumns>
</SfGantt>
@code{
private List<TaskData> TaskCollection { get; set; }
private string DateFormat = "MM/dd/yyyy";
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 40, ParentId = 1 },
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, ParentId = 5 },
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, ParentId = 5 },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, ParentId = 5 }
};
return Tasks;
}
}
Autofit columns
The Gantt chart has a feature that allows to automatically adjust column widths based on the maximum content width of each column when you double-click on the resizer symbol located in a specific column header. This feature ensures that all data in the Gantt chart rows is displayed without wrapping. To use this feature, set the AllowResizing property to true.
@using Syncfusion.Blazor.Gantt
<SfGantt @ref="Gantt" DataSource="@TaskCollection" Height="450px" Width="700px" AllowResizing="true">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="150"></GanttColumn>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="150"></GanttColumn>
<GanttColumn Field="StartDate" HeaderText="Start Date" Width="150"></GanttColumn>
<GanttColumn Field="EndDate" HeaderText="End Date" Width="150"></GanttColumn>
<GanttColumn Field="Duration" HeaderText="Duration" Width="150"></GanttColumn>
<GanttColumn Field="Progress" HeaderText="Progress" Width="150"></GanttColumn>
<GanttColumn Field="StartDateOnly" HeaderText="Start Date Only" Format="d" Type="Syncfusion.Blazor.Grids.ColumnType.DateOnly" Width="152" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="StartTimeOnly" HeaderText="Start Time Only" Type="Syncfusion.Blazor.Grids.ColumnType.TimeOnly" Width="150" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="Status" HeaderText="Status" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.DefaultEdit></GanttColumn>
<GanttColumn Field="WorkersCount" HeaderText="Workers Count" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.NumericEdit></GanttColumn>
</GanttColumns>
</SfGantt>
@code {
private SfGantt<TaskData> Gantt;
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public DateOnly? StartDateOnly { get; set; }
public TimeOnly? StartTimeOnly { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public string Status { get; set; }
public int WorkersCount { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=20, StartDateOnly = new DateOnly(2021, 03, 02), StartTimeOnly = new TimeOnly(10, 00, 00)},
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 5, Status="Progress", WorkersCount=10, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 04), StartTimeOnly = new TimeOnly(11, 30, 00)},
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 10, Status="Hold", WorkersCount=15, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 06), StartTimeOnly = new TimeOnly(12, 00, 00)},
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, Status="PostPoned", WorkersCount=5, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 08), StartTimeOnly = new TimeOnly(13, 30, 00)},
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=25,StartDateOnly = new DateOnly(2021, 07, 10), StartTimeOnly = new TimeOnly(14, 00, 00) },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, Status="PostPoned", WorkersCount=10, ParentId = 5 , StartDateOnly = new DateOnly(2021, 10, 12), StartTimeOnly = new TimeOnly(16, 00, 00)},
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, Status="Progress", WorkersCount=5, ParentId = 5, StartDateOnly = new DateOnly(2021, 10, 14), StartTimeOnly = new TimeOnly(17, 30, 00) },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, Status="Progress", WorkersCount=10, ParentId = 5,StartDateOnly = new DateOnly(2021, 10, 16), StartTimeOnly = new TimeOnly(18, 00, 00) }
};
return Tasks;
}
}
Resizing a column to fit its content using method
In Gantt chart, you can automatically adjust specific column width based on the maximum content width of each column, ensuring that the width displays the content without wrapping or hiding by using AutoFitColumnsAsync method. You can autofit specific columns at initial rendering by invoking the AutoFitColumnsAsync
method in DataBound event.
@using Syncfusion.Blazor.Gantt
<SfGantt @ref="Gantt" DataSource="@TaskCollection" Height="450px" Width="700px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="150"></GanttColumn>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="150"></GanttColumn>
<GanttColumn Field="StartDate" HeaderText="Start Date" Width="150"></GanttColumn>
<GanttColumn Field="EndDate" HeaderText="End Date" Width="150"></GanttColumn>
<GanttColumn Field="Duration" HeaderText="Duration" Width="150"></GanttColumn>
<GanttColumn Field="Progress" HeaderText="Progress" Width="150"></GanttColumn>
<GanttColumn Field="StartDateOnly" HeaderText="Start Date Only" Format="d" Type="Syncfusion.Blazor.Grids.ColumnType.DateOnly" Width="152" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="StartTimeOnly" HeaderText="Start Time Only" Type="Syncfusion.Blazor.Grids.ColumnType.TimeOnly" Width="150" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></GanttColumn>
<GanttColumn Field="Status" HeaderText="Status" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.DefaultEdit></GanttColumn>
<GanttColumn Field="WorkersCount" HeaderText="Workers Count" Width="150" EditType=Syncfusion.Blazor.Grids.EditType.NumericEdit></GanttColumn>
</GanttColumns>
<GanttEvents DataBound="DataBoundHandler" TValue="TaskData"></GanttEvents>
</SfGantt>
@code {
private SfGantt<TaskData> Gantt;
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
private async void DataBoundHandler(object args)
{
await Gantt.AutoFitColumnsAsync(new string[] { "TaskName", "StartDate", "EndDate" });
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public DateOnly? StartDateOnly { get; set; }
public TimeOnly? StartTimeOnly { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public string Status { get; set; }
public int WorkersCount { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=20, StartDateOnly = new DateOnly(2021, 03, 02), StartTimeOnly = new TimeOnly(10, 00, 00)},
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 5, Status="Progress", WorkersCount=10, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 04), StartTimeOnly = new TimeOnly(11, 30, 00)},
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 10, Status="Hold", WorkersCount=15, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 06), StartTimeOnly = new TimeOnly(12, 00, 00)},
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, Status="PostPoned", WorkersCount=5, ParentId = 1, StartDateOnly = new DateOnly(2021, 03, 08), StartTimeOnly = new TimeOnly(13, 30, 00)},
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), Status="Progress", WorkersCount=25,StartDateOnly = new DateOnly(2021, 07, 10), StartTimeOnly = new TimeOnly(14, 00, 00) },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, Status="PostPoned", WorkersCount=10, ParentId = 5 , StartDateOnly = new DateOnly(2021, 10, 12), StartTimeOnly = new TimeOnly(16, 00, 00)},
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, Status="Progress", WorkersCount=5, ParentId = 5, StartDateOnly = new DateOnly(2021, 10, 14), StartTimeOnly = new TimeOnly(17, 30, 00) },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, Status="Progress", WorkersCount=10, ParentId = 5,StartDateOnly = new DateOnly(2021, 10, 16), StartTimeOnly = new TimeOnly(18, 00, 00) }
};
return Tasks;
}
}
Change tree/expander column
The tree/expander column is a column in the Gantt Chart component that has icons to expand or collapse the parent records. You can define the tree column index in the Gantt Chart component by using the TreeColumnIndex
property and the default value of this property is 0
. The following code example shows how to use this property.
@using Syncfusion.Blazor.Gantt
<SfGantt DataSource="@TaskCollection" TreeColumnIndex="2" Height="450px" Width="700px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate"
Duration="Duration" Progress="Progress" ParentID="ParentId"></GanttTaskFields>
</SfGantt>
@code{
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 40, ParentId = 1 },
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, ParentId = 5 },
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, ParentId = 5 },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, ParentId = 5 }
};
return Tasks;
}
}
Show or hide columns dynamically
You can show or hide gantt component columns dynamically using external buttons by invoking the ShowColumnsAsync
or HideColumnsAsync
method.
@using Syncfusion.Blazor.Gantt
<button @onclick="show">Show columns</button>
<button @onclick="hide">Hide columns</button>
<SfGantt @ref="Gantt" DataSource="@TaskCollection" Height="450px" Width="900px">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="100"></GanttColumn>
<GanttColumn Field="TaskName" HeaderText="Job Name" Width="250"></GanttColumn>
<GanttColumn Field="StartDate"></GanttColumn>
<GanttColumn Field="EndDate"></GanttColumn>
<GanttColumn Field="Duration"></GanttColumn>
<GanttColumn Field="Progress"></GanttColumn>
</GanttColumns>
</SfGantt>
@code{
public SfGantt<TaskData> Gantt;
private List<TaskData> TaskCollection { get; set; }
private string[] ColumnList = {"TaskName", "StartDate"};
public void show() {
this.Gantt.ShowColumnsAsync(ColumnList, "Field");
}
public void hide() {
this.Gantt.HideColumnsAsync(ColumnList, "Field");
}
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 40, ParentId = 1 },
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2022, 04, 05), Duration = "0", Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 30, ParentId = 5 },
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Progress = 40, ParentId = 5 },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Progress = 30, ParentId = 5 },
};
return Tasks;
}
}
Controlling Gantt column actions
You can enable or disable gantt component action for a particular column by setting the AllowFiltering
, AllowSorting
, AllowReordering
, and AllowEditing
properties.
@using Syncfusion.Blazor.Gantt
<SfGantt @ref="Gantt" DataSource="@TaskCollection" Height="450px" Width="900px" AllowSorting="true" AllowFiltering="true" AllowReordering="true">
<GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
</GanttTaskFields>
<GanttColumns>
<GanttColumn Field="TaskId" Width="100"></GanttColumn>
<GanttColumn Field="TaskName" AllowReordering="false" Width="250"></GanttColumn>
<GanttColumn Field="StartDate" AllowEditing="false"></GanttColumn>
<GanttColumn Field="Duration" AllowSorting="false"></GanttColumn>
<GanttColumn Field="Progress" AllowFiltering="false"></GanttColumn>
</GanttColumns>
<GanttEditSettings AllowEditing="true"></GanttEditSettings>
</SfGantt>
@code{
public SfGantt<TaskData> Gantt;
private List<TaskData> TaskCollection { get; set; }
protected override void OnInitialized()
{
this.TaskCollection = GetTaskCollection();
}
public class TaskData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateTime StartDate { get; set; }
public DateTime? EndDate { get; set; }
public string Duration { get; set; }
public int Progress { get; set; }
public bool Verified { get; set; }
public int? ParentId { get; set; }
}
public static List<TaskData> GetTaskCollection()
{
List<TaskData> Tasks = new List<TaskData>()
{
new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), Verified = true, },
new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "0", Verified = true, Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Verified = false, Progress = 40, ParentId = 1 },
new TaskData() { TaskId = 4, TaskName = "Soil test approval", StartDate = new DateTime(2019, 04, 02), Duration = "0", Verified = true, Progress = 30, ParentId = 1 },
new TaskData() { TaskId = 5, TaskName = "Project estimation", StartDate = new DateTime(2022, 04, 06), EndDate = new DateTime(2022, 04, 21), Verified = false, },
new TaskData() { TaskId = 6, TaskName = "Develop floor plan for estimation", StartDate = new DateTime(2022, 04, 06), Duration = "3", Verified = true, Progress = 30, ParentId = 5 },
new TaskData() { TaskId = 7, TaskName = "List materials", StartDate = new DateTime(2022, 04, 06), Duration = "3", Verified = false, Progress = 40, ParentId = 5 },
new TaskData() { TaskId = 8, TaskName = "Estimation approval", StartDate = new DateTime(2022, 04, 06), Duration = "0", Verified = true, Progress = 30, ParentId = 5 },
};
return Tasks;
}
}
Column type
Column type can be specified using the GanttColumn.Type
property. It specifies the type of data the column binds. If the GanttColumn.Format
is defined for a column, the column uses GanttColumn.Type
to select the appropriate format option number or date.
Gantt column supports the following types:
- String
- Number
- Boolean
- Date
- DateTime
- DateOnly
- TimeOnly
NOTE
If the
GanttColumn.Type
is not defined, it will be determined from the first record of theDataSource
. If the first record of theDataSource
is null/blank value for a column then it is necessary to define theGanttColumn.Type
for that column.
NOTE
The
DateOnly
andTimeOnly
formats are supported in custom columns in the Gantt Chart.
