Columns in Blazor Kanban Component

15 Dec 202224 minutes to read

The Kanban columns represents each stage of the process. The column definitions are used as the DataSource schema in the Kanban. The Kanban operations such as drag-and-drop, swimlane, and toggle columns are performed based on column definitions.

Single-key mapping

Kanban columns are categorized by mapping the key from the datasource using the KeyField property. The corresponding value in the datasource is mapped inside the columns KeyField. Based on this categorization, Kanban columns are split on this board.

NOTE

The KeyField property is mandatory to render the columns in the Kanban board.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

Blazor Kanban Columns with Single Key

Multi-key mapping

Kanban board allows to render a single column by mapping multiple keys using KeyField property.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open", "Validate"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

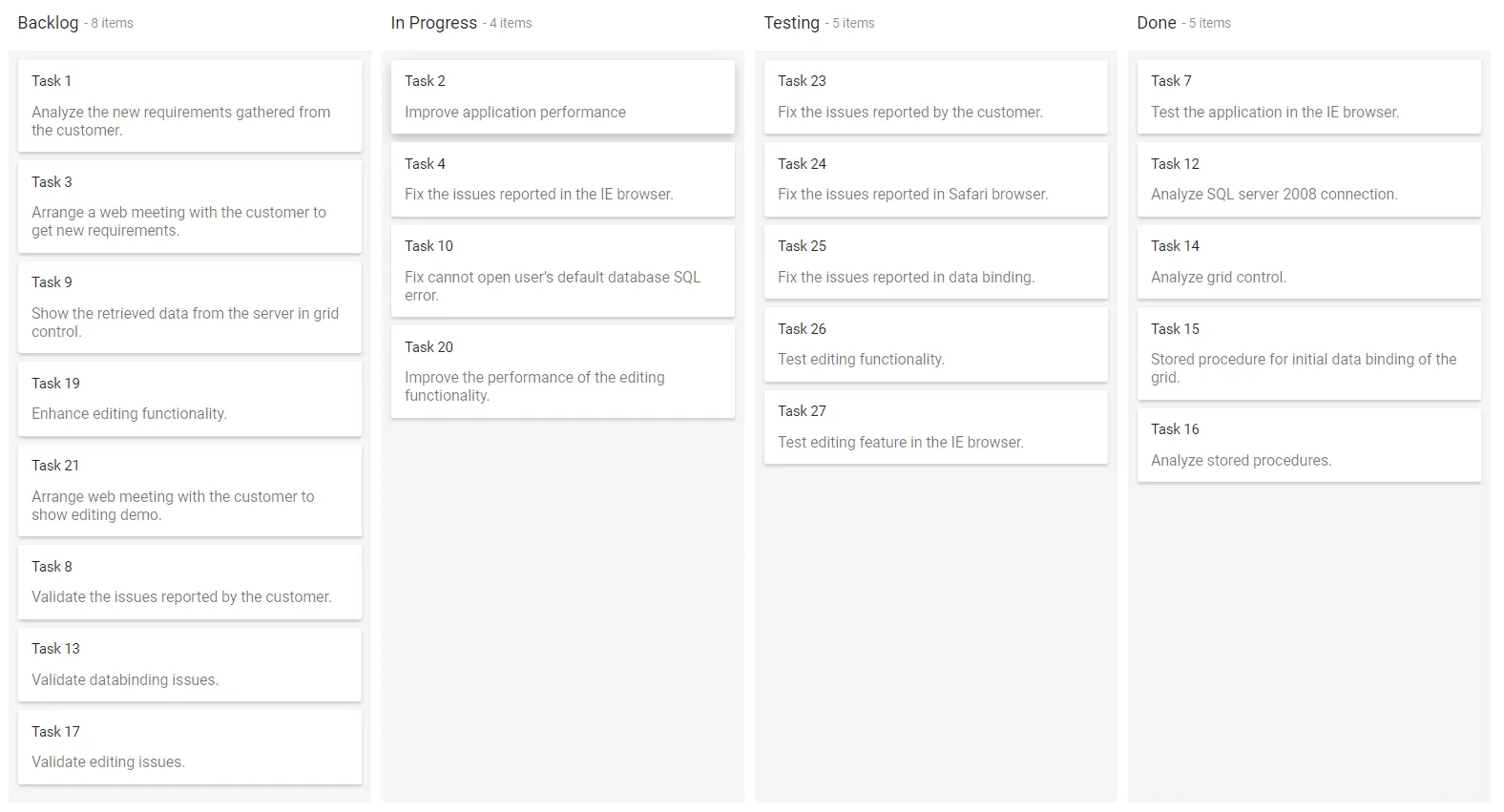

Blazor Kanban Column with Multi Key

Header text

You can provide the column header text of Kanban columns using the HeaderText property. If you have not specified any header text, it will render the header without any text.

Header template

You can customize the column header with Template property as shown in the following code.

To get start quickly with Blazor Kanban component using Templates, you can check on this video.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="Review" KeyField="@(new List<string>() {"Review"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

<style type="text/css">
    .e-kanban .header-template-wrap {
        display: inline-flex;
        font-size: 15px;
        font-weight: 400;
    }

        .e-kanban .header-template-wrap .header-icon {
            font-family: "KanbanHeaderIcons";
            margin-top: 3px;
            width: 10%;
        }

        .e-kanban .header-template-wrap .header-text {
            margin-left: 15px;
        }

    .e-kanban .card-header {
        padding-left: 12px;
    }

    .e-kanban .Open::before {
        content: "\e700";
        color: #0251cc;
        font-size: 16px;
    }

    .e-kanban .InProgress::before {
        content: "\e703";
        color: #ea9713;
        font-size: 16px;
    }

    .e-kanban .Review::before {
        content: "\e701";
        color: #8e4399;
        font-size: 16px;
    }

    .e-kanban .Close::before {
        content: "\e702";
        color: #63ba3c;
        font-size: 16px;
    }

    @@font-face {
        font-family: "KanbanHeaderIcons";
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tSfUAAAEoAAAAVmNtYXDnE+dkAAABlAAAADxnbHlmg4weAgAAAdwAAAhQaGVhZBfH57sAAADQAAAANmhoZWEIVQQGAAAArAAAACRobXR4FAAAAAAAAYAAAAAUbG9jYQNeBi4AAAHQAAAADG1heHABGAFgAAABCAAAACBuYW1lH65UOQAACiwAAALNcG9zdFsyKlEAAAz8AAAAUgABAAAEAAAAAFwEAAAAAAAD+AABAAAAAAAAAAAAAAAAAAAABQABAAAAAQAA7pb8lF8PPPUACwQAAAAAANpY0WMAAAAA2ljRYwAAAAAD+AP4AAAACAACAAAAAAAAAAEAAAAFAVQACQAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnAwQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAAAAACAAAAAwAAABQAAwABAAAAFAAEACgAAAAEAAQAAQAA5wP//wAA5wD//wAAAAEABAAAAAEAAgADAAQAAAAAAMwCBgKSBCgABAAAAAAD+AP4ACEAQwBlAKkAAAEfBw8HIS8HPwclHwcPByEvBz8HJR8HDwchLwc/BycRHw8hPw8RLw8hDw4CXgcGBQUEAwEBAQEDBAUFBgf+hgYGBQUEAwEBAQEDBAUFBgYCOAYGBQUEAwEBAQEDBAUFBgb9yAYGBQUEAwEBAQEDBAUFBgYCOAYGBQUEAwEBAQEDBAUFBgb9yAYGBQUEAwEBAQEDBAUFBgbcAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgFDAQEDBAUFBgYHBgUFBAMBAQEBAwQFBQYHBgYFBQQDAQG9AQEDBAUFBgcGBgUFBAMBAQEBAwQFBQYGBwYFBQQDAQG9AQEDBAUFBgYHBgUFBAMBAQEBAwQFBQYHBgYFBQQDAQGz/SANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDgAABAAAAAAD+AP4AD8AggDUARgAAAEfBw8PLw41Pw8fBicPDx8PMz8OLxAHNzMfEhUPESsBLxA9AT8UJREfDyE/DxEvDyEPDgJlCAcGBgQCAgEBAgMEBQcHCAkJCwsMDAwNDgwNDAsLCgkICAYFAwMBAQMDBQUHBwgJCQoLCwwMDA4MDAwLCgqEDg8PDw4PDw8VFBQUExMTEhUWFhYXFxgYEhMSERISEREUEBEREBESERkZGRgXFxcXEA8QEBAREREWFxYVFhUWFhIeFAsXGBkYGRkYGSATExISEhIRBQMBAgICHBkaGhscGx0UExMTExMTExoUFRQVFBUVHBoaGhkYGRkEAgIDGBQVFhYXFxcREREQEREQEQ8ODv4aAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgJXCQoKCwsMDAwNDAwMCgsJCQgHBgUEAwIBAQIDBQUHCAkJCgsMCw0MDQwLDAoLCQkJBwcGBQQCAgEBAgMEBQYIWQMEBQYGBwgJDg4PERETExUYFxUTEhAPDgkIBwUFAwEBAgIEBQYHCA0QEBMUFhcaEREQDw8NDQ0PDQsJCAYEAwEBMAIEBggJDA4PFg8PERESFBQHBwYGBgUEIBsZFhUTERAJCAYGBAMCAgQFBggJChAREhUWGBoeCAUFBAYHGxcVFBMREQ8KCQgHBgYEBAMCAYT9IA0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0OAAIAAAAAA/gD+AArAG8AAAEfAhUPAwEPAy8INT8GMx8DAT8DHwIlER8PIT8PES8PIQ8OAvMEAwIBAQME/r8FBQYGBgYFBXkEAwEBAgMEBQUGBgYGBgViASoFBgYGBgYF/RoBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0ODf0gDQ4NDQwLCgoJCAcFBQMCArQFBgYGBgYFBf7FBAMBAQEBAwR2BQUGBgYGBgUEAwEBAgMEYAElBAMBAQEBA7j9IA0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0OAAAJAAAAAAP4A/gAIQBDAGUAhwCpAMsA7QEPAVMAAAEVDwcvBzU/Bx8GNx8EDwYrAS8GPQE/BTsBHwEFHwMPBysBLwU9AT8GOwEfASUfBw8HIy8HPwchHwcPByMvBz8HJR8DDwcrAS8FPQE/BjsBHwEFHwMdAQ8FKwEvBz8GOwEfASUVDwcvBzU/Bx8GJREfDyE/DxEvDyEPDgIgAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAopiBAMCAQECAwQFBQYGBgYFBWIEAwICAwQFBQYGBgYF/t8EAwIBAQIDBGIFBQYGBgYFBQQDAgIDBGIFBQYGBgYFAdwHBgUFBAMBAQEBAwQFBQYHigYGBgQEAwIBAQIDBAQGBgb+YAYGBgQEAwIBAQIDBAQGBgaKBwYFBQQDAQEBAQMEBQUGBwJlBAMCAQECAwRiBQUGBgYGBQUEAwICAwRiBQUGBgYGBf4bYgQDAgIDBAUFBgYGBgUFYgQDAgEBAgMEBQUGBgYGBQEEAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAv3pAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgEwigcGBQUEAwEBAQEDBAUFBgeKBgYGBAQDAgEBAgMEBAYGTWIFBQYGBgYFBQQDAgIDBGIFBQYGBgYFBQQDAgIDBAUFBgYGBgUFYgQDAgIDBAUFBgYGBgUFYgQDAgIDmQECAwQEBgYGBgYGBAQDAgEBAgMEBAYGBgYGBgQEAwIBAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAgHrBQUGBgYGBQViBAMCAgMEBQUGBgYGBQViBAMCAgMEYgUFBgYGBgUFBAMCAgMEYgUFBgYGBgUFBAMCAgNLigYGBgQEAwIBAQIDBAQGBgaKBwYFBQQDAQEBAQMEBQUGD/0gDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg0C4A0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4AAAAAEgDeAAEAAAAAAAAAAQAAAAEAAAAAAAEAFQABAAEAAAAAAAIABwAWAAEAAAAAAAMAFQAdAAEAAAAAAAQAFQAyAAEAAAAAAAUACwBHAAEAAAAAAAYAFQBSAAEAAAAAAAoALABnAAEAAAAAAAsAEgCTAAMAAQQJAAAAAgClAAMAAQQJAAEAKgCnAAMAAQQJAAIADgDRAAMAAQQJAAMAKgDfAAMAAQQJAAQAKgEJAAMAAQQJAAUAFgEzAAMAAQQJAAYAKgFJAAMAAQQJAAoAWAFzAAMAAQQJAAsAJAHLIEthbmJhbiBwcmlvcml0eSBpY29uc1JlZ3VsYXJLYW5iYW4gcHJpb3JpdHkgaWNvbnNLYW5iYW4gcHJpb3JpdHkgaWNvbnNWZXJzaW9uIDEuMEthbmJhbiBwcmlvcml0eSBpY29uc0ZvbnQgZ2VuZXJhdGVkIHVzaW5nIFN5bmNmdXNpb24gTWV0cm8gU3R1ZGlvd3d3LnN5bmNmdXNpb24uY29tACAASwBhAG4AYgBhAG4AIABwAHIAaQBvAHIAaQB0AHkAIABpAGMAbwBuAHMAUgBlAGcAdQBsAGEAcgBLAGEAbgBiAGEAbgAgAHAAcgBpAG8AcgBpAHQAeQAgAGkAYwBvAG4AcwBLAGEAbgBiAGEAbgAgAHAAcgBpAG8AcgBpAHQAeQAgAGkAYwBvAG4AcwBWAGUAcgBzAGkAbwBuACAAMQAuADAASwBhAG4AYgBhAG4AIABwAHIAaQBvAHIAaQB0AHkAIABpAGMAbwBuAHMARgBvAG4AdAAgAGcAZQBuAGUAcgBhAHQAZQBkACAAdQBzAGkAbgBnACAAUwB5AG4AYwBmAHUAcwBpAG8AbgAgAE0AZQB0AHIAbwAgAFMAdAB1AGQAaQBvAHcAdwB3AC4AcwB5AG4AYwBmAHUAcwBpAG8AbgAuAGMAbwBtAAAAAAIAAAAAAAAACgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABQECAQMBBAEFAQYACFRvZG9saXN0BlJldmlldwlDb21wbGV0ZWQIUHJvZ3Jlc3MAAAAA) format("truetype");
        font-weight: normal;
        font-style: normal;
    }

    [class^="sf-icon-"],
    [class*=" sf-icon-"] {
        font-family: "KanbanHeaderIcons" !important;
        speak: none;
        font-size: 55px;
        font-style: normal;
        font-weight: normal;
        font-variant: normal;
        text-transform: none;
        line-height: 1;
        -webkit-font-smoothing: antialiased;
        -moz-osx-font-smoothing: grayscale;
    }
</style>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

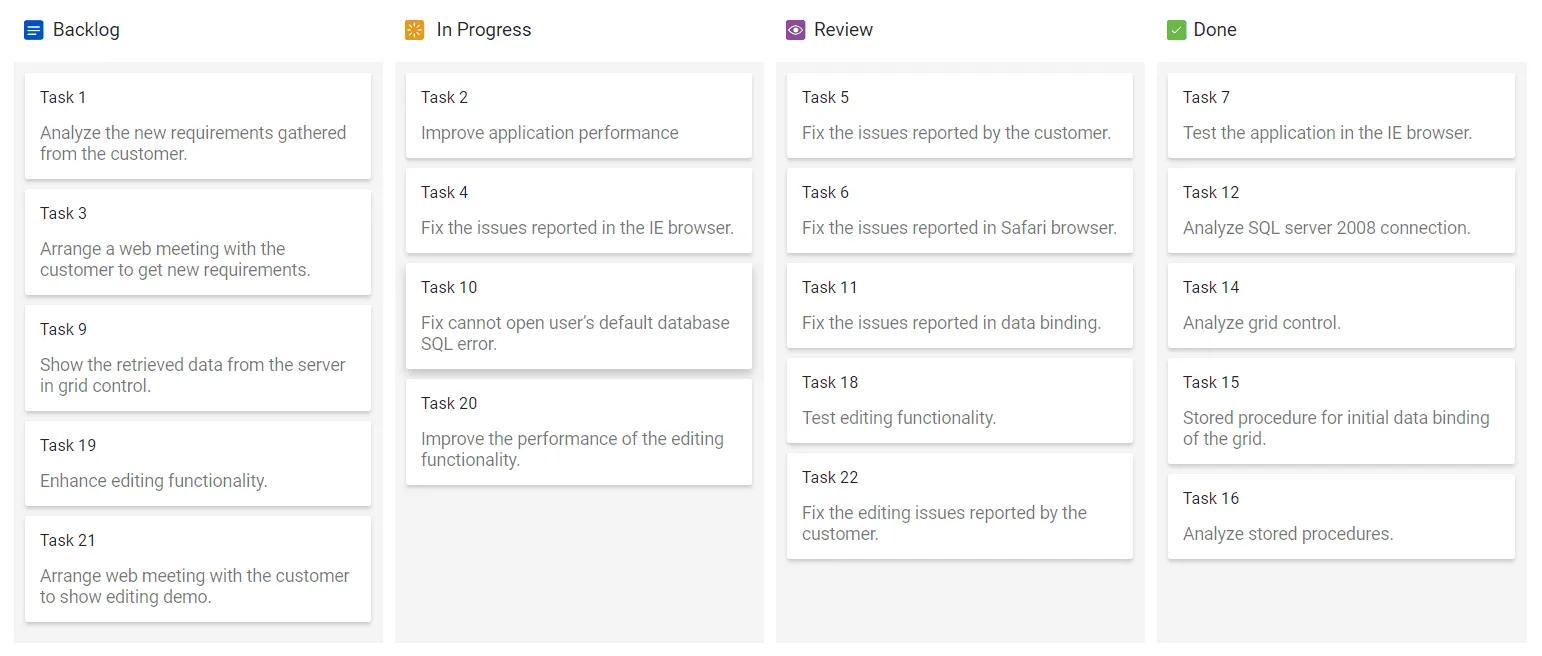

Customizing Column Header in Blazor Kanban

Toggle columns

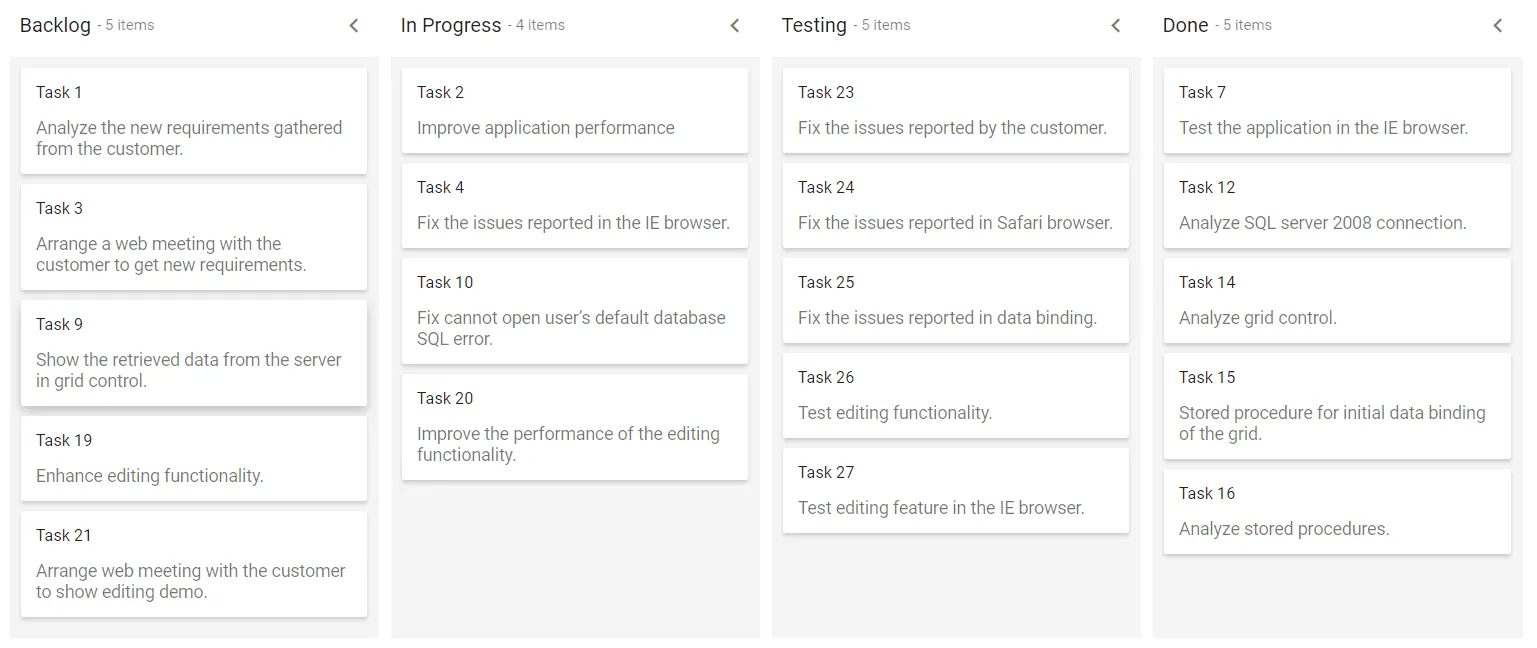

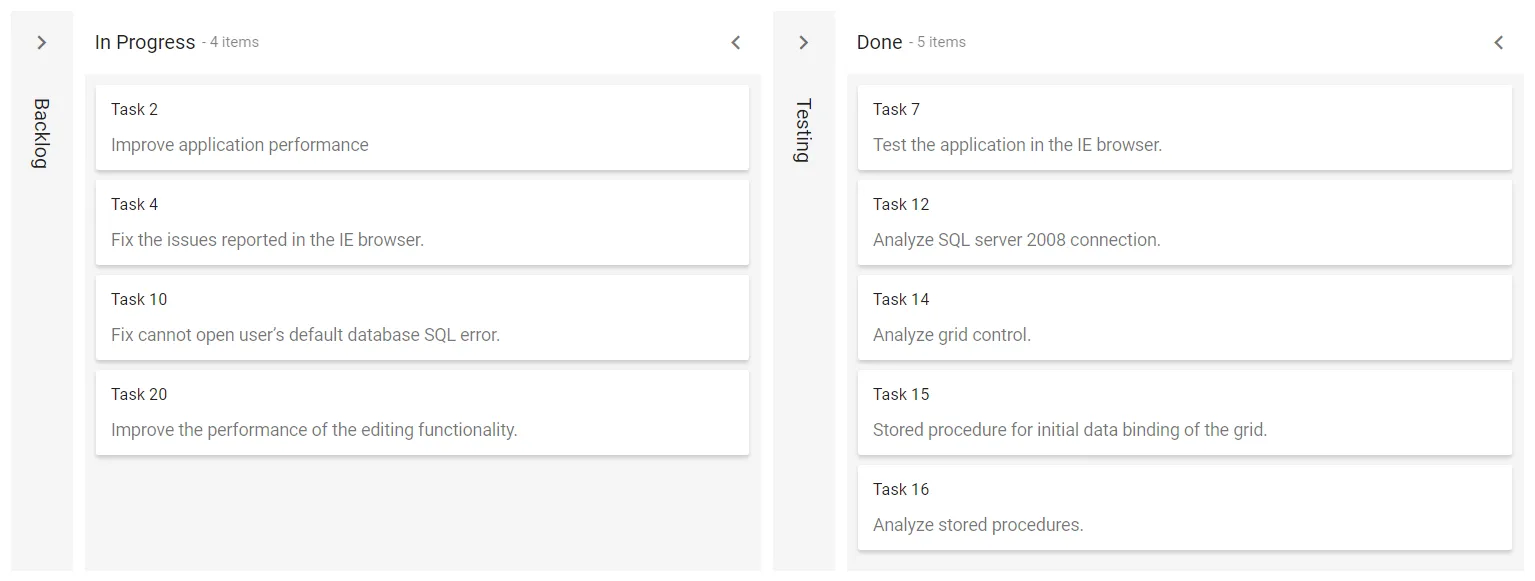

Kanban allows to expand or collapse its columns using AllowToggle in KanbanColumn. When the property is enabled, it will render the expand or collapse icon to the column header.

NOTE

By default, collapsed column width is set to 50px.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})" AllowToggle="true"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

Blazor Kanban with Toggle Columns

Initially collapsed column

By default, all columns are on expanded state when loading the Kanban board initially. But, you can render the columns with collapsed state using the IsExpanded property.

NOTE

The IsExpanded property only works when enabling the AllowToggle property on particular column.

In the following example, the Backlog column is collapsed on initialization of Kanban board.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})" AllowToggle="true" IsExpanded="false"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})" AllowToggle="true" IsExpanded="false"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})" AllowToggle="true"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

Blazor Kanban with Collapsed Column

Stacked headers

Stacked headers are the additional headers to column header that will group the similar columns. Define the grouping of columns Key value to the KeyField property and provide the custom header text name to grouped columns using the Text property in KanbanStackedHeaders.

In the following code, the kanban columns ‘InProgress, Review’ are grouped under ‘Development Phase’ category.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="To Do" KeyField="@(new List<string>() {"Open"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanStackedHeaders>
        <KanbanStackedHeader Text="To Do" KeyFields="@(new List<string>() {"Open"})"></KanbanStackedHeader>
        <KanbanStackedHeader Text="Development Phase" KeyFields="@(new List<string>() {"InProgress", "Testing"})"></KanbanStackedHeader>
        <KanbanStackedHeader Text="Done" KeyFields="@(new List<string>() {"Close"})"></KanbanStackedHeader>
    </KanbanStackedHeaders>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string Id { get; set; }
        public string Title { get; set; }
        public string Status { get; set; }
        public string Summary { get; set; }
        public string Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

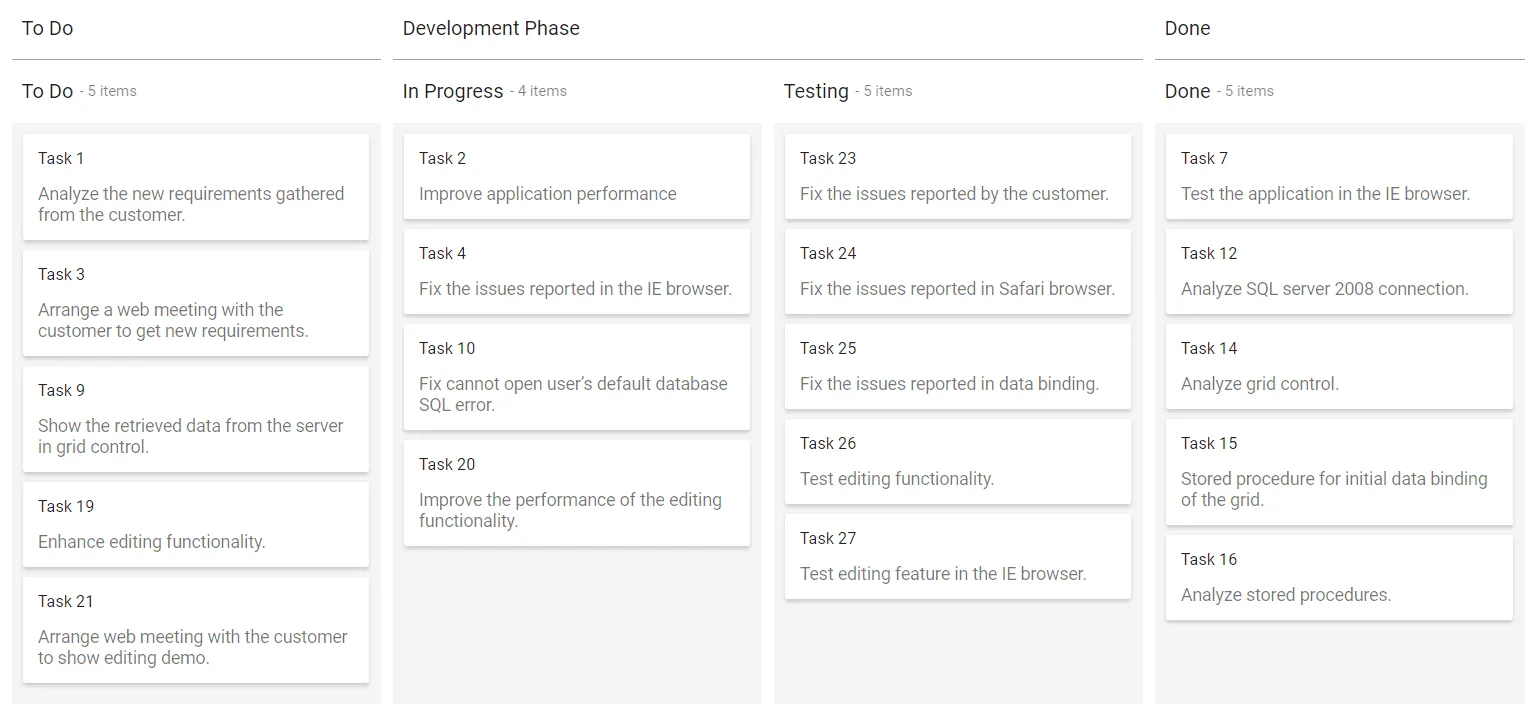

Blazor Kanban with Stacked Header
