Drag and Drop in Blazor ListBox

14 Aug 20267 minutes to read

The Blazor ListBox supports dragging a single item or a group of selected items and dropping them within the same ListBox or into another ListBox.

Customize drag-and-drop behavior by handling the following events on the ListBoxEvents child component:

Events Description
DragStart Triggers when dragging starts for the selected item(s).
OnDrop Triggers before the selected item(s) are dropped.
Dropped Triggers after the selected item(s) are dropped.

Single ListBox

Drag and drop within a single ListBox can be achieved by setting the AllowDragAndDrop property to true.

@using Syncfusion.Blazor.DropDowns

<SfListBox TValue="string[]" DataSource="@GroupA" TItem="CountryCode" AllowDragAndDrop="true">
<ListBoxFieldSettings Text="Name" Value="Code" />
</SfListBox>

@code {
    public List<CountryCode> GroupA = new List<CountryCode>
    {
        new CountryCode{ Name = "Australia", Code = "AU" },
        new CountryCode{ Name = "Bermuda", Code = "BM" },
        new CountryCode{ Name = "Canada", Code = "CA" },
        new CountryCode{ Name = "Cameroon", Code = "CM" },
        new CountryCode{ Name = "Denmark", Code = "DK" },
        new CountryCode{ Name = "France", Code = "FR" },
        new CountryCode{ Name = "Finland", Code = "FI" },
        new CountryCode{ Name = "Germany", Code = "DE" },
        new CountryCode{ Name = "Hong Kong", Code = "HK" }
    };

    public class CountryCode {
        public string Name  { get; set; }
        public string Code  { get; set; }
    }
}

Dragging Item within Blazor ListBox

Multiple ListBox

Enable drag and drop between two or more ListBoxes by setting AllowDragAndDrop to true and assigning the same Scope value to each ListBox. The Scope value is what groups the ListBoxes for cross-list drag-and-drop. The HTML element IDs that wrap each ListBox must remain unique and are independent of Scope.

@using Syncfusion.Blazor.DropDowns

<div id="listbox1">
    <h4>Group A</h4>
    <SfListBox TValue="string[]" DataSource="@GroupA" AllowDragAndDrop="true" Scope="combined-list" Height="290px" TItem="CountryCode">
        <ListBoxFieldSettings Text="Name" Value="Code" />
    </SfListBox>
</div>
<div id="listbox2">
    <h4>Group B</h4>
    <SfListBox TValue="string[]" DataSource="@GroupB" Scope="combined-list" AllowDragAndDrop="true" Height="290px" TItem="CountryCode">
        <ListBoxFieldSettings Text="Name" Value="Code" />
    </SfListBox>
</div>

@code {
    public List<CountryCode> GroupA = new List<CountryCode>
    {
        new CountryCode{ Name = "Australia", Code = "AU" },
        new CountryCode{ Name = "Bermuda", Code = "BM" },
        new CountryCode{ Name = "Canada", Code = "CA" },
        new CountryCode{ Name = "Cameroon", Code = "CM" },
        new CountryCode{ Name = "Denmark", Code = "DK" },
        new CountryCode{ Name = "France", Code = "FR" },
        new CountryCode{ Name = "Finland", Code = "FI" },
        new CountryCode{ Name = "Germany", Code = "DE" },
        new CountryCode{ Name = "Hong Kong", Code = "HK" }
    };

    public List<CountryCode> GroupB = new List<CountryCode>
    {
        new CountryCode{ Name = "India", Code = "IN" },
        new CountryCode{ Name = "Italy", Code = "IT" },
        new CountryCode{ Name = "Japan", Code = "JP" },
        new CountryCode{ Name = "Mexico", Code = "MX" },
        new CountryCode{ Name = "Norway", Code = "NO" },
        new CountryCode{ Name = "Poland", Code = "PL" },
        new CountryCode{ Name = "Switzerland", Code = "CH" },
        new CountryCode{ Name = "United Kingdom", Code = "GB" },
        new CountryCode{ Name = "United States", Code = "US" }
    };

    public class CountryCode
    {
        public string Name { get; set; }
        public string Code { get; set; }
    }
}

<style>
    #listbox1 {
        width: 48%;
        float: left;
    }

    #listbox2 {
        width: 48%;
        float: right;
    }
</style>

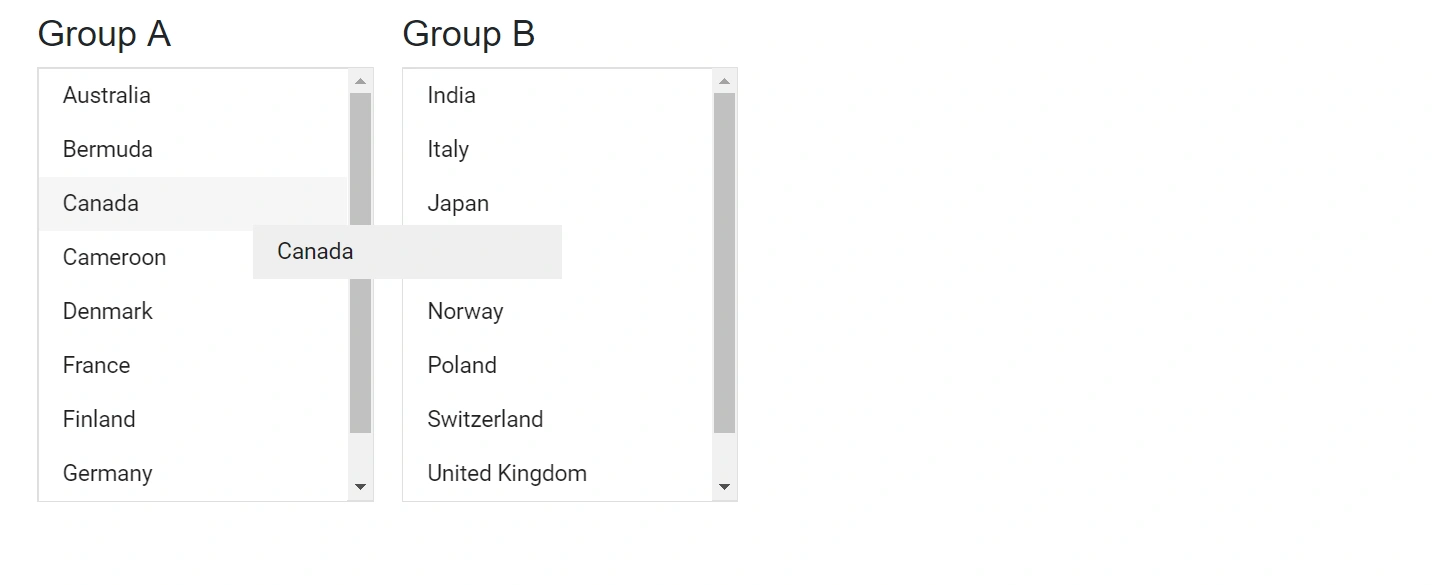

Dragging items between multiple Blazor ListBoxes

Dual ListBox with drag and drop

The toolbar and drag-and-drop actions between two ListBoxes can be enabled by assigning unique element IDs and the same Scope value to both instances. Toolbar actions operate across ListBoxes that share the same Scope.

@using Syncfusion.Blazor.DropDowns

<div id="listbox1">
    <h4>Group A</h4>
    <SfListBox TValue="string[]" id="scope1" Scope="scope1" DataSource="@GroupA" TItem="CountryCode" AllowDragAndDrop="true">
        <ListBoxFieldSettings Text="Name"></ListBoxFieldSettings>
        <ListBoxToolbarSettings Items="@Items"></ListBoxToolbarSettings>
    </SfListBox>
</div>
<div id="listbox2">
    <h4>Group B</h4>
    <SfListBox TValue="string[]" id="scope2" Scope="scope1" DataSource="@GroupB" TItem="CountryCode" AllowDragAndDrop="true">
        <ListBoxFieldSettings Text="Name"></ListBoxFieldSettings>
    </SfListBox>
</div>

@code {
    public string[] Items = new string[] { "MoveTo", "MoveFrom", "MoveAllTo", "MoveAllFrom" };

    public List<CountryCode> GroupA = new List<CountryCode>
    {
        new CountryCode{ Name = "Australia", Code = "AU" },
        new CountryCode{ Name = "Bermuda", Code = "BM" },
        new CountryCode{ Name = "Canada", Code = "CA" },
        new CountryCode{ Name = "Cameroon", Code = "CM" },
        new CountryCode{ Name = "Denmark", Code = "DK" }
    };

    public List<CountryCode> GroupB = new List<CountryCode>
    {
        new CountryCode{ Name = "India", Code = "IN" },
        new CountryCode{ Name = "Italy", Code = "IT" },
        new CountryCode{ Name = "Japan", Code = "JP" },
        new CountryCode{ Name = "Mexico", Code = "MX" },
        new CountryCode{ Name = "Norway", Code = "NO" }
    };

    public class CountryCode
    {
        public string Name { get; set; }
        public string Code { get; set; }
    }
}

<style>
    #listbox1 {
        width: 48%;
        float: left;
    }

    #listbox2 {
        width: 48%;
        float: right;
    }
</style>

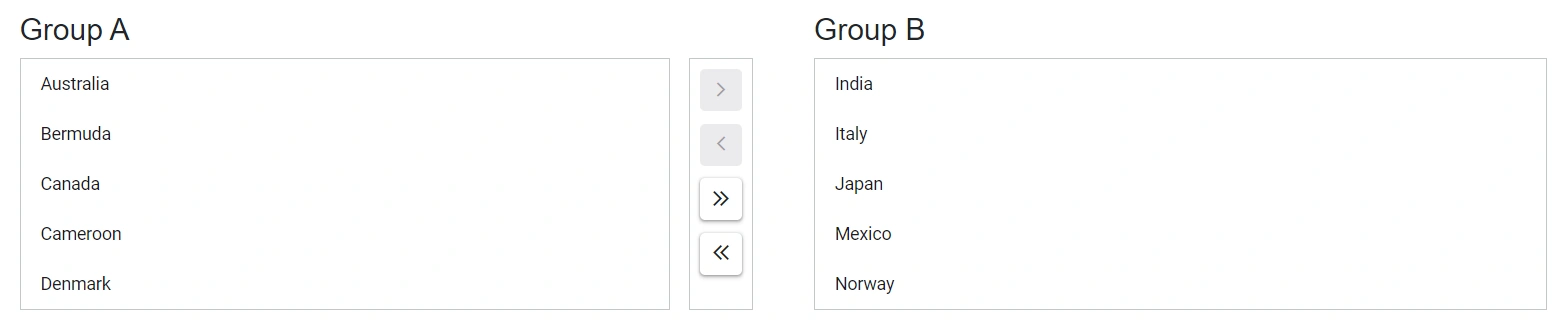

Dragging Item between Blazor dual ListBox
