Annotations in Blazor Maps component

31 Jan 20226 minutes to read

Annotations are used to mark the specific area of interest in the Maps with texts, shapes, or images. Any number of annotations can be added to the Maps component.

Annotation

By using the ContentTemplate property of MapsAnnotation, text content or an HTML element can be specified to render a new HTML element in Maps.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsAnnotations>
        <MapsAnnotation X="0%" Y="50%">
            <ContentTemplate>
                <div>
                    <img style="height: 30px; width: 40px" src='src/maps/images/wheel.png'>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
    </MapsAnnotations>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/world-map.json"}'
                   ShapePropertyPath='new string[] {"name"}' TValue="string">
        </MapsLayer>
    </MapsLayers>
</SfMaps>

Blazor Maps with Annotation

Annotation customization

Changing the z-index

The stack order of an annotation element can be changed using theĀ ZIndex property in the MapsAnnotation.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsAnnotations>
        <MapsAnnotation X="0%" Y="50%" ZIndex= "-1">
            <ContentTemplate>
                <div>
                    <div id="first"><h1>Maps</h1></div>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
    </MapsAnnotations>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/world-map.json"}'
                   ShapePropertyPath='new string[] {"name"}' TValue="string">
        </MapsLayer>
    </MapsLayers>
</SfMaps>

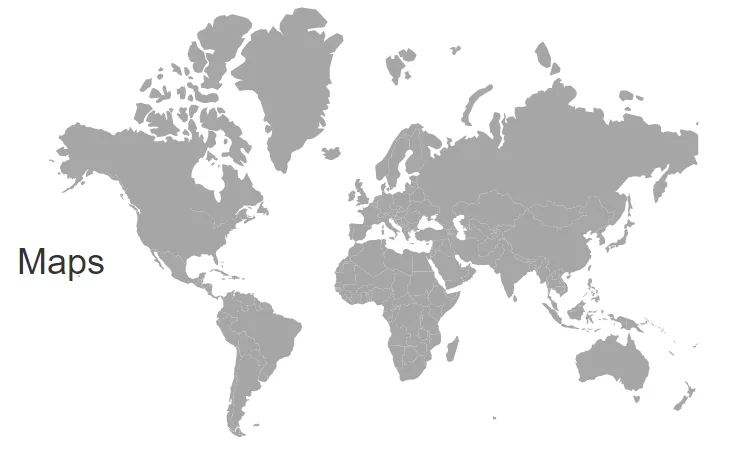

Changing ZIndex in Blazor Maps Annotation

Positioning an annotation

Annotations can be placed anywhere in the Maps by specifying percentage values to the X and Y properties in the MapsAnnotation.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsAnnotations>
        <MapsAnnotation X="20%" Y="50%" ZIndex= "-1">
            <ContentTemplate>
                <div>
                    <div id="first"><h1>Maps</h1></div>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
    </MapsAnnotations>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/world-map.json"}'
                   ShapePropertyPath='new string[] {"name"}' TValue="string">
        </MapsLayer>
    </MapsLayers>
</SfMaps>

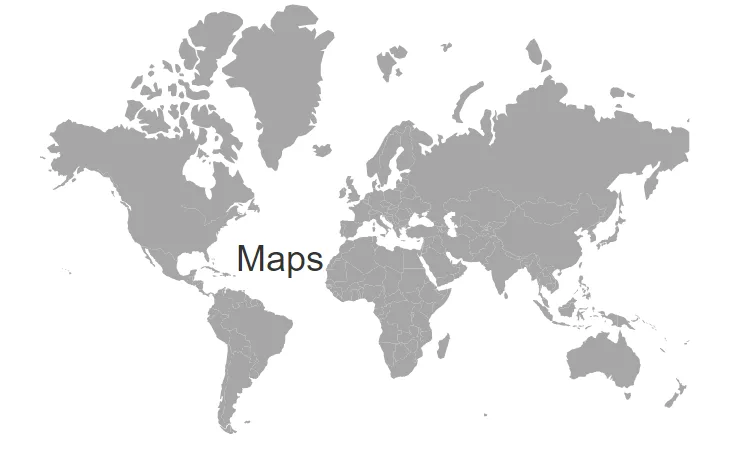

Changing Annotation Position in Blazor Maps

Alignment of an annotation

Annotations can be aligned using the HorizontalAlignment and VerticalAlignment properties in the MapsAnnotation. The possible values can be Center, Far, Near and None.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsAnnotations>
        <MapsAnnotation X="20%" Y="10%" ZIndex= "-1" VerticalAlignment="AnnotationAlignment.Center" HorizontalAlignment="AnnotationAlignment.Center">
            <ContentTemplate>
                <div>
                    <div id="first"><h1>Maps</h1></div>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
    </MapsAnnotations>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/world-map.json"}'
                   ShapePropertyPath='new string[] {"name"}' TValue="string">
        </MapsLayer>
    </MapsLayers>
</SfMaps>

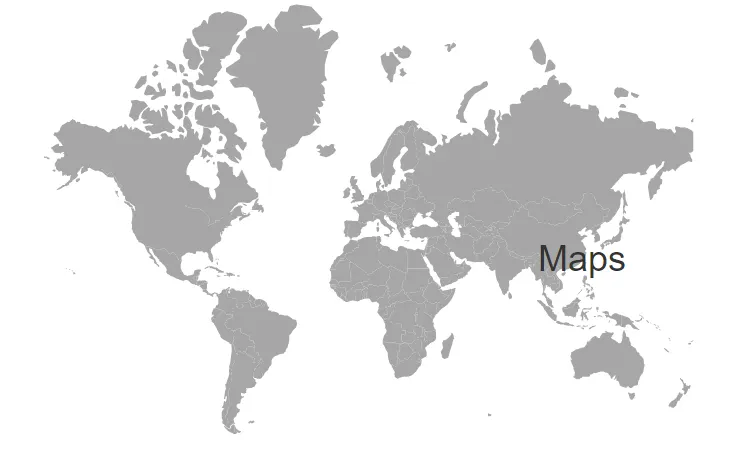

Changing Alignment of Blazor Maps Annotation

Multiple Annotation

Multiple annotations can be added to the Maps by adding multiple MapsAnnotation in the MapsAnnotations and customization for the annotations can be done with the MapsAnnotation.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsAnnotations>
        <MapsAnnotation X="0%" Y="50%">
            <ContentTemplate>
                <div>
                    <img style="height: 30px; width: 40px" src='src/maps/images/wheel.png'>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
        <MapsAnnotation X="20%" Y="10%" ZIndex= "-1" VerticalAlignment="AnnotationAlignment.Center" HorizontalAlignment="AnnotationAlignment.Center">
            <ContentTemplate>
                <div>
                    <div id="first"><h1>Maps</h1></div>
                </div>
            </ContentTemplate>
        </MapsAnnotation>
    </MapsAnnotations>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/world-map.json"}'
                   ShapePropertyPath='new string[] {"name"}' TValue="string">
        </MapsLayer>
    </MapsLayers>
</SfMaps>

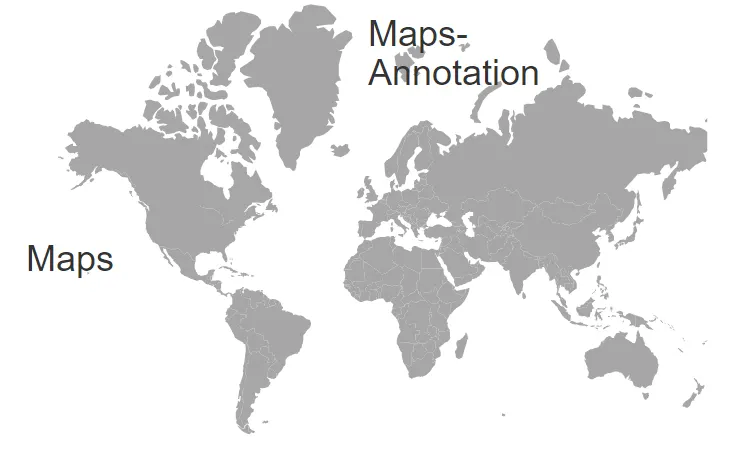

Blazor Maps with Multiple Annotation
