Polygon shape in Blazor Maps Component

19 Sep 202421 minutes to read

The Maps component allows you to add polygon shape to a geometry map or an online map by using the properties in the MapsPolygon tag. This section describes how to add polygon shape to the map and customize them.

Adding polygon shape

The polygon shape can be rendered over the map layer by defining the Points property in the MapsPolygon tag in the Maps component. The Points property uses a collection of latitude and longitude values to define the polygon shape.

The MapsPolygon tag provides the following properties for customizing the polygon shape of the Maps component.

• Fill - It is used to change the color of the polygon shape.
• Opacity - It is used to change the opacity of the polygon shape.
• BorderColor - It is used to change the color of the border in the polygon shape.
• BorderWidth - It is used to change the width of the border in the polygon shape.
• BorderOpacity - It is used to change the opacity of the border in the polygon shape.

You can also include “n” polygon shapes inside the MapsPolygons tag.

The following example shows how to customize the polygon shape over the geometry map.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsPolygons>
                <MapsPolygon Points="Points" Fill="red" Opacity="0.7" BorderColor="green" BorderWidth="2" BorderOpacity="0.7"></MapsPolygon>
            </MapsPolygons>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    List<Coordinate> Points = new List<Coordinate>();
    protected override async Task OnInitializedAsync()
    {
        await base.OnInitializedAsync();
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
        Points.Add(new Coordinate() { Longitude = 37.50029619722466, Latitude = 24.299419888989462 });
        Points.Add(new Coordinate() { Longitude = 39.22241423764024, Latitude = 22.638529461838658 });
        Points.Add(new Coordinate() { Longitude = 38.95650769309776, Latitude = 21.424998160017495 });
        Points.Add(new Coordinate() { Longitude = 40.19963938650778, Latitude = 20.271205391339606 });
        Points.Add(new Coordinate() { Longitude = 41.76547269134551, Latitude = 18.315451049867193 });
        Points.Add(new Coordinate() { Longitude = 42.78452077838921, Latitude = 16.097235052947966 });
        Points.Add(new Coordinate() { Longitude = 43.36984949591576, Latitude = 17.188572054533054 });
        Points.Add(new Coordinate() { Longitude = 44.12558191797012, Latitude = 17.407258102232234 });
        Points.Add(new Coordinate() { Longitude = 46.69027032797584, Latitude = 17.33342243475734 });
        Points.Add(new Coordinate() { Longitude = 47.09312386141585, Latitude = 16.97087769526452 });
        Points.Add(new Coordinate() { Longitude = 48.3417299826302, Latitude = 18.152700711188004 });
        Points.Add(new Coordinate() { Longitude = 49.74762591400318, Latitude = 18.81544363931681 });
        Points.Add(new Coordinate() { Longitude = 52.41428026336621, Latitude = 18.9035706497573 });
        Points.Add(new Coordinate() { Longitude = 55.272683129240335, Latitude = 20.133861012918544 });
        Points.Add(new Coordinate() { Longitude = 55.60121336079203, Latitude = 21.92042703112351 });
        Points.Add(new Coordinate() { Longitude = 55.08204399107967, Latitude = 22.823302662258882 });
        Points.Add(new Coordinate() { Longitude = 52.743894337844154, Latitude = 22.954463486477437 });
        Points.Add(new Coordinate() { Longitude = 51.47035908651375, Latitude = 24.35818837668566 });
        Points.Add(new Coordinate() { Longitude = 51.122553219055874, Latitude = 24.666679732426346 });
        Points.Add(new Coordinate() { Longitude = 51.58731671256831, Latitude = 25.173806925822717 });
        Points.Add(new Coordinate() { Longitude = 51.35950585992913, Latitude = 25.84556484481108 });
        Points.Add(new Coordinate() { Longitude = 51.088770529661275, Latitude = 26.168494193631147 });
        Points.Add(new Coordinate() { Longitude = 50.78527056538036, Latitude = 25.349051242147596 });
        Points.Add(new Coordinate() { Longitude = 50.88330288802666, Latitude = 24.779242606720743 });
        Points.Add(new Coordinate() { Longitude = 50.19702490702369, Latitude = 25.66825106363693 });
        Points.Add(new Coordinate() { Longitude = 50.066461167339924, Latitude = 26.268905608606616 });
        Points.Add(new Coordinate() { Longitude = 49.645896067213215, Latitude = 27.15116474192905 });
        Points.Add(new Coordinate() { Longitude = 48.917371072320805, Latitude = 27.55738830340198 });
        Points.Add(new Coordinate() { Longitude = 48.3984720209192, Latitude = 28.566207269716173 });
        Points.Add(new Coordinate() { Longitude = 47.68851714518985, Latitude = 28.5938991332588 });
        Points.Add(new Coordinate() { Longitude = 47.45059089191449, Latitude = 29.009321449856984 });
        Points.Add(new Coordinate() { Longitude = 44.73549453609391, Latitude = 29.157358362696385 });
        Points.Add(new Coordinate() { Longitude = 41.79487372890989, Latitude = 31.23489959729713 });
        Points.Add(new Coordinate() { Longitude = 40.36977176033773, Latitude = 31.9642352513131 });
        Points.Add(new Coordinate() { Longitude = 39.168270913149826, Latitude = 32.18348471414393 });
        Points.Add(new Coordinate() { Longitude = 37.019253492546454, Latitude = 31.47710220862595 });
        Points.Add(new Coordinate() { Longitude = 37.99644645508337, Latitude = 30.4851028633376 });
        Points.Add(new Coordinate() { Longitude = 37.67756530485232, Latitude = 30.3636358598429 });
        Points.Add(new Coordinate() { Longitude = 37.50181466030105, Latitude = 29.960155516804974 });
        Points.Add(new Coordinate() { Longitude = 36.700288181129594, Latitude = 29.882136586478993 });
        Points.Add(new Coordinate() { Longitude = 36.100009274845206, Latitude = 29.15308642012721 });
        Points.Add(new Coordinate() { Longitude = 34.85774476486728, Latitude = 29.3103032832622 });
        Points.Add(new Coordinate() { Longitude = 34.64498583263142, Latitude = 28.135787235699823 });
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
    }
}

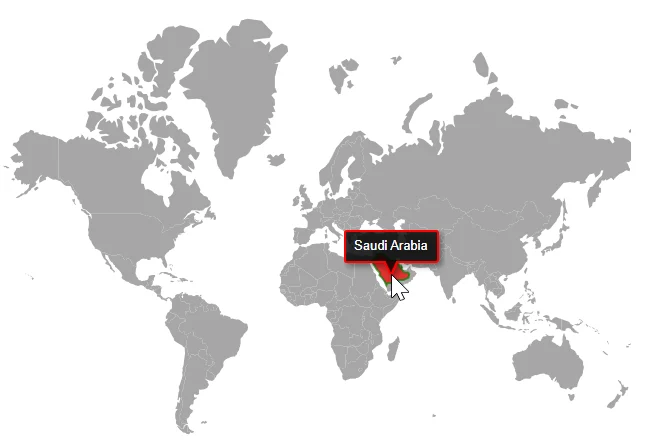

Tooltip

Tooltip is used to display more information about a polygon shape during a mouse or touch interaction. Tooltip and tooltip template can be enabled by setting the Visible property to true in the MapsPolygonTooltipSettings. Additionally, you need to set the desired content as a value to the TooltipText property in the MapsPolygon tag to show the tooltip. If you add ‘n’ numbers of polygon shapes, you can add the TooltipText property to each polygon, which will display the tooltip for the associated polygon shape.

Tooltip customization

The following properties are available in the MapsPolygonTooltipSettings to customize the appearance of the tooltip.

• Fill - Applies the color of the tooltip in the polygon shape.
• BorderColor - To change the color of the border of the tooltip in the polygon shape.
• BorderWidth - To change the width of the border of the tooltip in the polygon shape.
• BorderOpacity - To change the opacity of the border of the tooltip in the polygon shape.
• FontFamily - To change the font family of the text in the tooltip of the polygon shape.
• FontWeight - To change the font weight of the text in the tooltip of the polygon shape.
• FontStyle - To change the font style of the text in the tooltip of the polygon shape.
• FontColor - To change the font color of the text in the tooltip of the polygon shape.
• FontSize - To change the font size of the text in the tooltip of the polygon shape.
• FontOpacity - To change the opacity of the text in the tooltip of the polygon shape.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsPolygons>
                <MapsPolygon Points="Points" Fill="red" TooltipText="Saudi Arabia" Opacity="0.7" BorderColor="green" BorderWidth="2" BorderOpacity="0.7">
                </MapsPolygon>
                <MapsPolygonTooltipSettings Visible="true" BorderColor="Red" BorderWidth="2">
                </MapsPolygonTooltipSettings>
            </MapsPolygons>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    List<Coordinate> Points = new List<Coordinate>();
    protected override async Task OnInitializedAsync()
    {
        await base.OnInitializedAsync();
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
        Points.Add(new Coordinate() { Longitude = 37.50029619722466, Latitude = 24.299419888989462 });
        Points.Add(new Coordinate() { Longitude = 39.22241423764024, Latitude = 22.638529461838658 });
        Points.Add(new Coordinate() { Longitude = 38.95650769309776, Latitude = 21.424998160017495 });
        Points.Add(new Coordinate() { Longitude = 40.19963938650778, Latitude = 20.271205391339606 });
        Points.Add(new Coordinate() { Longitude = 41.76547269134551, Latitude = 18.315451049867193 });
        Points.Add(new Coordinate() { Longitude = 42.78452077838921, Latitude = 16.097235052947966 });
        Points.Add(new Coordinate() { Longitude = 43.36984949591576, Latitude = 17.188572054533054 });
        Points.Add(new Coordinate() { Longitude = 44.12558191797012, Latitude = 17.407258102232234 });
        Points.Add(new Coordinate() { Longitude = 46.69027032797584, Latitude = 17.33342243475734 });
        Points.Add(new Coordinate() { Longitude = 47.09312386141585, Latitude = 16.97087769526452 });
        Points.Add(new Coordinate() { Longitude = 48.3417299826302, Latitude = 18.152700711188004 });
        Points.Add(new Coordinate() { Longitude = 49.74762591400318, Latitude = 18.81544363931681 });
        Points.Add(new Coordinate() { Longitude = 52.41428026336621, Latitude = 18.9035706497573 });
        Points.Add(new Coordinate() { Longitude = 55.272683129240335, Latitude = 20.133861012918544 });
        Points.Add(new Coordinate() { Longitude = 55.60121336079203, Latitude = 21.92042703112351 });
        Points.Add(new Coordinate() { Longitude = 55.08204399107967, Latitude = 22.823302662258882 });
        Points.Add(new Coordinate() { Longitude = 52.743894337844154, Latitude = 22.954463486477437 });
        Points.Add(new Coordinate() { Longitude = 51.47035908651375, Latitude = 24.35818837668566 });
        Points.Add(new Coordinate() { Longitude = 51.122553219055874, Latitude = 24.666679732426346 });
        Points.Add(new Coordinate() { Longitude = 51.58731671256831, Latitude = 25.173806925822717 });
        Points.Add(new Coordinate() { Longitude = 51.35950585992913, Latitude = 25.84556484481108 });
        Points.Add(new Coordinate() { Longitude = 51.088770529661275, Latitude = 26.168494193631147 });
        Points.Add(new Coordinate() { Longitude = 50.78527056538036, Latitude = 25.349051242147596 });
        Points.Add(new Coordinate() { Longitude = 50.88330288802666, Latitude = 24.779242606720743 });
        Points.Add(new Coordinate() { Longitude = 50.19702490702369, Latitude = 25.66825106363693 });
        Points.Add(new Coordinate() { Longitude = 50.066461167339924, Latitude = 26.268905608606616 });
        Points.Add(new Coordinate() { Longitude = 49.645896067213215, Latitude = 27.15116474192905 });
        Points.Add(new Coordinate() { Longitude = 48.917371072320805, Latitude = 27.55738830340198 });
        Points.Add(new Coordinate() { Longitude = 48.3984720209192, Latitude = 28.566207269716173 });
        Points.Add(new Coordinate() { Longitude = 47.68851714518985, Latitude = 28.5938991332588 });
        Points.Add(new Coordinate() { Longitude = 47.45059089191449, Latitude = 29.009321449856984 });
        Points.Add(new Coordinate() { Longitude = 44.73549453609391, Latitude = 29.157358362696385 });
        Points.Add(new Coordinate() { Longitude = 41.79487372890989, Latitude = 31.23489959729713 });
        Points.Add(new Coordinate() { Longitude = 40.36977176033773, Latitude = 31.9642352513131 });
        Points.Add(new Coordinate() { Longitude = 39.168270913149826, Latitude = 32.18348471414393 });
        Points.Add(new Coordinate() { Longitude = 37.019253492546454, Latitude = 31.47710220862595 });
        Points.Add(new Coordinate() { Longitude = 37.99644645508337, Latitude = 30.4851028633376 });
        Points.Add(new Coordinate() { Longitude = 37.67756530485232, Latitude = 30.3636358598429 });
        Points.Add(new Coordinate() { Longitude = 37.50181466030105, Latitude = 29.960155516804974 });
        Points.Add(new Coordinate() { Longitude = 36.700288181129594, Latitude = 29.882136586478993 });
        Points.Add(new Coordinate() { Longitude = 36.100009274845206, Latitude = 29.15308642012721 });
        Points.Add(new Coordinate() { Longitude = 34.85774476486728, Latitude = 29.3103032832622 });
        Points.Add(new Coordinate() { Longitude = 34.64498583263142, Latitude = 28.135787235699823 });
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
    }
}

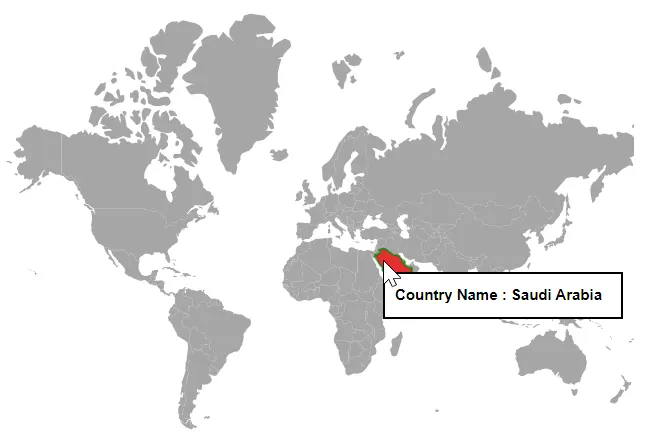

Tooltip template

Any HTML element can be rendered in the tooltip of the polygon shapes using the TooltipTemplate property of the MapsPolygon. If you add ‘n’ numbers of polygon shapes, you can add the TooltipTemplate property to each polygon, which will display the tooltip for the associated polygon shape.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsPolygons>
                <MapsPolygon Points="Points" Fill="red" Opacity="0.7" BorderColor="green" BorderWidth="2" BorderOpacity="0.7">
                    <TooltipTemplate> <div style="width:240px;border: 2px solid #000;padding: 10px;background-color:white;color:black;font-weight:bold;font-size:15px;"> Country Name : Saudi Arabia</div> </TooltipTemplate>
                </MapsPolygon>
                <MapsPolygonTooltipSettings Visible="true"></MapsPolygonTooltipSettings>
            </MapsPolygons>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    List<Coordinate> Points = new List<Coordinate>();
    protected override async Task OnInitializedAsync()
    {
        await base.OnInitializedAsync();
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
        Points.Add(new Coordinate() { Longitude = 37.50029619722466, Latitude = 24.299419888989462 });
        Points.Add(new Coordinate() { Longitude = 39.22241423764024, Latitude = 22.638529461838658 });
        Points.Add(new Coordinate() { Longitude = 38.95650769309776, Latitude = 21.424998160017495 });
        Points.Add(new Coordinate() { Longitude = 40.19963938650778, Latitude = 20.271205391339606 });
        Points.Add(new Coordinate() { Longitude = 41.76547269134551, Latitude = 18.315451049867193 });
        Points.Add(new Coordinate() { Longitude = 42.78452077838921, Latitude = 16.097235052947966 });
        Points.Add(new Coordinate() { Longitude = 43.36984949591576, Latitude = 17.188572054533054 });
        Points.Add(new Coordinate() { Longitude = 44.12558191797012, Latitude = 17.407258102232234 });
        Points.Add(new Coordinate() { Longitude = 46.69027032797584, Latitude = 17.33342243475734 });
        Points.Add(new Coordinate() { Longitude = 47.09312386141585, Latitude = 16.97087769526452 });
        Points.Add(new Coordinate() { Longitude = 48.3417299826302, Latitude = 18.152700711188004 });
        Points.Add(new Coordinate() { Longitude = 49.74762591400318, Latitude = 18.81544363931681 });
        Points.Add(new Coordinate() { Longitude = 52.41428026336621, Latitude = 18.9035706497573 });
        Points.Add(new Coordinate() { Longitude = 55.272683129240335, Latitude = 20.133861012918544 });
        Points.Add(new Coordinate() { Longitude = 55.60121336079203, Latitude = 21.92042703112351 });
        Points.Add(new Coordinate() { Longitude = 55.08204399107967, Latitude = 22.823302662258882 });
        Points.Add(new Coordinate() { Longitude = 52.743894337844154, Latitude = 22.954463486477437 });
        Points.Add(new Coordinate() { Longitude = 51.47035908651375, Latitude = 24.35818837668566 });
        Points.Add(new Coordinate() { Longitude = 51.122553219055874, Latitude = 24.666679732426346 });
        Points.Add(new Coordinate() { Longitude = 51.58731671256831, Latitude = 25.173806925822717 });
        Points.Add(new Coordinate() { Longitude = 51.35950585992913, Latitude = 25.84556484481108 });
        Points.Add(new Coordinate() { Longitude = 51.088770529661275, Latitude = 26.168494193631147 });
        Points.Add(new Coordinate() { Longitude = 50.78527056538036, Latitude = 25.349051242147596 });
        Points.Add(new Coordinate() { Longitude = 50.88330288802666, Latitude = 24.779242606720743 });
        Points.Add(new Coordinate() { Longitude = 50.19702490702369, Latitude = 25.66825106363693 });
        Points.Add(new Coordinate() { Longitude = 50.066461167339924, Latitude = 26.268905608606616 });
        Points.Add(new Coordinate() { Longitude = 49.645896067213215, Latitude = 27.15116474192905 });
        Points.Add(new Coordinate() { Longitude = 48.917371072320805, Latitude = 27.55738830340198 });
        Points.Add(new Coordinate() { Longitude = 48.3984720209192, Latitude = 28.566207269716173 });
        Points.Add(new Coordinate() { Longitude = 47.68851714518985, Latitude = 28.5938991332588 });
        Points.Add(new Coordinate() { Longitude = 47.45059089191449, Latitude = 29.009321449856984 });
        Points.Add(new Coordinate() { Longitude = 44.73549453609391, Latitude = 29.157358362696385 });
        Points.Add(new Coordinate() { Longitude = 41.79487372890989, Latitude = 31.23489959729713 });
        Points.Add(new Coordinate() { Longitude = 40.36977176033773, Latitude = 31.9642352513131 });
        Points.Add(new Coordinate() { Longitude = 39.168270913149826, Latitude = 32.18348471414393 });
        Points.Add(new Coordinate() { Longitude = 37.019253492546454, Latitude = 31.47710220862595 });
        Points.Add(new Coordinate() { Longitude = 37.99644645508337, Latitude = 30.4851028633376 });
        Points.Add(new Coordinate() { Longitude = 37.67756530485232, Latitude = 30.3636358598429 });
        Points.Add(new Coordinate() { Longitude = 37.50181466030105, Latitude = 29.960155516804974 });
        Points.Add(new Coordinate() { Longitude = 36.700288181129594, Latitude = 29.882136586478993 });
        Points.Add(new Coordinate() { Longitude = 36.100009274845206, Latitude = 29.15308642012721 });
        Points.Add(new Coordinate() { Longitude = 34.85774476486728, Latitude = 29.3103032832622 });
        Points.Add(new Coordinate() { Longitude = 34.64498583263142, Latitude = 28.135787235699823 });
        Points.Add(new Coordinate() { Longitude = 34.88539587371454, Latitude = 28.181421087099537 });
    }
}

Changing a Polygon Shape to a Line

The rendered polygon shape can be changed to a line shape by setting the ShapeType property to LineString.

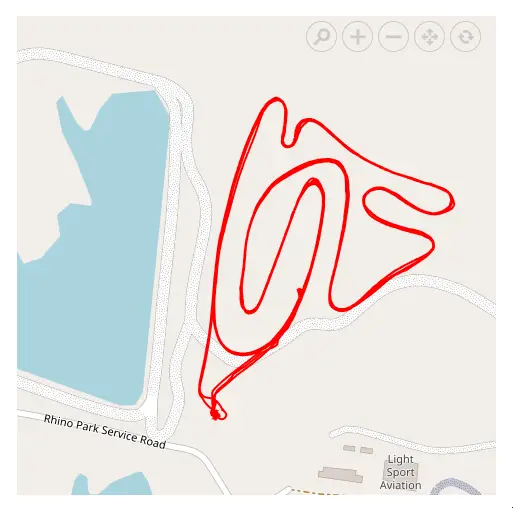

The following example demonstrates how to customize a line shape on an online map, display a tooltip for the line shape, highlight the line shape, and select the line shape on the map. In this example, latitude and longitude values are extracted from coordinates in a JSON file and assigned to the Points property within the MapsPolygon tag.

@using Syncfusion.Blazor.Maps
@inject NavigationManager NavigationManager
@inject HttpClient Http;
@using Newtonsoft.Json;

@if(Coordinates != null)
{
    <SfMaps>
        <MapsCenterPosition Latitude="-25.829397669018562" Longitude="28.539912753179671"></MapsCenterPosition>
        <MapsZoomSettings Enable="true" MinZoom="1" MaxZoom="19" ZoomFactor="17">
            <MapsZoomToolbarSettings>
                <MapsZoomToolbarButton ToolbarItems="new List<ToolbarItem>() { ToolbarItem.Zoom, ToolbarItem.ZoomIn, ToolbarItem.ZoomOut,
            ToolbarItem.Pan, ToolbarItem.Reset }"></MapsZoomToolbarButton>
            </MapsZoomToolbarSettings>
        </MapsZoomSettings>
        <MapsLayers>
            <MapsLayer UrlTemplate="https://tile.openstreetmap.org/level/tileX/tileY.png" TValue="string">
                <MapsPolygons>
                    <MapsPolygon Fill="transparent" BorderColor="red" Points="@Coordinates" TooltipText="Line String" BorderWidth="2" ShapeType="PolygonShapeType.LineString">
                    </MapsPolygon>
                    <MapsPolygonTooltipSettings Visible="true" BorderColor="Red" BorderWidth="1">
                    </MapsPolygonTooltipSettings>
                    <MapsPolygonHighlightSettings Enable=true Fill="yellow" Opacity="0.4">
                        <MapsPolygonHighlightBorder Color="blue" Opacity="1" Width="1"></MapsPolygonHighlightBorder>
                    </MapsPolygonHighlightSettings>
                    <MapsPolygonSelectionSettings Enable=true EnableMultiSelect=false Fill="violet" Opacity="0.8">
                        <MapsPolygonSelectionBorder Color="cyan" Opacity="1" Width="1"></MapsPolygonSelectionBorder>
                    </MapsPolygonSelectionSettings>
                </MapsPolygons>
            </MapsLayer>
        </MapsLayers>
    </SfMaps>

}

@code {
    public List<Coordinate> Coordinates = new List<Coordinate>();
    protected override async Task OnInitializedAsync()
    {
        string path = NavigationManager.BaseUri + "line.json";
        HttpClient httpClient = new HttpClient();
        string response = await Http.GetStringAsync(path);
        GeoJson shapeData = JsonConvert.DeserializeObject<GeoJson>(response);
        for (int i = 0; i < shapeData.Features[0].Geometry.Coordinates.Count; i++)
        {
            List<double> coordinate = shapeData.Features[0].Geometry.Coordinates[i];
            Coordinates.Add(new Coordinate() { Longitude = coordinate[0], Latitude = coordinate[1] });
        }
    }

    public class GeoJson
    {
        public string Type { get; set; }
        public List<Feature> Features { get; set; }
    }

    public class Feature
    {
        public string Type { get; set; }
        public Geometry Geometry { get; set; }
        public object Properties { get; set; }
    }

    public class Geometry
    {
        public string Type { get; set; }
        public List<List<double>> Coordinates { get; set; }
    }
}

Note: Refer the content of the JSON file line.json here.
