Data Binding in Blazor Pivot Table component

The pivot table uses SfDataManager, which supports both RESTful JSON data service binding and local JavaScript object array binding. The DataSource property can be assigned either with the instance of SfDataManager or list of objects. It supports two kinds of data binding method:

  • Local data
  • Remote data

Local Data

To bind local data to the pivot table, user can assign a list of object to the DataSource property under PivotViewDataSourceSettings class. The list data source can also be provided as an instance of the SfDataManager class.

By default, SfDataManager uses JsonAdaptor for local data-binding.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails">
         <PivotViewDataSourceSettings DataSource="@data">
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
                <PivotViewColumn Name="Quarter"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country"></PivotViewRow>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Sold" Caption="Unit Sold"></PivotViewValue>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
    }

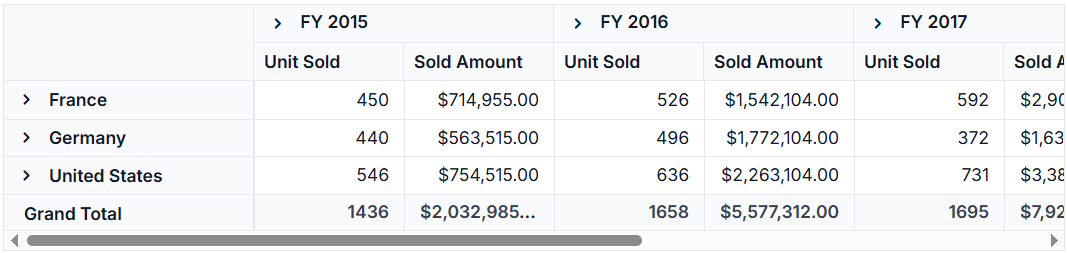

output

Remote Data

To interact with remote data source, provide the endpoint Url within SfDataManager class along with appropriate Adaptor. By default, SfDataManager uses ODataAdaptor for remote data-binding.

When using SfDataManager for data binding then the TValue must be provided explicitly in the PivotViewDataSourceSettings class.

Binding with OData services

OData is a standardized protocol for creating and consuming data. User can retrieve data from OData service using the SfDataManager class. Refer to the following code example for remote data binding using OData service.

    @using Syncfusion.Blazor.PivotView
    @using Syncfusion.Blazor.Data

    <SfPivotView TValue="OrderDetails" Width="800" Height="340">
        <PivotViewDataSourceSettings TValue="OrderDetails">
            <SfDataManager Url="https://js.syncfusion.com/demos/Sfervices/Wcf/Northwind.svc/Orders/?$top=7"   Adaptor="Syncfusion.Blazor.Adaptors.ODataAdaptor"></SfDataManager>
            <PivotViewColumns>
                <PivotViewColumn Name="OrderDate"></PivotViewColumn>
                <PivotViewColumn Name="ShipCity"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="OrderID"></PivotViewRow>
                <PivotViewRow Name="CustomerID"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Freight"></PivotViewValue>
            </PivotViewValues>
            </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public class OrderDetails
        {
            public int OrderID { get; set; }
            public string OrderDate { get; set; }
            public string CustomerID { get; set; }
            public string ShipCity { get; set; }
            public double Freight { get; set; }
        }
    }

Binding with OData V4 services

The OData V4 is an improved version of OData protocols, and the SfDataManager class can be used to retrieve and consume OData V4 services. For more details on OData V4 services, refer to the OData documentation. To bind OData V4 service, use the ODataV4Adaptor.

    @using Syncfusion.Blazor.PivotView
    @using Syncfusion.Blazor.Data

    <SfPivotView TValue="OrderDetails" Width="800" Height="340">
        <PivotViewDataSourceSettings TValue="OrderDetails">
            <SfDataManager Url="http://services.odata.org/V4/Northwind/Northwind.svc/Orders/"   Adaptor="Syncfusion.Blazor.Adaptors.ODataV4Adaptor"></SfDataManager>
            <PivotViewColumns>
                <PivotViewColumn Name="OrderDate"></PivotViewColumn>
                <PivotViewColumn Name="ShipCity"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="OrderID"></PivotViewRow>
                <PivotViewRow Name="CustomerID"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Freight"></PivotViewValue>
            </PivotViewValues>
            </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public class OrderDetails
        {
            public int OrderID { get; set; }
            public string OrderDate { get; set; }
            public string CustomerID { get; set; }
            public string ShipCity { get; set; }
            public double Freight { get; set; }
        }
    }

Web API

User can use WebApiAdaptor to bind pivot table with Web API created using OData endpoint.

    @using Syncfusion.Blazor.PivotView
    @using Syncfusion.Blazor.Data

    <SfPivotView TValue="OrderDetails">
        <PivotViewDataSourceSettings TValue="ProductDetails" ExpandAll="true" EnableSorting="true">
            <SfDataManager Url="https://bi.syncfusion.com/northwindservice/api/orders" Adaptor="Syncfusion.Blazor.Adaptors.WebApiAdaptor"></SfDataManager>
            <PivotViewColumns>
                <PivotViewColumn Name="ProductName"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="ShipCountry"></PivotViewRow>
                <PivotViewRow Name="ShipCity"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Quantity" Caption="Quantity"></PivotViewValue>
                <PivotViewValue Name="UnitPrice" Caption="Unit Price"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="UnitPrice" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
            </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public class ProductDetails
        {
           public int Quantity { get; set; }
           public double UnitPrice { get; set; }
           public string ProductName { get; set; }
           public string ShipCountry { get; set; }
           public string ShipCity { get; set; }
        }
    }

Entity Framework

Entity framework acts as a modern object-database mapper for .NET. This section explains how to consume data from the Microsoft SQL Server database and bind it to the pivot table component.

Create DBContext class

The first step is to create a DBContext class called OrderContext for establishing connection to a Microsoft SQL Server database.

    using Microsoft.EntityFrameworkCore;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using EFPivot.Data;

    namespace EFPivot.Data
    {
        public class OrderContext : DbContext
        {
            public virtual DbSet<Order> Orders { get; set; }

            protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
            {
                if (!optionsBuilder.IsConfigured)
                {
                    // Configures the context to connect to a Microsoft SQL Serve database
                    optionsBuilder.UseSqlServer(@"Data Source=(LocalDB)\MSSQLLocalDB;AttachDbFilename='D:\blazor\EFPivot\App_Data\NORTHWND.MDF';Integrated Security=True;Connect Timeout=30");
                }
            }
        }

        public class Order
        {
            [Key]
            public int? SoldAmount { get; set; }
            [Required]
            public string Year { get; set; }
            [Required]
            public string Products { get; set; }
        }
    }

Create data access layer to perform data operation

Now need to create a class called OrderDataAccessLayer, which acts as data access layer to retrieve the records from the database table.

    using Microsoft.EntityFrameworkCore;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using EFPivot.Data;

    namespace EFPivot.Data
    {
        public class OrderDataAccessLayer
        {
            OrderContext db = new OrderContext();

            //To get all order details
            public DbSet<Order> GetAllOrders()
            {
                try
                {
                    return db.Orders;
                }
                catch
                {
                    throw;
                }
            }
        }
    }

Creating Web API controller

A Web API controller must be created which allows the pivot table to directly consume data from the entity framework.

    using System;
    using System.Collections;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using Microsoft.AspNetCore.Http;
    using Microsoft.AspNetCore.Mvc;
    using Microsoft.Extensions.Primitives;
    using EFPivot.Data;

    namespace EFPivot.Controller
    {
        [Route("api/[controller]")]
        [ApiController]
        public class DefaultController : ControllerBase
        {
            OrderDataAccessLayer db = new OrderDataAccessLayer();
            [HttpGet]
            public object Get()
            {
                IQueryable<Order> data = db.GetAllOrders().AsQueryable();
                return new { Items = data, Count = data.Count() };
            }
        }
    }

Add Web API controller services in Startup.cs

Open the Startup.cs file and add services and endpoints required for Web API controller as follows.

using Newtonsoft.Json.Serialization;

namespace BlazorApplication
{
    public class Startup
    {
        ....
        ....
        public void ConfigureServices(IServiceCollection services)
        {
            ....
            ....
            services.AddSingleton<OrderDataAccessLayer>();

            // Adds services for controllers to the specified Microsoft.Extensions.DependencyInjection.IServiceCollection.
            services.AddControllers().AddNewtonsoftJson(options =>
            {
                options.SerializerSettings.ContractResolver = new DefaultContractResolver();
            });
        }

        public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
            ....
            ....
            app.UseEndpoints(endpoints =>
            {
                // Adds endpoints for controller actions to the Microsoft.AspNetCore.Routing.IEndpointRouteBuilder
                endpoints.MapDefaultControllerRoute();
                .....
                .....
            });
        }
    }
}

Configure pivot table component

Configure the pivot table to bind data using either the DataSource property or SfDataManager class under PivotViewDataSourceSettings class.

For instance, to bind data directly from the data access layer class OrderDataAccessLayer, assign the DataSource property to be OrderData.GetAllOrders() under PivotViewDataSourceSettings in the pivot table.

    @inject OrderDataAccessLayer OrderData

    @using EFPivot.Data
    @using Syncfusion.Blazor.PivotView

    <SfPivotView Height="340" TValue="Order">
        <PivotViewDataSourceSettings DataSource="@OrderData.GetAllOrders()" ExpandAll=false EnableSorting=true>
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="SoldAmount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="SoldAmount" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
        </PivotViewDataSourceSettings>
    </SfPivotView>

On the other hand, to configure the pivot table using Web API, provide the appropriate endpoint Url within SfDataManager along with Adaptor type under PivotViewDataSourceSettings class. Here, need to use WebApiAdaptor in-order to interact with the Web API to consume data from the entity framework appropriately.

@using EFPivot.Data
@using Syncfusion.Blazor
@using Syncfusion.Blazor.PivotView

<SfPivotView TValue="Order" Height="340">
    <PivotViewDataSourceSettings TValue="Order" ExpandAll=false EnableSorting=true>
        <SfDataManager Url="api/Default" Adaptor="Adaptors.WebApiAdaptor"></SfDataManager>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="SoldAmount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="SoldAmount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

Values in row axis

By default, the value fields are plotted in column axis. To plot those fields in row axis, use the ValueAxis property by setting its value as row. By default, it holds the value column.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails">
         <PivotViewDataSourceSettings DataSource="@data" ValueAxis="row">
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
                <PivotViewColumn Name="Quarter"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country"></PivotViewRow>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Sold" Caption="Unit Sold"></PivotViewValue>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
    }

output

Show ‘no data’ items

By default, the pivot table only shows the field item if it has data in its row or column combination. To show all items that do not have data in row and column combination in the pivot table, use the ShowNoDataItems property by settings its value to true for the desired fields. In the following code sample, rows of the “Country” and “Products” fields do not have data in all combination with “Year” and “Quarter” column field.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails">
         <PivotViewDataSourceSettings DataSource="@data" ExpandAll="true">
            <PivotViewColumns>
                <PivotViewColumn Name="Year" ShowNoDataItems="true"></PivotViewColumn>
                <PivotViewColumn Name="Quarter" ShowNoDataItems="true"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country" ShowNoDataItems="true"></PivotViewRow>
                <PivotViewRow Name="Products" ShowNoDataItems="true"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Sold" Caption="Unit Sold"></PivotViewValue>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
    }

output

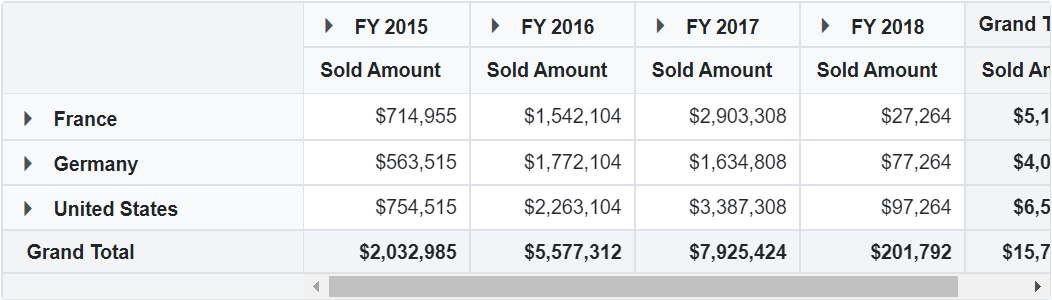

Show value headers always

To show value header always in pivot table, even if it holds a single value, use the AlwaysShowValueHeader property by settings its value as true.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails">
         <PivotViewDataSourceSettings DataSource="@data" AlwaysShowValueHeader="true">
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
                <PivotViewColumn Name="Quarter"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country"></PivotViewRow>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
            <PivotViewFormatSettings>
                <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
            </PivotViewFormatSettings>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
    }

output

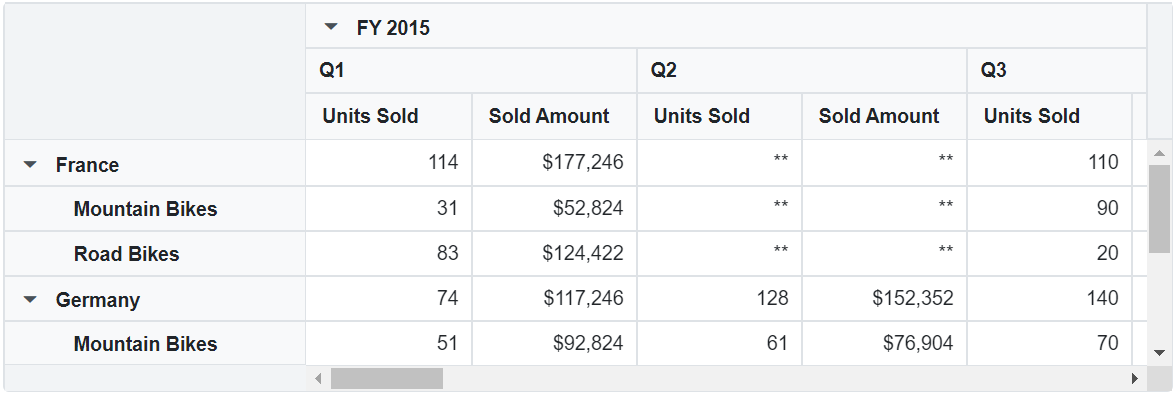

Customize empty value cells

User can show custom string in empty value cells using the EmptyCellsTextContent property in PivotViewDataSourceSettings class of the pivot table. Since the property is of string data type, user can fill empty value cells with any value like “0”, ”-”, ”*”, “(blank)”, etc. Its common for all value fields and can be configured through code behind.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails">
        <PivotViewDataSourceSettings DataSource="@data" EmptyCellsTextContent="**" ExpandAll="true">
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
                <PivotViewColumn Name="Quarter"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country"></PivotViewRow>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
    }

output

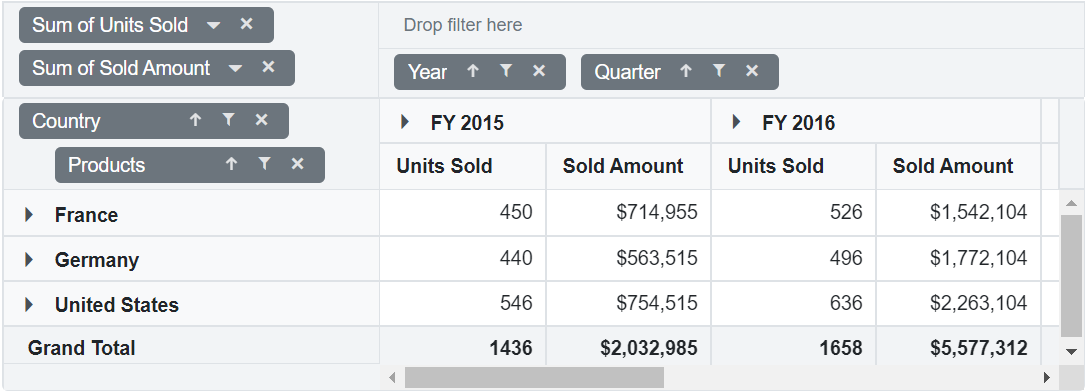

Event

The event OnLoad fires before initiate rendering of pivot table. It holds following parameters likeDataSourceSettings, FieldsType and PivotView. In this event user can customize data source settings before initiating pivot table render module.

    @using Syncfusion.Blazor.PivotView

    <SfPivotView TValue="ProductDetails" ShowGroupingBar="true">
        <PivotViewDataSourceSettings DataSource="@data" EmptyCellsTextContent="**" ExpandAll="true">
            <PivotViewColumns>
                <PivotViewColumn Name="Year"></PivotViewColumn>
                <PivotViewColumn Name="Quarter"></PivotViewColumn>
            </PivotViewColumns>
            <PivotViewRows>
                <PivotViewRow Name="Country"></PivotViewRow>
                <PivotViewRow Name="Products"></PivotViewRow>
            </PivotViewRows>
            <PivotViewValues>
                <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
                <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            </PivotViewValues>
             <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
            <PivotViewEvents TValue="ProductDetails" OnLoad="load"></PivotViewEvents>
        </PivotViewDataSourceSettings>
    </SfPivotView>

    @code{
        public List<ProductDetails> data { get; set; }
        protected override void OnInitialized()
        {
            this.data = ProductDetails.GetProductData().ToList();
           //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
        }
        public void load(LoadEventArgs<ProductDetails> args)
        {
            args.DataSourceSettings.EmptyCellsTextContent = "###";
            args.DataSourceSettings.Columns[0].Caption = "Full Year";
            args.DataSourceSettings.ExpandAll = false;
        }
    }

output
