Excel export in Blazor Pivot Table component

21 Mar 202424 minutes to read

The Excel export allows Pivot Table data to be exported as Excel document. To enable Excel export in the pivot table, set the AllowExcelExport property in SfPivotView class to true. Once the API is set, user needs to call the ExportToExcelAsync method for exporting on external button click.

NOTE

The pivot table component can be exported to Excel format using options available in the toolbar. For more details refer here.

@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" EnableSorting=true>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized()
    {
        this.data = ProductDetails.GetProductData().ToList();
       //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args){
        this.pivot.ExportToExcelAsync();
    }
}

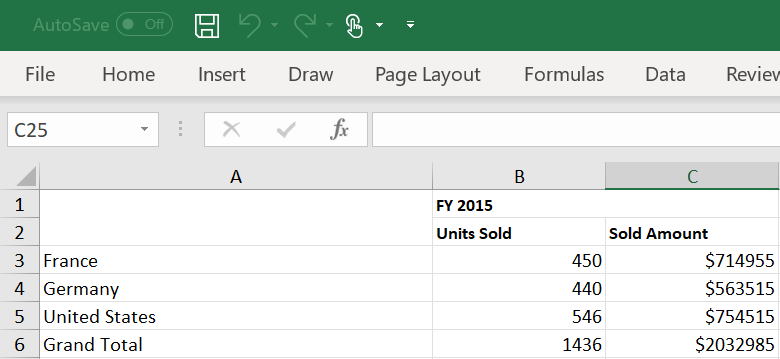

Excel Exporting in Blazor PivotTable

Changing the pivot table style while exporting

The Excel export provides an option to change colors for headers, caption and records in pivot table before exporting. In-order to apply colors, define theme settings in excelExportProperties object and pass it as a parameter to the ExportToExcelAsync method.

NOTE

By default, material theme will be applied to the pivot table during Excel exporting.

@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" EnableSorting=true>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized()
    {
        this.data = ProductDetails.GetProductData().ToList();
       //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        Syncfusion.Blazor.Grids.ExcelExportProperties excelExportProperties = new Syncfusion.Blazor.Grids.ExcelExportProperties()
        {
            Theme = new Syncfusion.Blazor.Grids.ExcelTheme()
            {
                Header = new Syncfusion.Blazor.Grids.ExcelStyle() { FontName = "Segoe UI", FontColor = "#0fb5fc", FontSize = 15, Bold = true },
                Record = new Syncfusion.Blazor.Grids.ExcelStyle() { FontName = "Segoe UI", FontColor = "#000000" },
                Caption = new Syncfusion.Blazor.Grids.ExcelStyle() { FontName = "Segoe UI", FontColor = "#000000" }
            }
        };
        this.pivot.ExportToExcelAsync(excelExportProperties);
    }
}

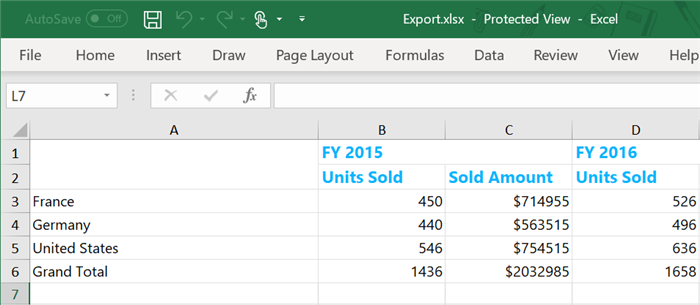

Changing Blazor PivotTable Style while Exporting

The Excel export provides an option to include header and footer content for the excel document before exporting. In-order to add header and footer, define Header and Footer properties in ExcelExportProperties and pass it as a parameter to the ExportToExcelAsync method.

@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" AllowExcelExport="true">
    <PivotViewDataSourceSettings DataSource="@Data" EnableSorting=true>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code {
    SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized()
    {
        this.Data = ProductDetails.GetProductData().ToList();
    }

    public async Task OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        Syncfusion.Blazor.Grids.ExcelExportProperties ExportProperties = new Syncfusion.Blazor.Grids.ExcelExportProperties();
        Syncfusion.Blazor.Grids.ExcelHeader header = new Syncfusion.Blazor.Grids.ExcelHeader();
        Syncfusion.Blazor.Grids.ExcelFooter footer = new Syncfusion.Blazor.Grids.ExcelFooter();
        header.HeaderRows = 1;
        footer.FooterRows = 1;
        List<Syncfusion.Blazor.Grids.ExcelRow> headerContent = new List<Syncfusion.Blazor.Grids.ExcelRow>
        {
            new Syncfusion.Blazor.Grids.ExcelRow() { Index = 1, Cells = new List<Syncfusion.Blazor.Grids.ExcelCell>
            {
                new Syncfusion.Blazor.Grids.ExcelCell() { Index=1, RowSpan= 1,ColSpan=11 , Value= "Pivot Table", Style = new Syncfusion.Blazor.Grids.ExcelStyle() { FontColor = "#C67878" ,Bold = true, FontSize = 20, Italic= true, HAlign = Syncfusion.Blazor.Grids.ExcelHorizontalAlign.Center }  },
            } },
        };
        List<Syncfusion.Blazor.Grids.ExcelRow> footerContent = new List<Syncfusion.Blazor.Grids.ExcelRow>
        {
            new Syncfusion.Blazor.Grids.ExcelRow() { Index = 1, Cells = new List<Syncfusion.Blazor.Grids.ExcelCell>
            {
                new Syncfusion.Blazor.Grids.ExcelCell() { Index=1, RowSpan= 1,ColSpan=11 , Value= "Thank you for your business! Visit Again!", Style = new Syncfusion.Blazor.Grids.ExcelStyle() { Bold = true, FontSize = 13, Italic= true,  HAlign = Syncfusion.Blazor.Grids.ExcelHorizontalAlign.Center }  },
            } },
        };
        header.Rows = headerContent;
        footer.Rows = footerContent;
        Syncfusion.Blazor.Grids.ExcelExportProperties excelExportProperties = new Syncfusion.Blazor.Grids.ExcelExportProperties()
        {
            FileName = "sample.xlsx",
            Header = header,
            Footer = footer,
        };
        await this.pivot.ExportToExcelAsync(excelExportProperties);
    }
}

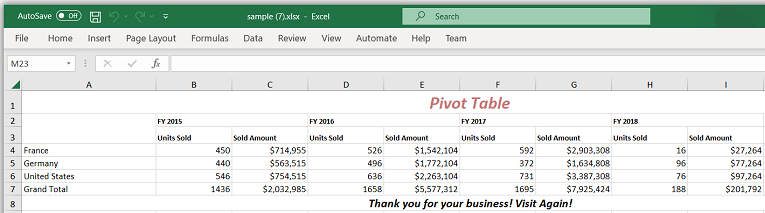

Add Header and Footer while exporting in Blazor PivotTable

Changing the file name while exporting

The Excel export provides an option to change file name of the document before exporting. In-order to change the file name, define fileName property in excelExportProperties object and pass it as a parameter to the ExportToExcelAsync method.

@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" EnableSorting=true>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized()
    {
        this.data = ProductDetails.GetProductData().ToList();
       //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args) {
        Syncfusion.Blazor.Grids.ExcelExportProperties excelExportProperties = new Syncfusion.Blazor.Grids.ExcelExportProperties()
        {
            FileName = "sample.xlsx"
        };
        this.pivot.ExportToExcelAsync(excelExportProperties);
    }
}

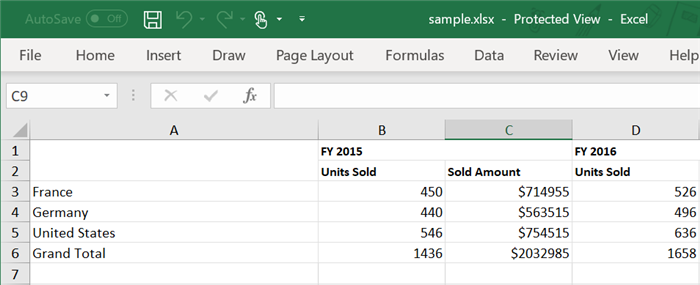

Changing Blazor PivotTable File Name while Exporting

Limitation when exporting millions of records to Excel format

By default, Microsoft Excel supports only 1,048,576 records in an Excel sheet. Hence, it is not possible to export millions of records to Excel. You can refer to the documentation link for more details on Microsoft Excel specifications and limits. Therefore, it is suggested to export the data in CSV (Comma-Separated Values) or other formats that can handle large datasets more efficiently than Excel.

CSV Export

The Excel export allows pivot table data to be exported in CSV file format as well. To enable CSV export in the pivot table, set the AllowExcelExport property in SfPivotView class as true. Once the API is set, user needs to call the ExportToCsvAsync method for exporting on external button click.

NOTE

The pivot table component can be exported to CSV format using options available in the toolbar. For more details refer here.

@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnCsvExport" Content="Csv Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" EnableSorting=true>
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        this.data = ProductDetails.GetProductData().ToList();
       //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnCsvExport() {
        this.pivot.ExportToCsvAsync();
    }
}

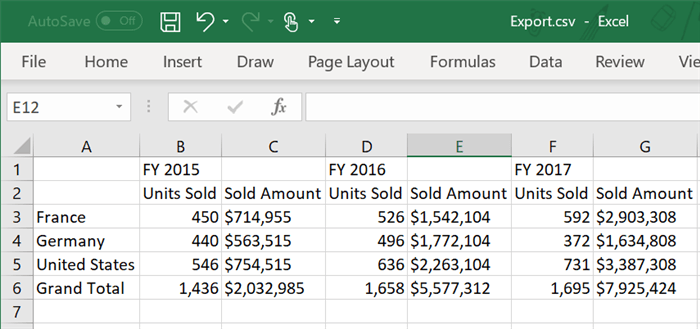

CSV Exporting in Blazor PivotTable

Export all pages

When the EnableVirtualization property in the SfPivotView is set to true, the entire virtual data of the pivot table (i.e. the data that contains all of the records used to render the complete pivot table) will be exported as an Excel/CSV document. To export only the current viewport of the pivot table, set the ExportAllPages property to false.

@using Syncfusion.Blazor.PivotView

<SfPivotView TValue="ProductDetails" Height="400" Width="100%" ShowGroupingBar="true" EnableVirtualization=true ShowToolbar=true Toolbar="@Options" ExportAllPages=false AllowExcelExport=true>
    <PivotViewDataSourceSettings DataSource="@Data">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Products"></PivotViewColumn>
               <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Sold"></PivotViewRow>
            <PivotViewRow Name="Country"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> Data { get; set; }
    protected override void OnInitialized()
    {
        this.Data = ProductDetails.GetProductData().ToList();
          //Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }
    public List<ToolbarItems> Options = new List<ToolbarItems> {
        ToolbarItems.Export,
    };
}

Events

ExcelQueryCellInfo

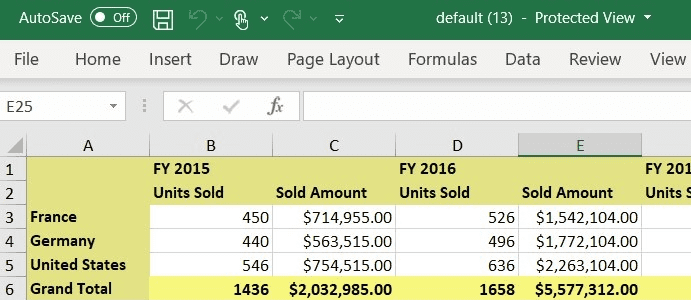

The event ExcelQueryCellInfo triggers while framing each row and value cell during Excel export. It allows the user to customize the cell value, style, etc. of the current cell. It has the following parameters:

  • Value : It holds the cell value.

  • Column : It holds the column information, including row and column indexes required to obtain the current cell information. Note: This option is applicable only when virtualization is disabled.

  • Cell : It holds the current cell information.
  • Style : It holds the style properties for the cell.
  • RowIndex : It holds the row index required to get the current cell information. Note: When virtualization is enabled, this option is applicable.
  • ColumnIndex : It holds the column index required to get the current cell information. Note: When virtualization is enabled, this option is applicable.
@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Grids

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" EnableVirtualization="true" AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" ExpandAll="false" EnableSorting="true" >
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
    <PivotViewEvents TValue="ProductDetails" ExcelQueryCellInfo="ExcelQueryEvent"></PivotViewEvents>
</SfPivotView>

@code{
    private SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }

    protected override void OnInitialized(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        this.data = ProductDetails.GetProductData().ToList();
        // Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        this.pivot.ExportToExcelAsync();
    }

    // Triggers every time for row header and value cells during exporting.
    public void ExcelQueryEvent(ExcelQueryCellInfoEventArgs<ProductDetails> args)
    {
        Matrix<Matrix<AxisSet>> pivotValues = Pivot?.PivotValues;
        AxisSet cellInfo = null;

        if (Pivot?.EnableVirtualization == true)
        {
            if (pivotValues != null)
            {
                cellInfo = pivotValues[args.RowIndex]?[args.ColumnIndex];
            }
        }
        else
        {
            IDictionary<string, object> cellCoordinates = args.Column?.CustomAttributes;
            if (pivotValues != null && cellCoordinates != null && cellCoordinates.ContainsKey("aria-colindex") && cellCoordinates.ContainsKey("aria-rowindex"))
            {
                // You will get the row index required to find the current cell information from the pivot value collection here.
                int rowIndex = int.Parse(cellCoordinates["aria-rowindex"].ToString(), System.Globalization.NumberStyles.None);
                // You will get the column index required to find the current cell information from the pivot value collection here.
                int colIndex = int.Parse(cellCoordinates["aria-colindex"].ToString(), System.Globalization.NumberStyles.None);
                cellInfo = pivotValues[rowIndex]?[colIndex];
            }
        }
        if (cellInfo?.IsGrandSum == true || cellInfo?.Axis == "row")
        {
            args.Cell.Value = cellInfo?.Axis == "value" ? cellInfo?.Value : cellInfo?.FormattedText;
            args.Style.BackColor = args.Cell.CellStyle.BackColor = cellInfo?.Axis == "row" ? "#e3e384" : "#f7f77c";
            args.Style.Bold = args.Cell.CellStyle.Bold = true;
        }
    }
}

ExcelHeaderQueryCellInfo

NOTE

The row header cell can be obtained by using the ExcelQueryCellInfo event. It can be identified using AxisSet.Axis == "row" and for reference, see the code snippet in the previous topic.

The event ExcelHeaderQueryCellInfo triggers on framing each column header cell during Excel export. It allows the user to customize the cell value, style, etc. of the current cell. It has the following parameters:

  • Value : It holds the cell value.
  • Column : It holds the column information, including row and column indexes required to obtain the current header cell information. Note: This option is applicable only when virtualization is disabled.
  • Cell : It holds the current cell information.
  • Style : It holds the style properties for the cell.
  • RowIndex : It holds the row index required to get the current cell information. Note: When virtualization is enabled, this option is applicable.
  • ColumnIndex : It holds the column index required to get the current cell information. Note: When virtualization is enabled, this option is applicable.
@using Syncfusion.Blazor.PivotView
@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Grids

<SfButton OnClick="OnExcelExport" Content="Excel Export"></SfButton>
<SfPivotView TValue="ProductDetails" @ref="@pivot" EnableVirtualization="true"  AllowExcelExport="true" >
    <PivotViewDataSourceSettings DataSource="@Data" ExpandAll="false" EnableSorting="true" >
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C0" UseGrouping=true></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
    <PivotViewEvents TValue="ProductDetails" ExcelHeaderQueryCellInfo="ExcelHeaderEvent"></PivotViewEvents>
</SfPivotView>

@code{
    private SfPivotView<ProductDetails> pivot;
    public List<ProductDetails> Data { get; set; }

    protected override void OnInitialized(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        this.data = ProductDetails.GetProductData().ToList();
        // Bind the data source collection here. Refer "Assigning sample data to the pivot table" section in getting started for more details.
    }

    public void OnExcelExport(Microsoft.AspNetCore.Components.Web.MouseEventArgs args)
    {
        this.pivot.ExportToExcelAsync();
    }

    // Triggers every time for column header cells during exporting
    public void ExcelHeaderEvent(ExcelHeaderQueryCellInfoEventArgs args)
    {
        Matrix<Matrix<AxisSet>> pivotValues = Pivot?.PivotValues;
        AxisSet cellInfo = null;

        if (Pivot?.EnableVirtualization == true)
        {
            if (pivotValues != null)
            {
                cellInfo = pivotValues[args.RowIndex]?[args.ColumnIndex];
            }
        }
        else
        {
            IDictionary<string, object> cellCoordinates = args.Column?.CustomAttributes;
            if (pivotValues != null && cellCoordinates != null && cellCoordinates.ContainsKey("aria-colindex") && cellCoordinates.ContainsKey("index"))
            {
                // You will get the row index required to find the current cell information from the pivot value collection here.
                int rowIndex = int.Parse(cellCoordinates["index"].ToString(), System.Globalization.NumberStyles.None);
                // You will get the column index required to find the current cell information from the pivot value collection here.
                int colIndex = int.Parse(cellCoordinates["aria-colindex"].ToString(), System.Globalization.NumberStyles.None);
                cellInfo = pivotValues[rowIndex]?[colIndex];
            }
        }
        if (cellInfo != null)
        {
            args.Style.BackColor = args.Cell.CellStyle.BackColor = "#e3e384";
            args.Style.Bold = args.Cell.CellStyle.Bold = true;
        }
    }
}

Customizing the Blazor Pivot Table cell values and styles while exporting

NOTE

You can refer to the Blazor Pivot Table feature tour page for its groundbreaking feature representations. You can also explore the Blazor Pivot Table example to know how to render and configure the pivot table.
