Type of Data in Blazor Range Selector component

28 Jul 2021 / 4 minutes to read

Numeric

The numeric scale is used to represent the numeric values of data in a Range Selector. By default, the ValueType of a Range Selector is Double.

double.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType=RangeValueType.Double>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails {  Day = 12, Close = 28 },
        new StockDetails {  Day = 34, Close = 44 },
        new StockDetails {  Day = 45, Close = 48 },
        new StockDetails {  Day = 56, Close = 50 },
        new StockDetails {  Day = 67, Close = 66 },
        new StockDetails {  Day = 78, Close = 78 },
        new StockDetails {  Day = 89, Close = 84 }
    };

    public int[] Value = new int[] { 20, 50 };
}

Numeric

Range

The minimum and the maximum of the scale will be calculated automatically based on the provided data. It can be customized by using the Minimum, the Maximum, and the Interval properties.

range.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Interval="10" Value="@Value" ValueType=RangeValueType.Double>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.StepLine" YName="Close">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public double Date { get; set; }
        public double Close { get; set; }
    }

    public int[] Value = new int[] { 60, 100 };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
      new StockDetails { Date = 10, Close = 35 },
      new StockDetails { Date = 20, Close = 28 },
      new StockDetails { Date = 30, Close = 34 },
      new StockDetails { Date = 40, Close = 32 },
      new StockDetails { Date = 50, Close = 40 },
      new StockDetails { Date = 60, Close = 30 },
      new StockDetails { Date = 70, Close = 4 },
      new StockDetails { Date = 80, Close = 22 },
      new StockDetails { Date = 90, Close = 30 },
      new StockDetails { Date = 100, Close =  43 },
      new StockDetails { Date = 110, Close =  60 },
      new StockDetails { Date = 120, Close =  33 },
      new StockDetails { Date = 130, Close =  40 },
      new StockDetails { Date = 140, Close =  29 },
      new StockDetails { Date = 150, Close =  10 },
      new StockDetails { Date = 160, Close =  16 },
  };
}

Numeric range

Label Format

The numeric labels can be formatted using the LabelFormat property and it supports all the globalized formats.

format.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType=RangeValueType.Double LabelFormat="n1">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails {  Day = 12, Close = 28 },
        new StockDetails {  Day = 34, Close = 44 },
        new StockDetails {  Day = 45, Close = 48 },
        new StockDetails {  Day = 56, Close = 50 },
        new StockDetails {  Day = 67, Close = 66 },
        new StockDetails {  Day = 78, Close = 78 },
        new StockDetails {  Day = 89, Close = 84 }
    };

    public int[] Value = new int[] { 20, 50 };
}

Numeric label format

The following table shows the results of applying some commonly used label formats to numeric values.

Label Value Label Format property value Result Description
1000 n1 1000.0 The number is rounded to 1 decimal place.
1000 n2 1000.00 The number is rounded to 2 decimal places.
1000 n3 1000.000 The number is rounded to 3 decimal places.
0.01 p1 1.0% The number is converted to percentage with 1 decimal place.
0.01 p2 1.00% The number is converted to percentage with 2 decimal places.
0.01 p3 1.000% The number is converted to percentage with 3 decimal places.
1000 c1 $1,000.0 The currency symbol is appended to number and the number is rounded to 1 decimal place.
1000 c2 $1,000.00 The currency symbol is appended to number and the number is rounded to 2 decimal places.

Custom Label Format

The Range Selector also supports the Custom Label formats using the placeholders such as {value}$, in which the value represents the axis label, e.g. 20$.

custom-format.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType=RangeValueType.Double LabelFormat="{value}$">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails {  Day = 12, Close = 28 },
        new StockDetails {  Day = 34, Close = 44 },
        new StockDetails {  Day = 45, Close = 48 },
        new StockDetails {  Day = 56, Close = 50 },
        new StockDetails {  Day = 67, Close = 66 },
        new StockDetails {  Day = 78, Close = 78 },
        new StockDetails {  Day = 89, Close = 84 }
    };
    public int[] Value = new int[] { 20, 50 };
}

Custom label format

Logarithmic

The Logarithmic supports the logarithmic scale, and it is used to visualize the data when the Range Selector has numerical values in both the lower (e.g.: 10-6) and the higher (e.g.: 106) orders of the magnitude.

log.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" Interval="2" ValueType="RangeValueType.Logarithmic">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close" Width="2">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public int[] Value = new int[] { 4, 6 };

    private Random random = new Random();

    public List<StockDetails> StockInfo;

    protected override async Task OnInitializedAsync()
    {
        StockInfo = this.GetData();
    }

    public List<StockDetails> GetData()
    {
        List<StockDetails> data = new List<StockDetails>();
        for (int i = 0; i < 100; i++)
        {
            data.Add(new StockDetails
            {
                Day = Math.Pow(10, i * 0.1),
                Close = (random.Next(5, 10) * (80 - 30 + 1)) + 30,
            });
        }
        return data;
    }
}

Logarithmic

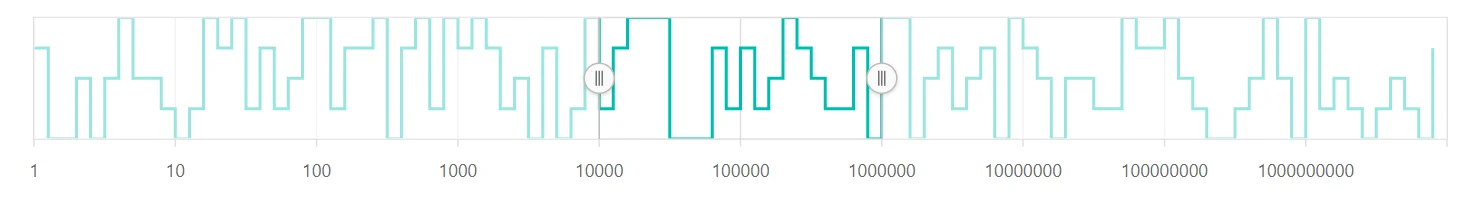

Range

The minimum and the maximum of the Range Selector will be calculated automatically based on the provided data. It can be customized by using the Minimum, the Maximum, and the Interval properties.

log-range.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" Interval="1" ValueType="RangeValueType.Logarithmic">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close" Width="2">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public int[] Value = new int[] { 4, 6 };

    private Random random = new Random();

    public List<StockDetails> StockInfo;

    protected override async Task OnInitializedAsync()
    {
        StockInfo = this.GetData();
    }

    public List<StockDetails> GetData()
    {
        List<StockDetails> data = new List<StockDetails>();
        for (int i = 0; i < 100; i++)
        {
            data.Add(new StockDetails
            {
                Day = Math.Pow(10, i * 0.1),
                Close = (random.Next(5, 10) * (80 - 30 + 1)) + 30,
            });
        }
        return data;
    }
}

Logarithmic range

Logarithmic Base

The Logarithmic Base can be customized using the LogBase property. The default value of this property is 10.

log-base.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" LogBase="2" ValueType="RangeValueType.Logarithmic">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Day" Type="RangeNavigatorType.StepLine" YName="Close" Width="2">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public double Day { get; set; }
        public double Close { get; set; }
    }

    public int[] Value = new int[] { 4, 6 };

    private Random random = new Random();

    public List<StockDetails> StockInfo;

    protected override async Task OnInitializedAsync()
    {
        StockInfo = this.GetData();
    }

    public List<StockDetails> GetData()
    {
        List<StockDetails> data = new List<StockDetails>();
        for (int i = 0; i < 100; i++)
        {
            data.Add(new StockDetails
            {
                Day = Math.Pow(10, i * 0.1),
                Close = (random.Next(5, 10) * (80 - 30 + 1)) + 30,
            });
        }
        return data;
    }
}

Logarithmic base

DateTime

The Range Selector supports the DateTime scale and displays the DateTime values as labels in the specified format.

date-time.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType="RangeValueType.DateTime">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Y">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Y { get; set; }
    }

    public DateTime[] Value = new DateTime[] { new DateTime(2006, 01, 01), new DateTime(2008, 01, 01) };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Y = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Y = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Y = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Y = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Y = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Y = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Y = 70 }
    };
}

DateTime

Interval Customization

The DateTime intervals can be customized using the Interval and the IntervalType properties of the Range Selector. For example, if the Interval is set to 2 and the IntervalType is set to years, the interval will be considered to be 2 years.

DateTime supports the following interval types:

  • Auto
  • Years
  • Quarter
  • Months
  • Weeks
  • Days
  • Hours
  • Minutes
date-time-interval.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType="RangeValueType.DateTime" IntervalType="RangeIntervalType.Months" Interval="2">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Y">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Y { get; set; }
    }

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Y = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Y = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Y = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Y = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Y = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Y = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Y = 70 }
    };

    public DateTime[] Value = new DateTime[] { new DateTime(2006, 01, 01), new DateTime(2008, 01, 01) };
}

DateTime interval type

Label Format

The LabelFormat property is used to format and parse the date to all globalize format.

date-time-format.razor
Copied to clipboard
@using Syncfusion.Blazor.Charts

<SfRangeNavigator Value="@Value" ValueType="RangeValueType.DateTime" LabelFormat="y/M/d">
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Y">
        </RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code{

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Y { get; set; }
    }

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Y = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Y = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Y = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Y = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Y = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Y = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Y = 70 }
    };
    public DateTime[] Value = new DateTime[] { new DateTime(2006, 01, 01), new DateTime(2008, 01, 01) };
}

DateTime label format

The following table shows the results of applying some common DateTime formats to the LabelFormat property.

Label Value Label Format Property Value Result Description
new Date(2000, 03, 10) EEEE Monday The date is displayed in the day format.
new Date(2000, 03, 10) yMd 04/10/2000 The date is displayed in the month/date/year format.
new Date(2000, 03, 10) MMM Apr The shorthand month for the date is displayed.
new Date(2000, 03, 10) hm 12:00 AM The time of the date value is displayed as label.
new Date(2000, 03, 10) hms 12:00:00 AM The label is displayed in hours:minutes:seconds format.
