Period Selector in Blazor Range Selector component

28 Jul 2021 / 2 minutes to read

The period selector allows to choose a time range with specific periods.

Periods

An array of objects that allows the users to specify pre-defined time intervals. The Interval property specifies the count value of the button, the Selected property allows the users to select the period button initially, and the Text property specifies the text to be displayed on the button. The IntervalType property allows the users to customize the interval type, and it supports the following types:

Auto
Years
Quarter
Months
Weeks
Days
Hours
Minutes
Seconds

periods.razor

@using Syncfusion.Blazor.Charts

<SfRangeNavigator ValueType="RangeValueType.DateTime">
    <RangeNavigatorPeriodSelectorSettings>
        <RangeNavigatorPeriods>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Months" Text="1M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Months" Text="2M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="6" IntervalType="RangeIntervalType.Months" Text="6M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="YTD"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Years" Text="1Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Years" Text="2Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="All"></RangeNavigatorPeriod>
        </RangeNavigatorPeriods>
    </RangeNavigatorPeriodSelectorSettings>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Close"></RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Close { get; set; }
    }

    public DateTime[] Value = new DateTime[] { new DateTime(2009, 01, 01), new DateTime(2010, 01, 01) };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Close = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Close = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Close = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Close = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Close = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Close = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Close = 70 }
    };
}

Periods

Position

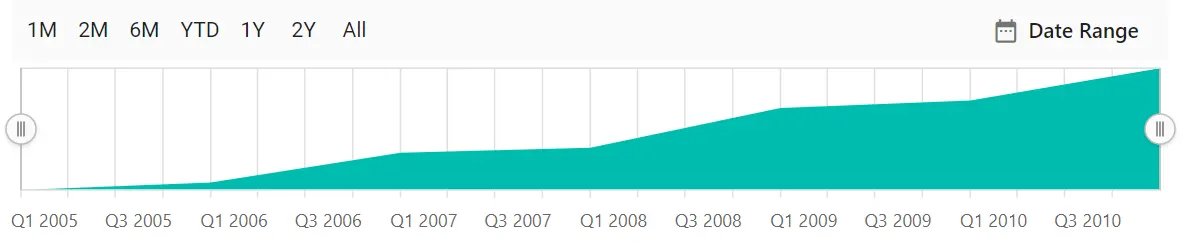

The Position property allows the users to position the period selector at the Top or Bottom.

position.razor

@using Syncfusion.Blazor.Charts

<SfRangeNavigator ValueType="RangeValueType.DateTime">
    <RangeNavigatorPeriodSelectorSettings Position="PeriodSelectorPosition.Top">
        <RangeNavigatorPeriods>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Months" Text="1M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Months" Text="2M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="6" IntervalType="RangeIntervalType.Months" Text="6M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="YTD"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Years" Text="1Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Years" Text="2Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="All"></RangeNavigatorPeriod>
        </RangeNavigatorPeriods>
    </RangeNavigatorPeriodSelectorSettings>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Close"></RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Close { get; set; }
    }

    public DateTime[] Value = new DateTime[] { new DateTime(2009, 01, 01), new DateTime(2010, 01, 01) };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Close = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Close = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Close = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Close = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Close = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Close = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Close = 70 }
    };
}

Positioning

Height

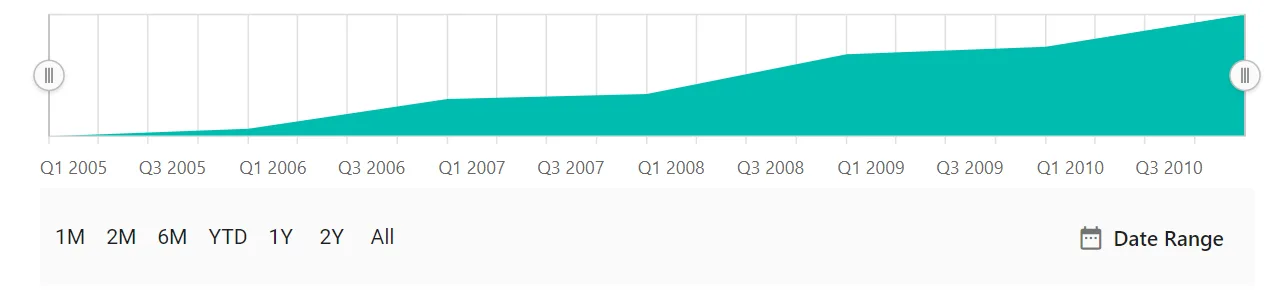

The Height property allows the users to specify the height of the period selector. The default value of the height property is 43px.

height.razor

@using Syncfusion.Blazor.Charts

<SfRangeNavigator ValueType="RangeValueType.DateTime">
    <RangeNavigatorPeriodSelectorSettings Height="65">
        <RangeNavigatorPeriods>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Months" Text="1M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Months" Text="2M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="6" IntervalType="RangeIntervalType.Months" Text="6M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="YTD"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Years" Text="1Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Years" Text="2Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="All"></RangeNavigatorPeriod>
        </RangeNavigatorPeriods>
    </RangeNavigatorPeriodSelectorSettings>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Close"></RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Close { get; set; }
    }

    public DateTime[] Value = new DateTime[] { new DateTime(2009, 01, 01), new DateTime(2010, 01, 01) };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Close = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Close = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Close = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Close = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Close = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Close = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Close = 70 }
    };
}

Height

Visibility

The DisableRangeSelector property allows the users to display only the period selector and not the Range Selector.

visible.razor

@using Syncfusion.Blazor.Charts

<SfRangeNavigator DisableRangeSelector="true" ValueType="RangeValueType.DateTime">
    <RangeNavigatorPeriodSelectorSettings>
        <RangeNavigatorPeriods>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Months" Text="1M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Months" Text="2M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="6" IntervalType="RangeIntervalType.Months" Text="6M"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="YTD"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="1" IntervalType="RangeIntervalType.Years" Text="1Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Interval="2" IntervalType="RangeIntervalType.Years" Text="2Y"></RangeNavigatorPeriod>
            <RangeNavigatorPeriod Text="All"></RangeNavigatorPeriod>
        </RangeNavigatorPeriods>
    </RangeNavigatorPeriodSelectorSettings>
    <RangeNavigatorSeriesCollection>
        <RangeNavigatorSeries DataSource="@StockInfo" XName="Date" Type="RangeNavigatorType.Area" YName="Close"></RangeNavigatorSeries>
    </RangeNavigatorSeriesCollection>
</SfRangeNavigator>

@code {

    public class StockDetails
    {
        public DateTime Date { get; set; }
        public double Close { get; set; }
    }

    public DateTime[] Value = new DateTime[] { new DateTime(2009, 01, 01), new DateTime(2010, 01, 01) };

    public List<StockDetails> StockInfo = new List<StockDetails>
    {
        new StockDetails { Date = new DateTime(2005, 01, 01), Close = 21 },
        new StockDetails { Date = new DateTime(2006, 01, 01), Close = 24 },
        new StockDetails { Date = new DateTime(2007, 01, 01), Close = 36 },
        new StockDetails { Date = new DateTime(2008, 01, 01), Close = 38 },
        new StockDetails { Date = new DateTime(2009, 01, 01), Close = 54 },
        new StockDetails { Date = new DateTime(2010, 01, 01), Close = 57 },
        new StockDetails { Date = new DateTime(2011, 01, 01), Close = 70 }
    };
}
