Image in Blazor RichTextEditor component

08 Apr 2021 / 6 minutes to read

Rich Text Editor allows inserting images from online sources and local computer where you want to insert the image in your content. For inserting the image to the Rich Text Editor, the following list of options have been provided in the RichTextEditorImageSettings.

Options Description
AllowedTypes Specifies the extensions of the image types allowed to insert on bowering and passing the extensions with comma separators. For example, pass AllowedTypes as .jpg and .png.
Display Sets the default display for an image when it is inserted in to the Rich Text Editor. Possible options are: Inline and Break.
Width Sets the default width of the image when it is inserted in the Rich Text Editor.
Height Sets the default height of the image when it is inserted in the Rich Text Editor.
SaveUrl Provides URL to map the action result method to save the image.
Path Specifies the location to store the image.
EnableResize Enables resizing for image element.
MinWidth Defines the minimum Width of the image.
MaxWidth Defines the maximum Width of the image.
MinHeight Defines the minimum Height of the image.
MaxHeight Defines the maximum Height of the image.
ResizeByPercent Image resizing should be done by percentage calculation.

Upload options

Through the browse option in the Image dialog, select the image from the local machine and insert into the Rich Text Editor content.

If the path field is not specified in the RichTextEditorImageSettings, the image will be converted into base64 and blob url for the image will be created then generated url will be set as src property of <img> tag as below.

The image has been loaded from the local machine and it will be saved in the given location.

Copied to clipboard
<img src="blob:" >

If you want to insert a lot of tiny images in the editor and don’t want a specific physical location for saving images, you can opt to save format as Base64.

Server side action

The selected image can be uploaded to the required destination by using the following controller action. Map controller method name in SaveUrl property of RichTextEditorImageSettings and provide required destination path through Path property.

The following code block shows saving the image file uploaded to Rich Text Editor using the Blazor Server App project. The runnable Blazor Server app demo is available in this Github repository.


Copied to clipboard
@using Syncfusion.Blazor.RichTextEditor

    <RichTextEditorImageSettings SaveUrl="api/Image/Save" Path="./Images/" />


Copied to clipboard
using System;
using System.IO;
using System.Net.Http.Headers;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Http;
using System.Collections.Generic;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http.Features;

namespace ImageUpload.Controllers
    public class ImageController : ControllerBase
        private readonly IWebHostEnvironment hostingEnv;

        public ImageController(IWebHostEnvironment env)
            this.hostingEnv = env;

        public void Save(IList<IFormFile> UploadFiles)
                foreach (var file in UploadFiles)
                    if (UploadFiles != null)
                        string targetPath = hostingEnv.ContentRootPath + "\\wwwroot\\Images";
                        string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');

                        // Create a new directory, if it does not exists
                        if (!Directory.Exists(targetPath))

                        // Name which is used to save the image
                        filename = targetPath + $@"\{filename}";

                        if (!System.IO.File.Exists(filename))
                            // Upload a image, if the same file name does not exist in the directory
                            using (FileStream fs = System.IO.File.Create(filename))
                            Response.StatusCode = 200;
                            Response.StatusCode = 204;
            catch (Exception e)
                Response.ContentType = "application/json; charset=utf-8";
                Response.HttpContext.Features.Get<IHttpResponseFeature>().ReasonPhrase = e.Message;

The output will be as follows.


Image delete

To remove an image from the Rich Text Editor content, select the image and click “Remove” tool from quick toolbar. It will delete the image from the Rich Text Editor content.

After selecting the image from the local machine, the URL for the image will be generated, from there also you can remove the image from the service location by clicking the cross icon as in the following image.

RTE Image delete

Insert from web

To insert an image from online source like Google, Ping, and more, enable images tool on the editor’s toolbar. By default, the images tool opens an image dialog that allows you to insert an image from online source.

RTE Image insert


Sets the default width and height of the image when it is inserted in the Rich Text Editor using Width and Height of RichTextEditorImageSettings.

Through the QuickToolbar also you can change the width and height using Change Size option. After clicking the option, the image size will open as below. In that specify the width and height of the image in pixel.

RTE Image dimension

Caption and Alt Text

Image caption and alternative text can be specified for the inserted image in the Rich Text Editor using the RichTextEditorQuickToolbarSettings options such as Image Caption and Alternative Text.

Through the Alternative Text option, set the alternative text for the image, when the image is not uploaded successfully into the Rich Text Editor.

By clicking the Image Caption, the image will get wrapped in an image element with a caption. Then, you can type caption content inside the Rich Text Editor.

Display position

Sets the default display for an image when it is inserted in the Rich Text Editor using Display field inRichTextEditorImageSettings.

It has two possible options: Inline and Break.

Copied to clipboard
@using Syncfusion.Blazor.RichTextEditor

    <RichTextEditorImageSettings Display="ImageDisplay.Inline" />

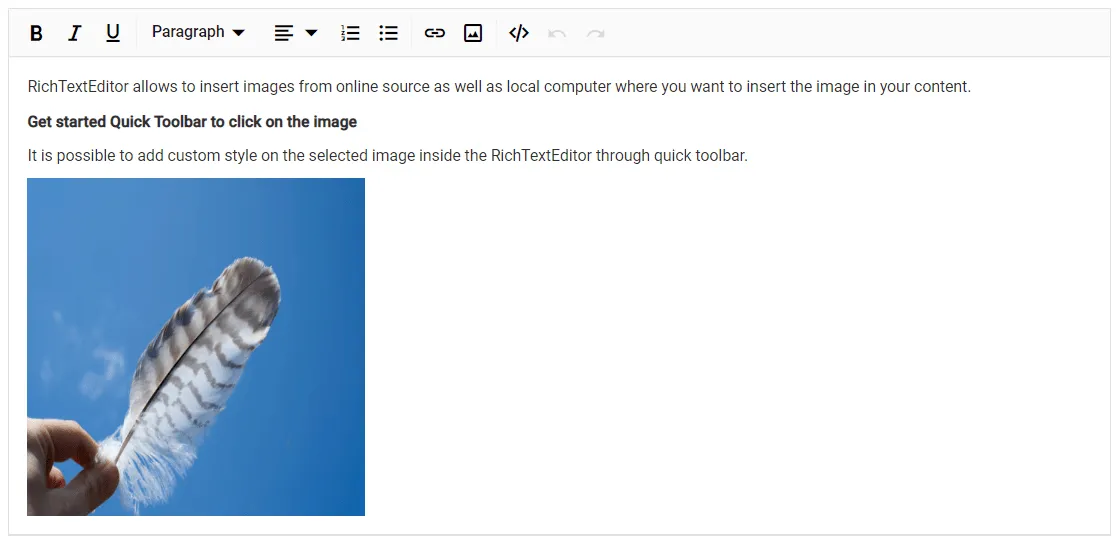

    <p>Rich Text Editor allows to insert images from online source as well as local computer where you want to insert the image in your content.</p>
    <p><b>Get started Quick Toolbar to click on the image</b></p>
    <p>It is possible to add custom style on the selected image inside the Rich Text Editor through quick toolbar.</p>
    <img alt='Logo' style='width: 300px; height: 300px; transform: rotate(0deg);' src='' />

The hyperlink itself can be an image in Rich Text Editor. If the image given as hyperlink, the remove, edit, and open links will be added to the quick toolbar of image as below. For further details about link, refer to the link documentation.

RTE image with link


Rich Text Editor has a built-in image inserting support. The resize points will be appearing on each corner of image when focus. So, users can resize the image using mouse points or thumb through the resize points easily. Also, the resize calculation will be done based on aspect ratio.

RTE image resize

You can refer to our Blazor Rich Text Editor feature tour page for its groundbreaking feature representations. You can also explore our Blazor Rich Text Editor example to knows how to render and configure the rich text editor tools.
