Context Menu in Blazor Scheduler Component
11 Jul 202413 minutes to read

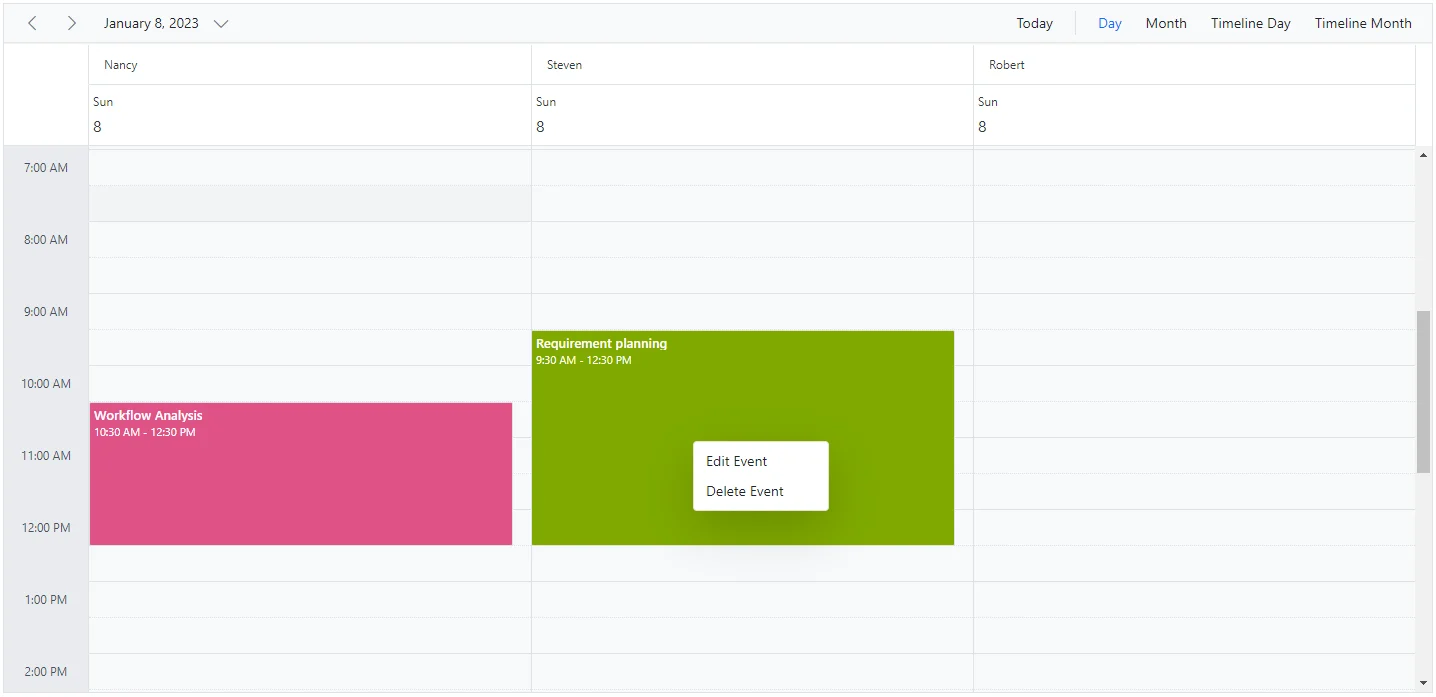

The context menu can be displayed on work cells, resource cells and appointments of Scheduler by making use of the ContextMenu control manually from the application end. In the following code example, context menu control is being added from sample end and set its target as Scheduler and the target element is got by using GetElementInfoAsync public method in Blazor.
On Scheduler cells, the menu items can be displayed such as New Event, New Recurring Event and Today option. For appointments, its related options can be displayed such as Edit Event and Delete Event. For resource cells, the related resource cell information can be displayed. The default event window can be opened for appointment creation and editing using the OpenEditorAsync method of Scheduler.
The deletion of appointments can be done by using the DeleteEventAsync public method. Also, the SelectedDate property can be used to navigate between different dates.
NOTE
You can also display custom menu options on Scheduler cells and appointments. Context menu will open on tap-hold in responsive mode.
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Navigations
<SfSchedule TValue="AppointmentData" @ref="ScheduleRef" Height="650px" @bind-SelectedDate="@SelectedDate">
<ScheduleGroup Resources="@groupData"></ScheduleGroup>
<ScheduleResources>
<ScheduleResource TItem="ResourceData" TValue="int[]" DataSource="@Resources" Field="TaskId" Title="Category" Name="Categories" TextField="Name" IdField="Id" GroupIDField="GroupId" ColorField="Color" AllowMultiple="true"></ScheduleResource>
</ScheduleResources>
<ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
<ScheduleViews>
<ScheduleView Option="View.Day"></ScheduleView>
<ScheduleView Option="View.Month"></ScheduleView>
<ScheduleView Option="View.TimelineDay"></ScheduleView>
<ScheduleView Option="View.TimelineMonth"></ScheduleView>
</ScheduleViews>
</SfSchedule>
<SfContextMenu TValue="MenuItem" Target=".e-schedule">
<MenuItems>
<MenuItem Text="New Event" Id="Add" Hidden="@isCell"></MenuItem>
<MenuItem Text="New Recurring Event" Hidden="@isCell" Id="AddRecurrence"></MenuItem>
<MenuItem Text="Today" Id="Today" Hidden="@isCell"></MenuItem>
<MenuItem Text="Edit Event" Id="Save" Hidden="@isEvent"></MenuItem>
<MenuItem Text="Edit Event" Id="EditRecurrenceEvent" Hidden="@isRecurrence">
<MenuItems>
<MenuItem Text="Edit Occurrence" Id="EditOccurrence" Hidden="@isRecurrence"></MenuItem>
<MenuItem Text="Edit Series" Id="EditSeries" Hidden="@isRecurrence"></MenuItem>
</MenuItems>
</MenuItem>
<MenuItem Text="Delete Event" Id="Delete" Hidden="@isEvent"></MenuItem>
<MenuItem Text="Delete Event" Id="DeleteRecurrenceEvent" Hidden="@isRecurrence">
<MenuItems>
<MenuItem Text="Delete Occurrence" Id="DeleteOccurrence" Hidden="@isRecurrence"></MenuItem>
<MenuItem Text="Delete Series" Id="DeleteSeries" Hidden="@isRecurrence"></MenuItem>
</MenuItems>
</MenuItem>
<MenuItem Text="Rename" Id="Rename" Hidden="@isResource"></MenuItem>
</MenuItems>
<MenuEvents TValue="MenuItem" OnOpen="OnOpen" ItemSelected="OnItemSelected"></MenuEvents>
</SfContextMenu>
@code{
private DateTime SelectedDate { get; set; } = new DateTime(2023, 1, 8);
private bool isCell;
private bool isEvent;
private bool isRecurrence;
private bool isResource;
SfSchedule<AppointmentData> ScheduleRef;
private AppointmentData EventData { get; set; }
private CellClickEventArgs CellData { get; set; }
private ElementInfo<AppointmentData> ElementData { get; set; }
private string[] groupData = new string[] { "Projects", "Categories" };
private List<ResourceData> Resources { get; set; } = new List<ResourceData> {
new ResourceData { Name = "Nancy", Id= 1, GroupId = 1, Color = "#df5286" },
new ResourceData { Name = "Steven", Id= 2, GroupId = 1, Color = "#7fa900" },
new ResourceData { Name = "Robert", Id= 3, GroupId = 2, Color = "#ea7a57" },
};
public class ResourceData
{
public string Name { get; set; }
public int Id { get; set; }
public int GroupId { get; set; }
public string Color { get; set; }
}
public List<AppointmentData> DataSource = new List<AppointmentData>
{
new AppointmentData { Id = 1, Subject = "Workflow Analysis", StartTime = new DateTime(2023, 1, 8, 10, 30, 0) , EndTime = new DateTime(2023, 1, 8, 12, 30, 0) , IsAllDay = false, TaskId = 1},
new AppointmentData { Id = 2, Subject = "Requirement planning", StartTime = new DateTime(2023, 1, 8, 9, 30, 0) , EndTime = new DateTime(2023, 1, 8, 12, 30, 0) , IsAllDay = false, TaskId = 2},
};
public async Task OnOpen(BeforeOpenCloseMenuEventArgs<MenuItem> args)
{
if (args.ParentItem == null)
{
isResource = true;
ElementData = await ScheduleRef.GetElementInfoAsync((int)args.Left, (int)args.Top);
if (ElementData.ElementType == ElementType.Event)
{
EventData = ElementData.EventData;
if (EventData.Id == 0)
{
args.Cancel = true;
}
if (EventData.RecurrenceRule != null)
{
isCell = isEvent = true;
isRecurrence = false;
}
else
{
isCell = isRecurrence = true;
isEvent = false;
}
}
else
{
isCell = false;
isEvent = isRecurrence = true;
}
if (ElementData.ElementType == ElementType.WorkCells)
{
var groupIndex = this.ScheduleRef.GetGroupIndex((ElementData.ResourceData.Last() as ResourceData).Id, "Categories");
CellClickEventArgs cellData = new CellClickEventArgs
{
StartTime = ElementData.StartTime,
EndTime = ElementData.EndTime,
IsAllDay = ElementData.IsAllDay,
GroupIndex = groupIndex,
};
CellData = cellData;
isCell = false;
isEvent = isRecurrence = true;
}
if (ElementData.ElementType == ElementType.ResourceHeader)
{
isResource = false;
Console.WriteLine(ElementData.ResourceData);
}
}
}
public async Task OnItemSelected(MenuEventArgs<MenuItem> args)
{
var SelectedMenuItem = args.Item.Id;
var ActiveCellsData = await ScheduleRef.GetSelectedCellsAsync();
if (ActiveCellsData == null)
{
ActiveCellsData = CellData;
}
switch (SelectedMenuItem)
{
case "Today":
SelectedDate = DateTime.Now;
break;
case "Add":
await ScheduleRef.OpenEditorAsync(ActiveCellsData, CurrentAction.Add);
break;
case "AddRecurrence":
await ScheduleRef.OpenEditorAsync(ActiveCellsData, CurrentAction.Add, RepeatType.Daily);
break;
case "Save":
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.Save);
break;
case "EditOccurrence":
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.EditOccurrence);
break;
case "EditSeries":
List<AppointmentData> Events = await ScheduleRef.GetEventsAsync();
EventData = (AppointmentData)Events.Where(data => data.Id == EventData.RecurrenceID).FirstOrDefault();
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.EditSeries);
break;
case "Delete":
await ScheduleRef.DeleteEventAsync(EventData);
break;
case "DeleteOccurrence":
await ScheduleRef.DeleteEventAsync(EventData, CurrentAction.DeleteOccurrence);
break;
case "DeleteSeries":
await ScheduleRef.DeleteEventAsync(EventData, CurrentAction.DeleteSeries);
break;
}
}
public class AppointmentData
{
public int Id { get; set; }
public string Subject { get; set; }
public string Location { get; set; }
public DateTime StartTime { get; set; }
public DateTime EndTime { get; set; }
public string Description { get; set; }
public bool IsAllDay { get; set; }
public string RecurrenceRule { get; set; }
public string RecurrenceException { get; set; }
public Nullable<int> RecurrenceID { get; set; }
public int TaskId { get; set; }
}
}
