Recurring events in Blazor Scheduler Component

11 Jul 202418 minutes to read

It represents an appointment that is created for a certain time interval and occurring repeatedly on a daily, weekly, monthly or yearly basis at the same time interval based on the provided recurrence rule. Usually, the recurring events are indicated by a repeat marker added at the bottom-right position.

NOTE

Set RecurrenceRule property to create recurring events.

Recurrence options and rules

Events can be repeated on a daily, weekly, monthly or yearly basis based on the recurrence rule which accepts the string value. The following details should be assigned to the RecurrenceRule property to generate the recurring instances.

Repeat type - daily/weekly/monthly/yearly.
How many times it needs to be repeated?
The interval duration.
The time period to render the appointment, etc.

There are four repeat types available namely,

Daily - Creates the recurring instances on daily basis.
Weekly - Creates the recurring instances on weekly basis for the selected days.
Monthly - Creates the recurring instances on monthly basis for the selected months and other provided recurrence criteria.
Yearly - Creates the recurring instances on yearly basis.

Recurrence properties

The properties based on which the recurrence appointments are created with its respective time period are depicted in the following table. Also, the valid rule string can be referred from iCalendar specifications.

NOTE

Refer iCalendar specifications for valid recurrence rule string.

Property	Purpose	Example
FREQ	Maintains the repeat type (Daily, Weekly, Monthly, Yearly) value of the appointment.	FREQ=DAILY;INTERVAL=1
INTERVAL	Maintains the interval value of the appointments. When the daily appointment is created at an interval of 2, the appointments are rendered on the days Monday, Wednesday and Friday (Creates an appointment on all days by leaving the interval of one day gap).	FREQ=DAILY;INTERVAL=2
COUNT	It holds the appointment’s count value. When the COUNT value is 10, then 10 instances of appointments are created in the recurrence series.	FREQ=DAILY;INTERVAL=1;COUNT=10
UNTIL	This property holds the end date value (in ISO format) denoting when the recurrence actually ends.	FREQ=DAILY;INTERVAL=1;UNTIL=20200530T041343Z;
BYDAY	It holds the day value(s), representing on which the appointments actually renders. Create the weekly appointment, and select the day(s) from the day options (Monday/Tuesday/Wednesday/Thursday/Friday/Saturday/Sunday). When Monday is selected, the first two letters of the selected day “MO” is saved in the BYDAY property. When multiple days are selected, the values are separated by commas.	FREQ=WEEKLY;INTERVAL=1;BYDAY=MO,WE;COUNT=10
BYMONTHDAY	This property is used to store the date value of the Month, while creating the Month recurrence appointment. When a Monthly recurrence appointment is created for every 3rd day of the month, then BYMONTHDAY holds the value 3 and creates the appointment on 3rd day of every month.	FREQ=MONTHLY;BYMONTHDAY=3;INTERVAL=1;COUNT=10
BYMONTH	This property is used to store the index value of the selected Month while creating the yearly appointments. When the yearly appointment is created on June month, the index value of June month 6 will get stored in the BYMONTH field. The appointment is created on every 6th month of a year.	FREQ=YEARLY;BYMONTHDAY=16;BYMONTH=6;INTERVAL=1;COUNT=10
BYSETPOS	This property is used to store the index value of the week. When the monthly appointment is created in second week of a month, the index value of the second week (2) is stored in BYSETPOS.	FREQ=MONTHLY;BYDAY=MO;BYSETPOS=2;COUNT=10

NOTE

The default recurrence related validation has been included for recurrence appointments similar to the one available in Outlook. The validation usually occurs during the recurrence appointment creation, editing, drag and drop or resizing of the recurrence appointments and also if any single occurrence changes.

Creating a recurring event

The following example depicts how to create a recurring event on Scheduler with the specific recurrence rule. In the following example, an event is made to repeat on daily mode and ends after 5 occurrences.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="550px" @bind-SelectedDate="@CurrentDate">
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2020, 1, 9);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Meeting", StartTime = new DateTime(2020, 1, 6, 9, 30, 0) , EndTime = new DateTime(2020, 1, 6, 11, 0, 0),
        RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=5" }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
        public string RecurrenceException { get; set; }
    }
}

Adding exceptions

A few instance of the recurrence series can be excluded on specific dates, by adding those exceptional dates to the RecurrenceException field. These date values should be given in the ISO date time format with no hyphens(-) separating the date elements.

For example, 7th January 2020 can be represented as 20200107. Also, the time part being represented in UTC format needs to add “Z” after the time portion with no space. “09:30 AM” is therefore represented as “040000Z”.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="550px" @bind-SelectedDate="@CurrentDate">
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2020, 1, 6);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Meeting", StartTime = new DateTime(2020, 1, 6, 9, 30, 0) , EndTime = new DateTime(2020, 1, 6, 11, 0, 0),
        RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=5", RecurrenceException = "20200107T040000Z,20200109T040000Z" }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

Editing an occurrence from a series

To dynamically edit a particular occurrence from an event series and display it on the initial load of Scheduler, the edited occurrence needs to be added as a new event to the dataSource collection, with an additional RecurrenceID field defined to it. The RecurrenceID field of edited occurrence usually maps the ID value of the parent event.

In this example, a recurring instance that displays on the date 30th January 2020 is edited with different timings. Therefore, this particular date is excluded from the parent recurring event that repeats from 28th January 2020 to 1st February 2020. This can be done by adding the RecurrenceException field with the excluded date value on the parent event. Also, the edited occurrence event which is created as a new event should carry the RecurrenceID field pointing to the parent event’s Id value.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="550px" @bind-SelectedDate="@CurrentDate">
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2020, 1, 31);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Scrum Meeting", StartTime = new DateTime(2020, 1, 28, 9, 30, 0) , EndTime = new DateTime(2020, 1, 28, 11, 0, 0),
        RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=5", RecurrenceException = "20200130T040000Z" },
        new AppointmentData { Id = 2, Subject = "Scrum Meeting Rescheduled", StartTime = new DateTime(2020, 1, 30, 10, 30, 0) , EndTime = new DateTime(2020, 1, 30, 12, 0, 0), RecurrenceID = 1 }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

Edit/Delete following recurrence events

The Scheduler allows the user to edit the following recurrence events by setting true value to AllowEditFollowingEvents within the ScheduleEventSettings tag. Once the recurrence events are edited/ deleted as following events, then the following recurrence events will be considered as separate series, the changes will not reflect to parent series. In the following code example, if any of the recurrence event is edited or deleted with the following events option, then the edit or delete action is applied to further recurrence events.

NOTE

To edit/delete following recurrence events into the scheduler, set AllowEditFollowingEvents field to true in ScheduleEventSettings.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Width="100%" Height="550px" @bind-SelectedDate="@CurrentDate">
    <ScheduleEventSettings DataSource="@DataSource" AllowEditFollowingEvents="true"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2020, 3, 10);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Meeting", StartTime = new DateTime(2020, 3, 9, 9, 30, 0) , EndTime = new DateTime(2020, 3, 9, 11, 0, 0), RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=5" }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

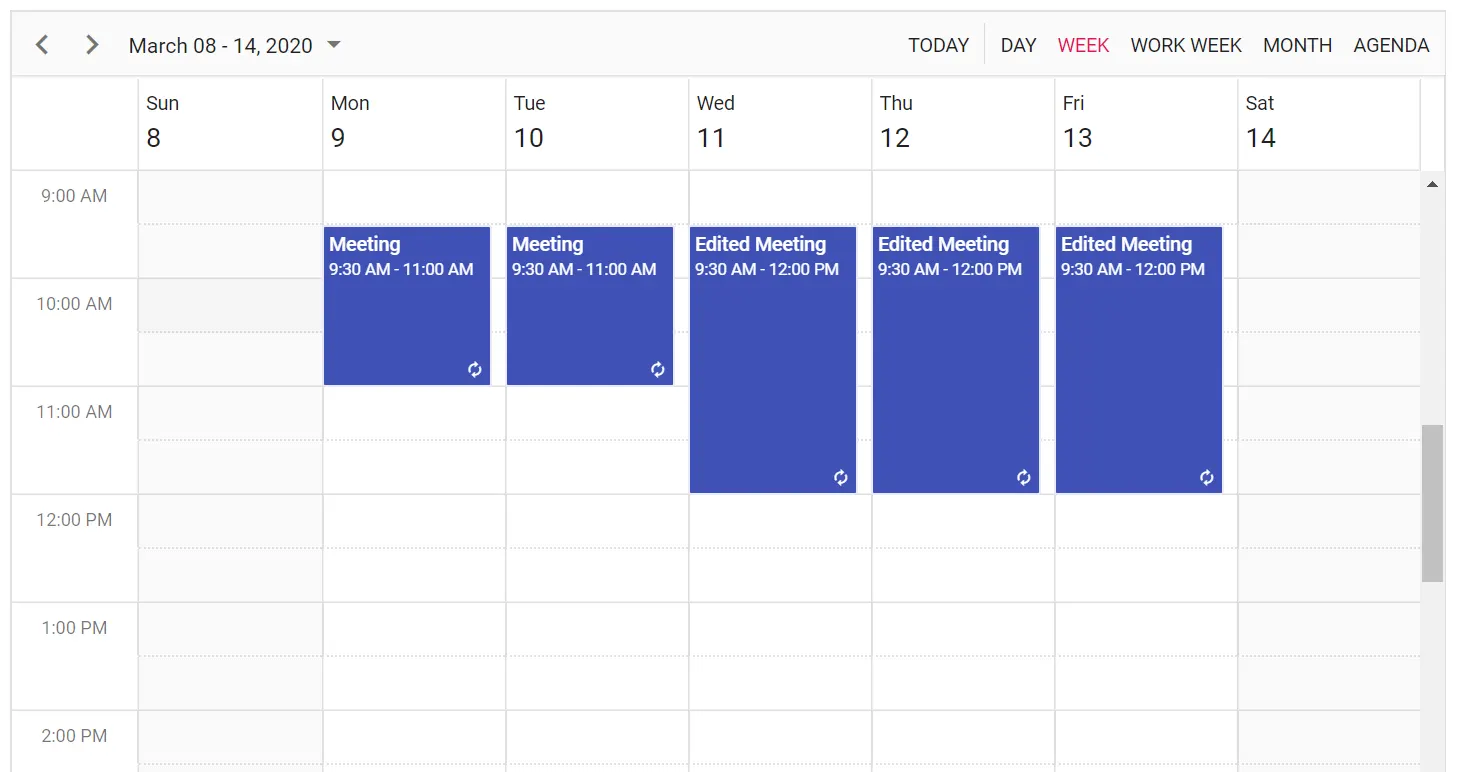

Editing Events in Blazor Scheduler

Daily Frequency

Description	Example
Daily recurring event that never ends	FREQ=DAILY; INTERVAL=1
Daily recurring event that ends after 5 occurrences	FREQ=DAILY; INTERVAL=1; COUNT=5
Daily recurring event that ends exactly on 12/12/2020	FREQ=DAILY; INTERVAL=1; UNTIL=20201212T041343Z
Daily event that recurs on alternative days and repeats for 10 occurrences	FREQ=DAILY; INTERVAL=2; COUNT=10

Weekly Frequency

Description	Example
Weekly recurring event that repeats on every Monday, Wednesday and Friday and never ends	FREQ=WEEKLY; INTERVAL=1; BYDAY=MO,WE,FR
Repeats every week Thursday and ends after 10 occurrences	FREQ=WEEKLY; INTERVAL=1; BYDAY=TH; COUNT=10
Repeats every week Monday and ends on 12/12/2020	FREQ=WEEKLY; INTERVAL=1; BYDAY=MO; UNTIL=20201212T041343Z
Repeats on Monday, Wednesday and Friday of alternative weeks and ends after 10 occurrences	FREQ=WEEKLY; INTERVAL=2; BYDAY=MO, WE, FR; COUNT=10

Monthly Frequency

Description	Example
Monthly recurring event that repeats on every 15th day of a month and never ends	FREQ=MONTHLY; BYMONTHDAY=15; INTERVAL=1
Monthly recurring event that repeats on every 16th day of a month and ends after 10 occurrences	FREQ=MONTHLY; BYMONTHDAY=16; INTERVAL=1; COUNT=10
Repeats every 17th day of a month and ends on 12/12/2020	FREQ=MONTHLY; BYMONTHDAY=17; INTERVAL=1; UNTIL=20201212T041343Z
Repeats every 2nd Friday of a month and never ends	FREQ=MONTHLY; BYDAY=FR; BYSETPOS=2; INTERVAL=1
Repeats every 4th Wednesday of a month and ends after 10 occurrences	FREQ=MONTHLY; BYDAY=WE; BYSETPOS=4; INTERVAL=1; COUNT=10
Repeats every 4th Friday of a month and ends on 12/12/2020	FREQ=MONTHLY; BYDAY=FR; BYSETPOS=4; INTERVAL=1; UNTIL=20201212T041343Z;

Yearly Frequency

Description	Example
Yearly event that repeats on every 15th day of December month and never ends	FREQ=YEARLY; BYMONTHDAY=15; BYMONTH=12; INTERVAL=1
Event that repeats on every 10th day of December month and ends after 10 occurrences	FREQ=YEARLY; BYMONTHDAY=10; BYMONTH=12; INTERVAL=1; COUNT=10
Repeats on every 12th day of December month and ends on 12/12/2025	FREQ=YEARLY; BYMONTHDAY=12; BYMONTH=12; INTERVAL=1; UNTIL=20251212T041343Z
Repeats on every 3rd Friday of December month and never ends	FREQ=YEARLY; BYDAY=FR; BYMONTH=12; BYSETPOS=3; INTERVAL=1
Repeats on every 3rd Tuesday of December month and ends after 10 occurrences	FREQ=YEARLY; BYDAY=TU; BYMONTH=12; BYSETPOS=3; INTERVAL=1; COUNT=10
Repeats on every 4th Wednesday of December month and ends on 12/12/2028	FREQ=YEARLY; BYDAY=WE; BYMONTH=12; BYSETPOS=4; INTERVAL=1; UNTIL=20281212T041343Z

Recurrence Validation

The built-in validation support has been added by default for recurring appointments during its creation, edit, drag and drop or resize action. The following are the possible validation alerts that displays on Scheduler while creating or editing the recurring events.

Validation messages	Description
The recurrence pattern is not valid.	This alert will raise, when the selected recurrence rule value is not a valid one. For example, when you try to select the end date value (using `Until` option) for a recurring event, which occurs before the start date, an alert will popup out saying that the chosen pattern is invalid.
The changes made to specific instances of this series will be canceled and those events will match the series again.	This alert will raise, when you try to edit the whole series, whose occurrence might have been already edited. For example, If there are five occurrences and one of the occurrence is already edited. Now, when you try to edit the entire series, you will get this validation alert.
The duration of the event must be shorter than how frequently it occurs. Shorten the duration, or change the recurrence pattern in the recurrence event editor.	This validation will occur, if the event duration is longer than the selected frequency. For example, if you create a recurring appointment with two days duration in `Daily` frequency with no intervals set to it, you may get this alert.
Some months have fewer than the selected date. For these months, the occurrence will fall on the last date of the month.	When you try to create a recurring appointment on 31st of every month, where few months won’t have 31 days and in this scenario, you will get this alert.
Two occurrences of the same event cannot occur on the same day.	This validation will occur, when you try to edit or move any single occurrence to some other date, where another occurrence of the same event is already present.
