Row Auto Height in Blazor Scheduler Component

11 Jul 20249 minutes to read

By default, the height of the Scheduler rows in Timeline views are static and therefore, when the same time range holds multiple overlapping appointments, a +n more text indicator will be displayed. With this feature enabled, you can now view all the overlapping appointments present in those specific time range by auto-adjusting the row height based on the presence of the appointments count, instead of displaying the +n more text indicators.

To enable auto row height adjustments on Scheduler Timeline views and Month view, set true to the EnableAutoRowHeight property whose default value is false.

NOTE

This auto row height adjustment is applicable only on all the Timeline views as well as on the calendar Month view.

Now, let’s see how it works on those applicable views with examples.

When the feature EnableAutoRowHeight is enabled, the row height gets auto-adjusted based on the number of overlapping events occupied on the same time range, which is demonstrated in the following example.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px" EnableAutoRowHeight="true">
    <ScheduleViews>
        <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.TimelineWeek"></ScheduleView>
        <ScheduleView Option="View.TimelineMonth"></ScheduleView>
    </ScheduleViews>
</SfSchedule>
@code{
    DateTime CurrentDate = new DateTime(2023, 1, 8);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Meeting", StartTime = new DateTime(2023, 1, 9, 10, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 2, Subject = "Conference", StartTime = new DateTime(2023, 1, 9, 9, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 3, Subject = "Seminar", StartTime = new DateTime(2023, 1, 9, 9, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 4, Subject = "Sprint Planning", StartTime = new DateTime(2023, 1, 9, 11, 30, 0) , EndTime = new DateTime(2023, 1, 9, 12, 0, 0) }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

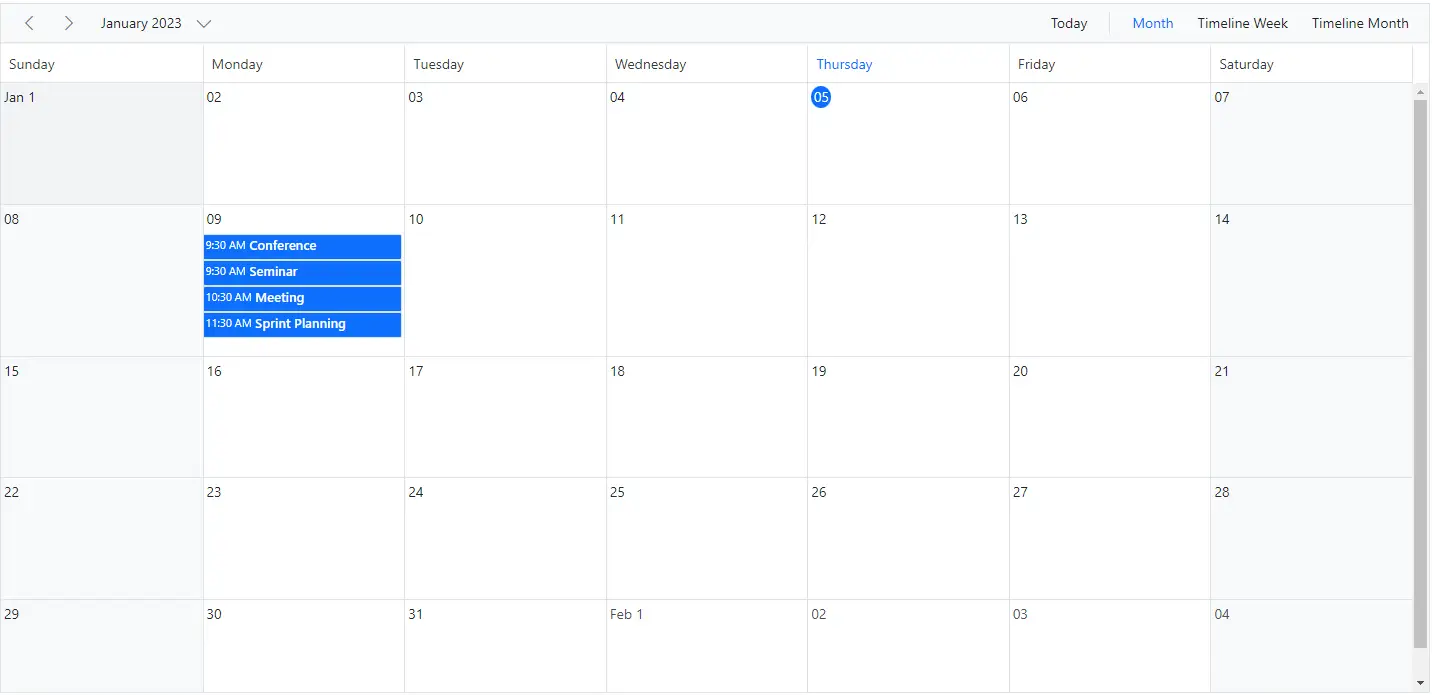

Row Auto Height in Blazor Scheduler

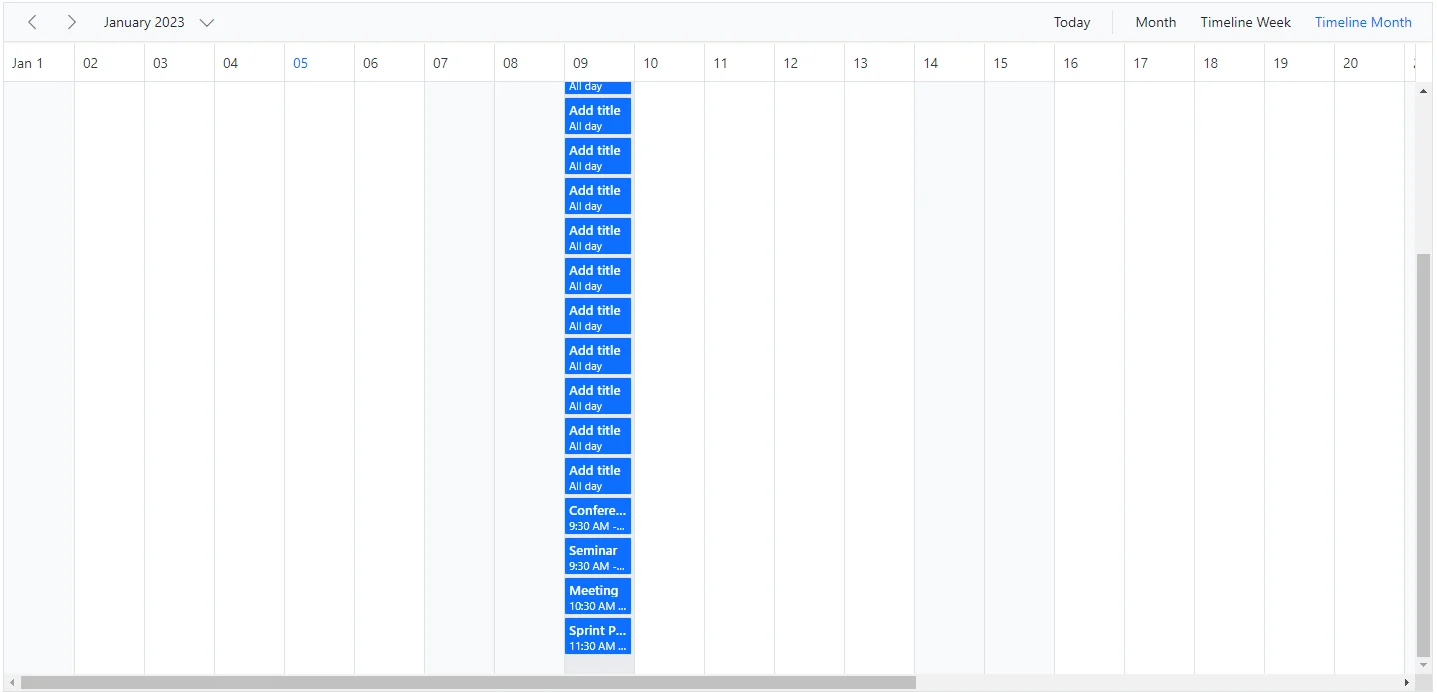

Blazor Scheduler in Timeleine Month View

Timeline views with multiple resources

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px" EnableAutoRowHeight="true">
    <ScheduleGroup Resources="@Resources"></ScheduleGroup>
    <ScheduleResources>
        <ScheduleResource TItem="ResourceData" TValue="int" DataSource="@OwnerData" Field="OwnerId" Title="Owner" Name="Owner" TextField="Text" IdField="Id" ColorField="Color"></ScheduleResource>
    </ScheduleResources>
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.TimelineWeek"></ScheduleView>
        <ScheduleView Option="View.TimelineMonth"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2023, 1, 9);
    public string[] Resources { get; set; } = { "Owner" };
    private List<ResourceData> OwnerData { get; set; } = new List<ResourceData> {
        new ResourceData { Text = "Nancy", Id= 1, Color = "#df5286" },
        new ResourceData { Text = "Steven", Id= 2, Color = "#7fa900" },
        new ResourceData { Text = "Robert", Id= 3, Color = "#ea7a57" }
    };
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, OwnerId = 2,Subject = "Meeting", StartTime = new DateTime(2023, 1, 9, 10, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 2, OwnerId = 2,Subject = "Conference", StartTime = new DateTime(2023, 1, 9, 9, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 3, OwnerId = 2,Subject = "Seminar", StartTime = new DateTime(2023, 1, 9, 9, 30, 0) , EndTime = new DateTime(2023, 1, 9, 11, 0, 0) },
        new AppointmentData { Id = 4, OwnerId = 2, Subject = "Sprint Planning", StartTime = new DateTime(2023, 1, 9, 10, 30, 0) , EndTime = new DateTime(2023, 1, 9, 12, 0, 0) }
    };
    public class ResourceData
    {
        public int Id { get; set; }
        public string Text { get; set; }
        public string Color { get; set; }
    }
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
        public int OwnerId { get; set; }
    }
}

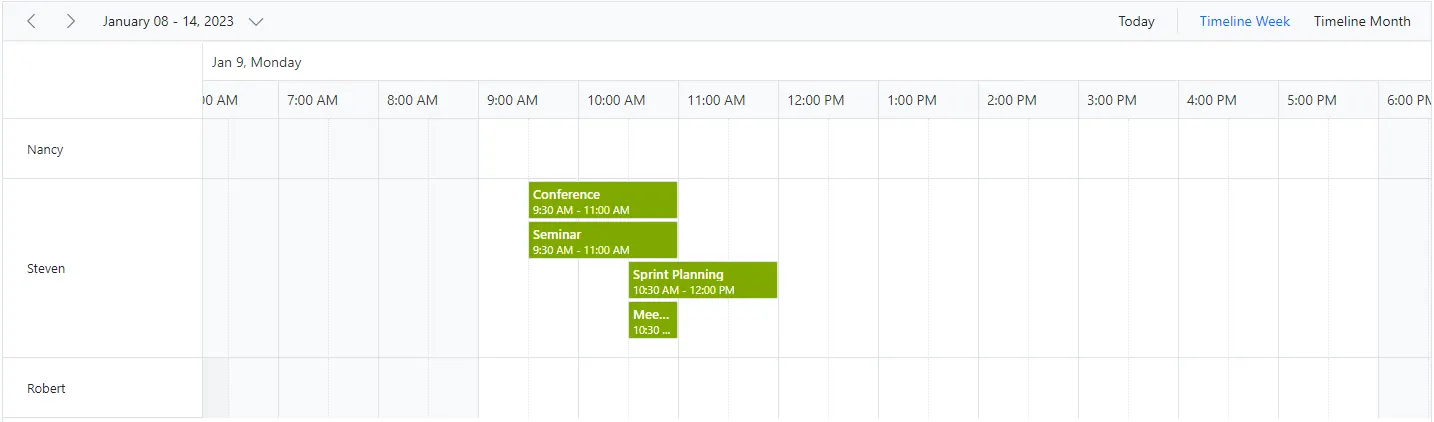

Timeline Views with Multiple Resources in Blazor Scheduler

Appointments occupying entire cell

By default, with the feature EnableAutoRowHeight, there will be a space in the bottom of the cell when appointment is rendered. To avoid this space, set true to the property IgnoreWhitespace with ScheduleEventSettings tag helper whereas its default property value is false.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="350px" EnableAutoRowHeight="true" @bind-SelectedDate="@CurrentDate">
    <ScheduleGroup Resources="@Resources"></ScheduleGroup>
    <ScheduleResources>
        <ScheduleResource TItem="ResourceData" TValue="int" DataSource="@OwnerData" Field="OwnerId" Title="Owner" Name="Owner" TextField="Text" IdField="Id" ColorField="Color"></ScheduleResource>
    </ScheduleResources>
    <ScheduleEventSettings DataSource="@DataSource" IgnoreWhitespace="true"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.TimelineWeek"></ScheduleView>
        <ScheduleView Option="View.TimelineMonth"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2023, 1, 30);
    public string[] Resources { get; set; } = { "Owner" };
    private List<ResourceData> OwnerData { get; set; } = new List<ResourceData>
{
        new ResourceData { Text = "Nancy", Id= 1, Color = "#df5286" },
        new ResourceData { Text = "Steven", Id= 2, Color = "#7fa900" },
        new ResourceData { Text = "Robert", Id= 3, Color = "#ea7a57" },
        new ResourceData { Text = "Michael", Id= 4, Color = "#df5286" },
        new ResourceData { Text = "John", Id= 5, Color = "#7fa900" }
    };
    private List<AppointmentData> DataSource = new List<AppointmentData>
{
        new AppointmentData {  Id = 1, Subject = "Board Meeting", StartTime = new DateTime(2023, 1, 30, 9, 0, 0), EndTime = new DateTime(2023, 1, 30, 11, 0, 0), OwnerId = 1},
        new AppointmentData {  Id = 2, Subject = "Sprint Meeting", StartTime = new DateTime(2023, 1, 30, 9, 30, 0), EndTime = new DateTime(2023, 1, 30, 11, 30, 0), OwnerId = 2},
        new AppointmentData {  Id = 3, Subject = "Scrum Meeting", StartTime = new DateTime(2023, 1, 30, 10, 0, 0), EndTime = new DateTime(2023, 1, 30, 12, 0, 0), OwnerId = 3}
    };
    public class ResourceData
    {
        public int Id { get; set; }
        public string Text { get; set; }
        public string Color { get; set; }
    }
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
        public int OwnerId { get; set; }
    }
}

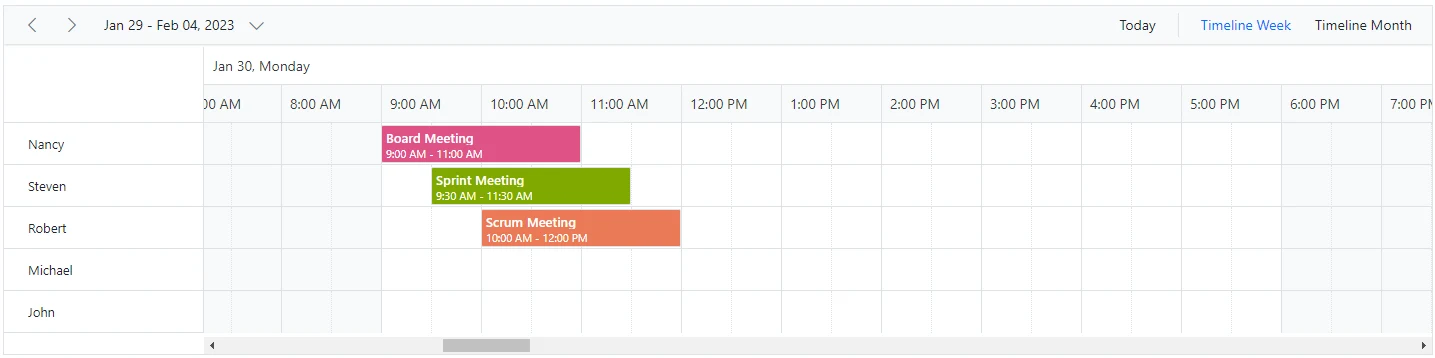

Ignoring Whitespace in Blazor Scheduler

NOTE

The property IgnoreWhitespace will be applicable only when EnableAutoRowHeight feature is enabled in the Scheduler.
