Timescale Customization in Blazor Scheduler Component

11 Jul 20249 minutes to read

The time slots are usually the time cells that are displayed on the Day, Week and Work Week views of both the calendar (to the left most position) and timeline views (at the top position). The ScheduleTimeScale allows to control and set the required time slot duration for the work cells displayed on Scheduler. It includes the following sub-options such as,

  • Enable - When set to true, allows the Scheduler to display the appointments accurately against the exact time duration. If set to false, all the appointments of a day will be displayed one below the other with no grid lines displayed. Its default value is true.
  • Interval – Defines the time duration on which the time axis to be displayed either in 1 hour or 30 minutes interval and so on. It accepts the values in minutes and defaults to 60.
  • SlotCount – Decides the number of slot count to be split for the specified time interval duration. It defaults to 2, thus displaying two slots to represent an hour(each slot depicting 30 minutes duration).

Note: The upper limit for rendering slots within a single day, utilizing the Interval and SlotCount properties of the ScheduleTimeScale, stands at 1000. This constraint aligns with the maximum colspan value permissible for the table element, also capped at 1000. This particular restriction is relevant exclusively to the TimelineDay, TimelineWeek and TimelineWorkWeek views.

Setting different time slot duration

The Interval and SlotCount properties can be used together on the Scheduler to set different time slot duration which is depicted in the following code example. Here, six time slots together represents an hour.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px">
    <ScheduleTimeScale Interval="60" SlotCount="6"></ScheduleTimeScale>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

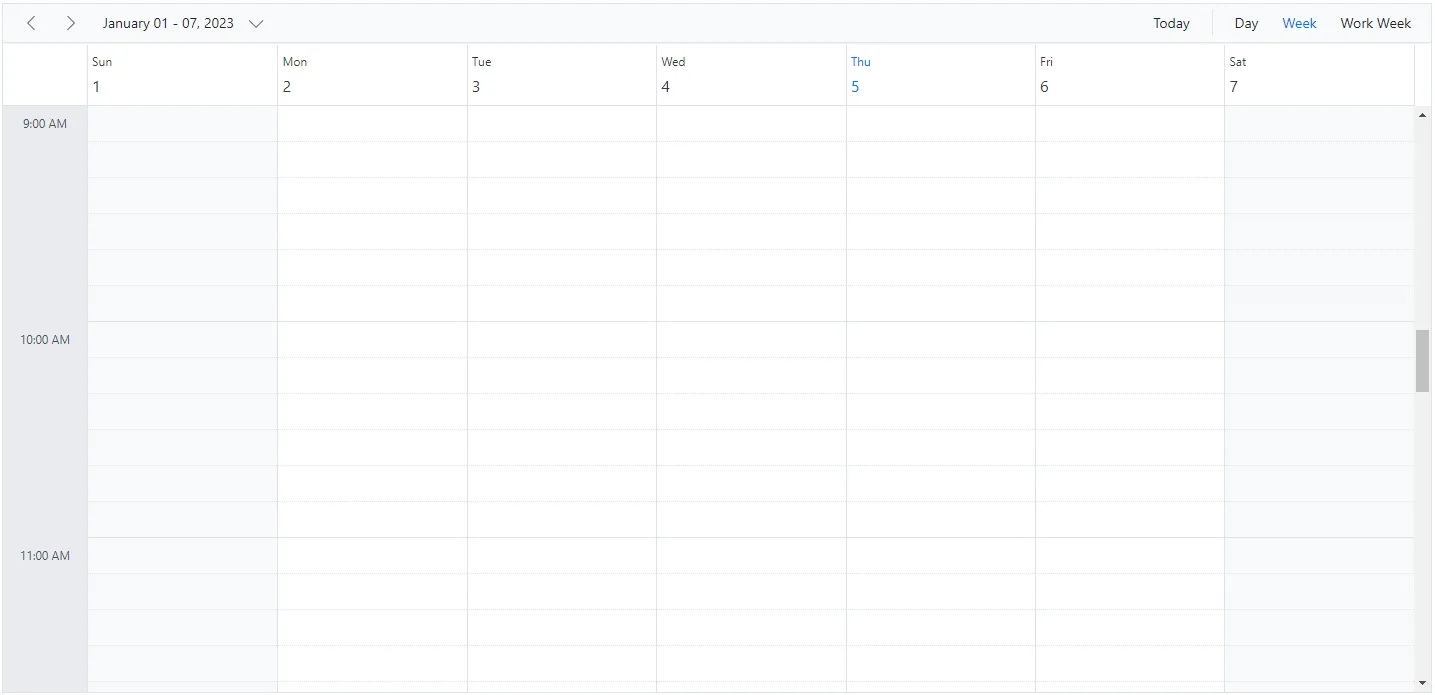

Time Slot Duration in Blazor Scheduler

Adjusting the time slot duration for various views

By using the Interval and SlotCount properties, within the ScheduleViewTimescale as a child element of ScheduleView you can customize the duration of time slots for views. Take a look at the code snippet to see how it’s done. In this example, the Day view has six-time slots per hour while the Week and WorkWeek views have two-time slots per hour.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px">
    <ScheduleViews>
        <ScheduleView Option="View.Day">
            <ScheduleViewTimeScale Interval="10" SlotCount="1"></ScheduleViewTimeScale>
        </ScheduleView>
        <ScheduleView Option="View.Week">
            <ScheduleViewTimeScale Interval="60" SlotCount="2"></ScheduleViewTimeScale>
        </ScheduleView>
        <ScheduleView Option="View.WorkWeek">
            <ScheduleViewTimeScale Interval="60" SlotCount="2"></ScheduleViewTimeScale>
        </ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

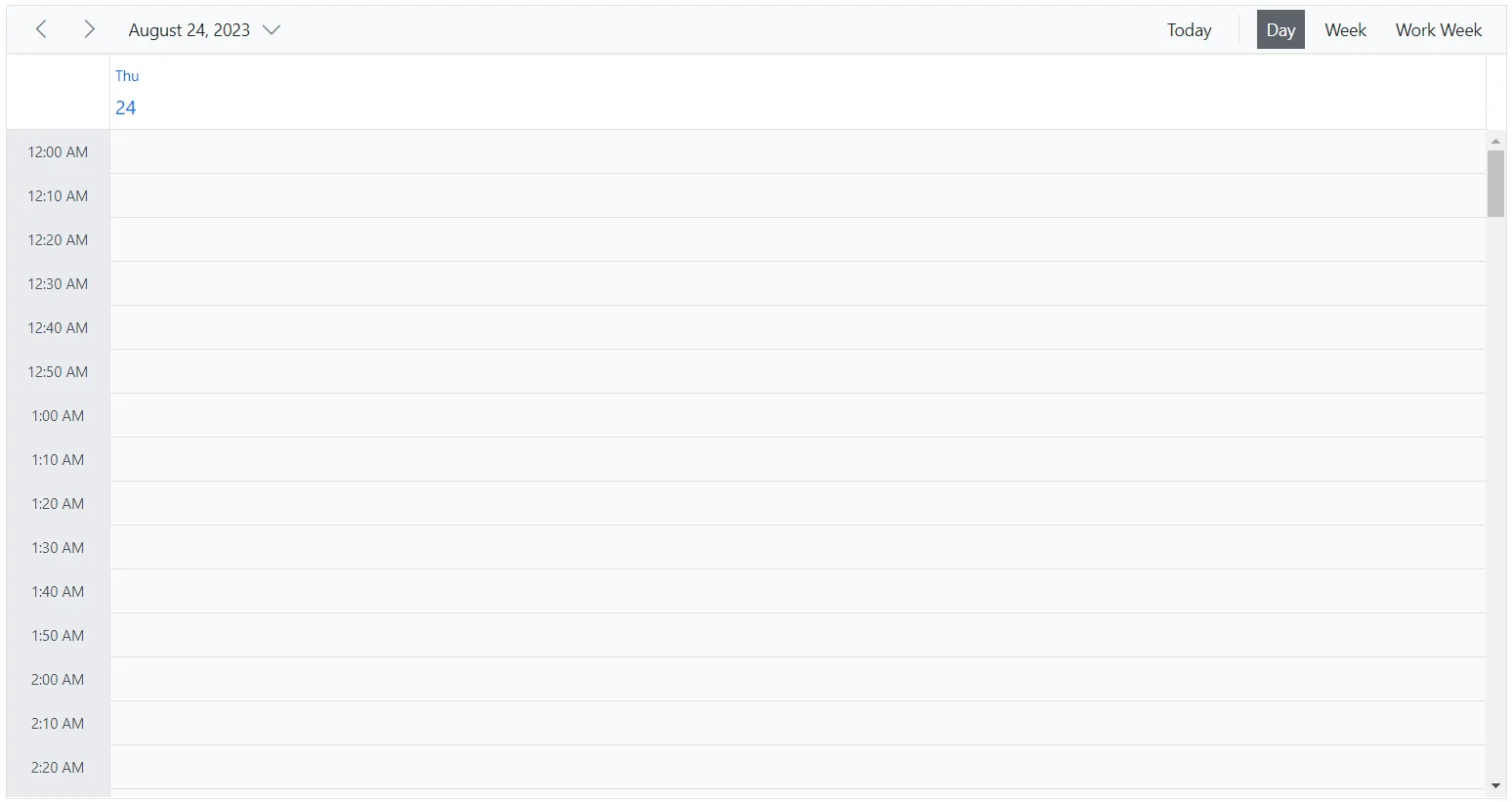

Time Slot Duration for Day View in Blazor Scheduler

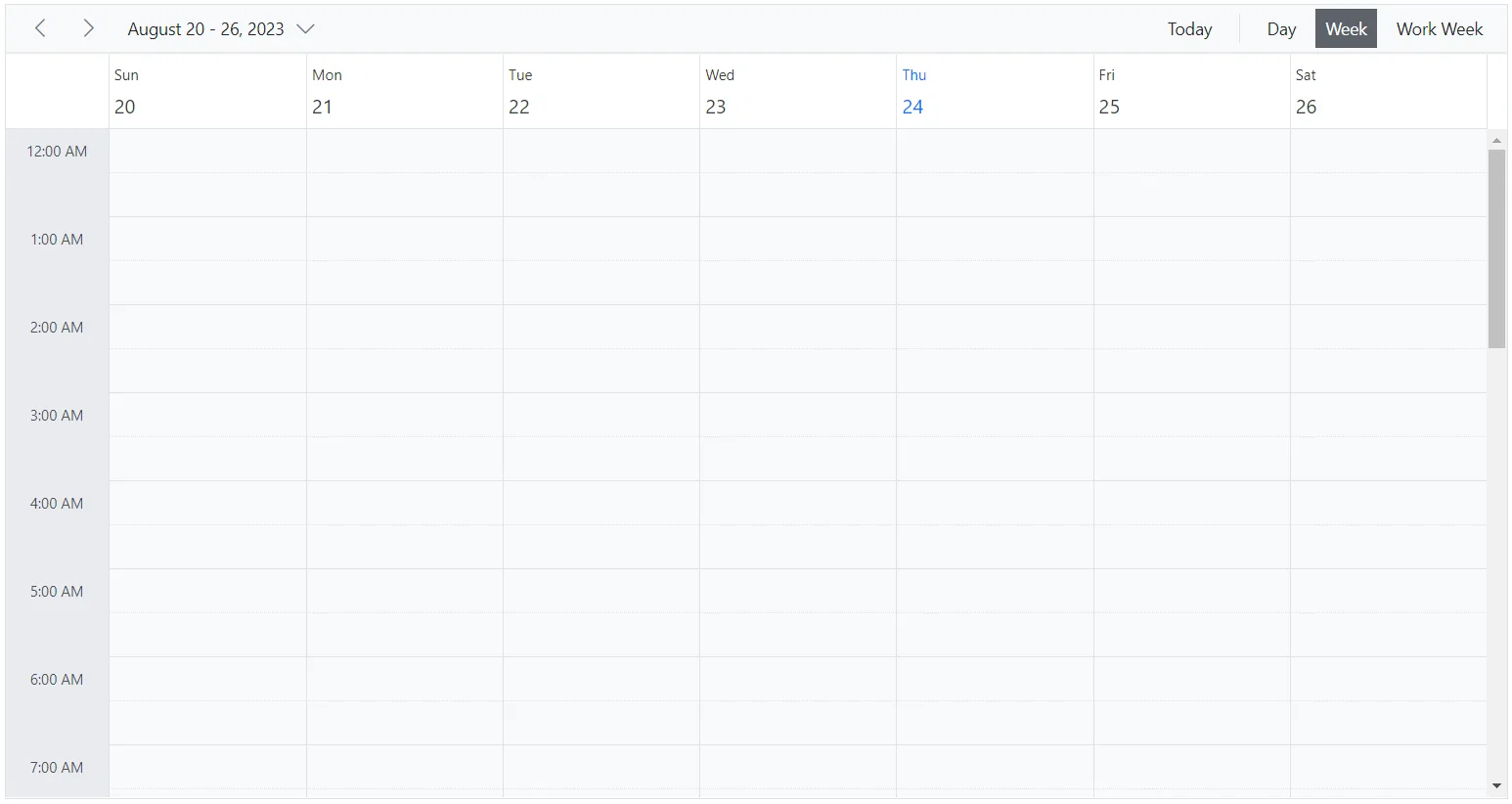

Time Slot Duration for Week and WorkWeek View in Blazor Scheduler

Customizing time cells using template

The template option is available to allow customization of time slots which are as follows,

  • MajorSlotTemplate - The template option to be applied for major time slots. Here, the template accepts HTMLElement as template design and then the parsed design is displayed onto the time cells. The time details can be accessed within this template.
  • MinorSlotTemplate - The template option to be applied for minor time slots. Here, the template accepts HTMLElement as template design and then the parsed design is displayed onto the time cells. The time details can be accessed within this template.
@using Syncfusion.Blazor.Schedule
@using System.Globalization

<SfSchedule TValue="AppointmentData" Height="650px">
    <ScheduleTimeScale Interval="60" SlotCount="6">
        <MajorSlotTemplate>
            <div>@(majorSlotTemplate((context as TemplateContext).Date))</div>
        </MajorSlotTemplate>
        <MinorSlotTemplate>
            <div style="text-align: right; margin-right: 15px">@(minorSlotTemplate((context as TemplateContext).Date))</div>
        </MinorSlotTemplate>
    </ScheduleTimeScale>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    public static string majorSlotTemplate(DateTime date)
    {
        return date.ToString("hh", CultureInfo.InvariantCulture);
    }
    public static string minorSlotTemplate(DateTime date)
    {
        return date.ToString("mm", CultureInfo.InvariantCulture);
    }
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

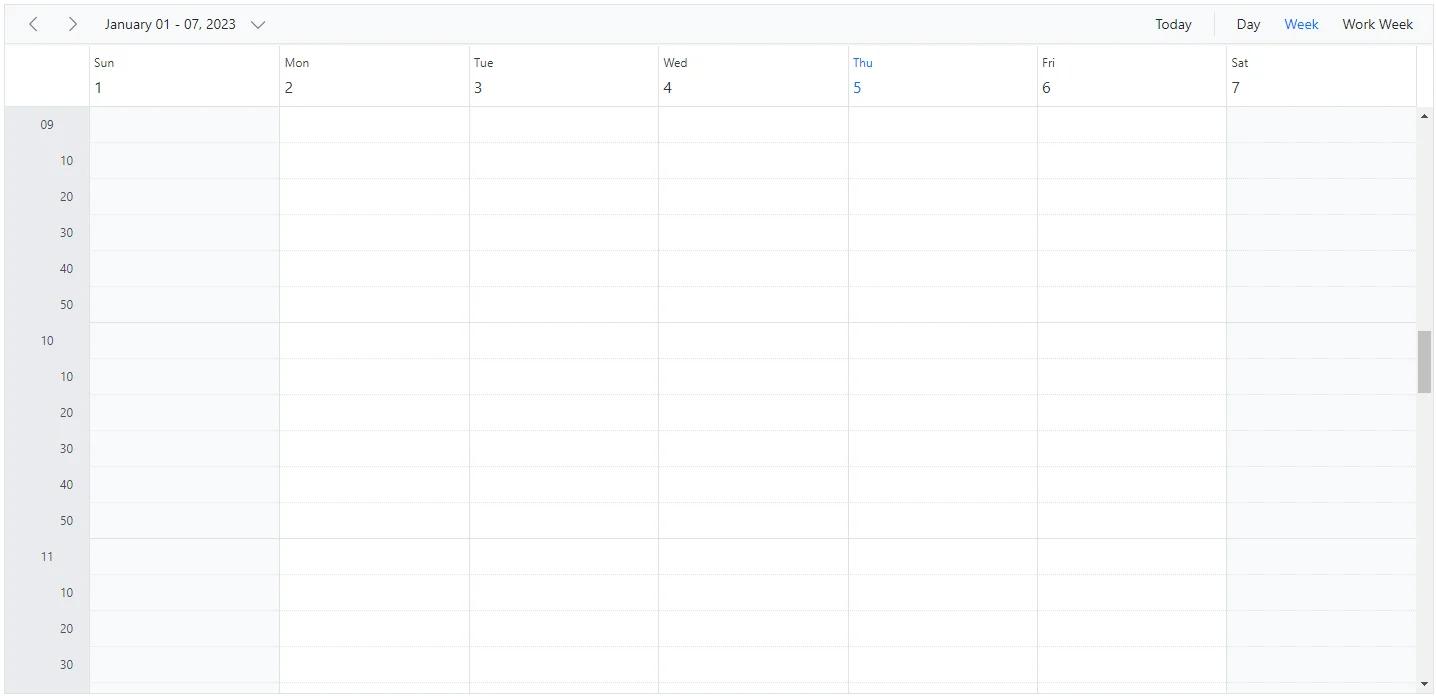

Customizing Time Cells in Blazor Scheduler

Hide the timescale

The grid lines which indicates the exact time duration can be enabled or disabled on the Scheduler, by setting true or false to the Enable option within the ScheduleTimeScale property. It’s default value is true.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px">
    <ScheduleTimeScale Enable="false"></ScheduleTimeScale>
    <ScheduleViews>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.TimelineWeek" MaxEventsPerRow="10"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

Hide Time Scale in Blazor Scheduler

Highlighting current date and time

By default, Scheduler indicates current date with a highlighted date header on all views, as well as marks accurately the system’s current time on specific views such as Day, Week, Work Week, Timeline Day, Timeline Week and Timeline Work Week views. To stop highlighting the current time indicator on Scheduler views, set false to the ShowTimeIndicator property which defaults to true.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="650px" ShowTimeIndicator="false">
    <ScheduleViews>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.TimelineWeek" MaxEventsPerRow="10"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

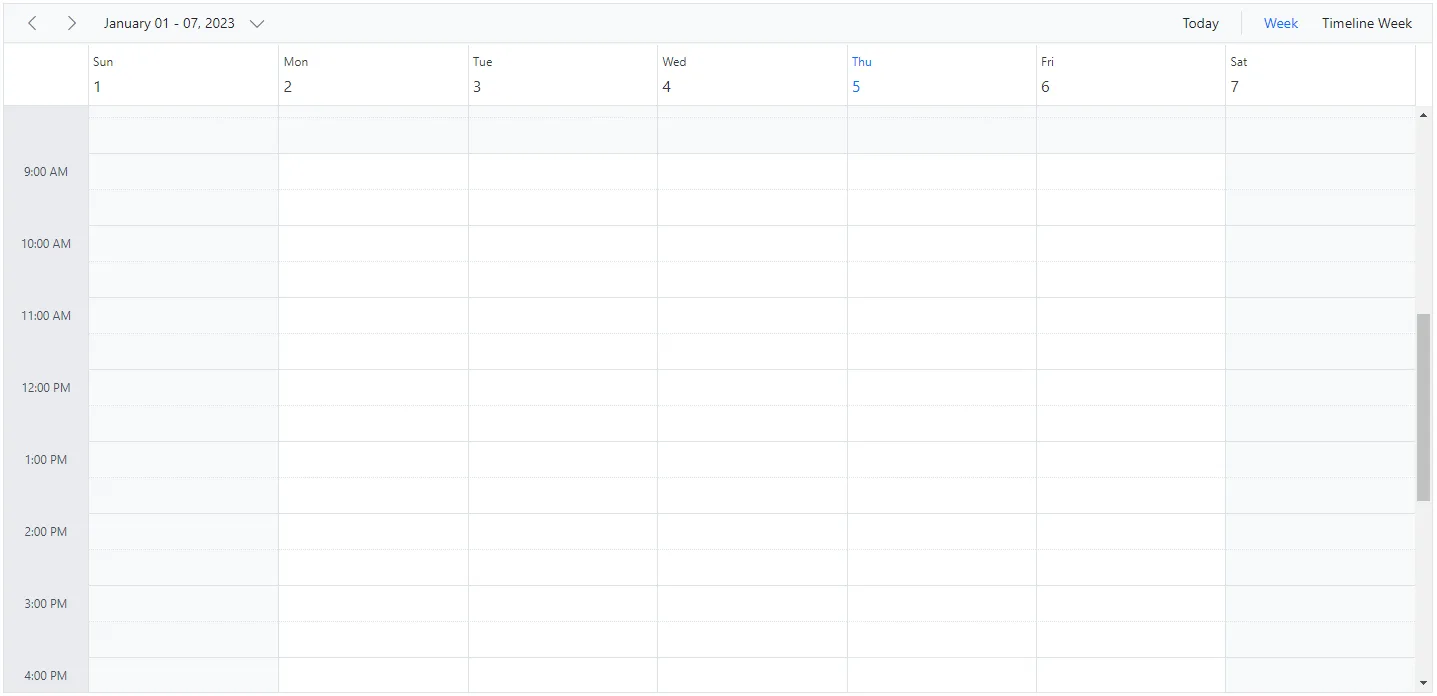

Highlight current Time in Blazor Scheduler
