Dock in Blazor Sidebar Component

3 Mar 20226 minutes to read

Dock state of the Blazor Sidebar reserves some space on the page that always remains in a visible state when the Sidebar is collapsed. It is used to show the short term of a content like icons alone instead of lengthy text.

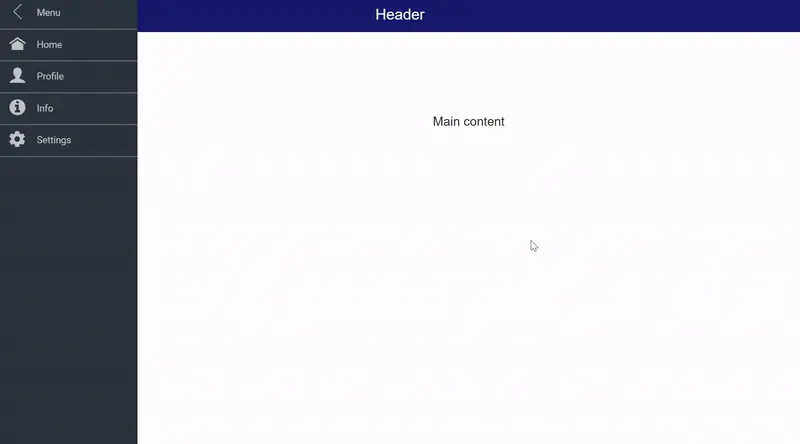

In the following sample, the list item has icon with text representation. On dock state only the icon listed out to interact. It can be achieved by using EnableDock property

@using Syncfusion.Blazor.Navigations

<div id="header" style="height:55px;text-align: center;color:white;background-color: midnightblue;font-size:1.5rem;line-height:55px;">
    Header
</div>

<SfSidebar @ref="sidebarObj" Width="220px" DockSize="72px" EnableDock=true @bind-IsOpen="SidebarToggle">
    <ChildContent>
        <div class="dock">
            <ul>
                <li class="sidebar-item" id="toggle" @onclick="Toggle">
                    <span class="e-icons expand"></span>
                    <span class="e-text" title="menu">Menu</span>
                </li>
                <li class="sidebar-item">
                    <span class="e-icons home"></span>
                    <span class="e-text" title="home">Home</span>
                </li>
                <li class="sidebar-item">
                    <span class="e-icons profile"></span>
                    <span class="e-text" title="profile">Profile</span>
                </li>
                <li class="sidebar-item">
                    <span class="e-icons info"></span>
                    <span class="e-text" title="info">Info</span>
                </li>
                <li class="sidebar-item">
                    <span class="e-icons settings"></span>
                    <span class="e-text" title="settings">Settings</span>
                </li>
            </ul>
        </div>
    </ChildContent>
</SfSidebar>

<div id="main-content container-fluid col-md-12" style="margin-top: 10%;">
    <div class="title default" style="text-align: center">Main content</div>
</div>

@code{
    SfSidebar sidebarObj;
    public bool SidebarToggle = false;
    public void Toggle()
    {
        SidebarToggle = !SidebarToggle;
    }
}

<style>
    /* Content area styles */
    .title {
        font-size: 20px;
    }

    /* Sidebar styles */
    .e-sidebar .e-icons::before {
        font-size: 25px;
    }

    /* dockbar icon Style */
    .e-sidebar .home::before {
        content: '\e102';
    }

    .e-sidebar .profile::before {
        content: '\e10c';
    }

    .e-sidebar .info::before {
        content: '\e11b';
    }

    .e-sidebar .settings::before {
        content: '\e10b';
    }

    .e-sidebar .expand::before,
    .e-sidebar.e-right.e-open .expand::before {
        content: '\e10f';
    }

    .e-sidebar.e-open .expand::before,
    .e-sidebar.e-right .expand::before {
        content: '\e10e';
    }

    /* end of dockbar icon Style */

    .e-sidebar.e-dock.e-close span.e-text {
        display: none;
    }

    .e-sidebar.e-dock.e-open span.e-text {
        display: inline-block;
    }

    .e-sidebar li {
        list-style-type: none;
        cursor: pointer;
    }

    .e-sidebar ul {
        padding: 0px;
    }


    .e-sidebar span.e-icons {
        color: #c0c2c5;
        line-height: 2
    }

    .e-open .e-icons {
        margin-right: 16px;
    }

    .e-open .e-text {
        overflow: hidden;
        font-size: 15px;
    }

    .sidebar-item {
        text-align: center;
        border-bottom: 1px #e5e5e58a solid;
    }

    .e-sidebar.e-open .sidebar-item {
        text-align: left;
        padding-left: 15px;
        color: #c0c2c5;
    }

    .e-sidebar {
        background: #2d323e;
        overflow: hidden;
    }

    @@font-face {
        font-family: 'e-icons';
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMjciQ6oAAAEoAAAAVmNtYXBH1Ec8AAABsAAAAHJnbHlmKcXfOQAAAkAAAAg4aGVhZBLt+DYAAADQAAAANmhoZWEHogNsAAAArAAAACRobXR4LvgAAAAAAYAAAAAwbG9jYQukCgIAAAIkAAAAGm1heHABGQEOAAABCAAAACBuYW1lR4040wAACngAAAJtcG9zdEFgIbwAAAzoAAAArAABAAADUv9qAFoEAAAA//UD8wABAAAAAAAAAAAAAAAAAAAADAABAAAAAQAAlbrm7l8PPPUACwPoAAAAANfuWa8AAAAA1+5ZrwAAAAAD8wPzAAAACAACAAAAAAAAAAEAAAAMAQIAAwAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQPqAZAABQAAAnoCvAAAAIwCegK8AAAB4AAxAQIAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA4QLhkANS/2oAWgPzAJYAAAABAAAAAAAABAAAAAPoAAAD6AAAA+gAAAPoAAAD6AAAA+gAAAPoAAAD6AAAA+gAAAPoAAAD6AAAAAAAAgAAAAMAAAAUAAMAAQAAABQABABeAAAADgAIAAIABuEC4QnhD+ES4RvhkP//AADhAuEJ4QvhEuEa4ZD//wAAAAAAAAAAAAAAAAABAA4ADgAOABYAFgAYAAAAAQACAAYABAADAAgABwAKAAkABQALAAAAAAAAAB4AQABaAQYB5gJkAnoCjgKwA8oEHAAAAAIAAAAAA+oDlQAEAAoAAAEFESERCQEVCQE1AgcBZv0mAXQB5P4c/g4Cw/D+lwFpAcP+s24BTf6qbgAAAAEAAAAAA+oD6gALAAATCQEXCQEHCQEnCQF4AYgBiGP+eAGIY/54/nhjAYj+eAPr/ngBiGP+eP54YwGI/nhjAYgBiAAAAwAAAAAD6gOkAAMABwALAAA3IRUhESEVIREhFSEVA9b8KgPW/CoD1vwq6I0B64wB640AAAEAAAAAA+oD4QCaAAABMx8aHQEPDjEPAh8bIT8bNS8SPxsCAA0aGhgMDAsLCwoKCgkJCQgHBwYGBgUEBAMCAgECAwUFBggICQoLCwwMDg0GAgEBAgIDBAMIBiIdHh0cHBoZFhUSEAcFBgQDAwEB/CoBAQMDBAUGBw8SFRYYGhsbHB0cHwsJBQQEAwIBAQMEDg0NDAsLCQkJBwYGBAMCAQEBAgIDBAQFBQYGBwgICAkJCgoKCwsLDAwMGRoD4gMEBwQFBQYGBwgICAkKCgsLDAwNDQ4ODxAQEBEWFxYWFhYVFRQUExIRERAOFxMLCggIBgYFBgQMDAwNDg4QDxERERIJCQkKCQkJFRQJCQoJCQgJEhERERAPDw4NDQsMBwgFBgYICQkKDAwODw8RERMTExUUFhUWFxYWFxEQEBAPDg4NDQwMCwsKCgkICAgHBgYFBQQEBQQAAAAAAwAAAAAD8wPzAEEAZQDFAAABMx8FFREzHwYdAg8GIS8GPQI/BjM1KwEvBT0CPwUzNzMfBR0CDwUrAi8FPQI/BTMnDw8fFz8XLxcPBgI+BQQDAwMCAT8EBAMDAwIBAQIDAwMEBP7cBAQDAwMCAQECAwMDBAQ/PwQEAwMDAgEBAgMDAwQE0AUEAwMDAgEBAgMDAwQFfAUEAwMDAgEBAgMDAwQFvRsbGRcWFRMREA4LCQgFAwEBAwUHCgsOEBETFRYXGRocHR4eHyAgISIiISAgHx4eHRsbGRcWFRMREA4LCQgFAwEBAwUHCgsOEBETFRYXGRsbHR4eHyAgISIiISAgHx4eAqYBAgIDBAQE/rMBAQEDAwQEBGgEBAQDAgIBAQEBAgIDBAQEaAQEBAMDAQEB0AECAwMDBAVoBAQDAwMCAeUBAgIEAwQEaAUEAwMDAgEBAgMDAwQFaAQEAwQCAgElERMVFhcZGhwdHh4fICAhIiIhICAfHh4dGxsZFxYVExEQDgsJCAUDAQEDBQcKCw4QERMVFhcZGxsdHh4fICAhIiIhICAfHh4dHBoZFxYVExEQDgsKBwUDAQEDBQcKCw4AAAIAAAAAA9MD6QALAE8AAAEOAQcuASc+ATceAQEHBgcnJgYPAQYWHwEGFBcHDgEfAR4BPwEWHwEeATsBMjY/ATY3FxY2PwE2Ji8BNjQnNz4BLwEuAQ8BJi8BLgErASIGApsBY0tKYwICY0pLY/7WEy4nfAkRBWQEAwdqAwNqBwMEZAURCXwnLhMBDgnICg4BEy4mfQkRBGQFAwhpAwNpCAMFZAQSCH0mLhMBDgrICQ4B9UpjAgJjSkpjAgJjAZWEFB4yBAYIrggSBlIYMhhSBhIIrggFAzIfE4QJDAwJhBQeMgQGCK4IEgZSGDIYUgYSCK4IBQMyHxOECQwMAAEAAAAAAwED6gAFAAAJAicJAQEbAef+FhoBzf4zA+v+Ff4VHwHMAc0AAAAAAQAAAAADAQPqAAUAAAEXCQEHAQLlHf4zAc0a/hYD6x7+M/40HwHrAAEAAAAAA/MD8wALAAATCQEXCQE3CQEnCQENAY7+cmQBjwGPZP5yAY5k/nH+cQOP/nH+cWQBjv5yZAGPAY9k/nEBjwAAAwAAAAAD8wPzAEAAgQEBAAAlDw4rAS8dPQE/DgUVDw4BPw47AR8dBRUfHTsBPx09AS8dKwEPHQL1DQ0ODg4PDw8QEBAQERERERUUFBQTExITEREREBAPDw0ODAwLCwkJCAcGBgQEAgIBAgIEAwUFBgYHBwkICQoCygECAgQDBQUGBgcHCQgJCv3QDQ0ODg4PDw8QEBAQERERERUUFBQTExITEREREBAPDw0ODAwLCwkJCAcGBgQEAgL8fgIDBQUHCAkKCwwNDg8PERESExQUFRYWFhgXGBkZGRoaGRkZGBcYFhYWFRQUExIREQ8PDg0MCwoJCAcFBQMCAgMFBQcICQoLDA0ODw8RERITFBQVFhYWGBcYGRkZGhoZGRkYFxgWFhYVFBQTEhERDw8ODQwLCgkIBwUFAwLFCgkICQcHBgYFBQMEAgIBAgIEBAYGBwgJCQsLDAwODQ8PEBARERETEhMTFBQUFREREREQEBAQDw8PDg4ODQ31ERERERAQEBAPDw8ODg4NDQIwCgkICQcHBgYFBQMEAgIBAgIEBAYGBwgJCQsLDAwODQ8PEBARERETEhMTFBQUFRoZGRkYFxgWFhYVFBQTEhERDw8ODQwLCgkIBwUFAwICAwUFBwgJCgsMDQ4PDxEREhMUFBUWFhYYFxgZGRkaGhkZGRgXGBYWFhUUFBMSEREPDw4NDAsKCQgHBQUDAgIDBQUHCAkKCwwNDg8PERESExQUFRYWFhgXGBkZGQAAAQAAAAAD6gPqAEMAABMhHw8RDw8hLw8RPw6aAswNDgwMDAsKCggIBwUFAwIBAQIDBQUHCAgKCgsMDAwODf00DQ4MDAwLCgoICAcFBQMCAQECAwUFBwgICgoLDAwMDgPrAQIDBQUHCAgKCgsLDA0NDv00Dg0NDAsLCgoICAcFBQMCAQECAwUFBwgICgoLCwwNDQ4CzA4NDQwLCwoKCAgHBQUDAgAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABAA0AAQABAAAAAAACAAcADgABAAAAAAADAA0AFQABAAAAAAAEAA0AIgABAAAAAAAFAAsALwABAAAAAAAGAA0AOgABAAAAAAAKACwARwABAAAAAAALABIAcwADAAEECQAAAAIAhQADAAEECQABABoAhwADAAEECQACAA4AoQADAAEECQADABoArwADAAEECQAEABoAyQADAAEECQAFABYA4wADAAEECQAGABoA+QADAAEECQAKAFgBEwADAAEECQALACQBayBlLWljb25zLW1ldHJvUmVndWxhcmUtaWNvbnMtbWV0cm9lLWljb25zLW1ldHJvVmVyc2lvbiAxLjBlLWljb25zLW1ldHJvRm9udCBnZW5lcmF0ZWQgdXNpbmcgU3luY2Z1c2lvbiBNZXRybyBTdHVkaW93d3cuc3luY2Z1c2lvbi5jb20AIABlAC0AaQBjAG8AbgBzAC0AbQBlAHQAcgBvAFIAZQBnAHUAbABhAHIAZQAtAGkAYwBvAG4AcwAtAG0AZQB0AHIAbwBlAC0AaQBjAG8AbgBzAC0AbQBlAHQAcgBvAFYAZQByAHMAaQBvAG4AIAAxAC4AMABlAC0AaQBjAG8AbgBzAC0AbQBlAHQAcgBvAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0AB2hvbWUtMDELQ2xvc2UtaWNvbnMHbWVudS0wMQR1c2VyB0JUX2luZm8PU2V0dGluZ19BbmRyb2lkDWNoZXZyb24tcmlnaHQMY2hldnJvbi1sZWZ0CE1UX0NsZWFyDE1UX0p1bmttYWlscwRzdG9wAAA=) format('truetype');
        font-weight: normal;
        font-style: normal;
    }

    .main > div {
        padding: 0px !important;
    }
    /* end of sidebar styles */
</style>
