Series in Blazor Smith Chart Component

4 Aug 20213 minutes to read

The SmithChartSeries is the visual representation of the data. Using the following options in the SmithChartSeries, each series can be customized in the Smith Chart.

  • Fill - Used to customize the fill color for the series.
  • Visible - Used to handle the visibility of the series.
  • Opacity - Used to control the opacity of the series line.
  • Width - Used to customize the width of the series line.
@using Syncfusion.Blazor.Charts

<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission" DataSource='TransmissionData'
                          Reactance="Reactance" Resistance="Resistance" Fill="#009933"
                          Visible="true"
                          Opacity="0.75"
                          Width="2.5">
            <SmithChartSeriesMarker Visible='true'>
                <SmithChartSeriesDatalabel Visible='true'></SmithChartSeriesDatalabel>
            </SmithChartSeriesMarker>
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithChartData
    {
        public double? Resistance { get; set; }
        public double? Reactance { get; set; }
    };
    public List<SmithChartData> TransmissionData = new List<SmithChartData> {
        new SmithChartData { Resistance= 10, Reactance= 25 },
        new SmithChartData { Resistance= 6, Reactance= 4.5 },
        new SmithChartData { Resistance= 3.5, Reactance= 1.6 },
        new SmithChartData { Resistance= 2, Reactance= 1.2 },
        new SmithChartData { Resistance= 1, Reactance= 0.8 },
        new SmithChartData { Resistance= 0, Reactance= 0.2 }
    };
}

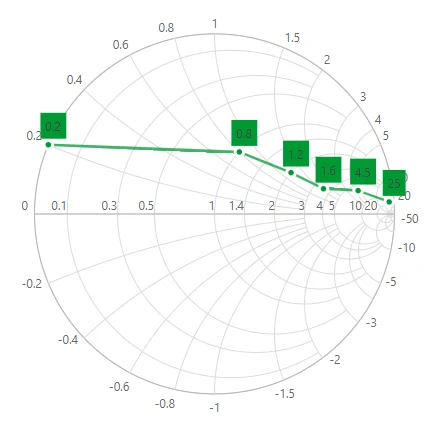

Smith Chart with series customization

Animation

Animation for the Smith Chart series can be enabled by using the EnableAnimation property in the SmithChartSeries. By default, the value is false. The speed of the animation can be controlled using the AnimationDuration property. By default, the value of the AnimationDuration property is 2000 milliseconds.

@using Syncfusion.Blazor.Charts

<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission" DataSource='TransmissionData'
                          Reactance="Reactance" Resistance="Resistance" EnableAnimation="true" AnimationDuration="1500">
            <SmithChartSeriesMarker Visible='true'>
                <SmithChartSeriesDatalabel Visible='true'></SmithChartSeriesDatalabel>
            </SmithChartSeriesMarker>
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithChartData
    {
        public double? Resistance { get; set; }
        public double? Reactance { get; set; }
    };
    public List<SmithChartData> TransmissionData = new List<SmithChartData> {
        new SmithChartData { Resistance= 10, Reactance= 25 },
        new SmithChartData { Resistance= 6, Reactance= 4.5 },
        new SmithChartData { Resistance= 3.5, Reactance= 1.6 },
        new SmithChartData { Resistance= 2, Reactance= 1.2 },
        new SmithChartData { Resistance= 1, Reactance= 0.8 },
        new SmithChartData { Resistance= 0, Reactance= 0.2 }
    };
}
