Tooltip in Blazor Smith Chart Component

1 Feb 20245 minutes to read

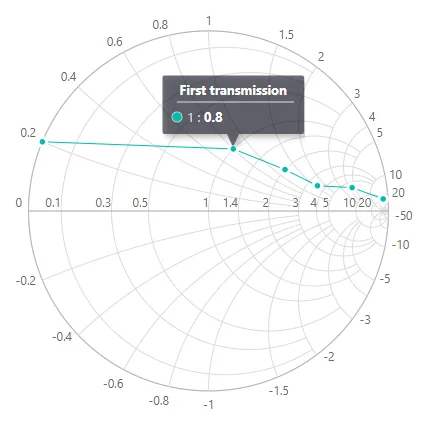

When the mouse is moved over a point in the Smith Chart, a tooltip will appear displaying information about the point. By default, the tooltip is disabled. To enable the tooltip, set the Visible property to true in the SmithChartSeriesTooltip.

@using Syncfusion.Blazor.Charts

<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="First transmission" DataSource='TransmissionData' Reactance="Reactance" Resistance="Resistance">
            <SmithChartSeriesMarker Visible='true'></SmithChartSeriesMarker>
            <SmithChartSeriesTooltip Visible='true'></SmithChartSeriesTooltip>
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithChartData
    {
        public double? Resistance { get; set; }
        public double? Reactance { get; set; }
    };
    public List<SmithChartData> TransmissionData = new List<SmithChartData> {
        new SmithChartData { Resistance= 10, Reactance= 25 },
        new SmithChartData { Resistance= 6, Reactance= 4.5 },
        new SmithChartData { Resistance= 3.5, Reactance= 1.6 },
        new SmithChartData { Resistance= 2, Reactance= 1.2 },
        new SmithChartData { Resistance= 1, Reactance= 0.8 },
        new SmithChartData { Resistance= 0, Reactance= 0.2 }
    };
}

Tooltip Customization

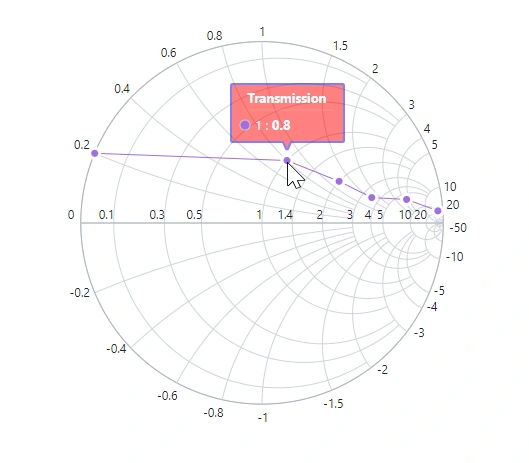

The tooltip can be customized for each series using the following properties.

• Fill - Used to change the fill color of the tooltip.
• Opacity - Used to control the opacity of the tooltip.
• SmithChartSeriesTooltipBorder - Used to customize the width and color of the border using the Width and the Color properties.

@using Syncfusion.Blazor.Charts

<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission" DataSource='TransmissionData' Reactance="Reactance" Resistance="Resistance">
            <SmithChartSeriesMarker Visible='true'></SmithChartSeriesMarker>
            <SmithChartSeriesTooltip Visible='true' Fill="red" Opacity="0.5">
                <SmithChartSeriesTooltipBorder Color="blue" Width="2"></SmithChartSeriesTooltipBorder>
            </SmithChartSeriesTooltip>
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithChartData
    {
        public double? Resistance { get; set; }
        public double? Reactance { get; set; }
    };
    public List<SmithChartData> TransmissionData = new List<SmithChartData> {
        new SmithChartData { Resistance= 10, Reactance= 25 },
        new SmithChartData { Resistance= 6, Reactance= 4.5 },
        new SmithChartData { Resistance= 3.5, Reactance= 1.6 },
        new SmithChartData { Resistance= 2, Reactance= 1.2 },
        new SmithChartData { Resistance= 1, Reactance= 0.8 },
        new SmithChartData { Resistance= 0, Reactance= 0.2 }
    };
}

Tooltip Template

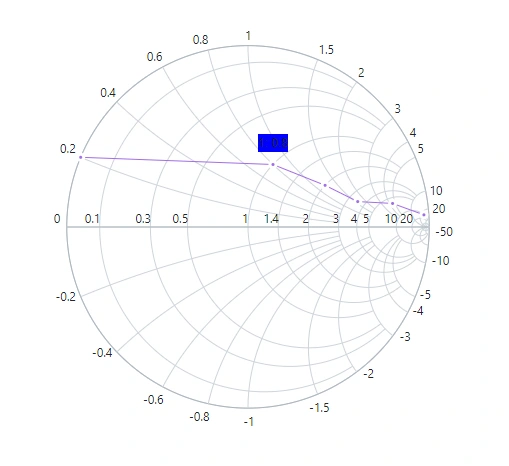

To access the aggregate values inside the template, the implicit named parameter context can be used. The context can be typecast as the SmithChartPoint to get aggregate values inside the template. The tooltip template using the context is as follows.

@using Syncfusion.Blazor.Charts

<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission" DataSource='TransmissionData' Reactance="Reactance" Resistance="Resistance">
            <SmithChartSeriesMarker Visible='true'></SmithChartSeriesMarker>
            <SmithChartSeriesTooltip Visible='true'>
                <Template>
                    @{
                        var data = context as SmithChartPoint;
                    }
                    <div style="background-color: blue">@data.Resistance: @data.Reactance</div>
                </Template>
            </SmithChartSeriesTooltip>
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithChartData
    {
        public double? Resistance { get; set; }
        public double? Reactance { get; set; }
    };
    public List<SmithChartData> TransmissionData = new List<SmithChartData> {
        new SmithChartData { Resistance= 10, Reactance= 25 },
        new SmithChartData { Resistance= 6, Reactance= 4.5 },
        new SmithChartData { Resistance= 3.5, Reactance= 1.6 },
        new SmithChartData { Resistance= 2, Reactance= 1.2 },
        new SmithChartData { Resistance= 1, Reactance= 0.8 },
        new SmithChartData { Resistance= 0, Reactance= 0.2 }
    };
}
