Last Data Label in Blazor Stock Chart Component

8 Sep 20256 minutes to read

The last data label feature highlights the most recent data point in a series by displaying a label along with an indicator line. This enhancement improves visibility and makes it easier to identify the latest value in the stock chart. The label can be enabled and customized using the StockChartLastDataLabel property.

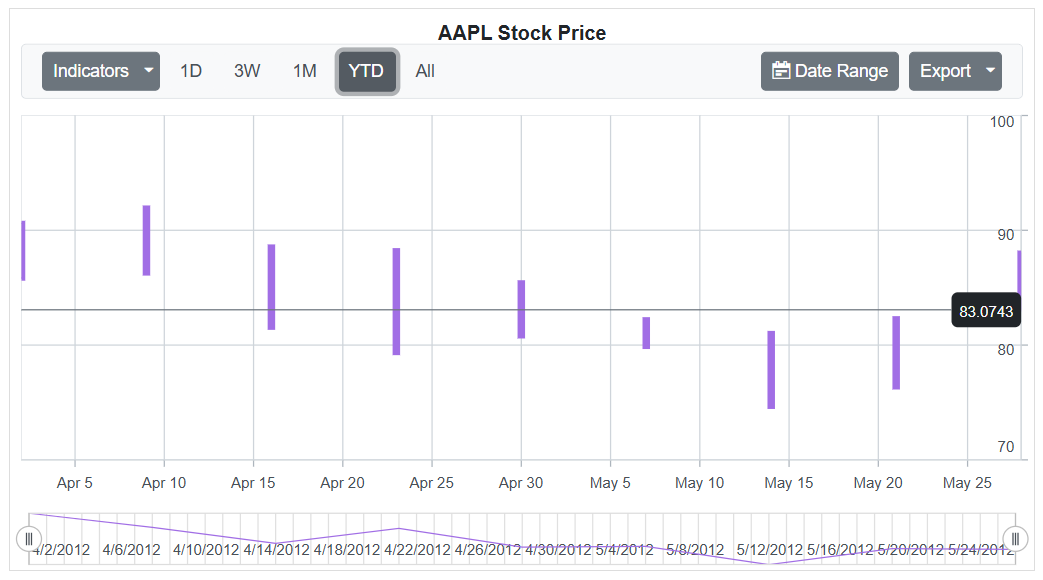

Enable last data label

To enable the last data label, set the ShowLabel property of the StockChartLastDataLabel configuration to true within the series settings.

@using Syncfusion.Blazor.Charts

<SfStockChart Title="AAPL Stock Price">
    <StockChartPrimaryYAxis Interval="10"></StockChartPrimaryYAxis>
    <StockChartSeriesCollection>
        <StockChartSeries DataSource="@StockDetails" Type="ChartSeriesType.Hilo" Width="3" XName="Date" High="High" Low="Low" Open="Open" Close="Close" Volume="Volume">
            <StockChartLastDataLabel ShowLabel="true" ></StockChartLastDataLabel>
        </StockChartSeries>
    </StockChartSeriesCollection>
</SfStockChart>

@code {

    public class ChartData
    {
        public DateTime Date { get; set; }
        public Double Open { get; set; }
        public Double Low { get; set; }
        public Double Close { get; set; }
        public Double High { get; set; }
        public Double Volume { get; set; }
    }

    public List<ChartData> StockDetails = new List<ChartData>
    {
        new ChartData { Date = new DateTime(2012, 04, 02), Open = 85.9757, High = 90.6657, Low = 85.7685, Close = 90.5257, Volume = 660187068 },
        new ChartData { Date = new DateTime(2012, 04, 09), Open = 89.4471, High = 92, Low = 86.2157, Close = 86.4614, Volume = 912634864 },
        new ChartData { Date = new DateTime(2012, 04, 16), Open = 87.1514, High = 88.6071, Low = 81.4885, Close = 81.8543, Volume = 1221746066 },
        new ChartData { Date = new DateTime(2012, 04, 23), Open = 81.5157, High = 88.2857, Low = 79.2857, Close = 86.1428, Volume = 965935749 },
        new ChartData { Date = new DateTime(2012, 04, 30), Open = 85.4, High =  85.4857, Low = 80.7385, Close = 80.75, Volume = 615249365 },
        new ChartData { Date = new DateTime(2012, 05, 07), Open = 80.2143, High = 82.2685, Low = 79.8185, Close = 80.9585, Volume = 541742692 },
        new ChartData { Date = new DateTime(2012, 05, 14), Open = 80.3671, High = 81.0728, Low = 74.5971, Close = 75.7685, Volume = 708126233 },
        new ChartData { Date = new DateTime(2012, 05, 21), Open = 76.3571, High = 82.3571, Low = 76.2928, Close = 80.3271, Volume = 682076215 },
        new ChartData { Date = new DateTime(2012, 05, 28), Open = 81.5571, High = 88.0714, Low = 83.0743, Close = 80.1414, Volume = 480059584 }
    };
}

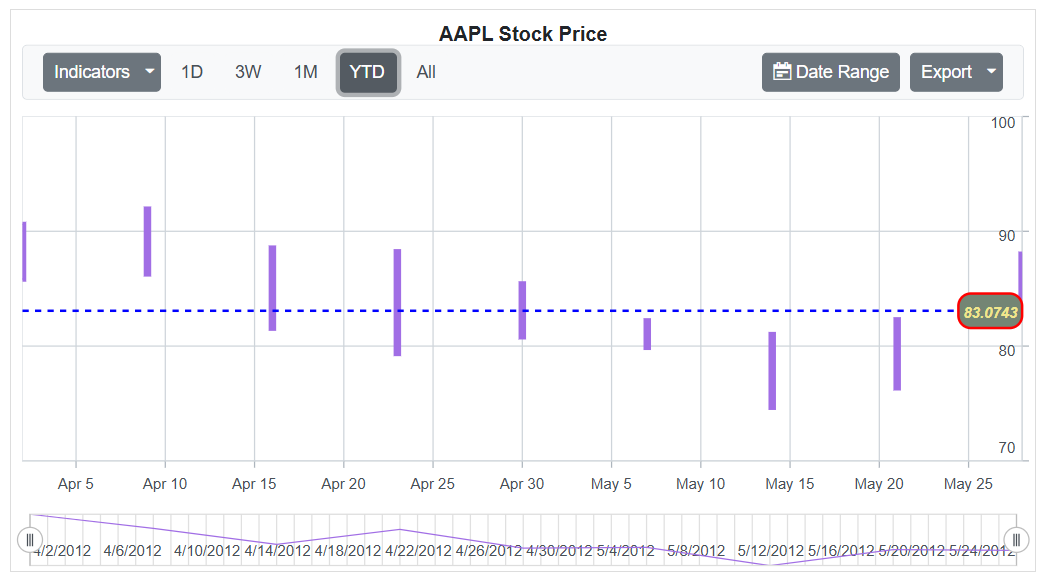

Customization

The appearance of the last data label can be customized using various properties defined across different settings.

In the StockChartLastDataLabel:

• Background: Sets the background color of the last data label container.
• LineColor: Sets the color of the indicator line.
• LineWidth: Sets the width of the indicator line.
• DashArray: Defines the dash pattern of the indicator line.
• Rx: Sets the horizontal corner radius of the label container.
• Ry: Sets the vertical corner radius of the label container.

In the StockChartLastDataLabelBorder:

• Color: Sets the border color of the label container.
• Width: Sets the border width of the label container.

In the StockChartLastDataLabelFont:

• Size: Sets the font size of the label text.
• Color: Sets the font color of the label text.
• FontFamily: Specifies the font family of the label text.
• FontWeight: Sets the font weight of the label text.
• FontStyle: Sets the font style of the label text.

@using Syncfusion.Blazor.Charts

<SfStockChart Title="AAPL Stock Price">
    <StockChartPrimaryYAxis Interval="10"></StockChartPrimaryYAxis>
    <StockChartSeriesCollection>
        <StockChartSeries DataSource="@StockDetails" Type="ChartSeriesType.Hilo" Width="3" XName="Date" High="High" Low="Low" Open="Open" Close="Close" Volume="Volume">
            <StockChartLastDataLabel ShowLabel="true" Background="#748574" LineColor="blue" LineWidth="2" DashArray="5" Rx="10" Ry="10">
                <StockChartLastDataLabelBorder Color="red" Width="2"></StockChartLastDataLabelBorder>
                <StockChartLastDataLabelFont Color="#F0E68C" FontFamily="Arial" FontStyle="Italic" FontWeight="bold" Size="12px"></StockChartLastDataLabelFont>
            </StockChartLastDataLabel>
        </StockChartSeries>
    </StockChartSeriesCollection>
</SfStockChart>

@code {

    public class ChartData
    {
        public DateTime Date { get; set; }
        public Double Open { get; set; }
        public Double Low { get; set; }
        public Double Close { get; set; }
        public Double High { get; set; }
        public Double Volume { get; set; }
    }

    public List<ChartData> StockDetails = new List<ChartData>
    {
        new ChartData { Date = new DateTime(2012, 04, 02), Open = 85.9757, High = 90.6657, Low = 85.7685, Close = 90.5257, Volume = 660187068 },
        new ChartData { Date = new DateTime(2012, 04, 09), Open = 89.4471, High = 92, Low = 86.2157, Close = 86.4614, Volume = 912634864 },
        new ChartData { Date = new DateTime(2012, 04, 16), Open = 87.1514, High = 88.6071, Low = 81.4885, Close = 81.8543, Volume = 1221746066 },
        new ChartData { Date = new DateTime(2012, 04, 23), Open = 81.5157, High = 88.2857, Low = 79.2857, Close = 86.1428, Volume = 965935749 },
        new ChartData { Date = new DateTime(2012, 04, 30), Open = 85.4, High =  85.4857, Low = 80.7385, Close = 80.75, Volume = 615249365 },
        new ChartData { Date = new DateTime(2012, 05, 07), Open = 80.2143, High = 82.2685, Low = 79.8185, Close = 80.9585, Volume = 541742692 },
        new ChartData { Date = new DateTime(2012, 05, 14), Open = 80.3671, High = 81.0728, Low = 74.5971, Close = 75.7685, Volume = 708126233 },
        new ChartData { Date = new DateTime(2012, 05, 21), Open = 76.3571, High = 82.3571, Low = 76.2928, Close = 80.3271, Volume = 682076215 },
        new ChartData { Date = new DateTime(2012, 05, 28), Open = 81.5571, High = 88.0714, Low = 83.0743, Close = 80.1414, Volume = 480059584 }
    };
}
