Column validation in Blazor TreeGrid Component
17 Dec 202324 minutes to read

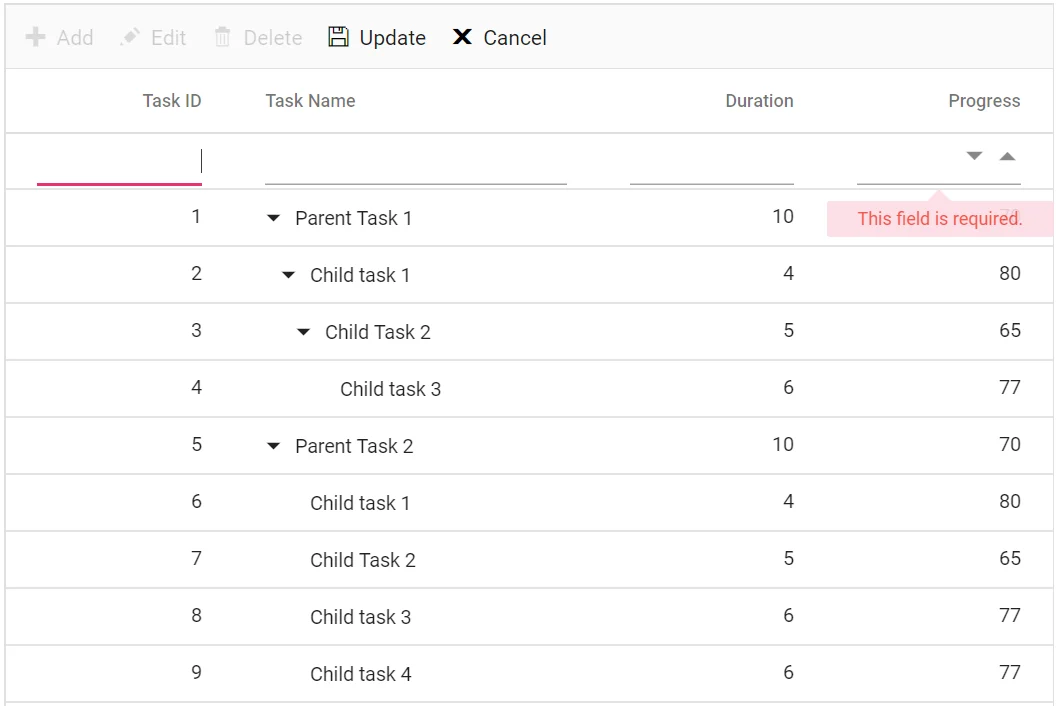

Column validation allows to validate the edited or added row data and it displays errors for invalid fields before saving data. Tree Grid uses Form Validator component for column validation. The validation rules can be set by defining the TreeGridColumn. ValidationRules.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId"
ParentIdMapping="ParentId" TreeColumnIndex="1"
Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true"
ShowDeleteConfirmDialog="true" />
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true"
Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right">
</TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160">
</TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100"
TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right">
</TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100"
ValidationRules="@(new Syncfusion.Blazor.Grids.ValidationRules { Number = true,
Min = 0 })" EditType="Syncfusion.Blazor.Grids.EditType.NumericEdit"
TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right">
</TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<TreeData.BusinessObject> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
public class TreeData
{
public class BusinessObject
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public int? ParentId { get; set;}
}
public static List<BusinessObject> GetSelfDataSource()
{
List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,
TaskName = "Parent Task 1",Duration = 10,Progress = 70,ParentId = null });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,
TaskName = "Child task 1",Progress = 80,ParentId = 1 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,
TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 2 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,
TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 3 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,
TaskName = "Parent Task 2",Duration = 10,Progress = 70,ParentId = null,
IsParent = true,});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,
TaskName = "Child task 1",Duration = 4,Progress = 80,ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,
TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,
TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,
TaskName = "Child task 4",Duration = 6,Progress = 77,ParentId = 5});
return BusinessObjectCollection;
}
}
}

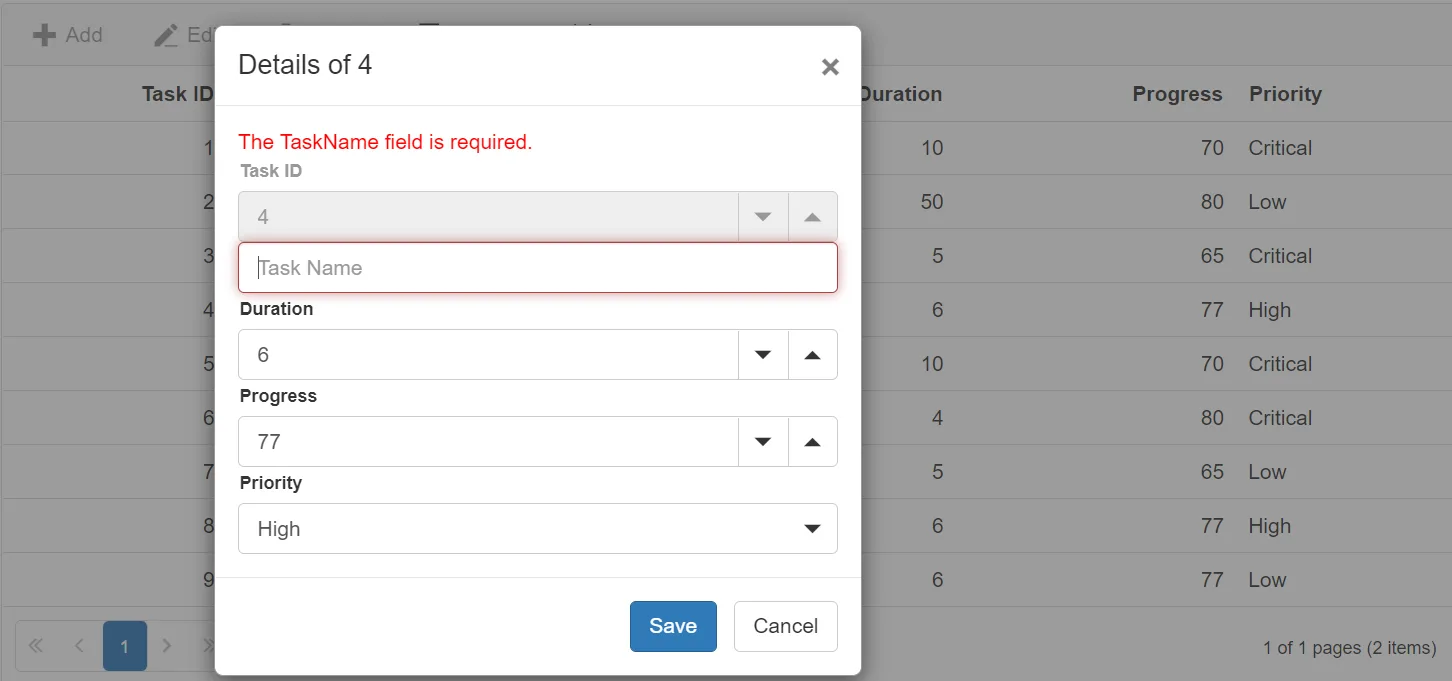

Custom validation
Custom validation allows the users to customize the validations manually according to the user’s criteria.
Custom validation can be used by overriding the IsValid method inside the class that inherits the Validation Attribute. All the validations are done inside the IsValid method. The same class should be set as a attribute to the specific field property of the tree grid’s datasource model class.
The following sample code demonstrates custom validations implemented in the fields Duration
and Priority
.
@using TreeGridComponent. Data;
@using Syncfusion. Blazor. TreeGrid;
@using System. ComponentModel. DataAnnotations;
<SfTreeGrid TValue="BusinessObject" DataSource="@TreeData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="0"
Toolbar="@(new List<string>() { "Edit", "Update", "Cancel" })">
<TreeGridEditSettings Mode="Syncfusion.Blazor.TreeGrid.EditMode.Cell" NewRowPosition="RowPosition.Child"
AllowEditing="true" AllowAdding="true" AllowDeleting="true" ShowDeleteConfirmDialog="true" />
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" IsPrimaryKey="true" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="145"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" EditType="Syncfusion.Blazor.Grids.EditType.NumericEdit" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="100" EditType="Syncfusion.Blazor.Grids.EditType.DefaultEdit" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<BusinessObject> TreeData = new List<BusinessObject>();
protected override void OnInitialized()
{
TreeData.Add(new BusinessObject() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, ParentId = null, Priority = "High" });
TreeData.Add(new BusinessObject() { TaskId = 2, TaskName = "Child task 1", Duration = 4, Progress = 80, ParentId = 1, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, ParentId = 1, Priority = "Critical" });
TreeData.Add(new BusinessObject() { TaskId = 4, TaskName = "Parent Task 2", Duration = 6, Progress = 77, ParentId = null, Priority = "Low" });
TreeData.Add(new BusinessObject() { TaskId = 5, TaskName = "Child Task 5", Duration = 9, Progress = 25, ParentId = 4, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 6, TaskName = "Child Task 6", Duration = 9, Progress = 7, ParentId = 5, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 7, TaskName = "Parent Task 3", Duration = 4, Progress = 45, ParentId = null, Priority = "High" });
TreeData.Add(new BusinessObject() { TaskId = 8, TaskName = "Child Task 7", Duration = 3, Progress = 38, ParentId = 7, Priority = "Critical" });
TreeData.Add(new BusinessObject() { TaskId = 9, TaskName = "Child Task 8", Duration = 7, Progress = 70, ParentId = 7, Priority = "Low" });
}
public class CustomValidationDuration : ValidationAttribute
{
protected override ValidationResult IsValid(object value, ValidationContext validationContext)
{
if (value != null)
{
int duration = (int)value;
if (duration >= 1 && duration <= 20)
{
return ValidationResult.Success;
}
else
{
return new ValidationResult("Duration is not as expected, try between 1 and 20");
}
}
else
{
return new ValidationResult("No Value");
}
}
}
public class CustomValidationPriority : ValidationAttribute
{
protected override ValidationResult IsValid(object value, ValidationContext validationContext)
{
if (value != null)
{
string name = value.ToString();
if (name.Length >= 1 && name.Length <= 7)
{
return ValidationResult.Success;
}
else
{
return new ValidationResult("Priority text length is not as expected");
}
}
else
{
return new ValidationResult("No Value");
}
}
}
}
namespace TreeGridComponent. Data
{
public class BusinessObject
{
[Required]
public int? TaskId { get; set; }
public string TaskName { get; set; }
[CustomValidationDuration]
public int? Duration { get; set; }
public int Progress { get; set; }
[CustomValidationPriority]
public string Priority { get; set; }
public int? ParentId { get; set; }
}
}
Custom validator component
Apart from using default validation and custom validation, there are cases where you might want to use your validator component to validate the tree grid edit form. Such cases can be achieved using the Validator
property of the TreeGridEditSettings
component which accepts a validation component and inject it inside the EditForm
of the tree grid. Inside the Validator
, you can access the data using the implicit named parameter context which is of type ValidatorTemplateContext.
For creating a form validator component you can refer here.
In the below code example, the following things have been done.
- Created a form validator component named
MyCustomValidator
which accepts ValidatorTemplateContext value as parameter. - Used the
MyCustomValidator
component inside theValidator
property. - This validator component will check whether Duration value is in between 0 to 30.
- Displayed the validation error messages using
ValidationMessage
component.
using Microsoft. AspNetCore. Components;
using Microsoft. AspNetCore. Components. Forms;
using Syncfusion. Blazor. Grids;
public class MyCustomValidator : ComponentBase
{
[Parameter]
public ValidatorTemplateContext context { get; set; }
private ValidationMessageStore messageStore;
WeatherForecastService Service = new WeatherForecastService();
[CascadingParameter]
private EditContext CurrentEditContext { get; set; }
protected override void OnInitialized()
{
messageStore = new ValidationMessageStore(CurrentEditContext);
CurrentEditContext.OnValidationRequested += ValidateRequested;
CurrentEditContext.OnFieldChanged += ValidateField;
}
protected void HandleValidation(FieldIdentifier identifier)
{
//validate your requirment column
if (identifier.FieldName.Equals("Duration"))
{
messageStore.Clear(identifier);
if ((context.EditContext.Model as Tree).Duration < 0)
{
messageStore.Add(identifier, "Duration value should be greater than 0");
}
else if ((context.EditContext.Model as Tree).Duration > 30)
{
messageStore.Add(identifier, "Duration value should be less than 30");
}
else
{
messageStore.Clear(identifier);
}
}
if (identifier.FieldName.Equals("TaskId"))
{
messageStore.Clear(identifier);
if ((context.EditContext.Model as Tree).TaskId <= 0 || (context.EditContext.Model as Tree).TaskId == null)
{
messageStore.Add(identifier, "Task ID should not be empty value");
}
else
{
messageStore.Clear(identifier);
}
}
}
protected void ValidateField(object editContext, FieldChangedEventArgs fieldChangedEventArgs)
{
HandleValidation(fieldChangedEventArgs.FieldIdentifier);
}
private void ValidateRequested(object editContext, ValidationRequestedEventArgs validationEventArgs)
{
//here call the filed you want to validate
string[] fields = new string[] { "Duration", "TaskId" };
foreach (var field in fields)
{
HandleValidation(CurrentEditContext.Field(field));
}
}
}
@using TreeGridComponent. Data;
@using Syncfusion. Blazor. TreeGrid;
@inject WeatherForecastService ForecastService
<SfTreeGrid @ref="TreeGrid" TValue="Tree" DataSource="GridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="0"
Toolbar="@(new List<string>() { "Add", "Edit", "Update", "Cancel", "Delete" })">
<TreeGridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true"
Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog">
<Validator>
@{
ValidatorTemplateContext txt = context as ValidatorTemplateContext;
}
<MyCustomValidator context="@txt"></MyCustomValidator>
<ValidationMessage For="@(() => (txt.EditContext.Model as Tree).Duration)"></ValidationMessage>
</Validator>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field=@nameof(Tree.TaskId) HeaderText="Task ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="120"></TreeGridColumn>
<TreeGridColumn Field=@nameof(Tree.Priority) HeaderText="Priority" Width="120"></TreeGridColumn>
<TreeGridColumn Field=@nameof(Tree.Duration) HeaderText="Duration" TextAlign="TextAlign.Right" Width="120"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
SfTreeGrid<Tree> TreeGrid { get; set; }
private List<Tree> GridData;
protected override void OnInitialized()
{
GridData = ForecastService.GetTree();
}
}
namespace TreeGridComponent. Data
{
public class Tree
{
[Required(ErrorMessage = "Task ID should not be empty")]
public int? TaskId { get; set; }
[Required(ErrorMessage = "Task Name should not be empty")]
public string TaskName { get; set; }
public string Priority { get; set; }
public int? Duration { get; set; }
public int? ParentId { get; set; }
}
public static List<Tree> list = new List<Tree>();
public List<Tree> GetTree()
{
if (list.Count == 0)
{
list.Add(new Tree() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, ParentId = null, Priority = "Low" });
list.Add(new Tree() { TaskId = 2, TaskName = "Child task 1", Duration = 4, ParentId = 1, Priority = "Low" });
list.Add(new Tree() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, ParentId = 1, Priority = "Critical" });
list.Add(new Tree() { TaskId = 4, TaskName = "Parent Task 2", Duration = 6, ParentId = null, Priority = "Low" });
list.Add(new Tree() { TaskId = 5, TaskName = "Child Task 5", Duration = 9, ParentId = 4, Priority = "High" });
}
return list;
}
}

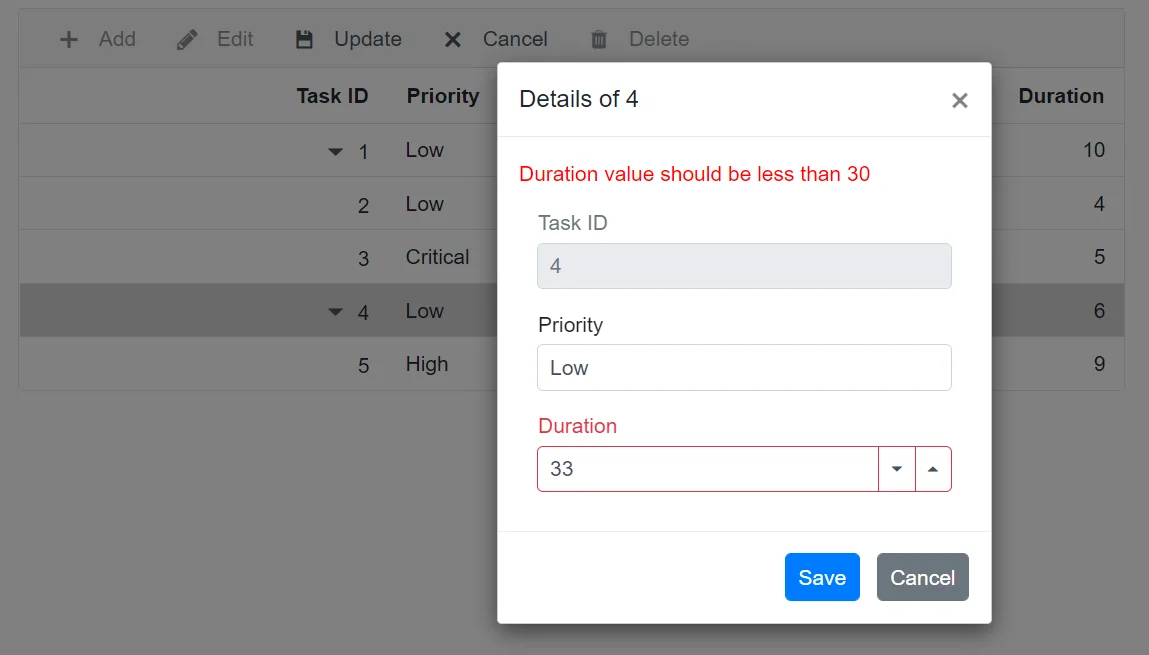

The output will be as follows.
Display validation message using in-built tooltip
In the above code example, you can see that ValidationMessage
component is used, this might be not suitable when using Inline editing or batch editing. In such cases, you can use the in-built validation tooltip to show those error messages by using ValidatorTemplateContext.ShowValidationMessage(fieldName, IsValid, Message)
method.
Now, HandleValidation method of the MyCustomValidator component would be changed like below.
protected void HandleValidation(FieldIdentifier identifier)
{
//validate your requirment column
if (identifier.FieldName.Equals("Duration"))
{
messageStore.Clear(identifier);
if ((context.EditContext.Model as Tree).Duration < 0)
{
messageStore.Add(identifier, "Duration value should be greater than 0");
context.ShowValidationMessage("Duration", false, "Duration value should be greater than 0");
}
else if ((context.EditContext.Model as Tree).Duration > 30)
{
messageStore.Add(identifier, "Duration value should be less than 30");
context.ShowValidationMessage("Duration", false, "Duration value should be less than 30");
}
else
{
messageStore.Clear(identifier);
context.ShowValidationMessage("Duration", true, null);
}
}
}

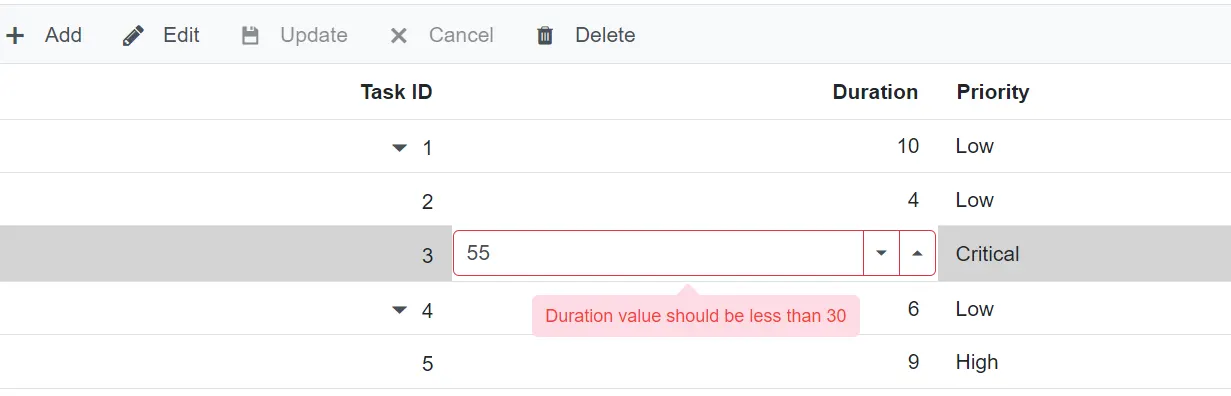

The output will be as follows.
Disable in-built validator component
Validator
property can also be used to disable the in-built validator component used by the tree grid. For instance, by default, the tree grid uses two validator components, DataAnnotationValidator
and an internal ValidationRules property, for handling edit form validation. If you are willing to use only the DataAnnotationValidator
component, then it could be simply achieved by using the Validator
component inside TreeGridEditSettings.
@using TreeGridComponent. Data;
@using Syncfusion. Blazor. TreeGrid;
<SfTreeGrid @ref="TreeGrid" TValue="Tree" DataSource="GridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="0"
Toolbar="@(new List<string>() { "Add", "Edit", "Update", "Cancel", "Delete" })">
<TreeGridEditSettings AllowAdding="true" AllowEditing="true" AllowDeleting="true"
Mode="Syncfusion. Blazor. TreeGrid. EditMode. Dialog">
<Validator>
<DataAnnotationsValidator></DataAnnotationsValidator>
</Validator>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field=@nameof(Tree.TaskId) HeaderText="Task ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="120"></TreeGridColumn>
<TreeGridColumn Field=@nameof(Tree.Priority) HeaderText="Priority" Width="120"></TreeGridColumn>
<TreeGridColumn Field=@nameof(Tree.Duration) HeaderText="Duration" TextAlign="TextAlign.Right" Width="120"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
SfTreeGrid<Tree> TreeGrid { get; set; }
private List<Tree> GridData;
protected override void OnInitialized()
{
GridData = ForecastService.GetTree();
}
}
namespace TreeGridComponent. Data
{
public class Tree
{
[Required(ErrorMessage = "Task ID should not be empty")]
public int? TaskId { get; set; }
[Required(ErrorMessage = "Task Name should not be empty")]
public string TaskName { get; set; }
public string Priority { get; set; }
public int? Duration { get; set; }
public int? ParentId { get; set; }
}
public static List<Tree> list = new List<Tree>();
public List<Tree> GetTree()
{
if (list.Count == 0)
{
list.Add(new Tree() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, ParentId = null, Priority = "Low" });
list.Add(new Tree() { TaskId = 2, TaskName = "Child task 1", Duration = 4, ParentId = 1, Priority = "Low" });
list.Add(new Tree() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, ParentId = 1, Priority = "Critical" });
list.Add(new Tree() { TaskId = 4, TaskName = "Parent Task 2", Duration = 6, ParentId = null, Priority = "Low" });
list.Add(new Tree() { TaskId = 5, TaskName = "Child Task 5", Duration = 9, ParentId = 4, Priority = "High" });
}
return list;
}
}
Display validation message in dialog template
Use the form validation to display a validation message for a column that is not defined in the tree grid column.
Use the Validator property to display a validation message for one of the fields in the dialog template that is not defined in the tree grid column.
In the below example, the TaskName field is not defined in the tree grid column and the validation message for the TaskName is displayed in the dialog template.
NOTE
The validation message for fields that are not defined in the tree grid column will be shown as the validation summary (top of the dialog edit form) in the dialog edit form.
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Grids;
@using Syncfusion.Blazor.DropDowns;
@using Syncfusion.Blazor.Inputs;
@using System.ComponentModel.DataAnnotations
<SfTreeGrid DataSource="@TreeGridData" AllowPaging="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
<TreeGridEvents TValue="TreeData" RowCreated="RowCreatedEventHandler"></TreeGridEvents>
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog" NewRowPosition="RowPosition.Child">
<Validator>
<DataAnnotationsValidator></DataAnnotationsValidator>
</Validator>
<Template>
@{
var employee = (context as TreeData);
}
<div>
<ValidationMessage For="() => employee.TaskName" />
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="TaskId" @bind-Value="@(employee.TaskId)" Enabled="@Check" FloatLabelType="FloatLabelType.Always" Placeholder="Task ID"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfAutoComplete TItem="TreeData" ID="TaskName" @bind-Value="@(employee.TaskName)" TValue="string" DataSource="@TreeGridData" Placeholder="Task Name">
<AutoCompleteFieldSettings Value="TaskName"></AutoCompleteFieldSettings>
</SfAutoComplete>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="Duration" @bind-Value="@(employee.Duration)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Duration"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfNumericTextBox ID="Progress" @bind-Value="@(employee.Progress)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Progress"></SfNumericTextBox>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfDropDownList ID="Priority" TItem="TreeData" @bind-Value="@(employee.Priority)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Priority">
<DropDownListFieldSettings Value="Priority" Text="Priority"></DropDownListFieldSettings>
</SfDropDownList>
</div>
</div>
</div>
</Template>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
<style>
.form-group.col-md-6 {
width: 400px;
}
label.e-float-text {
position: relative;
padding-left: 0;
top: 10%;
}
</style>
@code {
private Boolean Check = false;
public List<TreeData> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
private void RowCreatedEventHandler(RowCreatedEventArgs<TreeData> args)
{
Check = true;
}
public class TreeData
{
public int TaskId { get; set; }
[Required]
public string TaskName { get; set; }
public int? Duration { get; set; }
public int? Progress { get; set; }
public string Priority { get; set; }
public int? ParentId { get; set; }
public static List<TreeData> GetSelfDataSource()
{
List<TreeData> TreeDataCollection = new List<TreeData>();
TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
return TreeDataCollection;
}
}
}
