Template Editing in Blazor Tree Grid Component
29 Feb 202424 minutes to read
Dialog template
To know about customizing the Dialog Template in Blazor tree grid component, you can check this video.

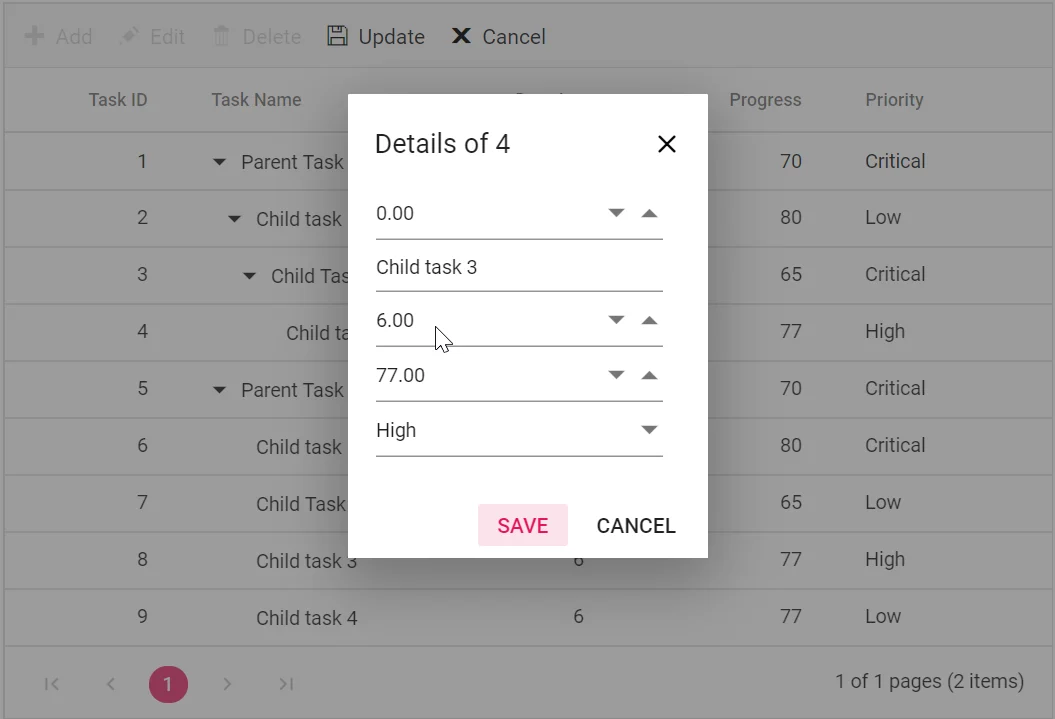

The dialog template editing provides an option to customize the default behavior of dialog editing. Using the dialog template, render your own editors by defining the TreeGridEditSettings.Mode as Dialog and Template using the Template of the TreeGridEditSettings.
In some cases, the new field editors must be added in the dialog which are not present in the column model. In that situation, the dialog template will help to customize the default edit dialog.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.DropDowns;
<SfTreeGrid DataSource="@TreeGridData" AllowPaging="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
<TreeGridEvents TValue="TreeData" RowCreated="RowCreatedHandler"></TreeGridEvents>
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog" NewRowPosition="RowPosition.Child">
<Template>
@{
var employee = (context as TreeData);
}
<div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="TaskId" @bind-Value="@(employee.TaskId)" Enabled="@Check" FloatLabelType="FloatLabelType.Always" Placeholder="Task ID"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfAutoComplete TItem="TreeData" ID="TaskName" @bind-Value="@(employee.TaskName)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Task Name">
<AutoCompleteFieldSettings Value="TaskName"></AutoCompleteFieldSettings>
</SfAutoComplete>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="Duration" @bind-Value="@(employee.Duration)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Duration"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfNumericTextBox ID="Progress" @bind-Value="@(employee.Progress)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Progress"></SfNumericTextBox>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfDropDownList ID="Priority" TItem="TreeData" @bind-Value="@(employee.Priority)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Priority">
<DropDownListFieldSettings Value="Priority" Text="Priority"></DropDownListFieldSettings>
</SfDropDownList>
</div>
</div>
</div>
</Template>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
private Boolean Check = false;
public List<TreeData> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
public void RowCreatedHandler(RowCreatedEventArgs<TreeData.BusinessObject> args)
{
Check = true;
}
}namespace TreeGridComponent.Data {
public class TreeData
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
public static List<TreeData> GetSelfDataSource()
{
List<TreeData> TreeDataCollection = new List<TreeData>();
TreeDataCollection.Add(new TreeData() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",Duration = 50,ParentId = 1 });
TreeDataCollection.Add(new TreeData() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
TreeDataCollection.Add(new TreeData() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
TreeDataCollection.Add(new TreeData() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return TreeDataCollection;
}
}
}
NOTE
The template form editors should have name attribute.
Disable components in dialog template
It is possible to disable particular components rendered inside the dialog template using the data source value. This can be achieved by utilizing the Enabled property of the components which specifies whether the component is enabled or disabled.
This is demonstrated in the following sample code, by using BeforeRowEditing event, the Enabled property of the TaskId and TaskName Textbox is set to false.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Calendars
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Inputs
@using Syncfusion.Blazor.Grids;
<SfTreeGrid DataSource="@TreeGridData" AllowPaging="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
<TreeGridEvents TValue="TreeData" BeforeRowEditing="BeforeRowEditingHandler"></TreeGridEvents>
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog" NewRowPosition="RowPosition.Child">
<Template>
@{
var employee = (context as TreeData);
}
<div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="TaskId" @bind-Value="@(employee.TaskId)" Enabled="@Enabled" FloatLabelType="FloatLabelType.Always" Placeholder="Task ID"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfAutoComplete TItem="TreeData" ID="TaskName" Enabled="@Enabled" @bind-Value="@(employee.TaskName)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Task Name">
<AutoCompleteFieldSettings Value="TaskName"></AutoCompleteFieldSettings>
</SfAutoComplete>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="Duration" @bind-Value="@(employee.Duration)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Duration"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfNumericTextBox ID="Progress" @bind-Value="@(employee.Progress)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Progress"></SfNumericTextBox>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfDropDownList ID="Priority" TItem="TreeData" @bind-Value="@(employee.Priority)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Priority">
<DropDownListFieldSettings Value="Priority" Text="Priority"></DropDownListFieldSettings>
</SfDropDownList>
</div>
</div>
</div>
</Template>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public bool Enabled = true;
public List<TreeData> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
public void BeforeRowEditingHandler(OnRowEditStartEventArgs args)
{
// The Textbox component is disabled using its Enabled property
this.Enabled = false;
}
}
<style>
.form-group.col-md-6 {
width: 200px;
}
label.e-float-text {
position: relative;
padding-left: 0;
top: 10%;
}
</style>namespace TreeGridComponent.Data {
public class TreeData
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
public static List<TreeData> GetSelfDataSource()
{
List<TreeData> TreeDataCollection = new List<TreeData>();
TreeDataCollection.Add(new TreeData() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",Duration = 50,ParentId = 1 });
TreeDataCollection.Add(new TreeData() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
TreeDataCollection.Add(new TreeData() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
TreeDataCollection.Add(new TreeData() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return TreeDataCollection;
}
}

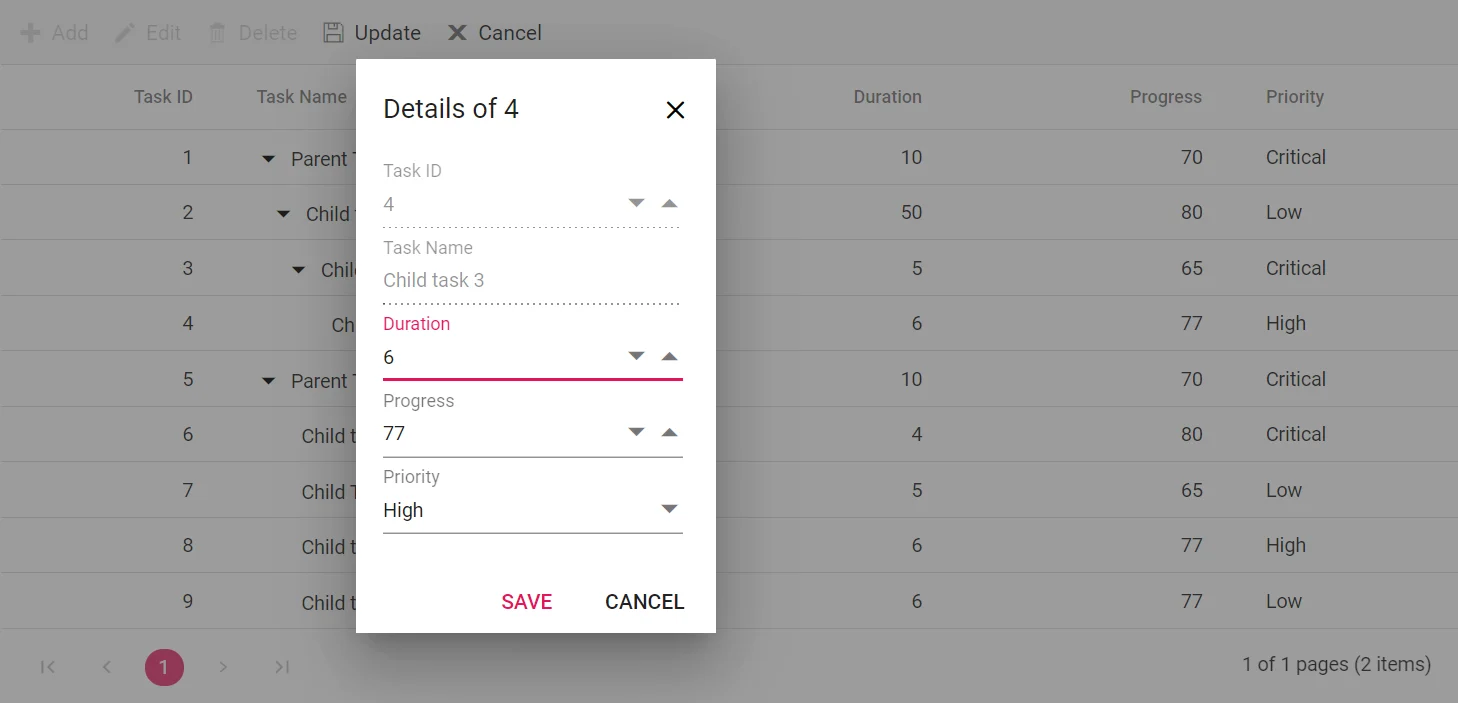

}The following image represents the dialog template of the tree grid component with the disabled components,
Set focus to editor
By default, the first input element in the dialog will be focused while opening it. If the first input element is in a disabled or hidden state, set focus to the required input element in the corresponding components Created or DataBound event.
In the following sample code, the first input element is in a disabled state. So the TaskName edit field is focused by invoking its FocusIn method in the AutoComplete’s DataBound event.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Calendars
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Inputs
@using Syncfusion.Blazor.Grids;
<SfTreeGrid DataSource="@TreeGridData" AllowPaging="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog" NewRowPosition="RowPosition.Child">
<Template>
@{
var employee = (context as TreeData);
}
<div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="TaskId" @bind-Value="@(employee.TaskId)" Enabled="@((employee.TaskId == null) ? true : false)" Placeholder="Task ID"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfAutoComplete TItem="TreeData" ID="TaskName" @bind-Value="@(employee.TaskName)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Task Name">
<AutoCompleteFieldSettings Value="TaskName"></AutoCompleteFieldSettings>
<AutoCompleteEvents TValue="string" TItem="TreeData" DataBound="FocusAutoComplete"></AutoCompleteEvents>
</SfAutoComplete>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfNumericTextBox ID="Duration" @bind-Value="@(employee.Duration)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Duration"></SfNumericTextBox>
</div>
<div class="form-group col-md-6">
<SfNumericTextBox ID="Progress" @bind-Value="@(employee.Progress)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Progress"></SfNumericTextBox>
</div>
</div>
<div class="form-row">
<div class="form-group col-md-6">
<SfDropDownList ID="Priority" TItem="TreeData" @bind-Value="@(employee.Priority)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Priority">
<DropDownListFieldSettings Value="Priority" Text="Priority"></DropDownListFieldSettings>
</SfDropDownList>
</div>
</div>
</div>
</Template>
</TreeGridEditSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
SfAutoComplete<string, TreeData> AutoComplete { get; set; }
public List<TreeData> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
private async Task FocusAutoComplete() {
await this.AutoComplete.FocusIn();
}
}
<style>
.form-group.col-md-6 {
width: 200px;
}
label.e-float-text {
position: relative;
padding-left: 0;
top: 10%;
}
</style>namespace TreeGridComponent.Data {
public class TreeData
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
public static List<TreeData> GetSelfDataSource()
{
List<TreeData> TreeDataCollection = new List<TreeData>();
TreeDataCollection.Add(new TreeData() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",Duration = 50,ParentId = 1 });
TreeDataCollection.Add(new TreeData() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
TreeDataCollection.Add(new TreeData() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
TreeDataCollection.Add(new TreeData() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
TreeDataCollection.Add(new TreeData() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
TreeDataCollection.Add(new TreeData() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return TreeDataCollection;
}
}
}The following image represents the AutoComplete component in a focused state inside the dialog template of the tree grid component,
