Blazor TreeGrid Filter Menu

6 Aug 202624 minutes to read

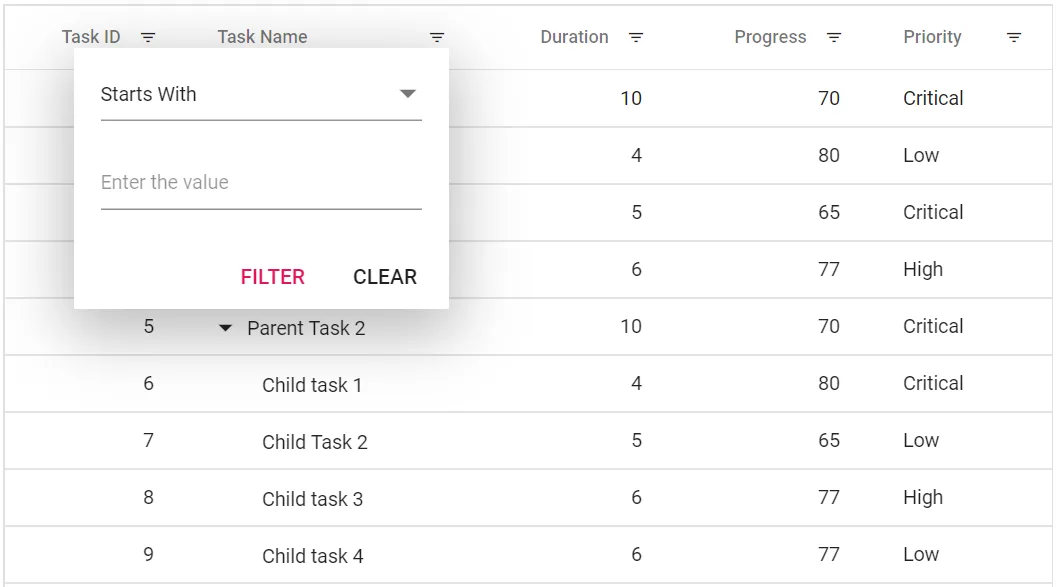

The filter menu can be enabled by setting the Type of FilterSettings as Menu. The filter menu UI will be rendered based on its column type, which allows to filter data. The records can be filtered with different operators.

RAZOR
C#
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.TreeGrid;
@using  Syncfusion.Blazor.Data;

<SfTreeGrid IdMapping="TaskId" DataSource="@TreeGridData" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowFiltering="true">
    <TreeGridFilterSettings HierarchyMode="@FilterHierarchyMode.Parent" Type="Syncfusion.Blazor.TreeGrid.FilterType.Menu"></TreeGridFilterSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{

    public List<BusinessObject> TreeGridData { get; set; }

    protected override void OnInitialized()
    {
        this.TreeGridData = BusinessObject.GetSelfDataSource().ToList();
    }
}
namespace TreeGridComponent.Data {

        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

NOTE

AllowFiltering must be set as true to enable filter menu.

* Setting AllowFiltering property of TreeGridColumn as false will prevent filter menu rendering for a particular column.

The FilterTemplate property of [Column] is used to add custom filter components to a particular column. In the following sample the FilterTemplate property is used to add custom components to a particular column. To access the filtered values inside the FilterTemplate, you can use the implicit named parameter context. You can type cast the context as PredicateModel<T> to get filter values inside template.

In the following sample, dropdown is used as custom component in the Duration column.

RAZOR
C#
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Grids

<SfTreeGrid @ref="TreeGrid"
            DataSource="@TreeGridData"
            IdMapping="TaskId"
            ParentIdMapping="ParentId"
            TreeColumnIndex="1"
            AllowFiltering="true">

    <TreeGridFilterSettings Type="Syncfusion.Blazor.TreeGrid.FilterType.Menu"></TreeGridFilterSettings>

    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="TextAlign.Right" />
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="150" />
        <TreeGridColumn Field="StartDate" HeaderText="Start Date" Width="120" TextAlign="TextAlign.Right" />

        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="TextAlign.Right">
            <FilterTemplate>
                @{

                    var predicate = context as PredicateModel;

                    // PredicateModel.Value is object, might be int/int?/string.
                    int? current = null;
                    if (predicate?.Value is int i) current = i;
                    else if (predicate?.Value is int ni) current = ni;
                    else if (predicate?.Value != null && int.TryParse(predicate.Value.ToString(), out var parsed))
                        current = parsed;
                }
                <SfDropDownList TValue="int?"
                                TItem="DropItem"
                                DataSource="@DropDownData"
                                Placeholder="Select"
                                Value="@current">

                    <DropDownListFieldSettings Text="Text" Value="Value"></DropDownListFieldSettings>

                    <DropDownListEvents TValue="int?"
                                        TItem="DropItem"
                                        ValueChange="@OnDurationChange">
                    </DropDownListEvents>
                </SfDropDownList>
            </FilterTemplate>
        </TreeGridColumn>

        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="TextAlign.Right" />
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80" />
    </TreeGridColumns>
</SfTreeGrid>

@code {
    private SfTreeGrid<BusinessObject>? TreeGrid;

    public List<BusinessObject> TreeGridData { get; set; } = new();

    // Dropdown items: int? so we can represent "All" as null
    public class DropItem
    {
        public string Text { get; set; } = "";
        public int? Value { get; set; }
    }

    public List<DropItem> DropDownData { get; set; } = new();

    protected override void OnInitialized()
    {
        TreeGridData = BusinessObject.GetSelfDataSource().ToList();

        DropDownData = new List<DropItem>
        {
            new() { Text = "10", Value = 10 },
            new() { Text = "50", Value = 50 },
            new() { Text = "5",  Value = 5  },
            new() { Text = "6",  Value = 6  },
            new() { Text = "4",  Value = 4  },
            new() { Text = "All", Value = null } // null => clear filter
        };
    }

    private async Task OnDurationChange(ChangeEventArgs<int?, DropItem> args)
    {
        if (TreeGrid is null) return;

        // "All" clears Duration filter
        if (args?.Value is null)
        {
            await TreeGrid.ClearFilteringAsync(new List<string> { "Duration" });
            return;
        }

        await TreeGrid.FilterByColumnAsync("Duration", "equal", args.Value);
    }
}
namespace TreeGridComponent.Data {

        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

The default filter operators for a GridColumn can be overridden by using the FilterDialogOpening event of the tree grid. In the below code, we have overridden the filter operators for the TaskName column.

RAZOR
C#
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.TreeGrid;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.Data;

<SfTreeGrid IdMapping="TaskId" DataSource="@TreeGridData" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowFiltering="true">
    <TreeGridEvents FilterDialogOpening="FilterDialogOpeningHandler" TValue="BusinessObject"></TreeGridEvents>
    <TreeGridFilterSettings Type="Syncfusion.Blazor.TreeGrid.FilterType.Menu"></TreeGridFilterSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{

    public List<BusinessObject> TreeGridData { get; set; }

    public class Operators : IFilterOperator
    {
        public string Value { get; set; }
        public string Text { get; set; }
    }

    private readonly List<IFilterOperator> taskNameOperators = new()
    {
        new Operators { Text = "Equal",    Value = "equal" },
        new Operators { Text = "Contains", Value = "contains" }
    };

    public void FilterDialogOpeningHandler(FilterDialogOpeningEventArgs args)
    {

        if (args.ColumnName == "TaskName")
        {
            args.FilterOperators = taskNameOperators;
        }
    }

    protected override void OnInitialized()
    {
        this.TreeGridData = BusinessObject.GetSelfDataSource().ToList();
    }
}
namespace TreeGridComponent.Data {

        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Grids;
@using Syncfusion.Blazor.Data;

<SfTreeGrid IdMapping="TaskId" DataSource="@TreeGridData" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowFiltering="true">
    <TreeGridEvents FilterDialogOpening="FilterDialogOpeningHandler" TValue="BusinessObject"></TreeGridEvents>
    <TreeGridFilterSettings Type="Syncfusion.Blazor.TreeGrid.FilterType.Menu"></TreeGridFilterSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code {
    public List<BusinessObject> TreeGridData { get; set; }

    public class Operators : IFilterOperator
    {
        public string Value { get; set; }
        public string Text { get; set; }
    }

    private readonly List<IFilterOperator> CustomerIDOperator = new()
    {
        new Operators { Text = "Equal",    Value = "equal" },
        new Operators { Text = "Contains", Value = "contains" }
    };

    public void FilterDialogOpeningHandler(FilterDialogOpeningEventArgs args)
    {
        if (args.ColumnName == "TaskName")//Specify Field name
        {
            args.FilterOperators = CustomerIDOperator;
        }
    }

    protected override void OnInitialized()
    {
        this.TreeGridData = BusinessObject.GetSelfDataSource().ToList();
    }

    public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

Enable different filter for a column

Both the Menu and Excel filter can be used in a same Tree Grid. To do so, set the type as Menu or Excel using the Filter property of the TreeGridColumn.

In the following sample menu filter is enabled by default and excel filter is enabled for the TaskName column using the Filter property of TreeGridColumn.

RAZOR
C#
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.TreeGrid;
@using  Syncfusion.Blazor.Data;

<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowFiltering="true">
    <TreeGridFilterSettings HierarchyMode="FilterHierarchyMode.None" Type="Syncfusion.Blazor.TreeGrid.FilterType.Excel"></TreeGridFilterSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" FilterSettings="@(new Syncfusion.Blazor.Grids.FilterSettings{ Type = Syncfusion.Blazor.Grids.FilterType.Menu })" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="100"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="100" FilterSettings="@(new Syncfusion.Blazor.Grids.FilterSettings{ Type = Syncfusion.Blazor.Grids.FilterType.Menu })"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{

    public List<BusinessObject> TreeGridData { get; set; }

    protected override void OnInitialized()
    {
        this.TreeGridData = BusinessObject.GetSelfDataSource().ToList();
    }
}
namespace TreeGridComponent.Data {

        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

Limitations of using different filter types in different columns

The different filter types such as Excel, Menu can be defined in different columns of the same tree grid. However, you cannot use these filter types along with filterBar type (default filter type). Because the filterbar type requires UI level changes with other filter types. For all other filter types, icons will be rendered in the column header.

Search docs

Ask Syncfusion AI Assistant

Search docs

Ask Syncfusion AI Assistant

Filter Menu in Blazor TreeGrid

Custom component in filter menu

Override default filter operators for menu filtering

Enable different filter for a column

Limitations of using different filter types in different columns
