You can calculate the values for a Tree Grid column based on other column values by using the context parameter in the Template
property of the TreeGridColumn
component. Inside the Template
, you can access the column values using the implicit named parameter context and then calculate the values for the new column as required.
This is demonstrated in the below sample code where the value for Resources column is calculated based on the values of Duration and Progress columns,
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.Grids;
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" AllowPaging="true" TreeColumnIndex="1" AllowSorting="true">
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="85"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="60"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="60" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="60" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Resources" HeaderText="Resources" Width="70" Format="C2" TextAlign="TextAlign.Right">
<Template>
@{
var value = (context as TreeData);
var finalValue = value.Duration + value.Progress;
<p>$@finalValue</p>
}
</Template>
</TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
SfTreeGrid<TreeData> TreeGrid;
public List<TreeData> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
}
namespace TreeGridComponent.Data {
public class TreeData
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public int? Duration { get; set; }
public int? Progress { get; set; }
public string Priority { get; set; }
public int? ParentId { get; set; }
public static List<TreeData> GetSelfDataSource()
{
List<TreeData> TreeDataCollection = new List<TreeData>();
TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
return TreeDataCollection;
}
}
}

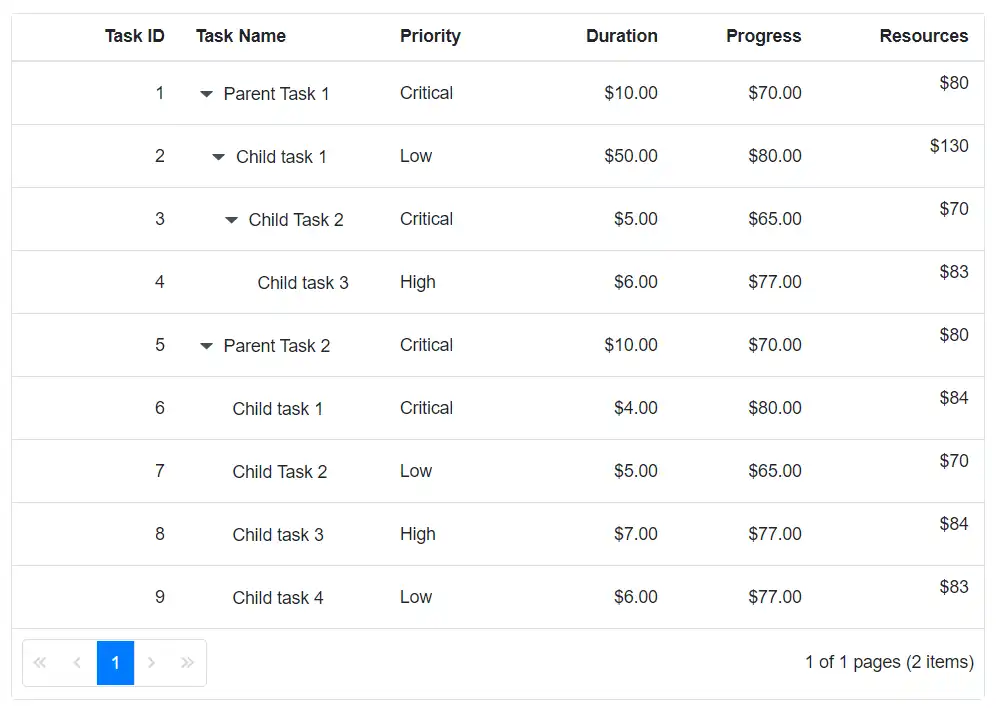

The following image represents the output of the above sample code,
