Custom control in Tree Grid toolbar in Blazor TreeGrid component

03 Aug 2021 / 1 minute to read

You can render custom controls inside the Tree Grid’s toolbar area. This can be achieved by initializing the custom controls within the Template property of the Toolbar component. This toolbar component is defined inside the Tree Grid component.

This is demonstrated in the below sample code where Autocomplete component is rendered inside the Tree Grid’s toolbar and is used for performing search operation on the Tree Grid,

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.DropDowns;
@using Syncfusion.Blazor.Navigations;


<SfTreeGrid @ref="TreeGrid" DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId"
       TreeColumnIndex="1" AllowPaging="true">
        <TreeGridPageSettings PageSize="8"></TreeGridPageSettings>
        <SfToolbar>
            <ToolbarItems>
                <ToolbarItem Type="ItemType.Input">
                    <Template>
                        <SfAutoComplete Placeholder="Search Task Name" TItem="TaskDetails" TValue="string" DataSource="@TaskNames">
                            <AutoCompleteEvents ValueChange="OnSearch" TValue="string" TItem="TaskDetails"></AutoCompleteEvents>
                            <AutoCompleteFieldSettings Value="Name"></AutoCompleteFieldSettings>
                        </SfAutoComplete>
                    </Template>
                </ToolbarItem>
            </ToolbarItems>
        </SfToolbar>
        <TreeGridColumns>
            <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="70" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
            <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="85">
            </TreeGridColumn>
            <TreeGridColumn Field="Priority" HeaderText="Priority" Width="70">
            </TreeGridColumn>
            <TreeGridColumn Field="Duration" HeaderText="Duration" Width="70" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right">
            </TreeGridColumn>
            <TreeGridColumn Field="Progress" HeaderText="Progress" Width="70" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        </TreeGridColumns>
    </SfTreeGrid>

    @code{
        SfTreeGrid<TreeData> TreeGrid;

        public List<TreeData> TreeGridData { get; set; }

        public class TaskDetails
        {
            public string Name { get; set; }

            public int Id { get; set; }
        }

        List<TaskDetails> TaskNames = new List<TaskDetails>
        {
            new TaskDetails() { Name = "Parent Task 1", Id = 1 },
            new TaskDetails() { Name = "Parent Task 2", Id = 2 },
            new TaskDetails() { Name = "Child task 1", Id = 3 },
            new TaskDetails() { Name = "Child Task 2", Id = 4 },
            new TaskDetails() { Name = "Child task 3", Id = 5 },
            new TaskDetails() { Name = "Child task 4", Id = 6 }
        };
        protected override void OnInitialized()
        {
            this.TreeGridData = TreeData.GetSelfDataSource().ToList();
        }
        public void OnSearch(Syncfusion.Blazor.DropDowns.ChangeEventArgs<string, TaskDetails> args)
        {
            this.TreeGrid.Search(args.Value);
        }
    }
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

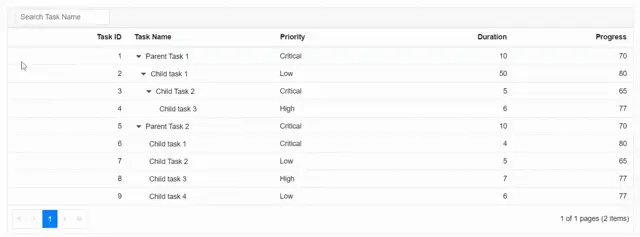

The following GIF represents the search operation performed on the Tree Grid using the Autocomplete component rendered in the toolbar,

Custom control in toolbar
