Custom toolbar items with text name same as default toolbar items in Blazor TreeGrid component

03 Aug 2021 / 1 minute to read

You can create the Custom toolbar items with text name same as default toolbar items (Add,Edit,Delete,etc.). But while creating them, they will be considered as default toolbar items which will cause some issues while clicking on it. To overcome this behavior, we suggest you to define the Id property for custom toolbar items.

This is demonstrated in the below sample code where we have custom toolbar items with text same as Add and Delete buttons. These toolbar buttons will be enabled only when TreeGridEditSettings is defined in TreeGrid. So custom toolbar will be disabled state considering it as default toolbar item. We have overcome that behaviour by defining the Id property.

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;

@{
    List<Syncfusion.Blazor.Navigations.ItemModel> Toolbaritems = new List<Syncfusion.Blazor.Navigations.ItemModel>();
    Toolbaritems.Add(new Syncfusion.Blazor.Navigations.ItemModel() { Text = "Add", Id = "add", TooltipText = "Add Record", PrefixIcon = "add" });
    Toolbaritems.Add(new Syncfusion.Blazor.Navigations.ItemModel() { Text = "Delete", Id = "delete", TooltipText = "Delete Record", PrefixIcon = "delete" });
}
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" AllowPaging="true"
            TreeColumnIndex="1" Toolbar="Toolbaritems">
    <TreeGridEvents OnToolbarClick="ToolbarClickHandler" TValue="TreeData"></TreeGridEvents>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="85"></TreeGridColumn>
        <TreeGridColumn Field="Resources" HeaderText="Resource" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duation" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="70"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    SfTreeGrid<TreeData> TreeGrid;

    public List<TreeData> TreeGridData { get; set; }
    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
    public void ToolbarClickHandler(Syncfusion.Blazor.Navigations.ClickEventArgs args)
    {
        if (args.Item.Text == "Add")
        {
            //perform your actions here
        }
        if (args.Item.Text == "Delete")
        {
            //perform your actions here
        }
    }
}
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

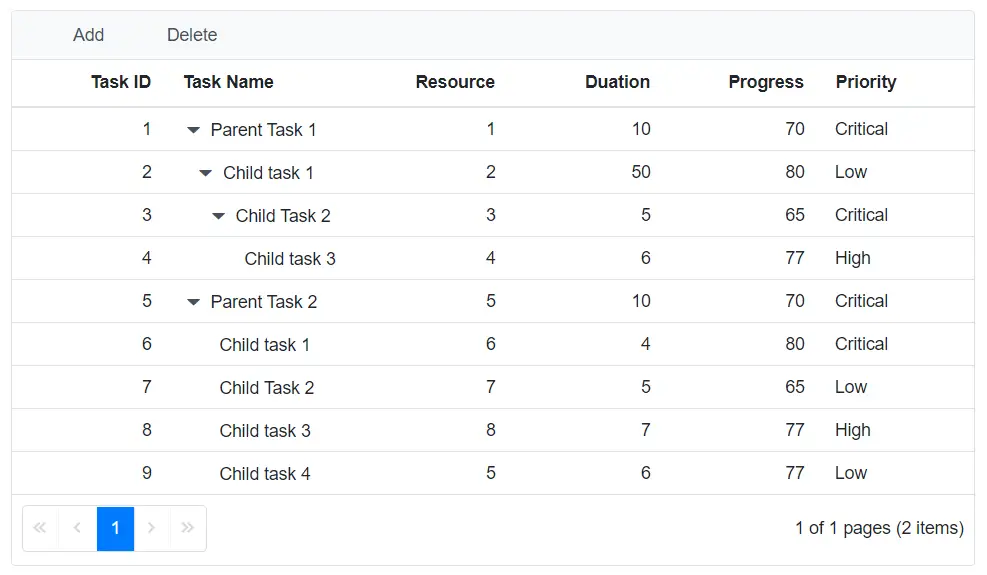

Output be like the below.

`Final output`
